Centerforce · 838264042

Part #: 838264042
UPC: 788442031430

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: TRIAD XDS Triple Disc Clutch Kits

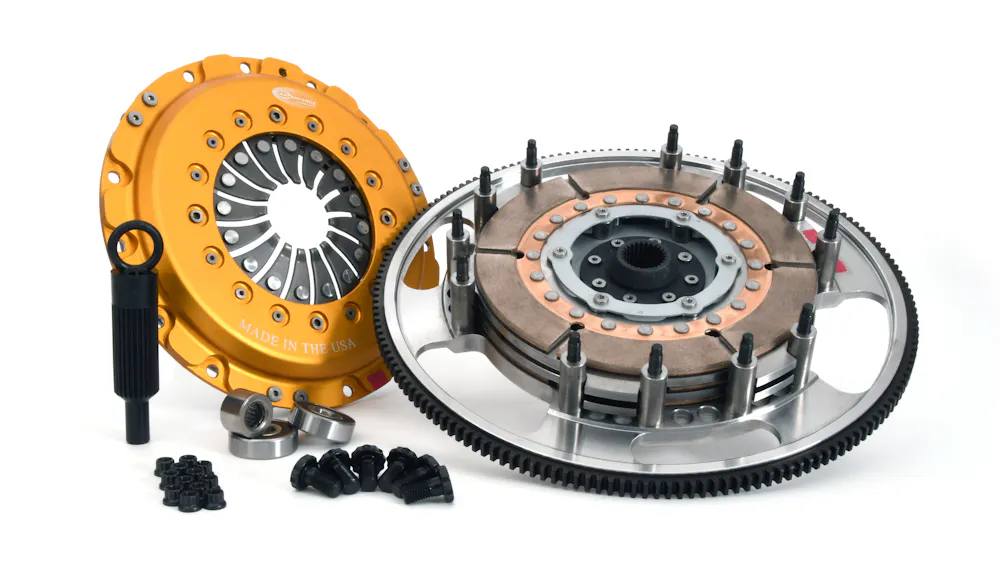

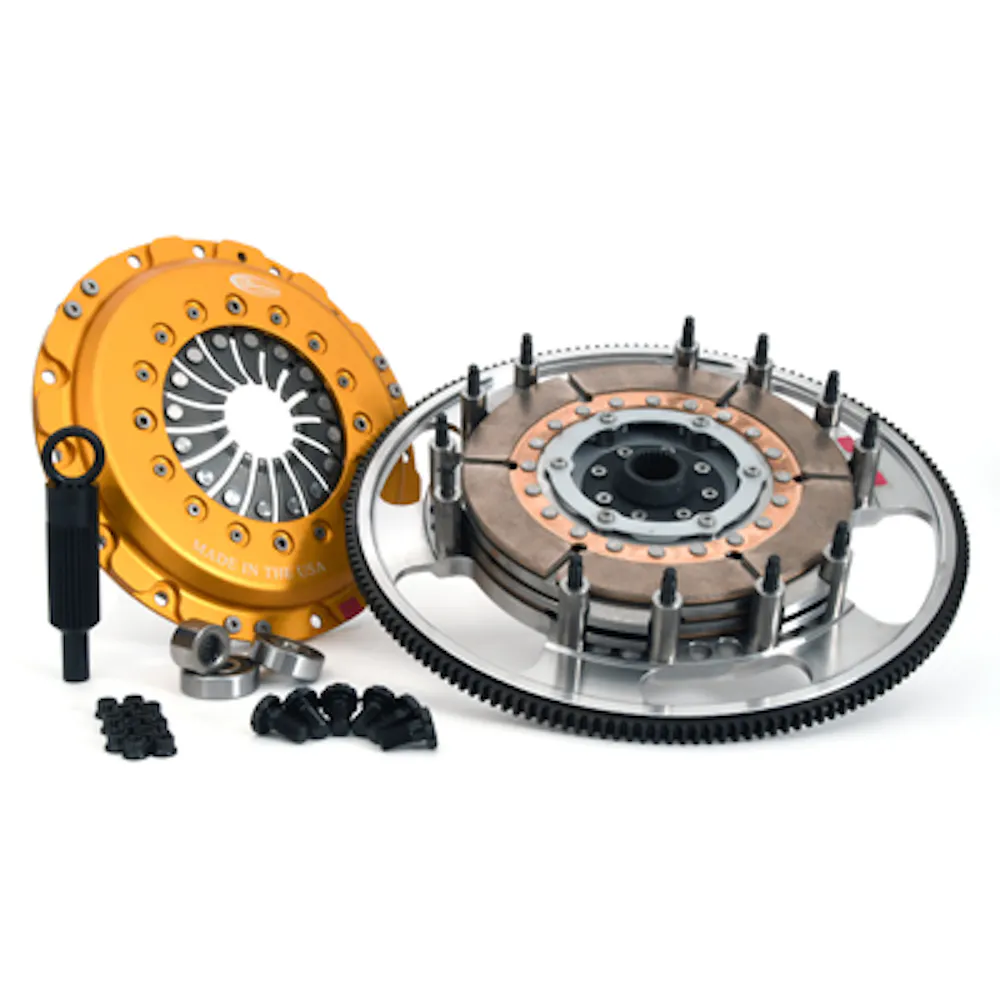

Description: TRIAD(R) XDS, Clutch and Flywheel Kit; The Centerforce(R) TRIAD XDS (eXtreme Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1200 ft/lbs.

Cancer - www.P65Warnings.ca.gov

Description

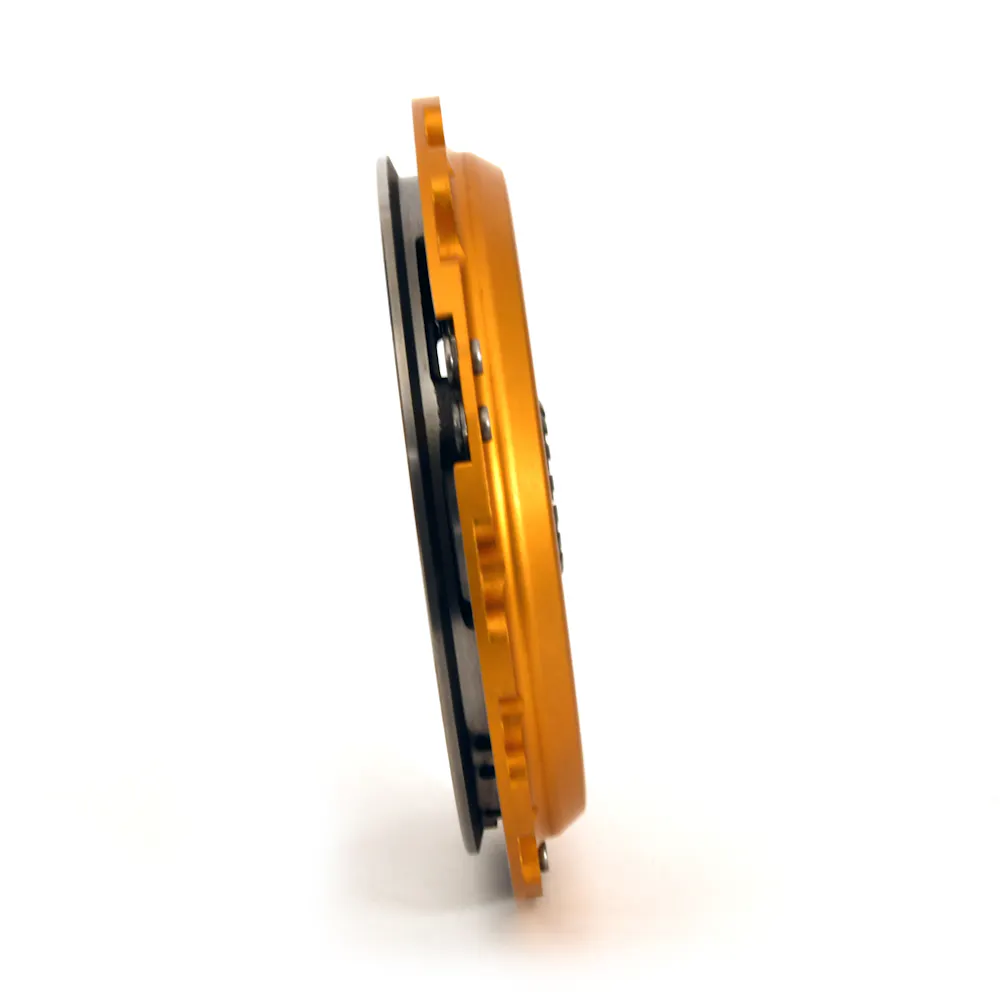

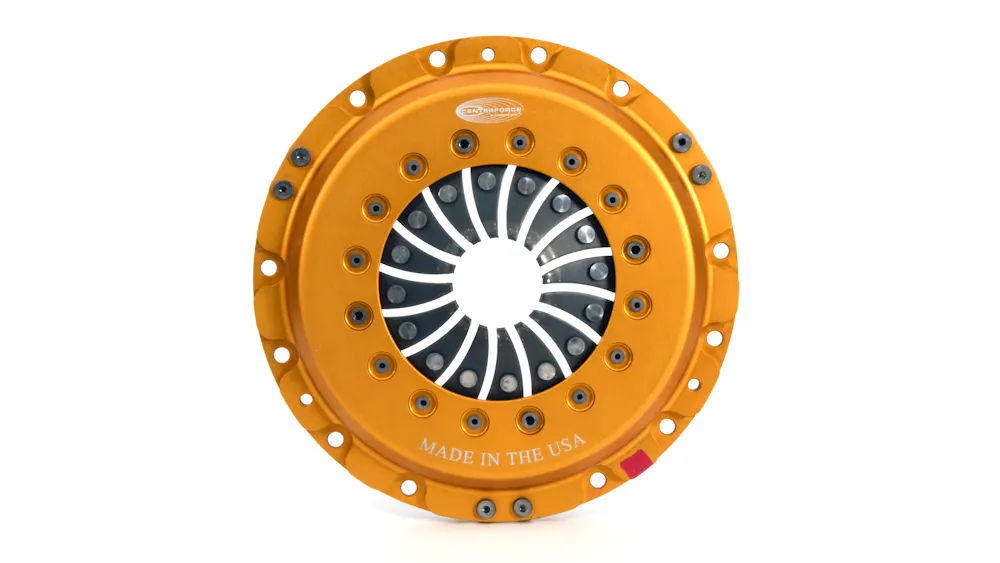

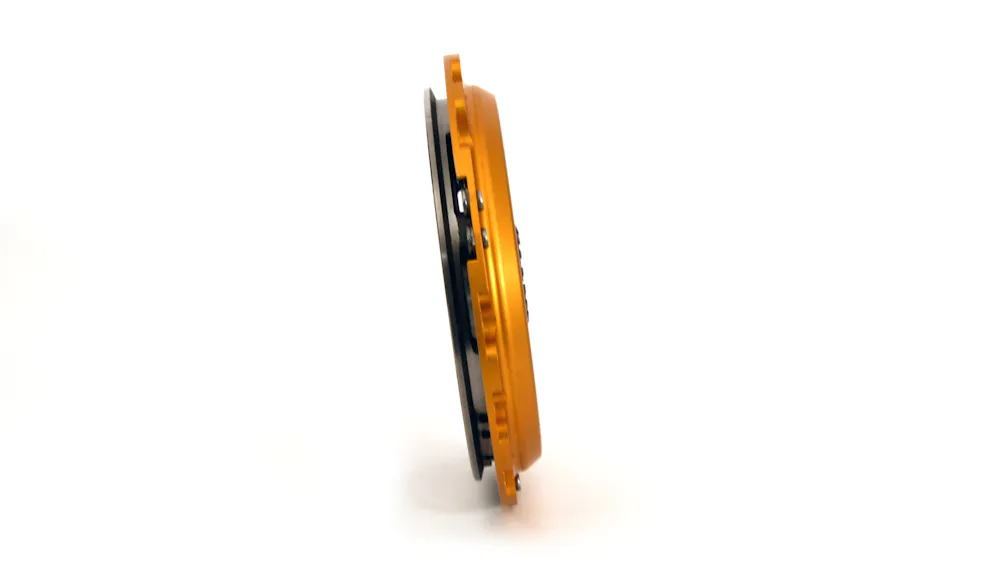

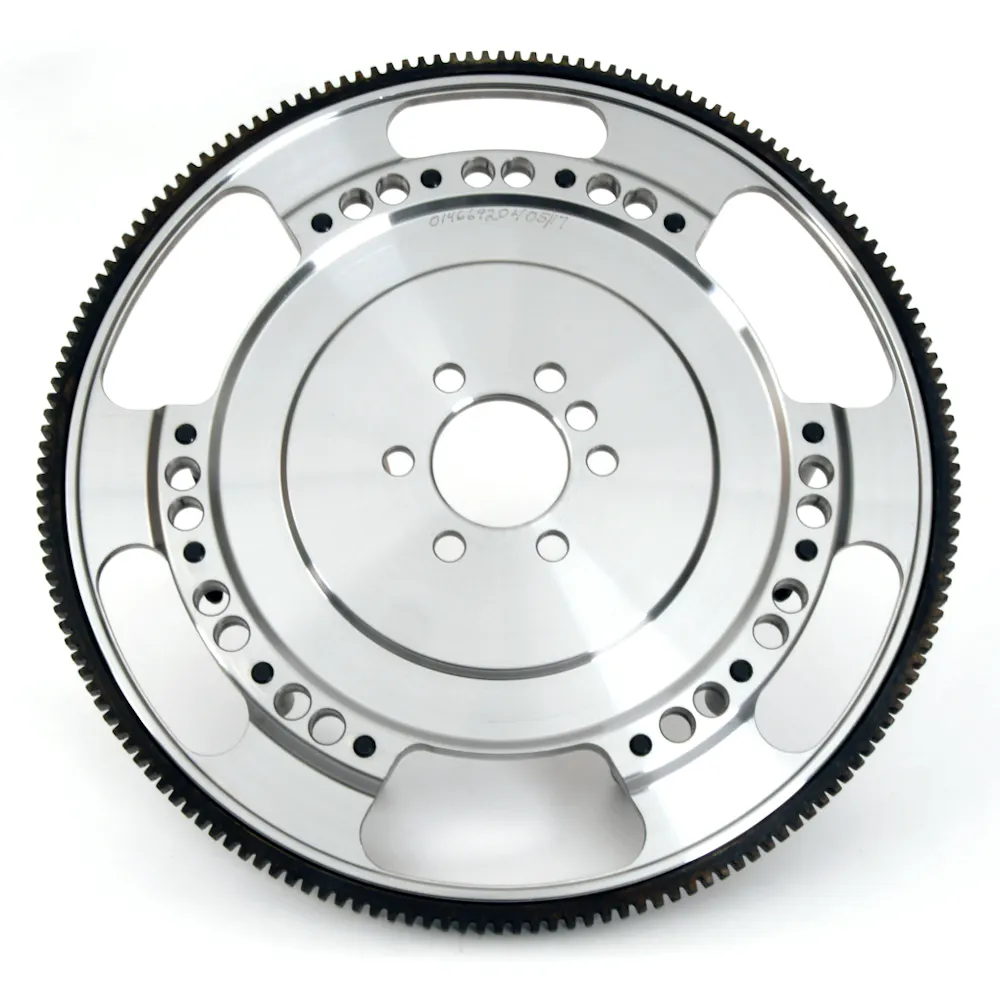

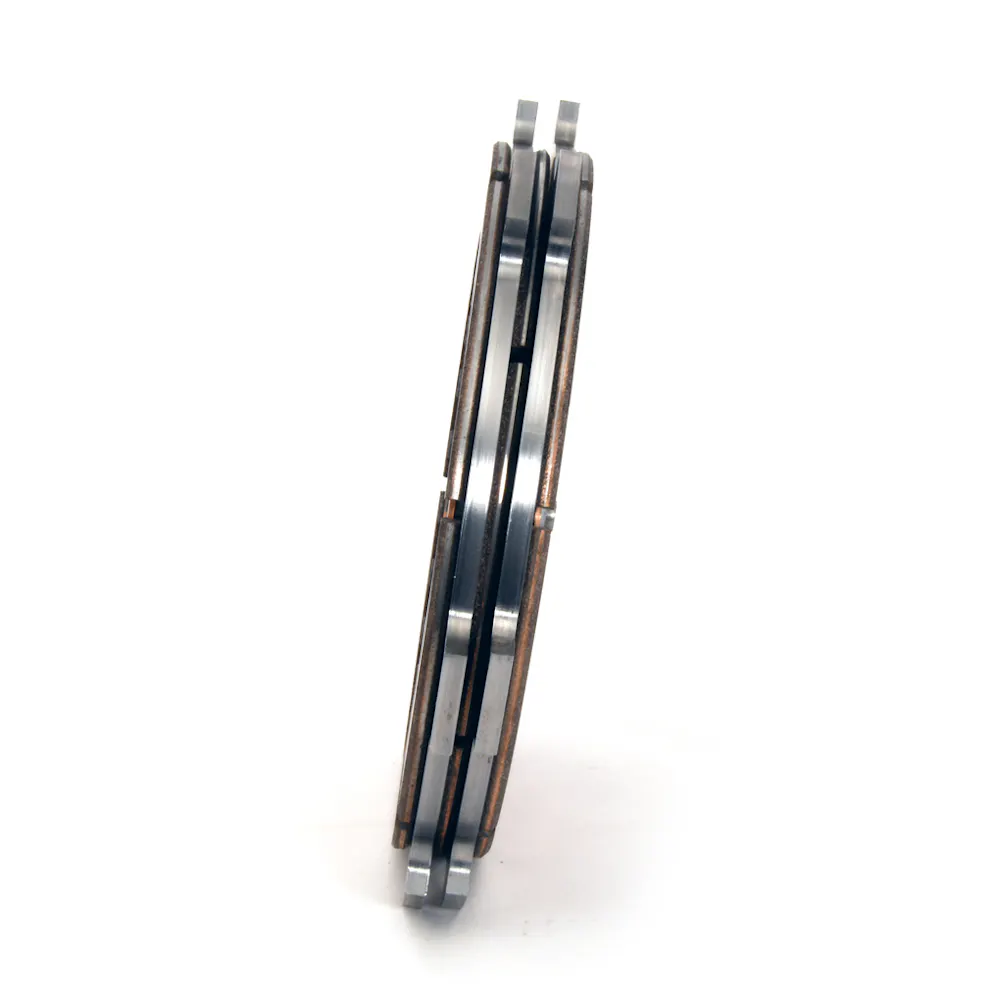

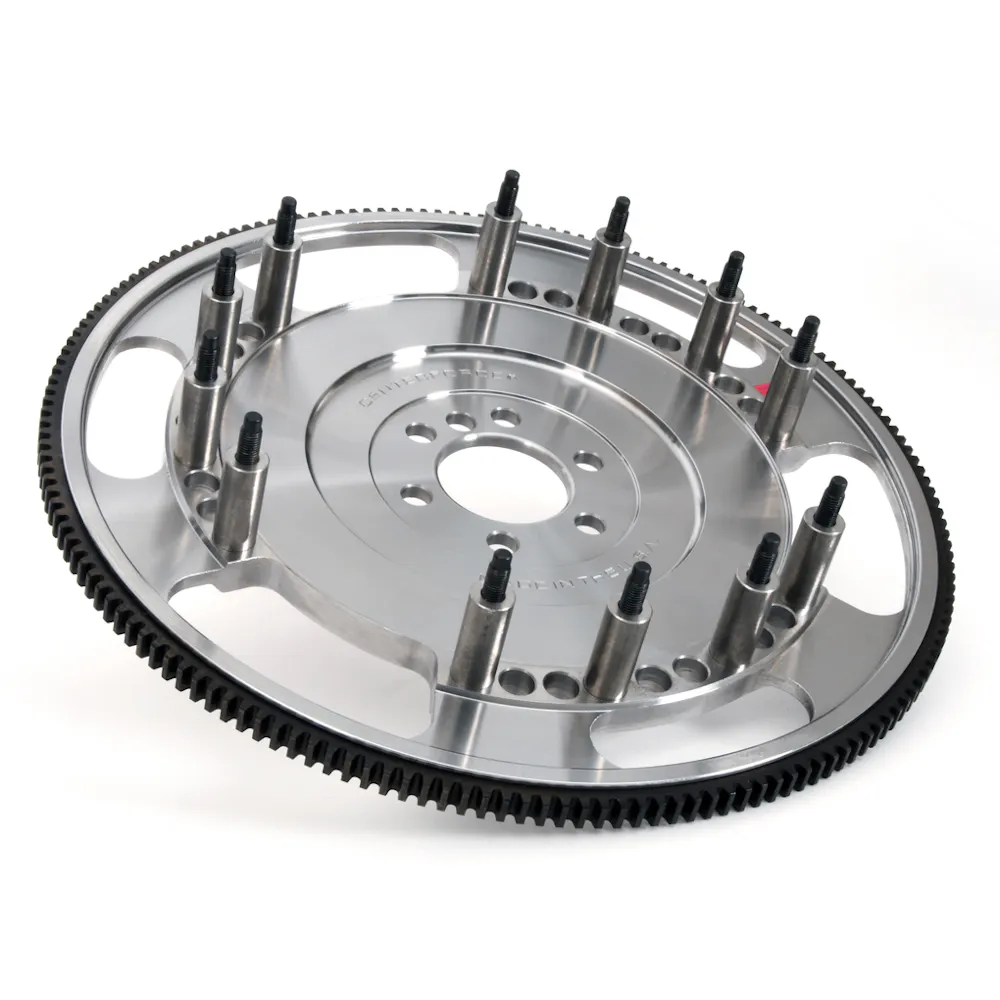

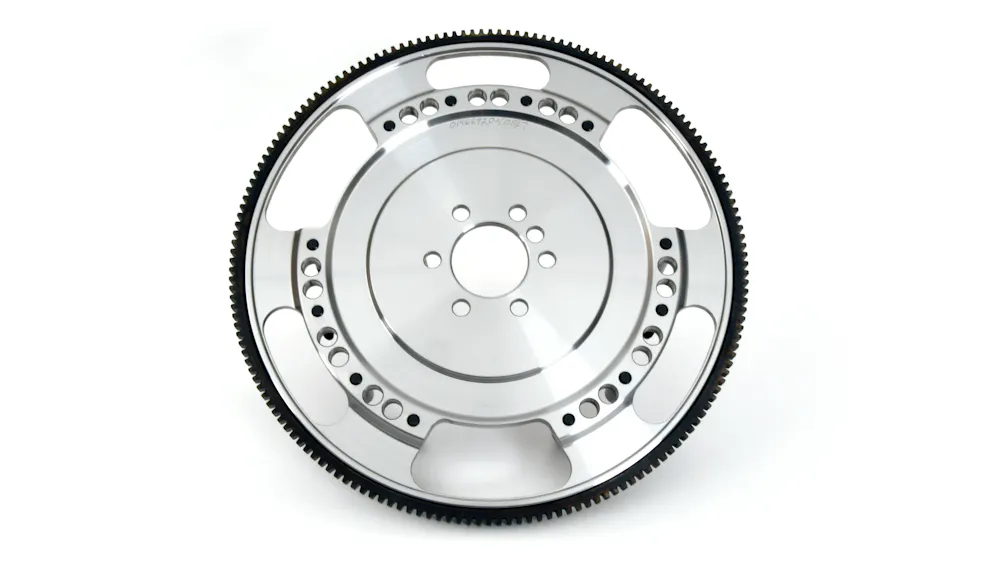

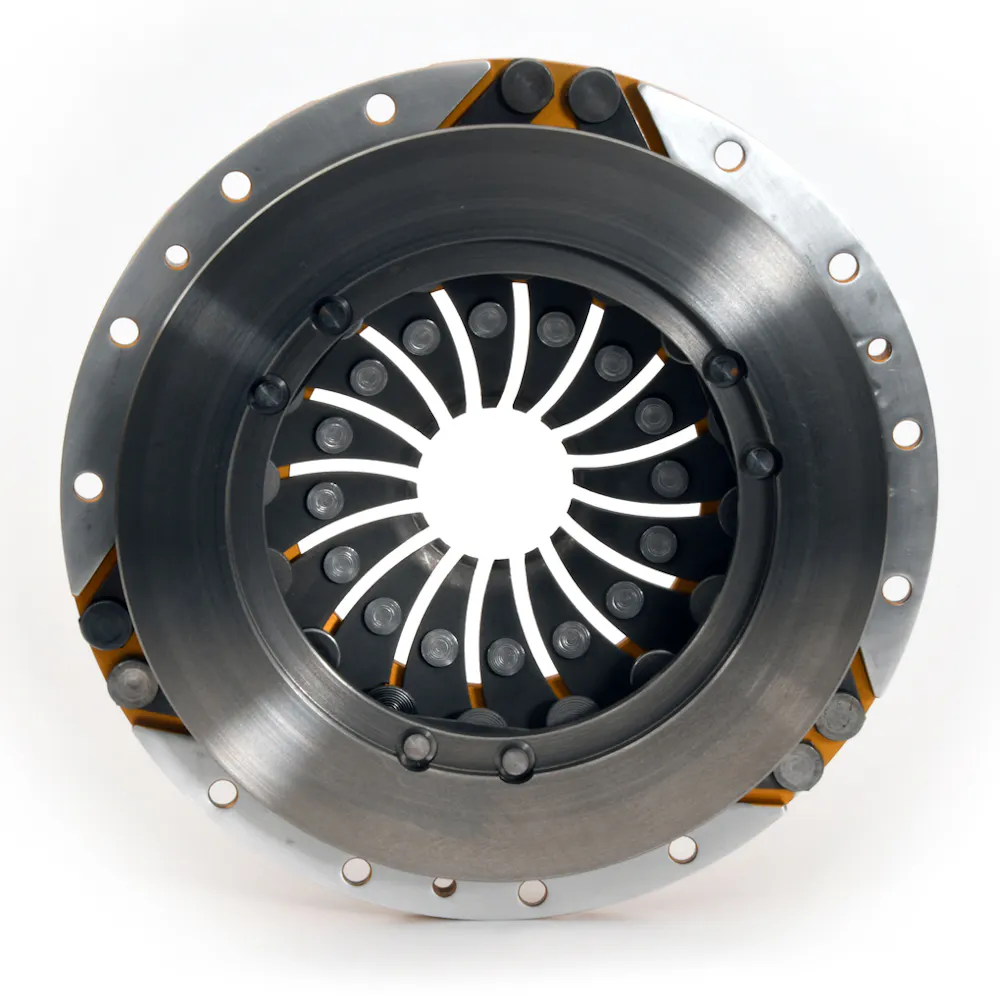

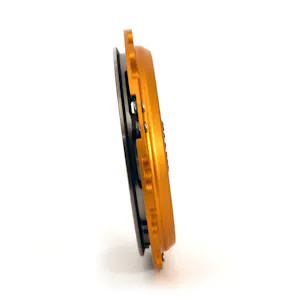

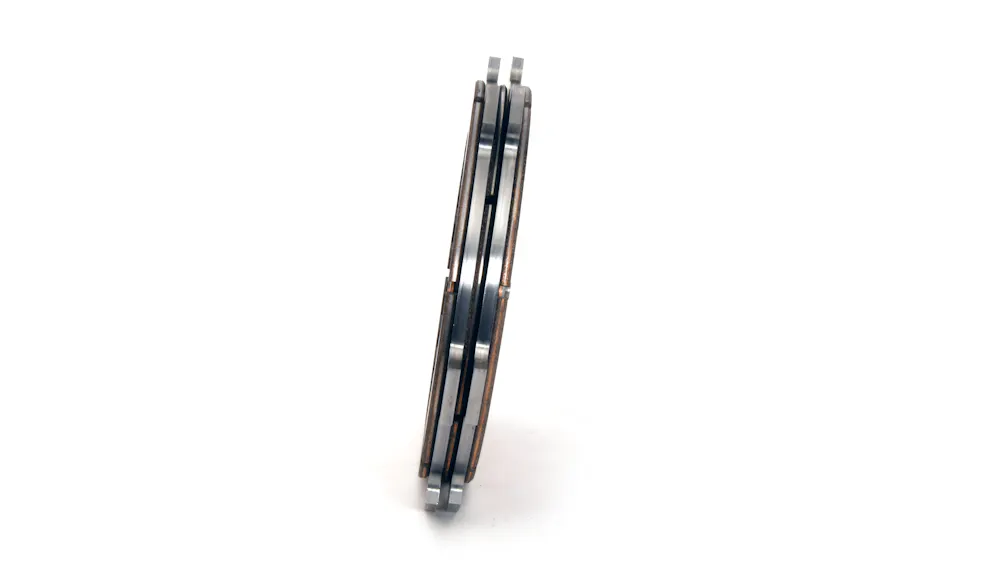

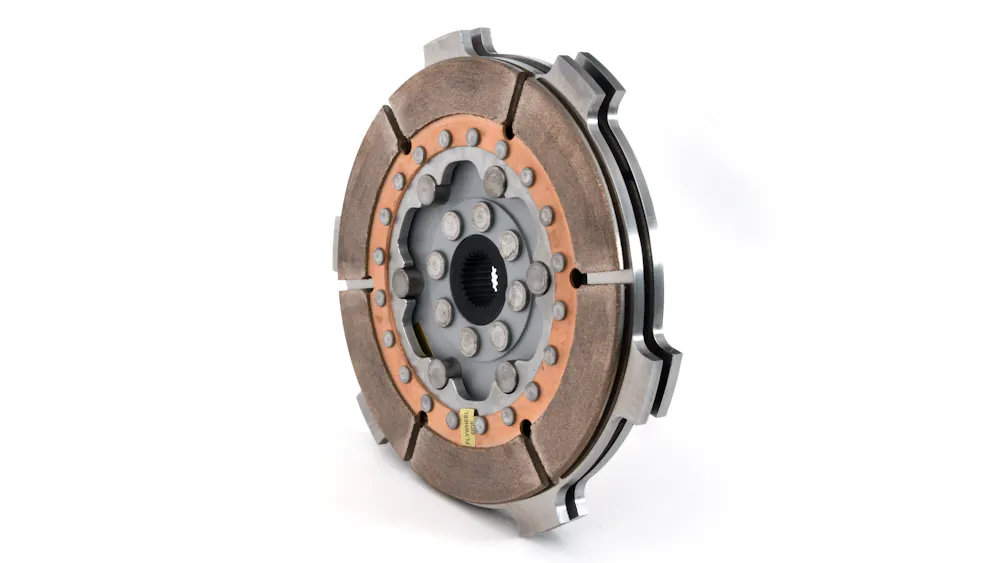

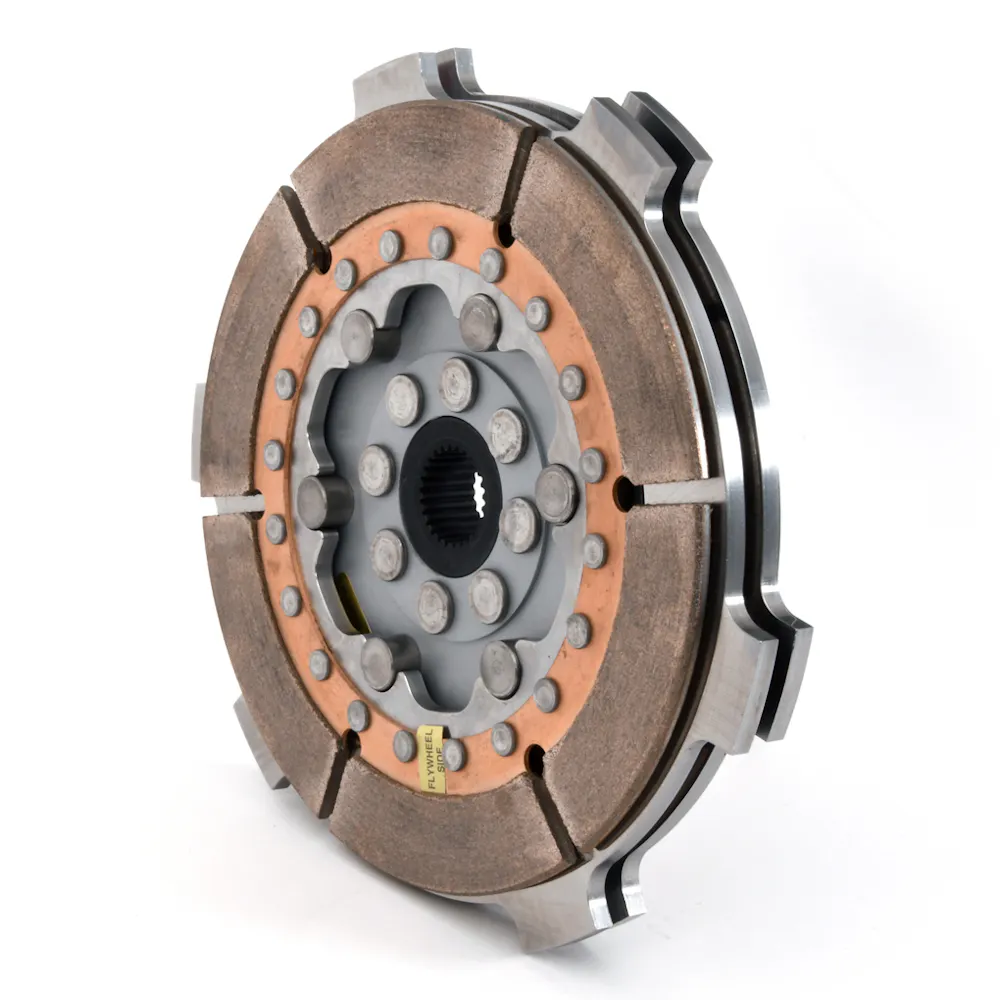

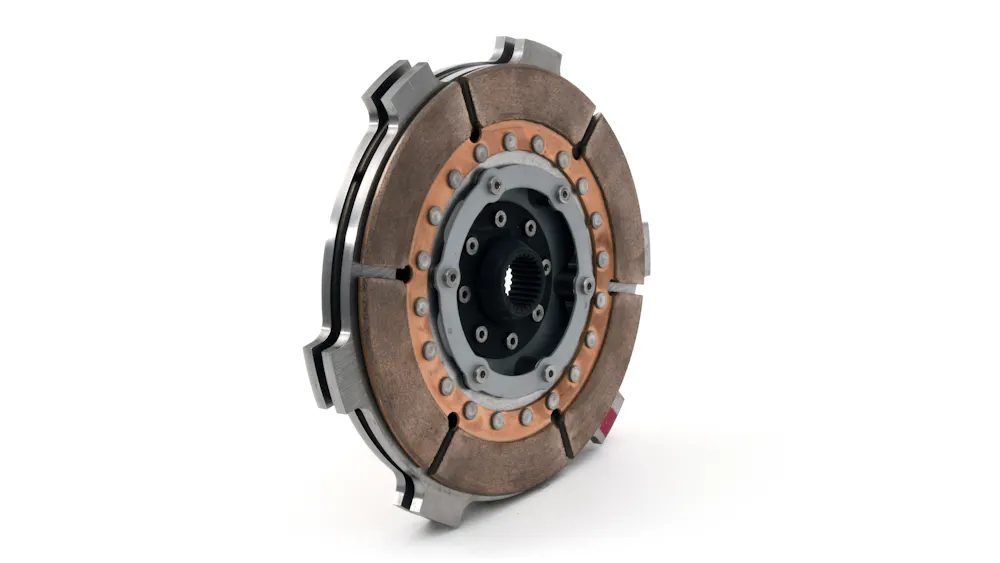

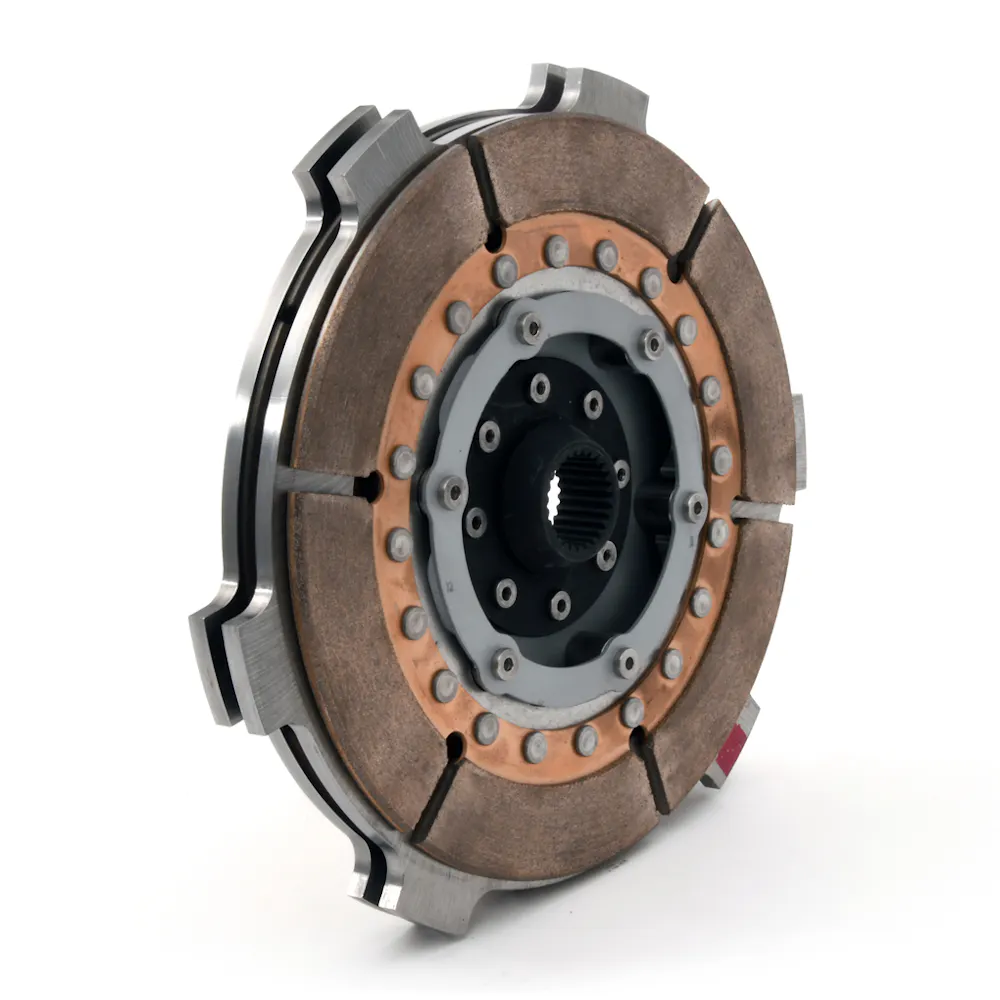

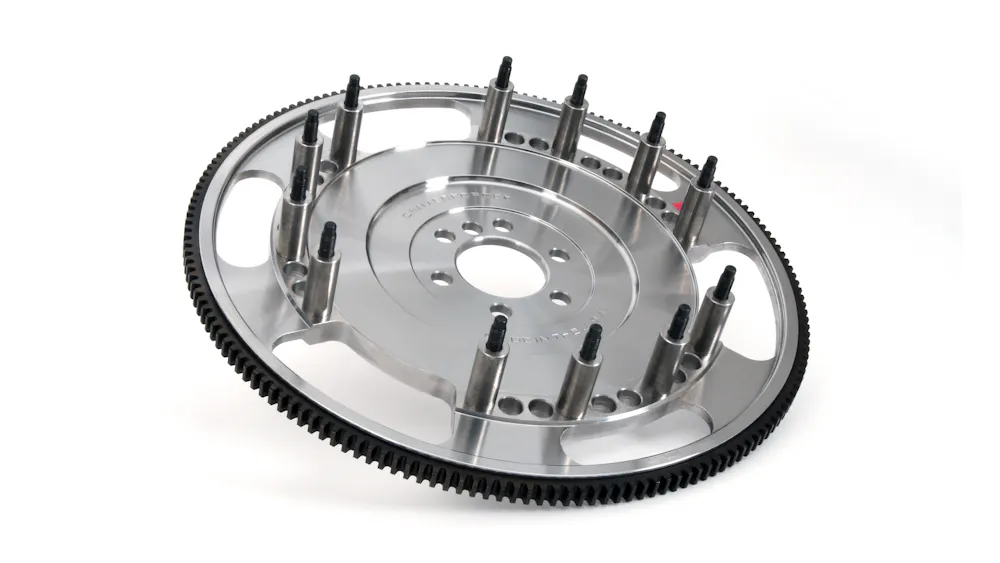

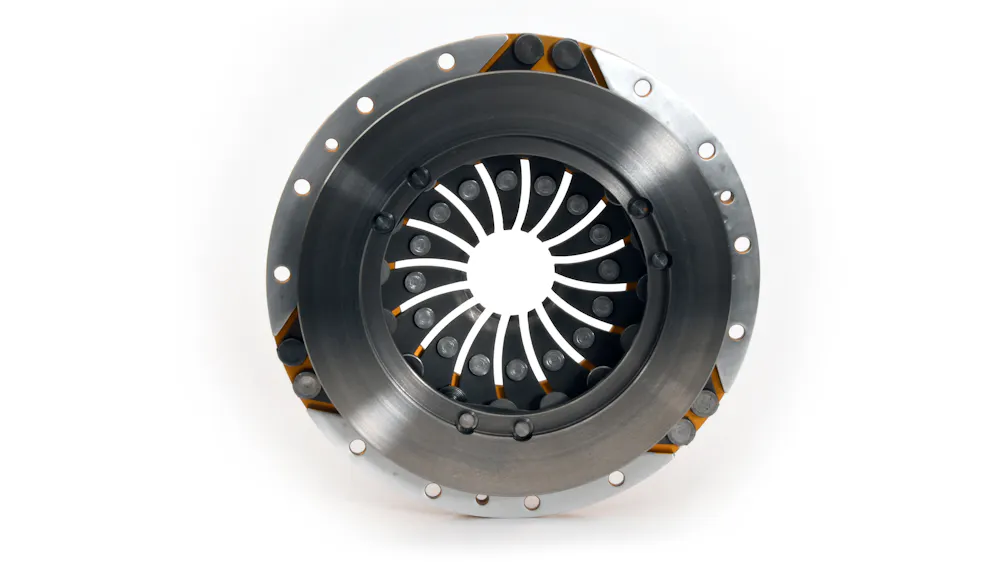

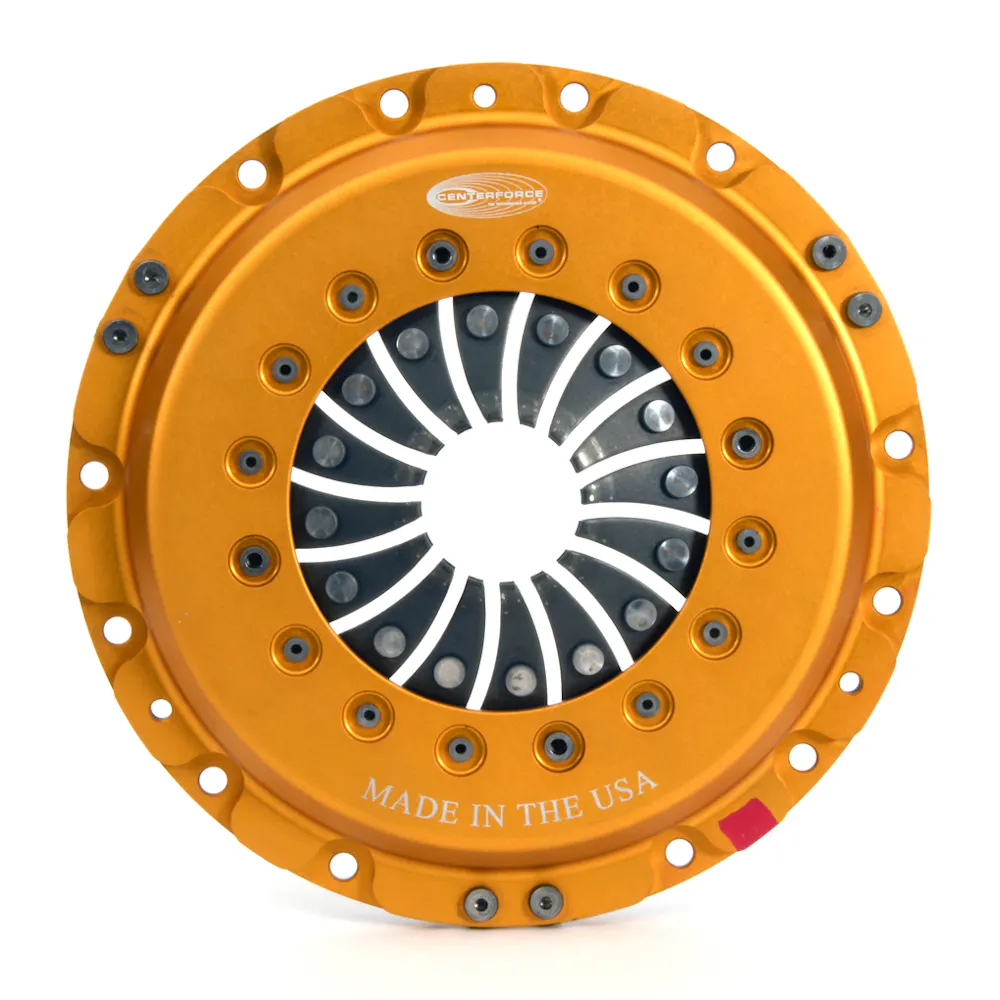

The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

Application summary

Year	Make / model
1998-2002	Chevrolet Camaro
2010-2015	Chevrolet Camaro
1997-2013	Chevrolet Corvette
1998-2002	Pontiac Firebird
2004-2006	Pontiac GTO

Specifications

GTIN: 00788442031430
Weight: 38.45 lb
Height: 5.5 in
Length: 18 in
Width: 18 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

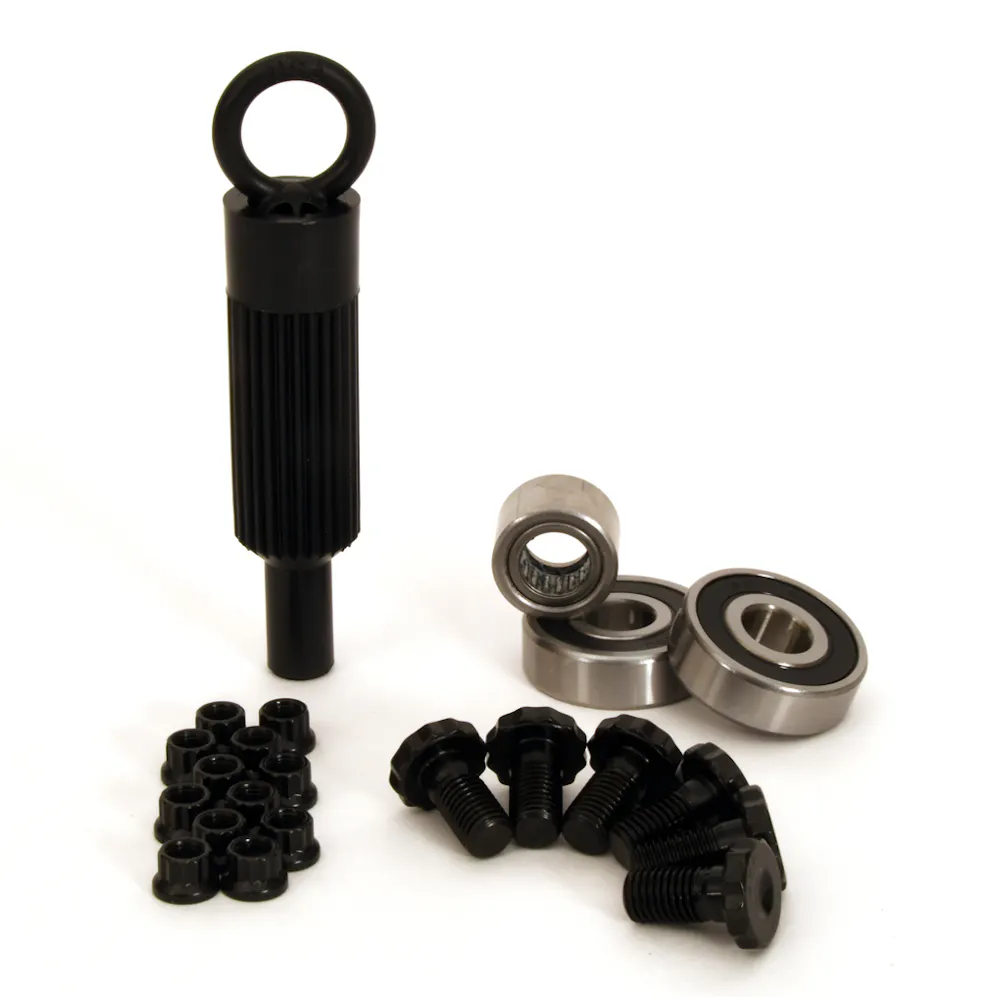

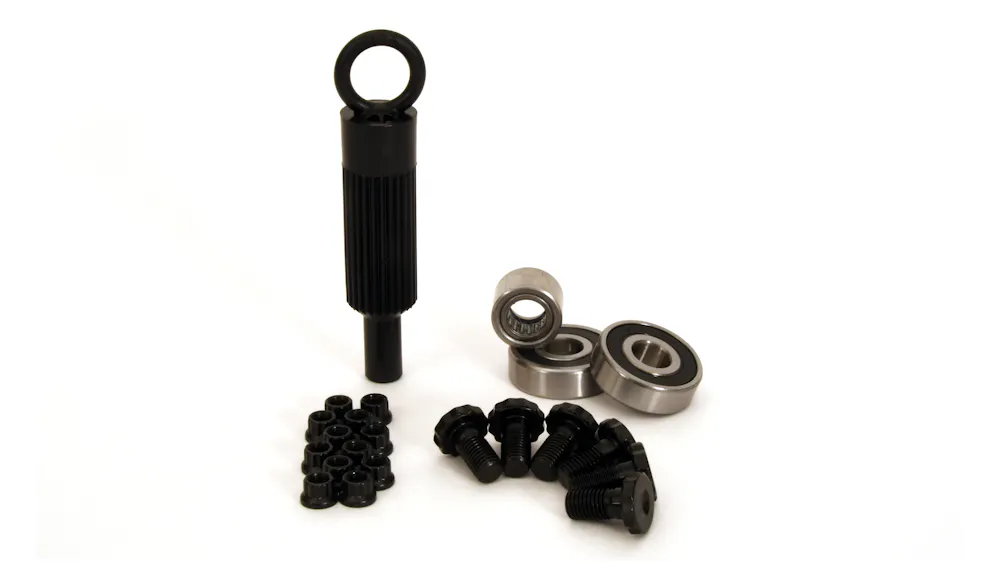

Alignment Tool Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Disc Diameter: 222.3
Counterweight Assist: No
Crankshaft Bolt Hole Quantity: 6
Disc Material: Sintered Metallic
Disc Type: Full face
Disc Type Sprung Solid: Solid
Flywheel Counter Balance Weight: 0
Flywheel Crank Bolt Qty: 6
Flywheel Crank Bolt Size: MM11 x 1.50 x 23
Flywheel Crank Flange Register: 2.068
Flywheel Deck Height: 2.89
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 26
Installed Height: 2.890
Made In The USA: Assembled
Material: Billet Steel Flywheel / Nodular Iron Pressure Plate / Full Face Cerametallic Friction
Mounting Hardware Included: Yes
Out of Package Weight: 34.30
Outside Diameter: 14.096
Pilot Bushing Included: Yes
Replaceable Friction Surface: N
Ring Gear O.D: 14.096
Ring Gear O.D.: 14.105
Ring Gear OD: 14.096
Ring Gear Tooth Count: 168
SFI 1.1 Approved: N
Title: Centerforce TRIAD ? XDS, Extreme Multi-Disc Clutch and Flywheel Kit, 34.30 lbs, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1100 ft/lbs Capacity, 8.750in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 8 Cyl
Tooth Quantity: 168
Torque Capacity: 1100
