Centerforce · 836264042

Part #: 836264042
UPC: 788442031362

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: TRIAD DS Triple Disc Clutch Kits

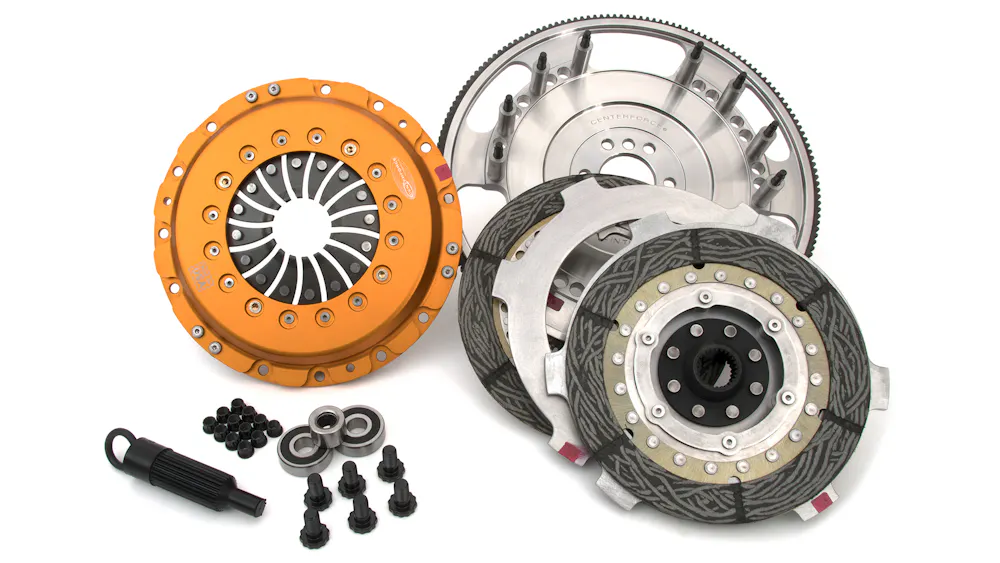

Description: TRIAD(R) DS, Clutch and Flywheel Kit; The Centerforce(R) TRIAD DS (Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1100 ft/lbs.

Cancer - www.P65Warnings.ca.gov

Description

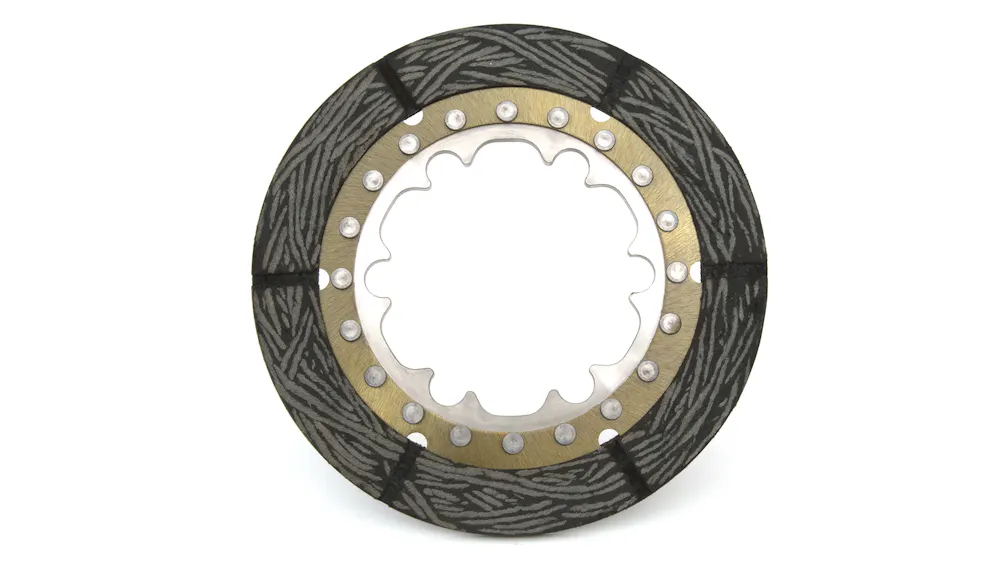

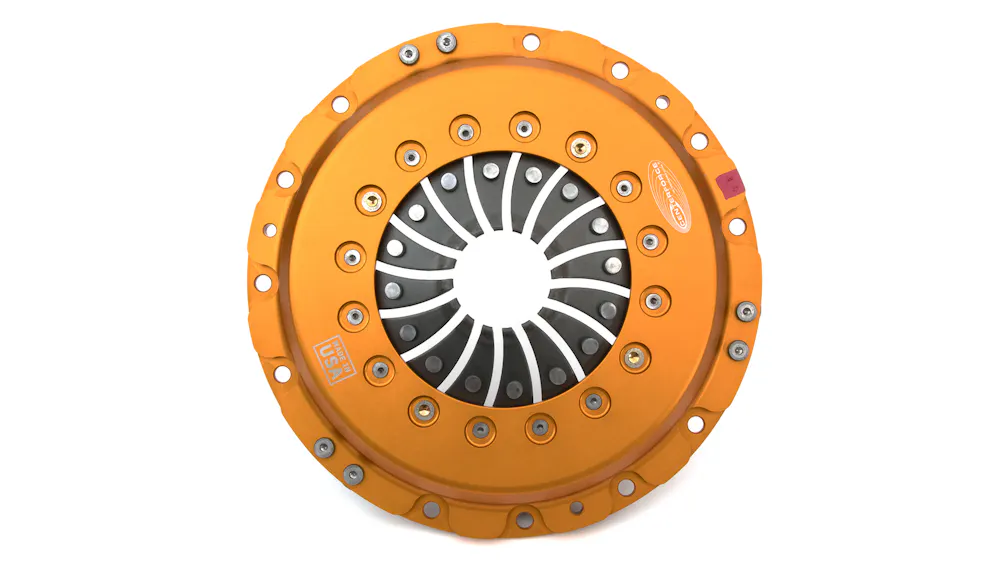

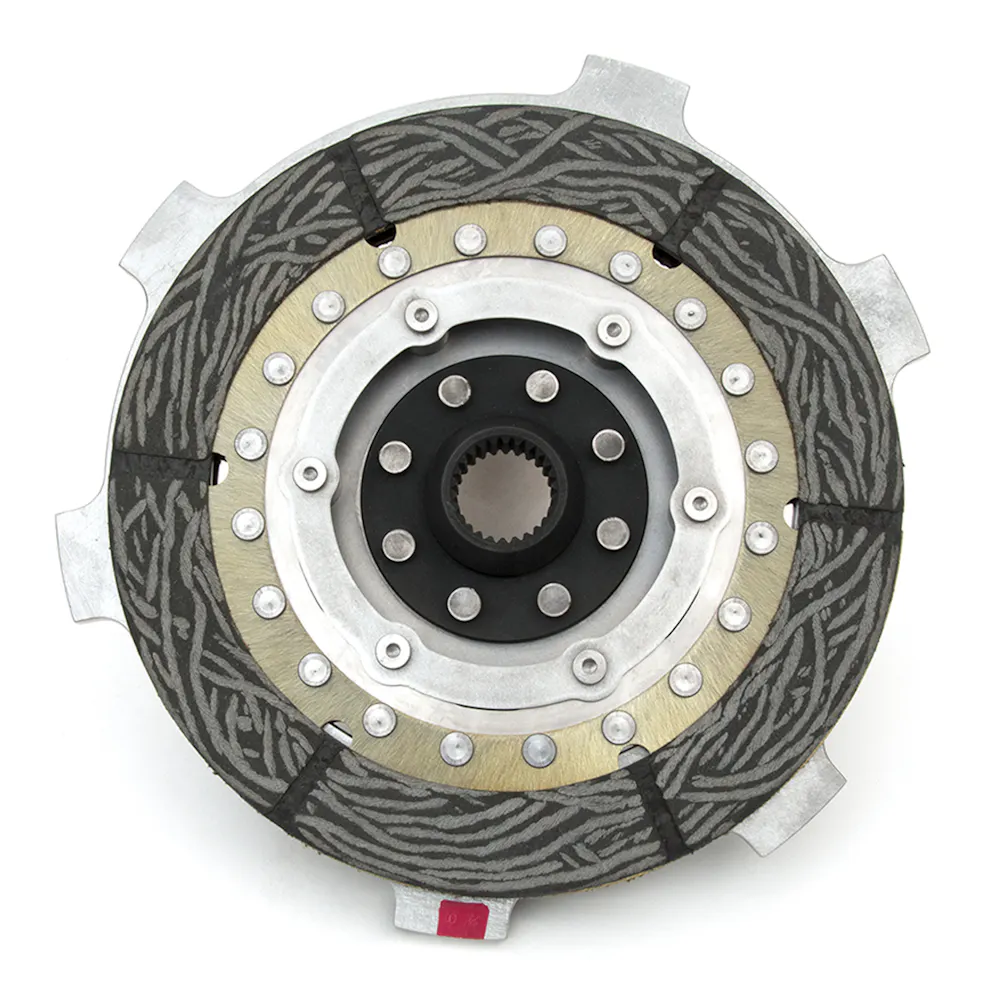

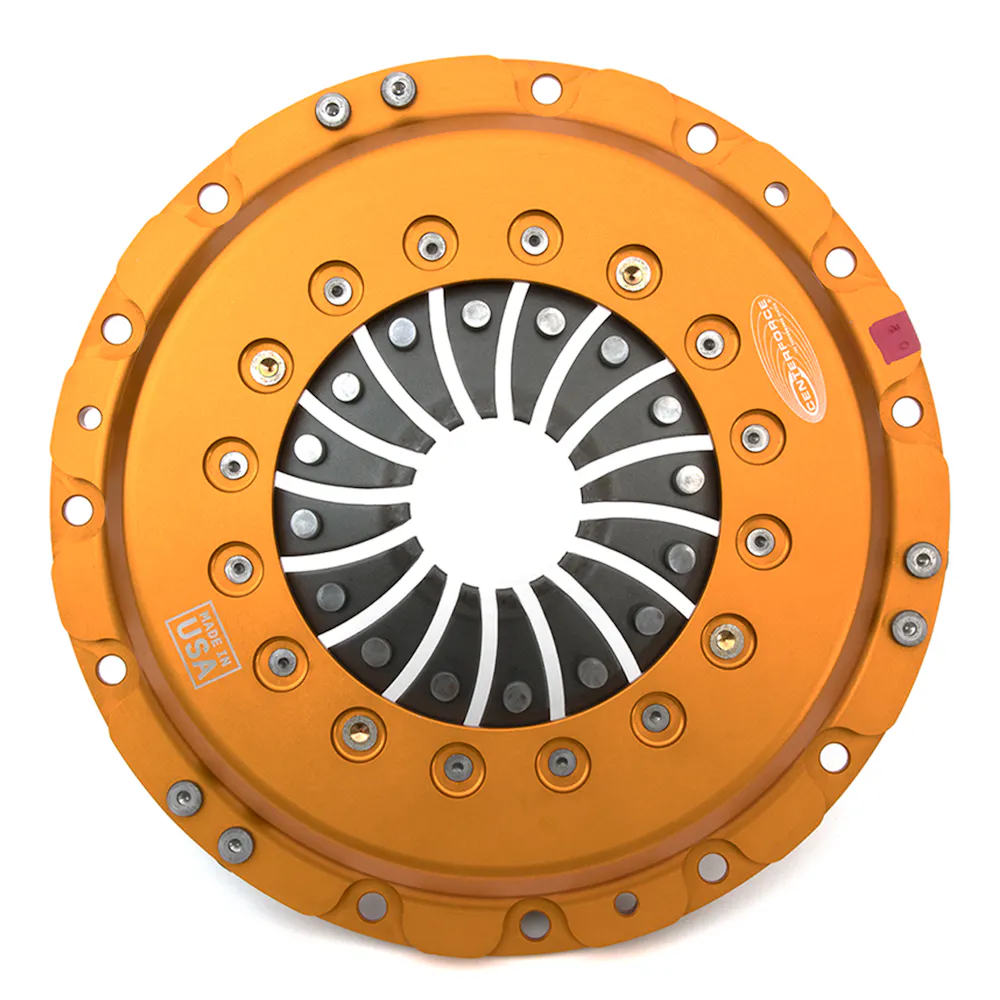

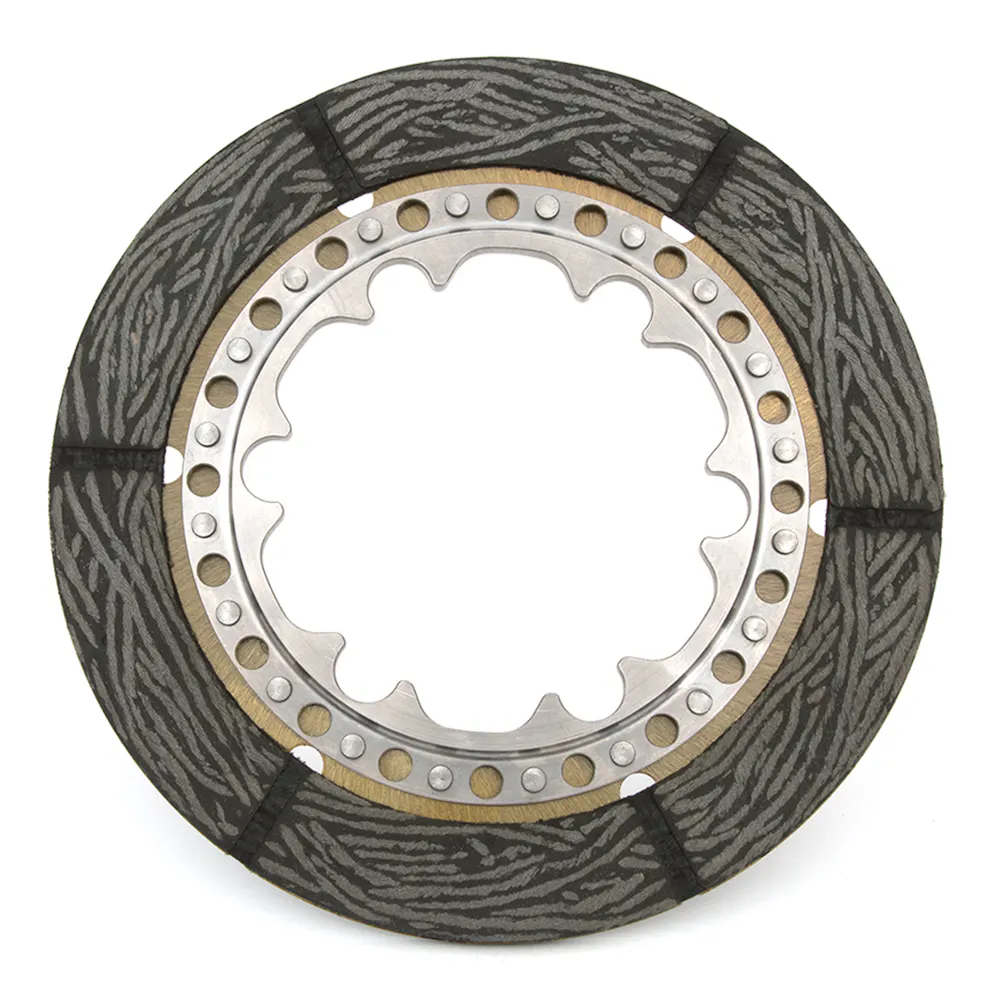

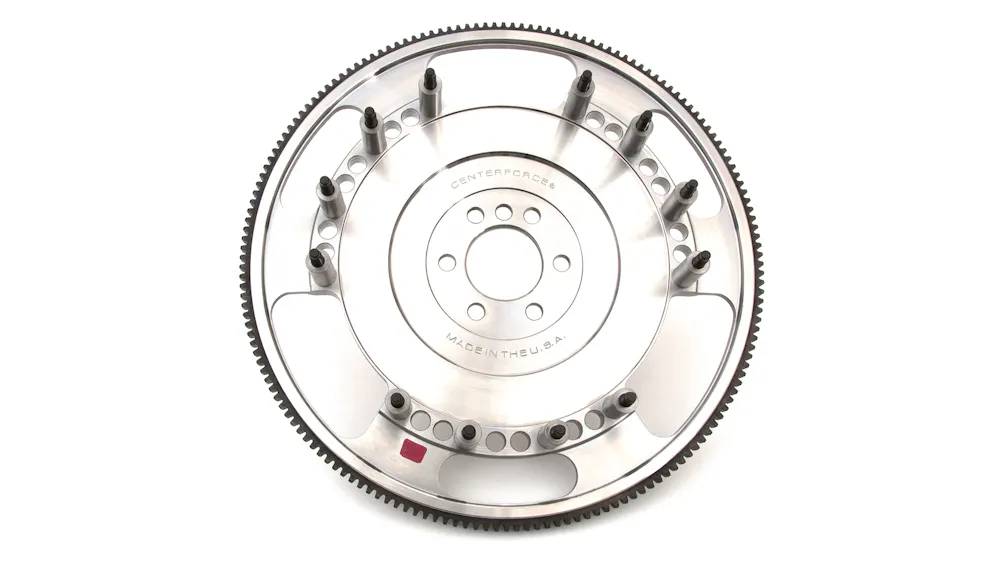

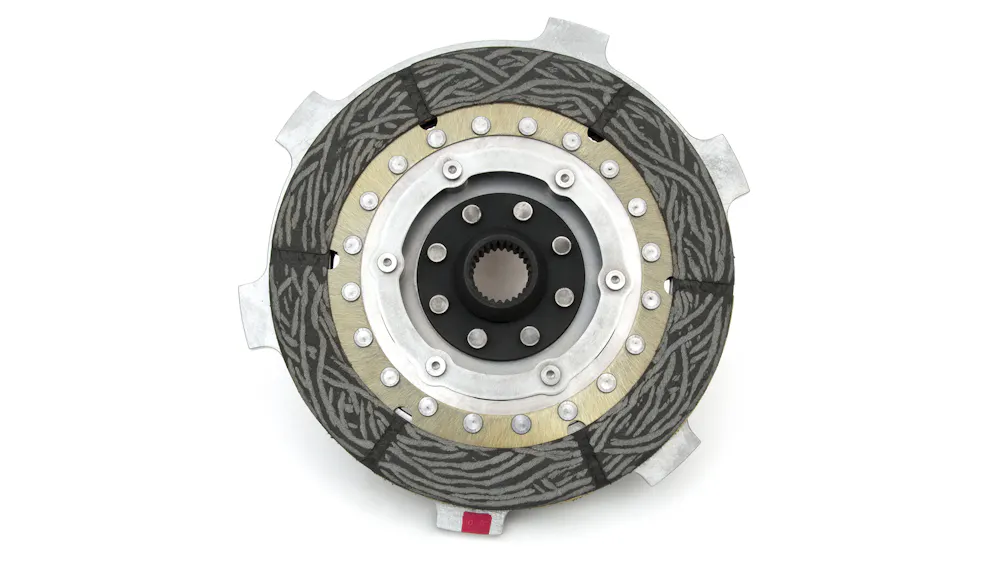

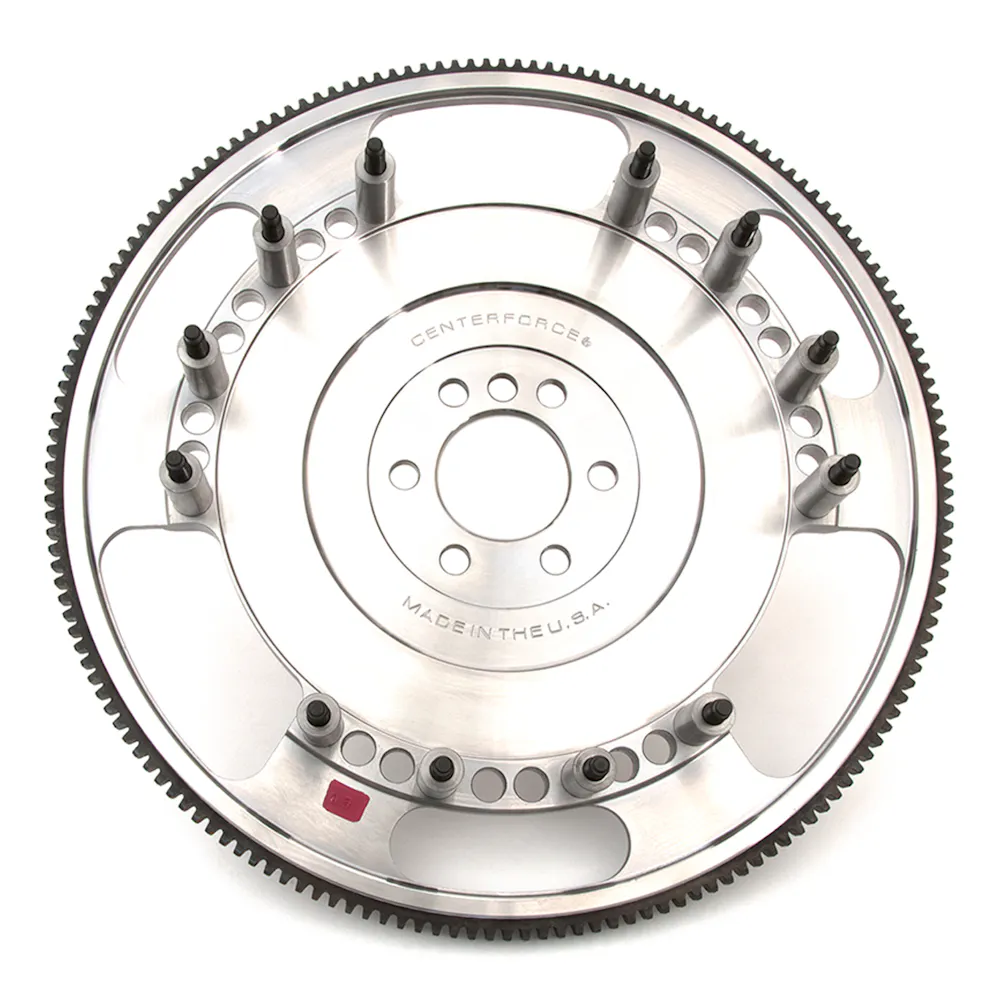

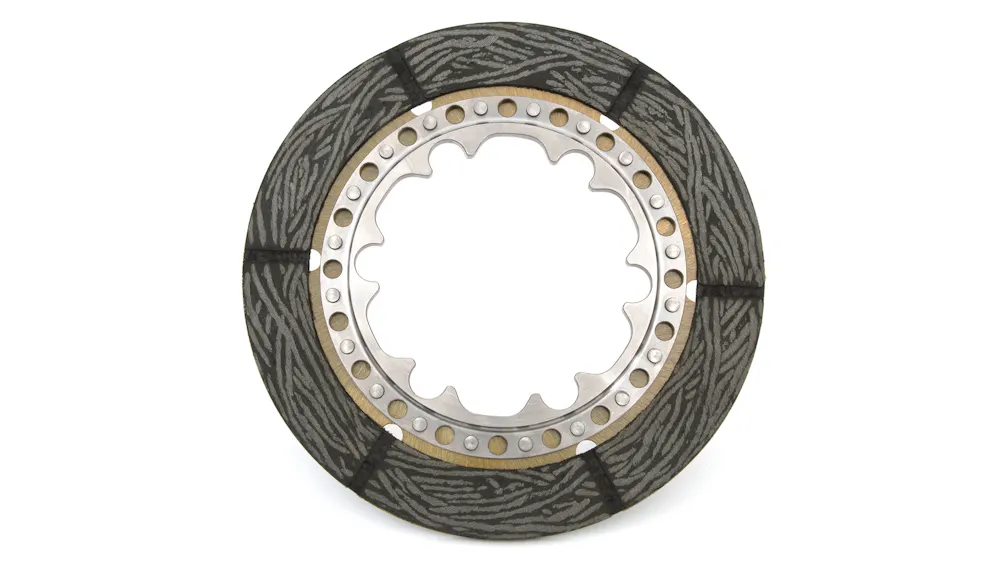

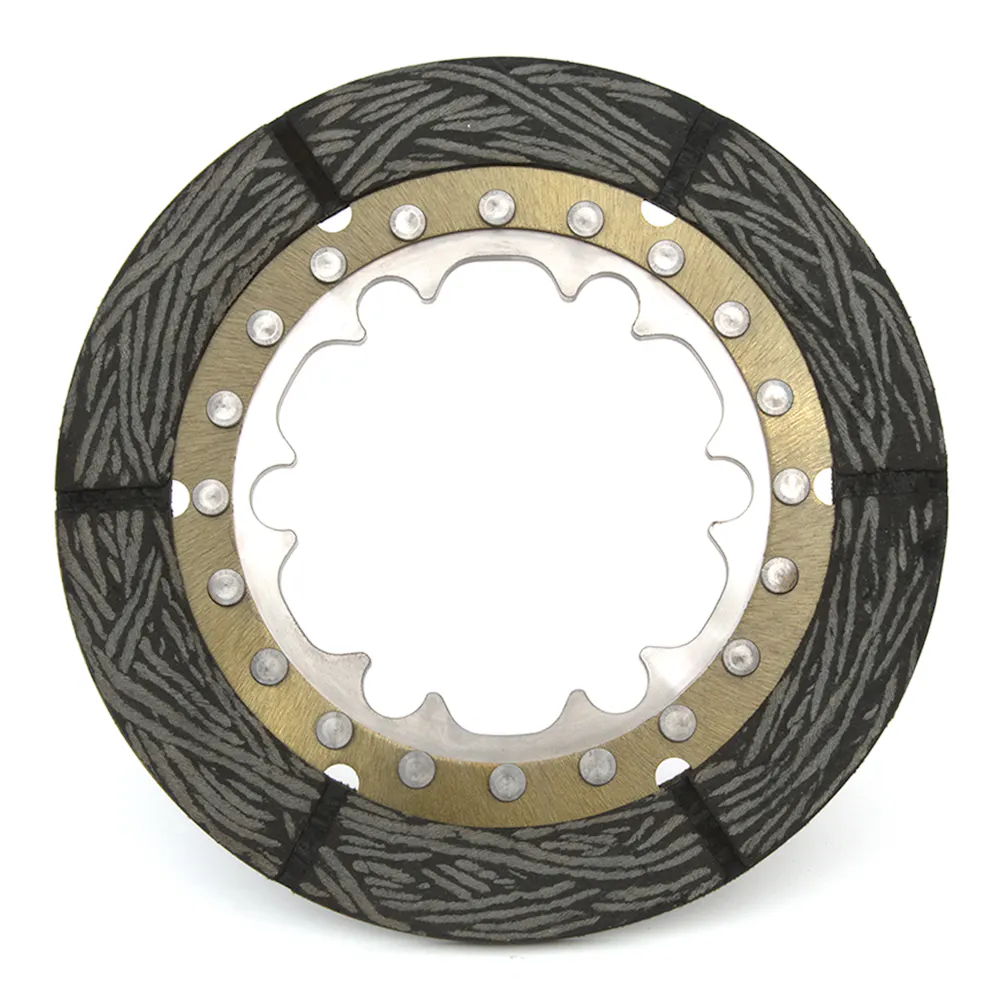

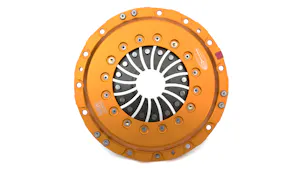

The Centerforce(R) TRIAD DS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1100 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. TRIAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Application summary

Year	Make / model
1998-2002	Chevrolet Camaro
2010-2015	Chevrolet Camaro
1997-2013	Chevrolet Corvette
1998-2002	Pontiac Firebird
2004-2006	Pontiac GTO

Specifications

GTIN: 00788442031362
Weight: 36.85 lb
Height: 5.5 in
Length: 18 in
Width: 18 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

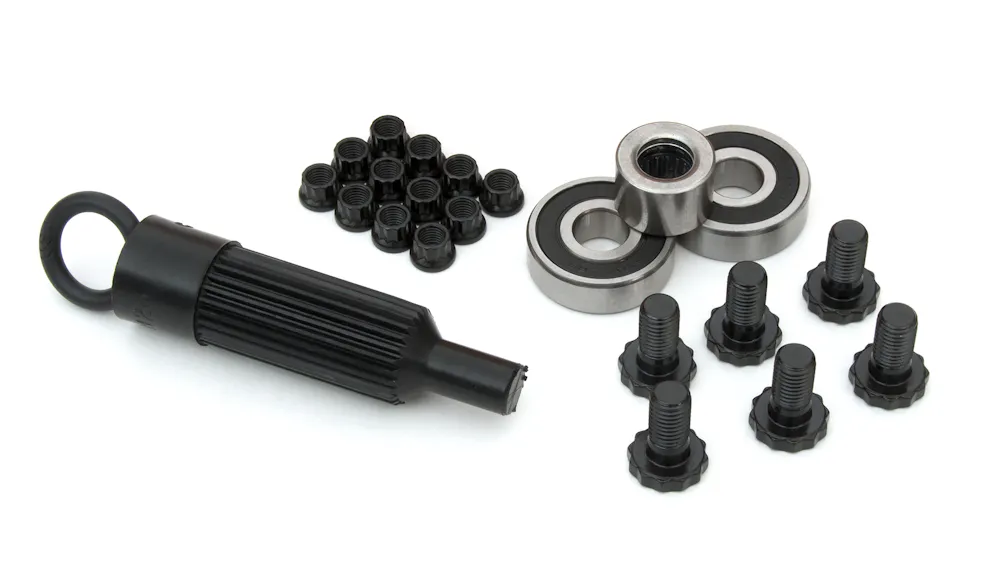

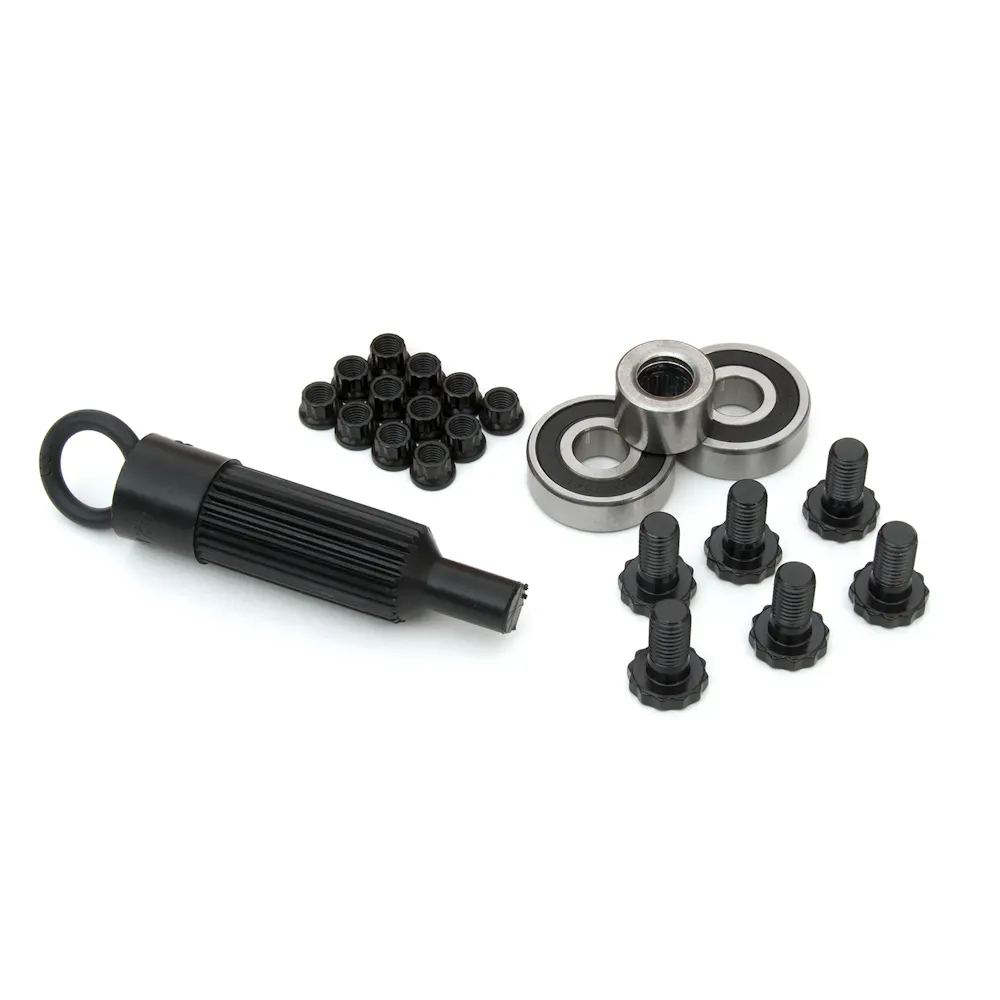

Alignment Tool Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Disc Diameter: 222.3
Counterweight Assist: No
Crankshaft Bolt Hole Quantity: 6
Disc Material: Sintered Metallic
Disc Type: Full face
Disc Type Sprung Solid: Solid
Flywheel Crank Bolt Size: MM11 x 1.50 x 23
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 26
Made In The USA: Assembled
Material: Cast Iron Pressure Plate / Full Face Metalic Friction
Mounting Hardware Included: Yes
Out of Package Weight: 32.90
Outside Diameter: 14.096
Pilot Bushing Included: Yes
Ring Gear O.D: 14.096
Ring Gear O.D.: 14.105
Ring Gear OD: 14.096
Ring Gear Tooth Count: 168
Title: Centerforce TRIAD ? DS, Extreme Multi-Disc Clutch and Flywheel Kit, 32.90 lbs, 168 Tooth Gear, 6 Bolt Crank, 900 ft/lbs Capacity, 8.750in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 8 Cyl
Tooth Quantity: 168
Torque Capacity: 900
