Centerforce · 827231520
Part #: 827231520
UPC: 788442031249
Loading...
Notify me when this item is in stock.

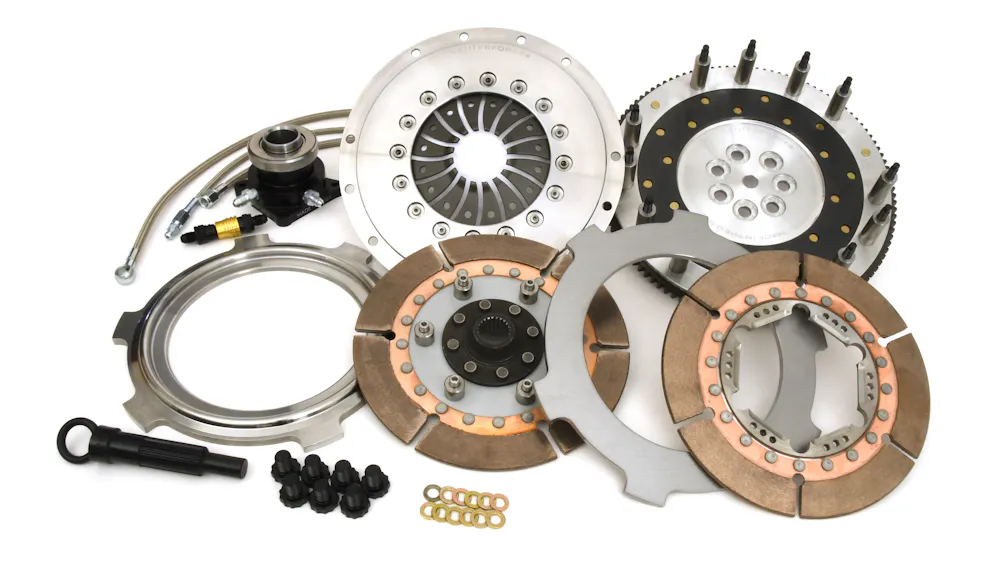

Description: DYAD(R) XDS 8.75, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 8.75 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 400 to 800 ft /lbs.
Description:
Description

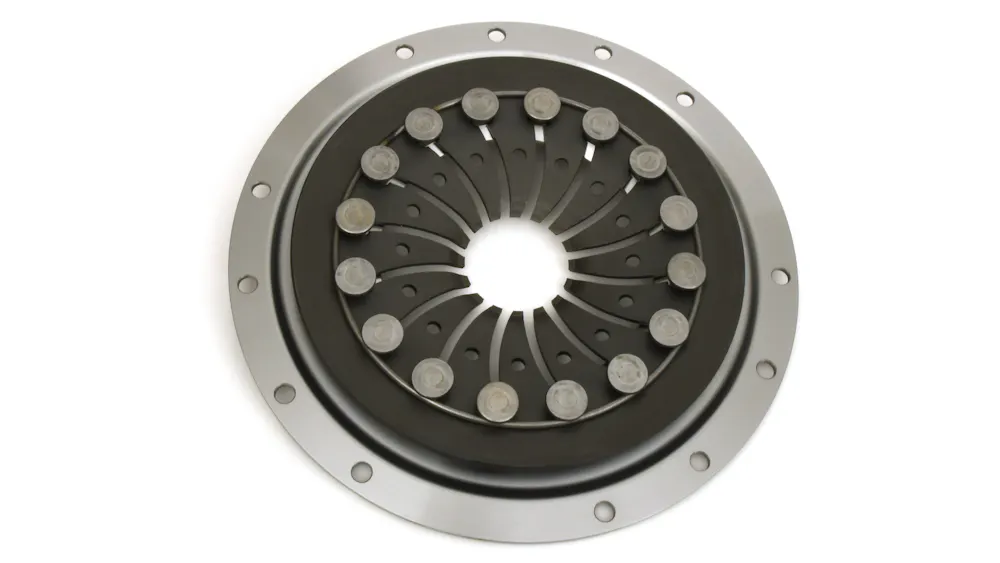

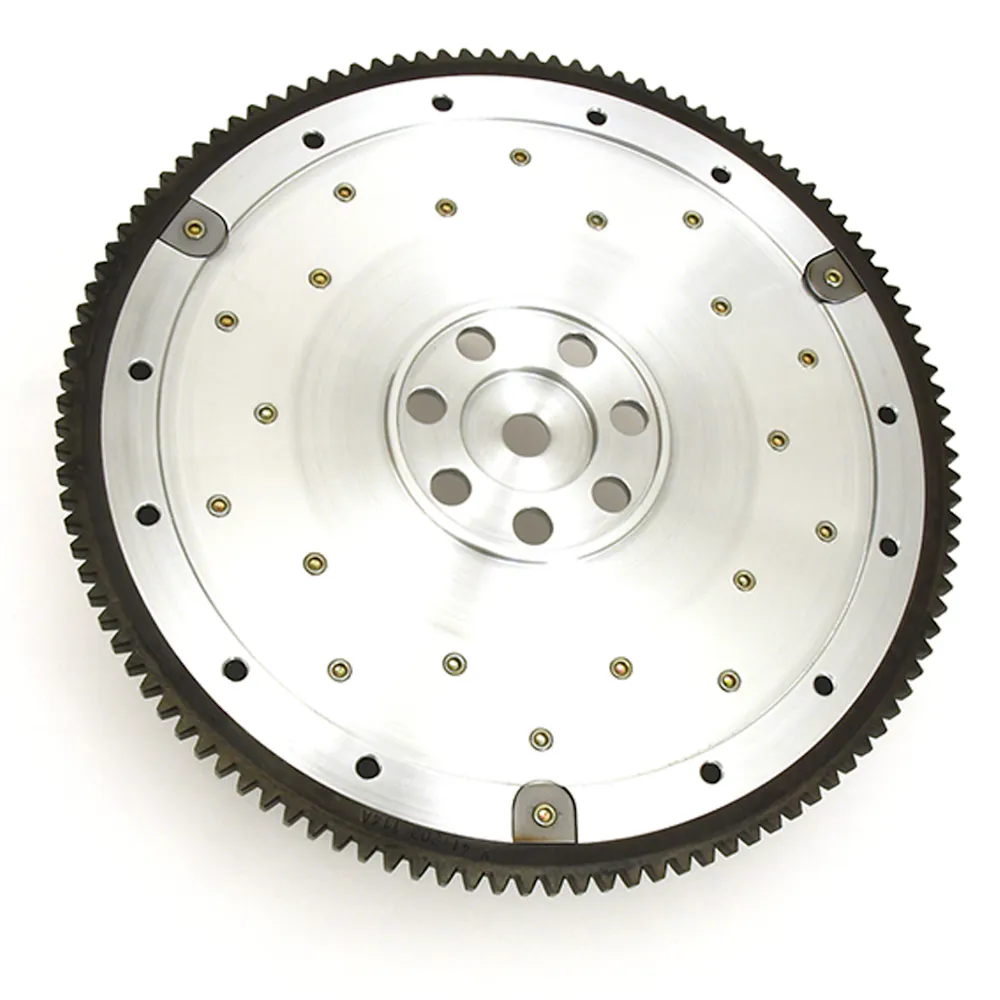

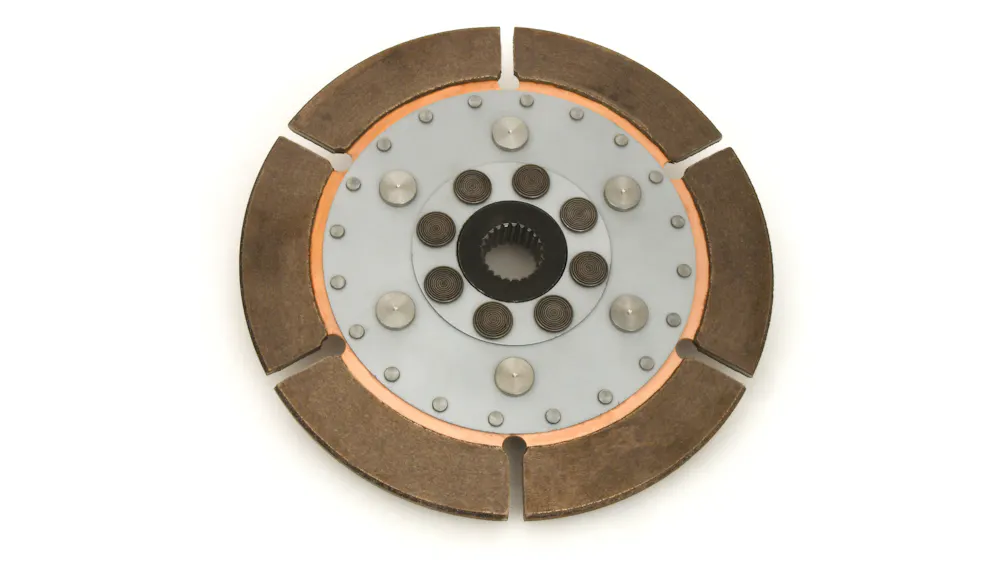

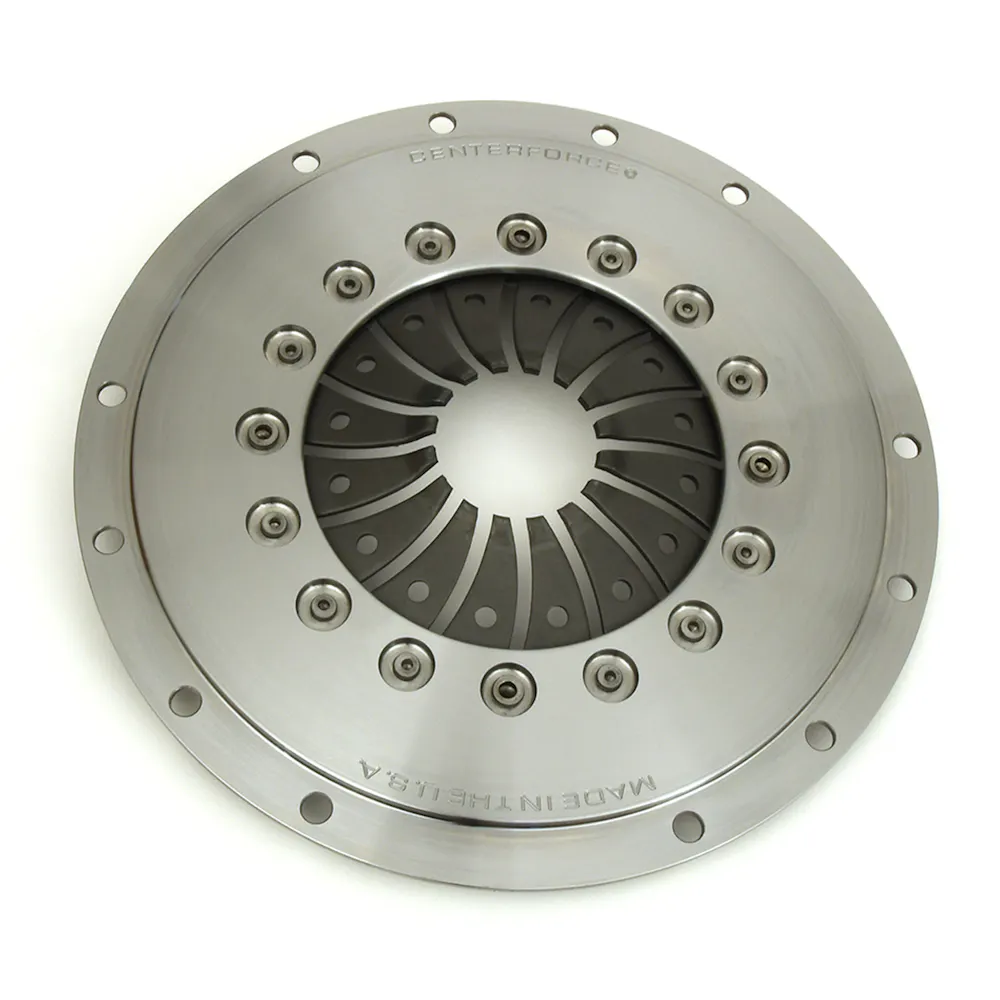

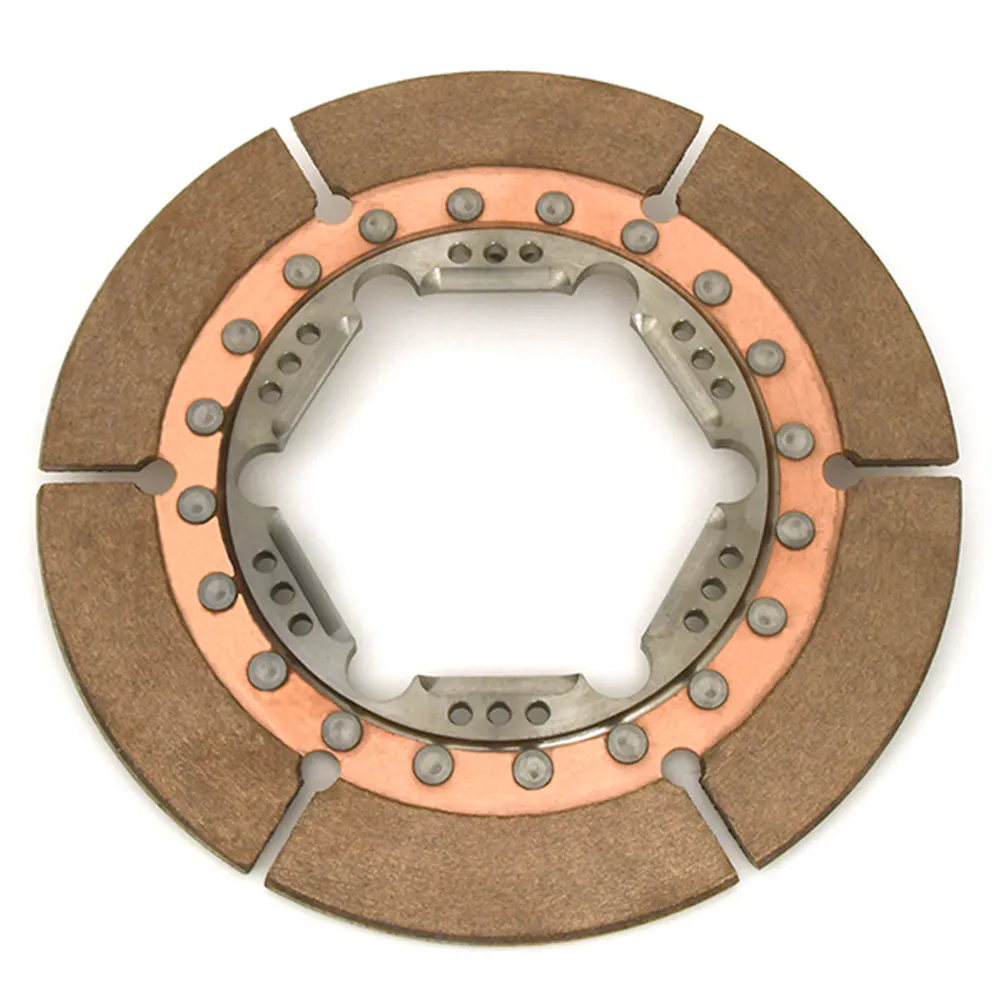

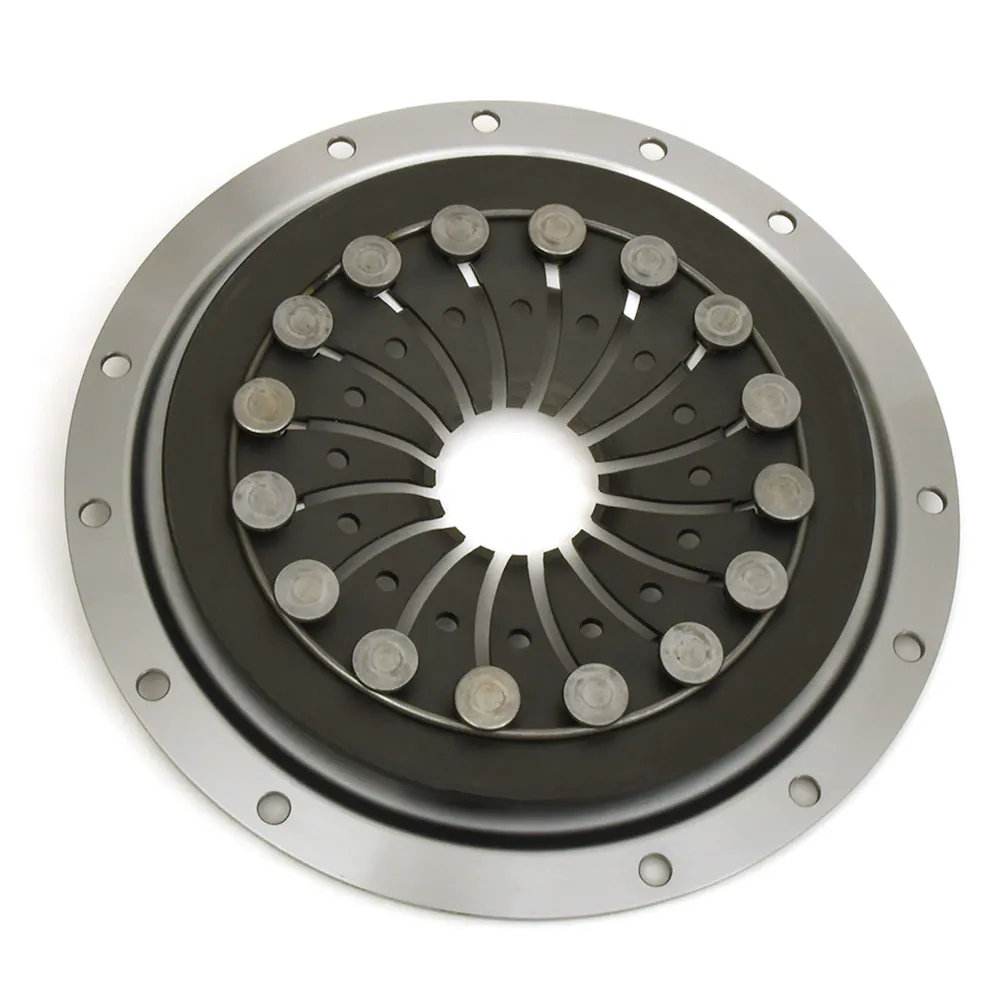

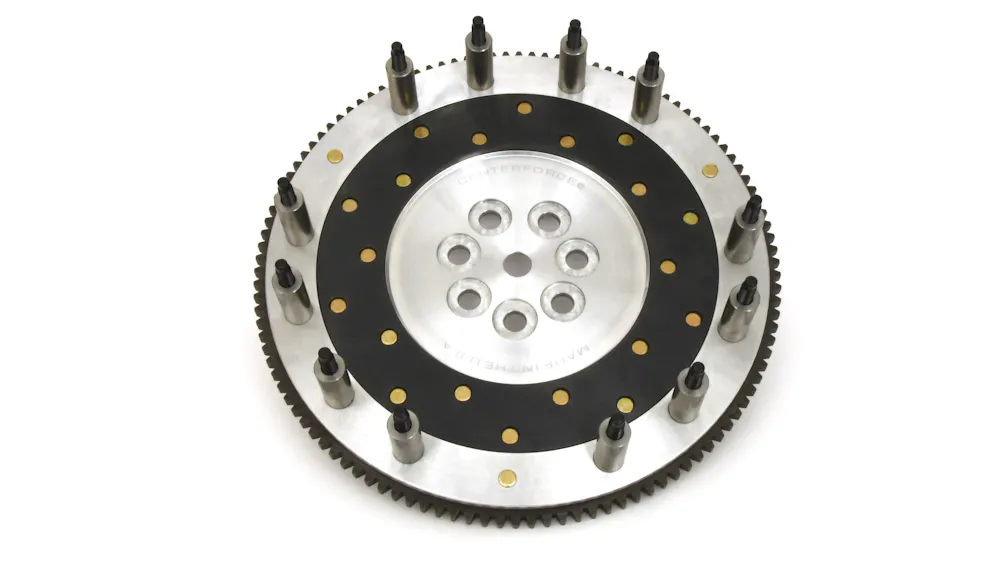

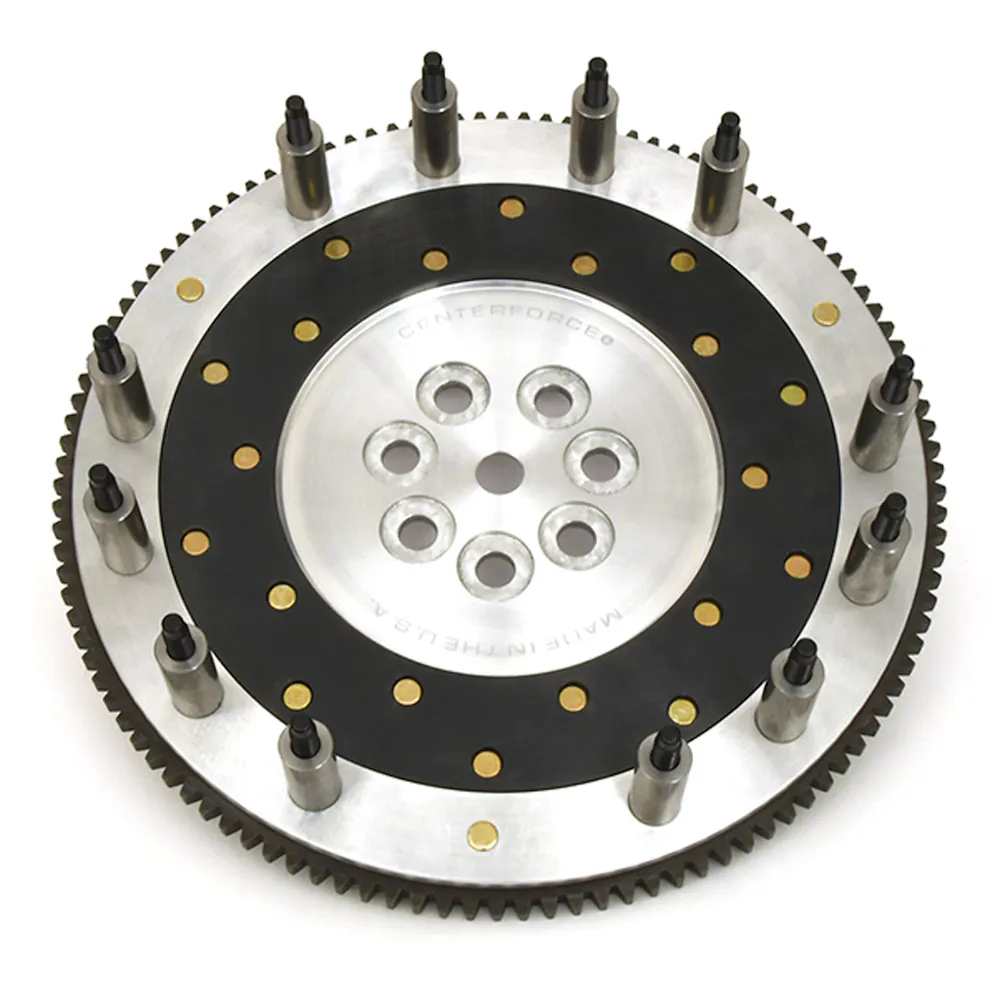

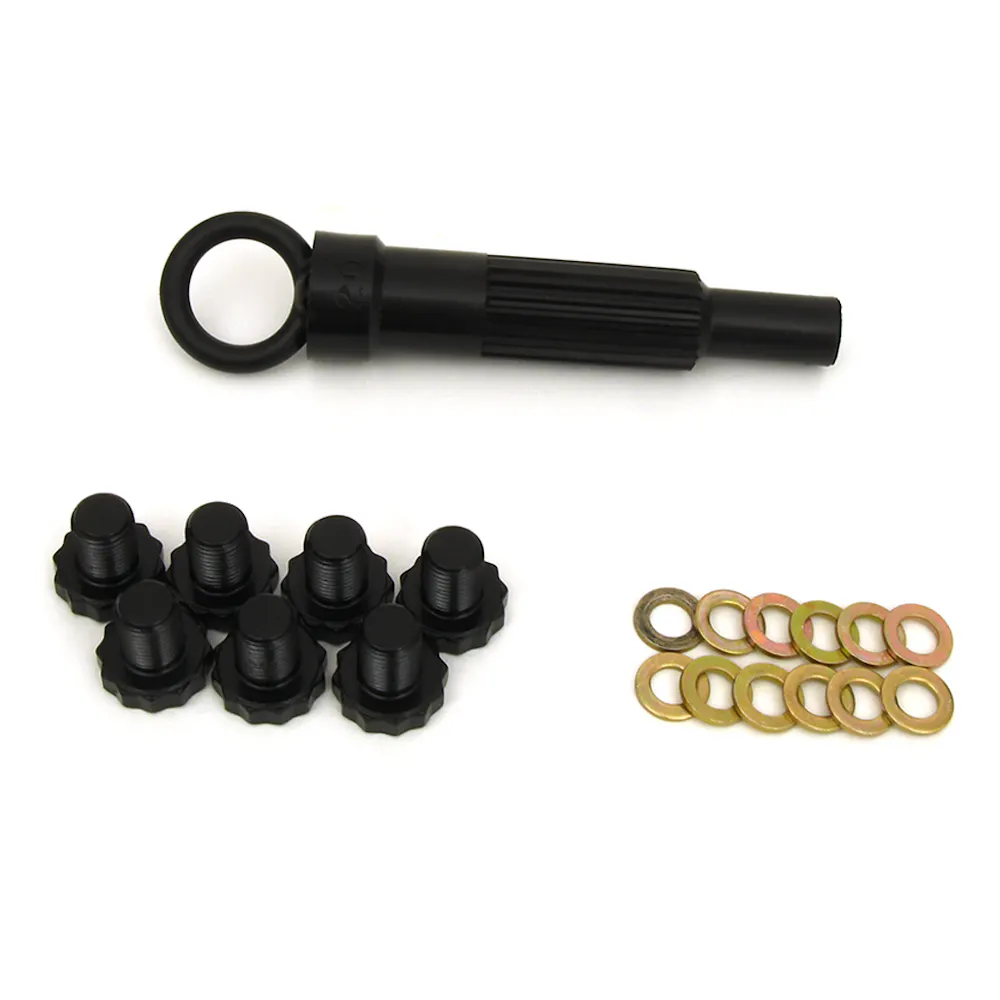

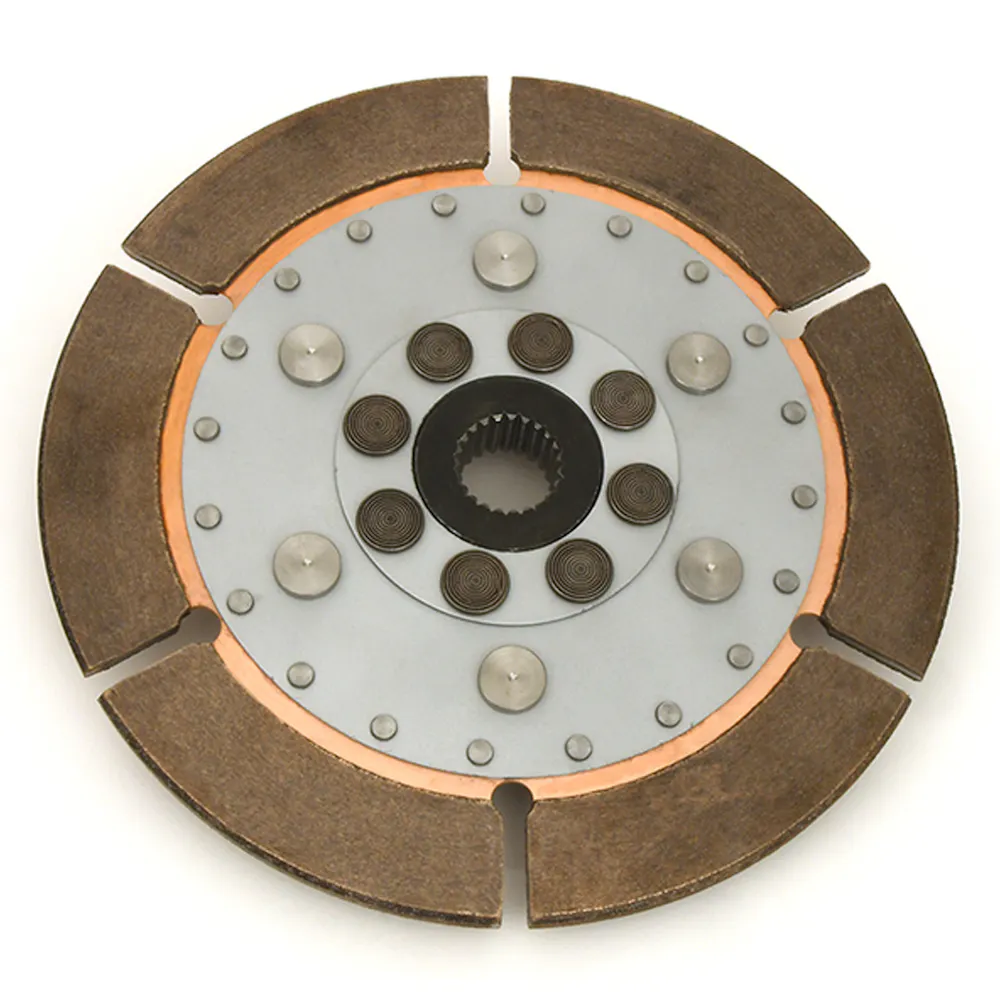

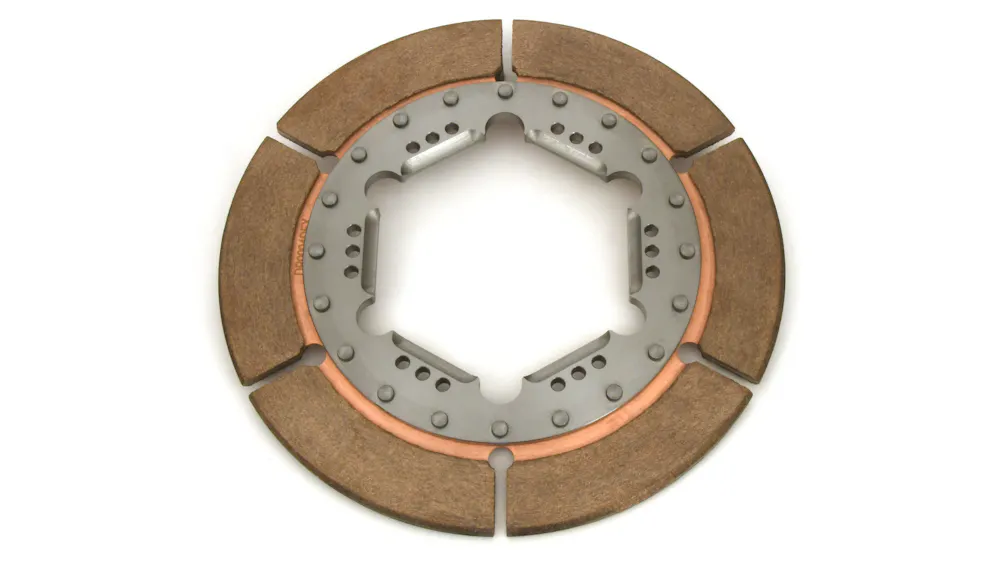

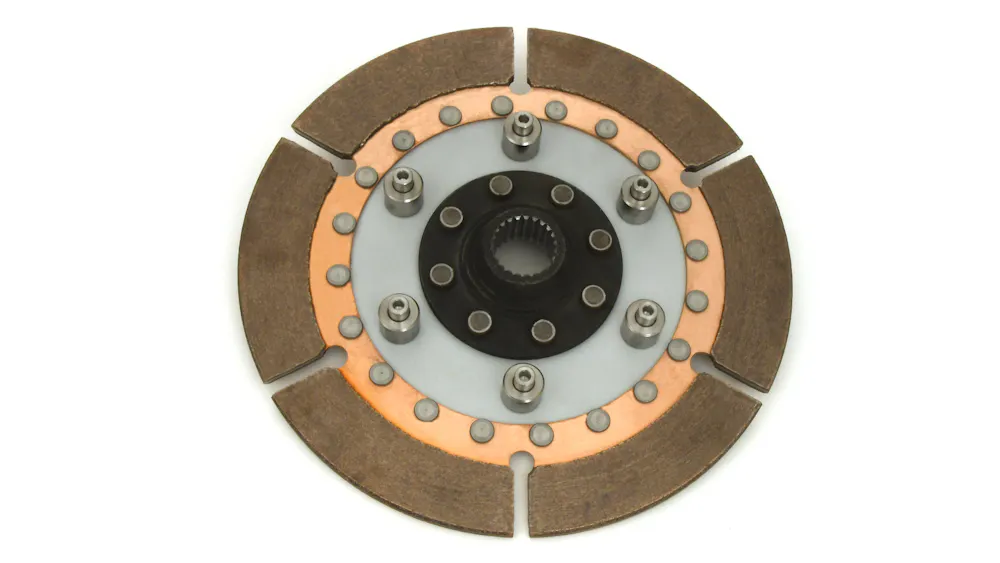

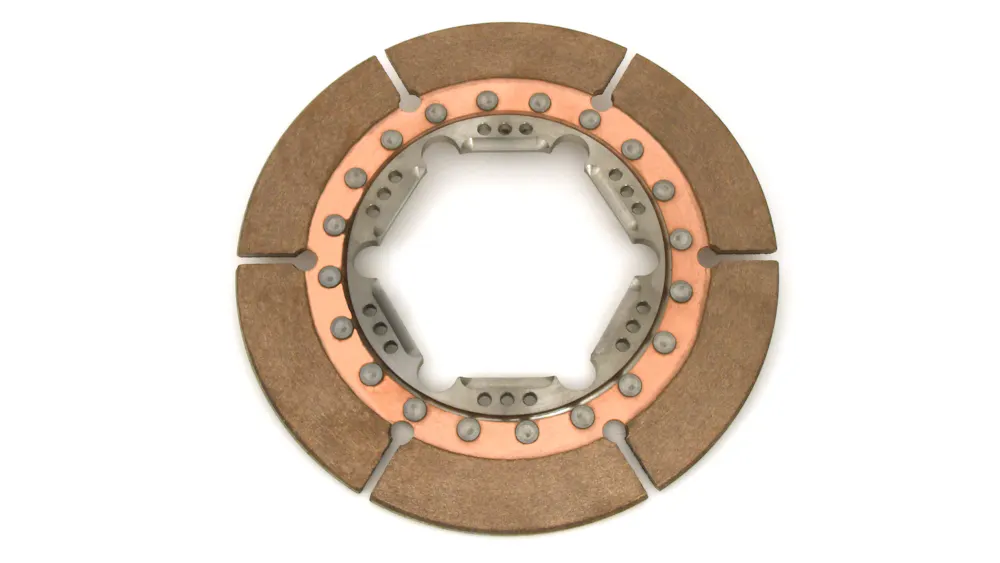

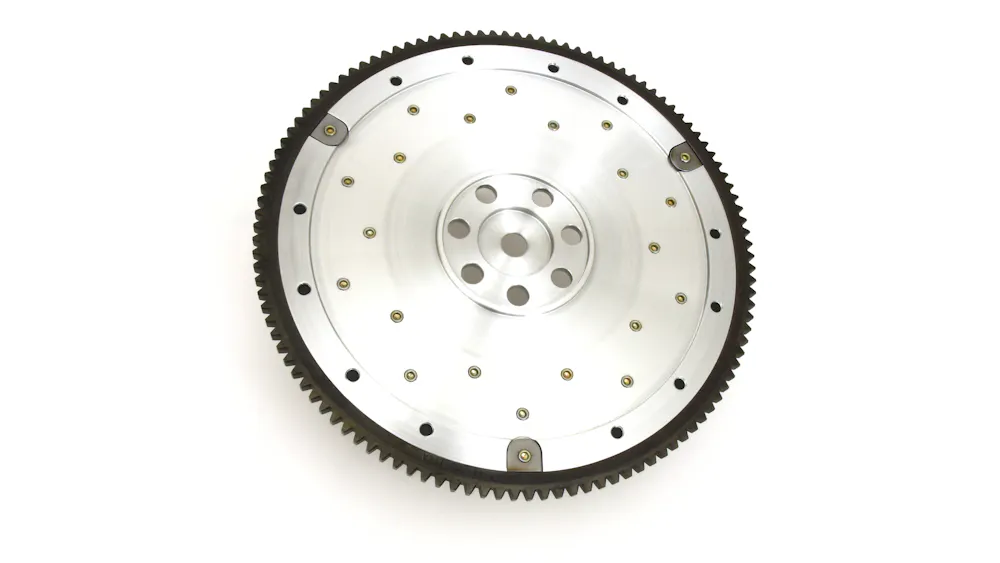

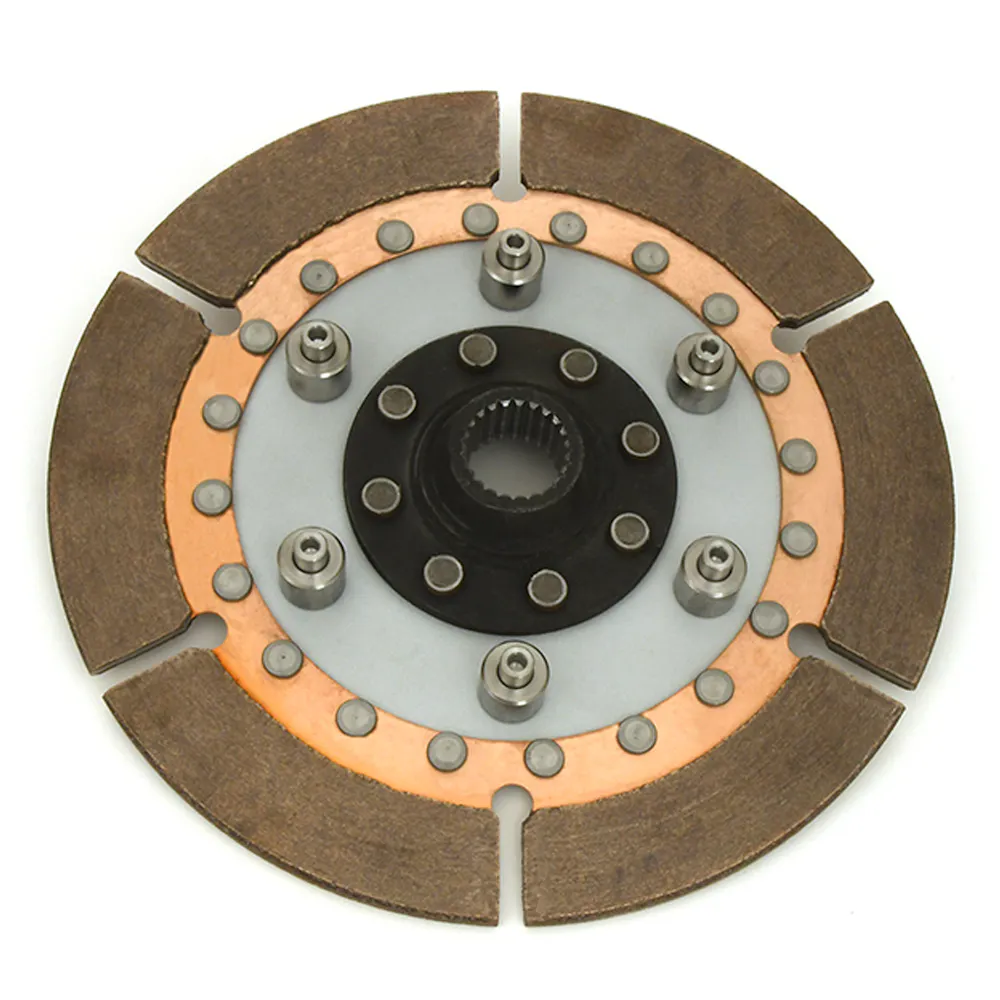

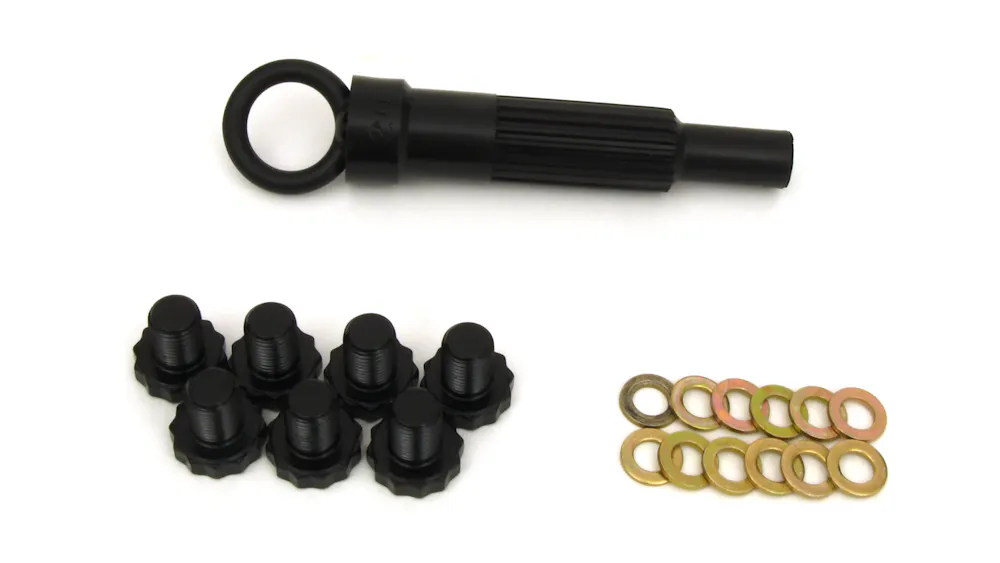

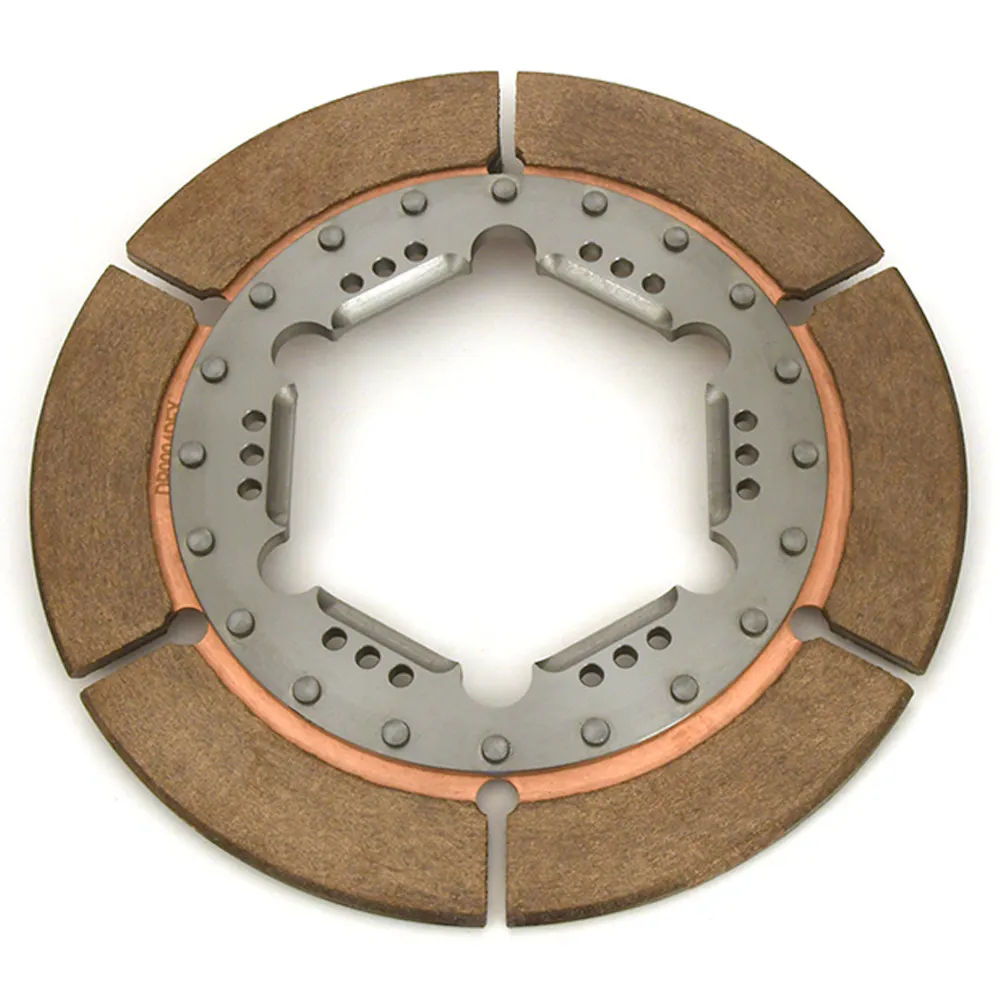

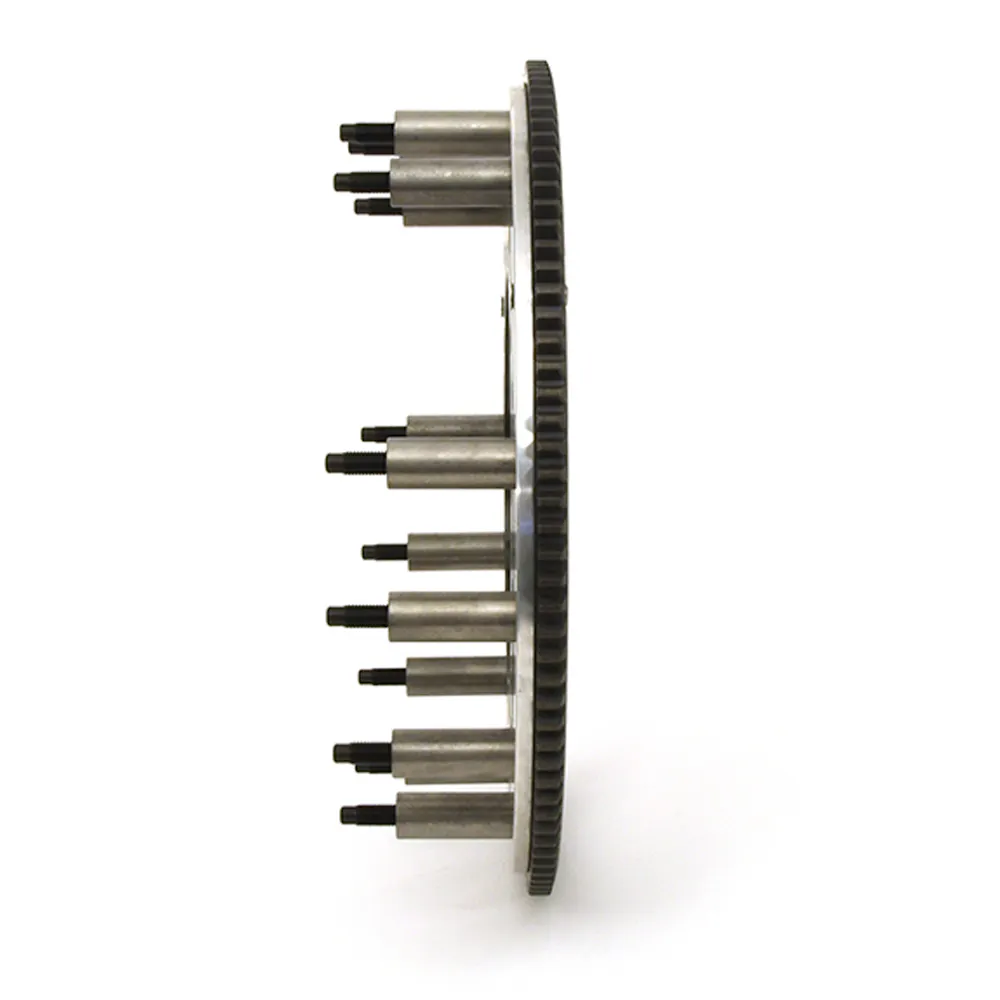

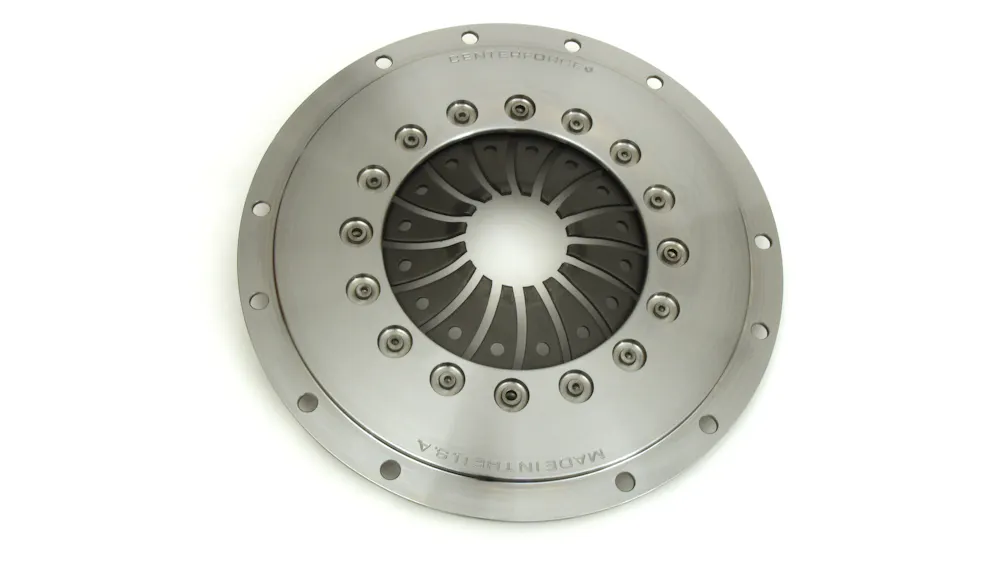

The Centerforce(R) DYAD XDS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 400 to 800 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with metallic friction material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Application summary
| Year | Make / model |
|---|---|
| 2005-2006 | Mitsubishi Lancer |
Specifications
- GTIN
- 00788442031249
- Weight
- 24.5 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 222.3
- Counterweight Assist
- No
- Crankshaft Bolt Hole Quantity
- 7
- Disc Material
- Sintered Metallic
- Disc Type
- Full face
- Disc Type Sprung Solid
- Solid
- Flywheel Crank Bolt Qty
- 7
- Flywheel Crank Bolt Size
- M12 x 1.50 x 15
- Input Shaft Diameter
- 1
- Input Spline Quantity
- 23
- Made In The USA
- Assembled
- Material
- Cerametallic
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 22.30
- Replaceable Friction Surface
- Y
- Ring Gear O.D.
- 11.513
- Ring Gear Tooth Count
- 114
- Title
- Centerforce DYAD ? XDS 8.75, Extreme Multi-Disc Clutch and Flywheel Kit, 22.30 lbs, 114 Tooth Gear, 7 Bolt Crank, 400-600 ft/lbs Capacity, 8.75in Dia., 23-Spline, Fits Mitsubishi Lancer Evolution 2.0L
- Tooth Quantity
- 114
- Torque Capacity
- 400-600
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2005-2006 Mitsubishi Lancer
