Centerforce · 815231837
Part #: 815231837
UPC: 788442031201
Log in for inventory
Notify me when this item is in stock.
Description: DYAD(R) DS 8.75, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 8.75 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 300 to 600 ft /lbs.
Description:
Description
The Centerforce(R) DYAD DS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 300 to 600 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The discs pack is equipped with Kevlar full facing material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Application summary
| Year | Make / model |
|---|---|
| 2016-2017 | Ford Focus |
Specifications
- GTIN
- 00788442031201
- Weight
- 32.9 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 222.3
- Counterweight Assist
- No
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Kevlar
- Disc Type
- Full face
- Disc Type Sprung Solid
- Solid
- Flywheel Crank Bolt Qty
- 6
- Input Shaft Diameter
- 1
- Input Spline Quantity
- 23
- Made In The USA
- Assembled
- Material
- Organic
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 28.7
- Replaceable Friction Surface
- N
- Title
- Centerforce DYAD ? DS 8.75, Multi-Disc Clutch and Flywheel Kit, 28.7 lbs, 6 Bolt Crank, 300-600 ft/lbs Capacity, 8.75in Dia., 23-Spline, Fits Ford Focus RS 2.3L
- Torque Capacity
- 300-600
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2016-2017 Ford Focus

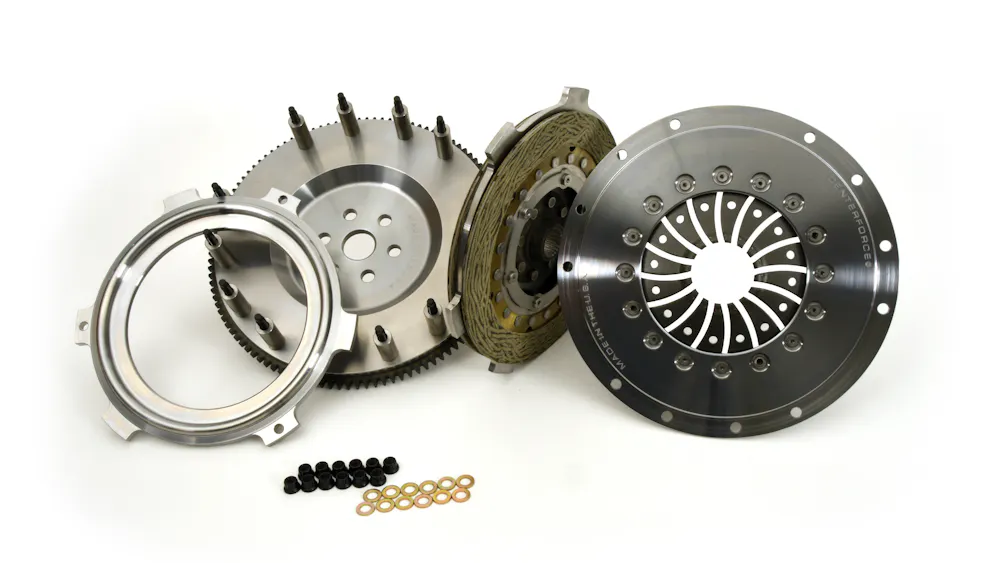

Centerforce 815231837
