Centerforce / 700107
Part #: 700107
UPC: 788442011609
Loading...
Notify me when this item is in stock.

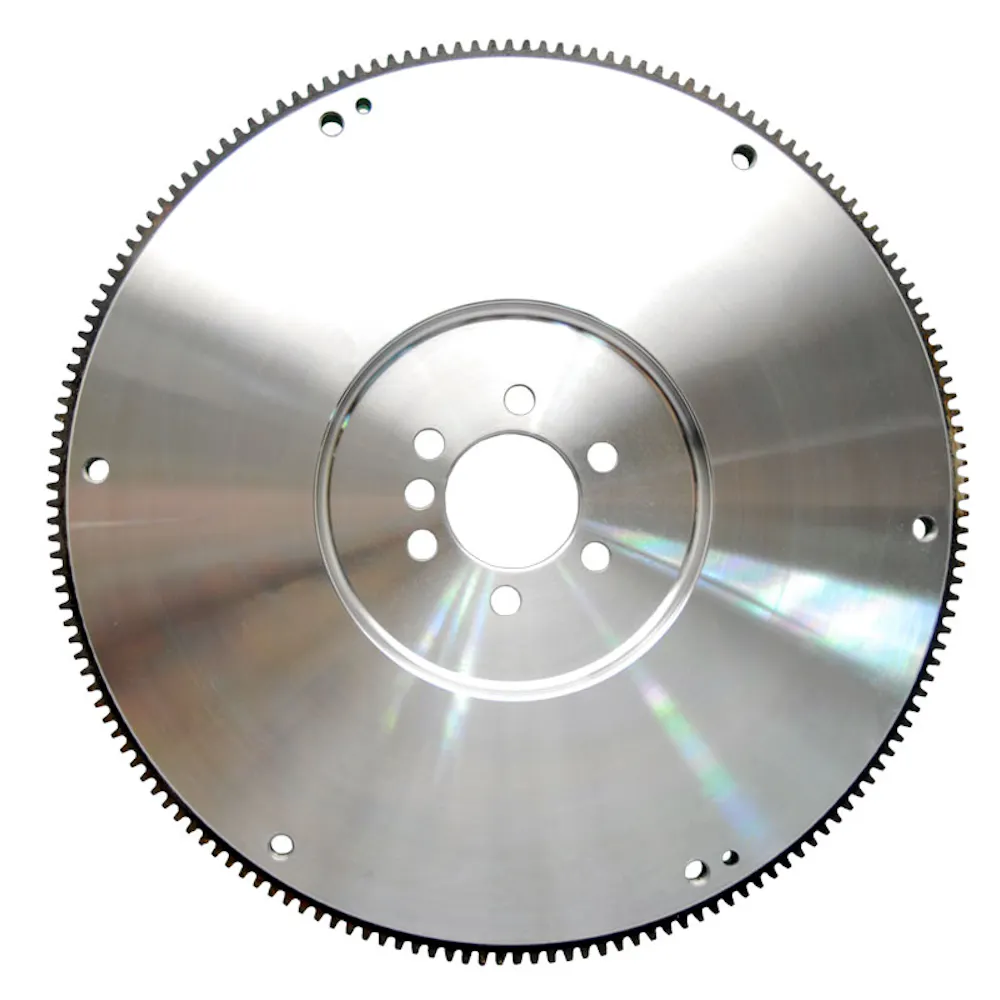

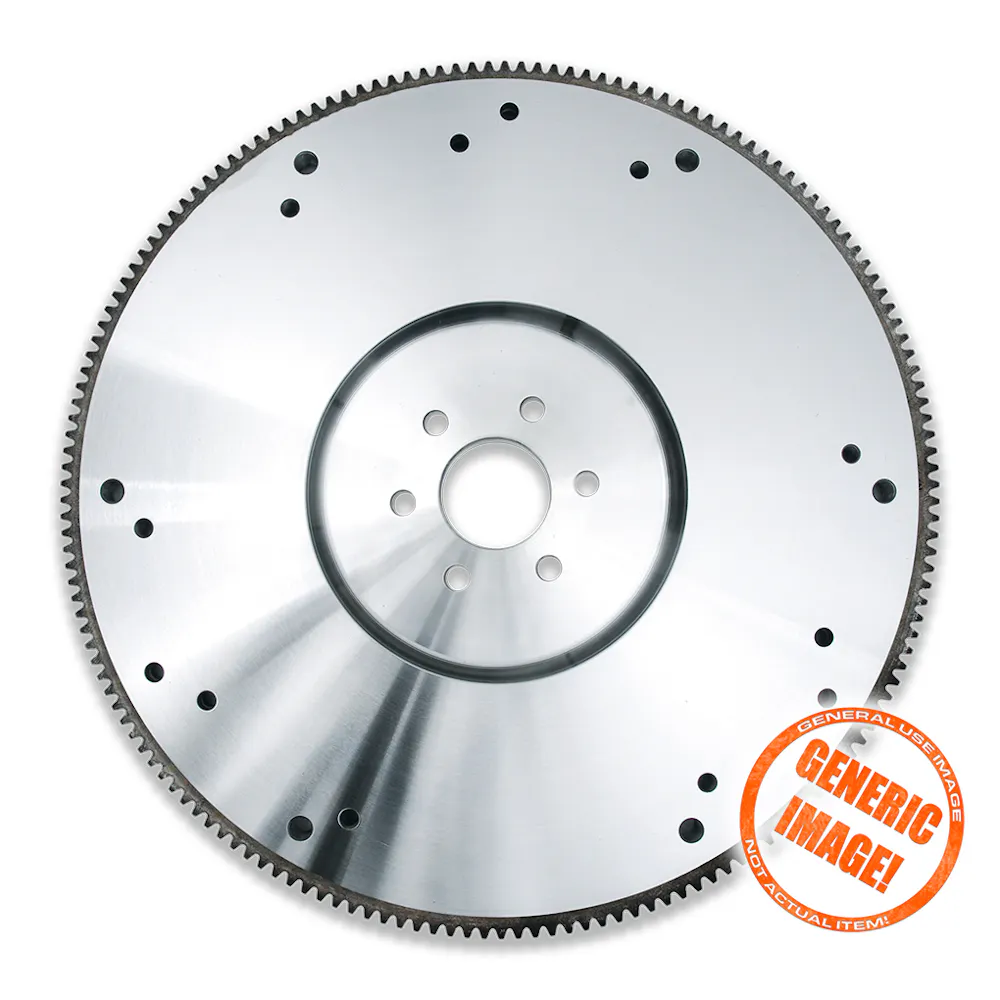

Description: Centerforce(R) Flywheels, Steel; Centerforce(R) SFI-certified steel flywheels are CNC-machined from billet steel for precise, no-hassle, bolt-in installation. See extended description for more info.
Description:
Description
PLEASE NOTE: This is a conversion flywheel intended for use with a neutral balance / internal balance Chevy engine that has a two-piece rear main mated to a T-56 transmission from a 1993-1997 Pontiac or Camaro. Centerforce(R) steel flywheels are manufactured from high quality billet steel and match closely to the original equipment flywheel weight. Billet steel flywheels are available for popular import and domestic vehicles, including trucks. Centerforce steel flywheels are CAD/CAM-designed and CNC-machined from billet steel for precise, no-hassle, bolt-in installation. Centerforce billet steel flywheels are SFI-certified, so you know that you can count on them, on the street and on the track.
Application summary
| Year | Make / model |
|---|---|
| 1993-1997 | Chevrolet Camaro |
| 1993-1997 | Pontiac Firebird |
Specifications
- GTIN
- 00788442011609
- Weight
- 31.9 lb
- Height
- 2.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 24
- Crankshaft Bolt Hole Quantity
- 6
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Qty
- 6
- Flywheel Crank Flange Register
- 2.485
- Includes
- Flywheel
- Made In The USA
- Yes
- Material
- Billet Steel
- Out of Package Weight
- 29.3
- Outside Diameter
- 12.835
- Rear Main Seal Style
- 2
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 12.835
- Ring Gear O.D.
- 12.835
- Ring Gear OD
- 12.835
- Ring Gear Tooth Count
- 153
- SFI 1.1 Approved
- Y
- Seal Type
- 2
- Title
- Centerforce ? Flywheels, Performance Steel, 29.3 lbs, 153 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, Fits Chevrolet/Pontiac Camaro and Firebird 5.7L
- Tooth Quantity
- 153
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1993-1997 Chevrolet Camaro; 1993-1997 Pontiac Firebird
Equivalent Parts
Centerforce 700107
