Centerforce / 519026651
Part #: 519026651
UPC: 788442033779
Loading...
Notify me when this item is in stock.

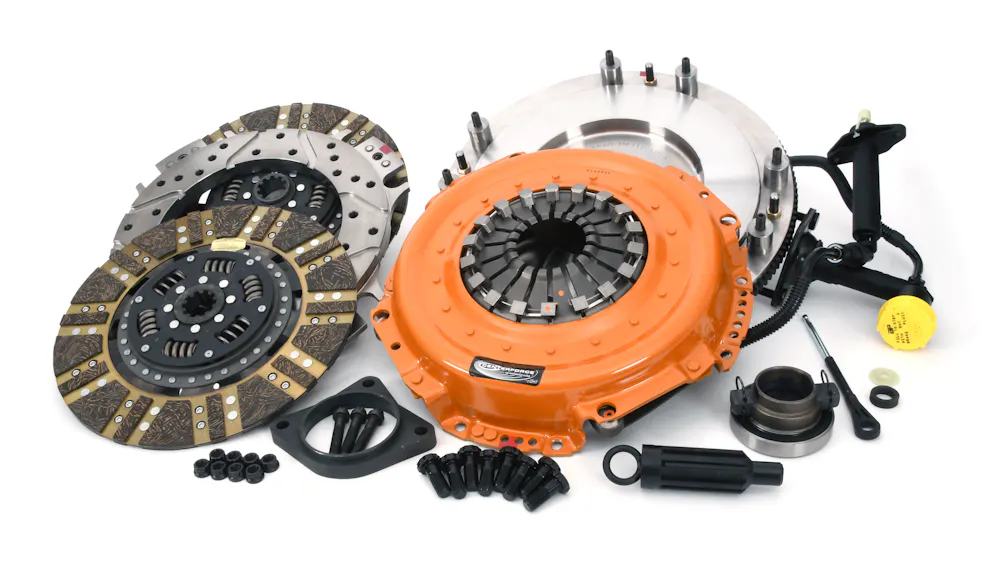

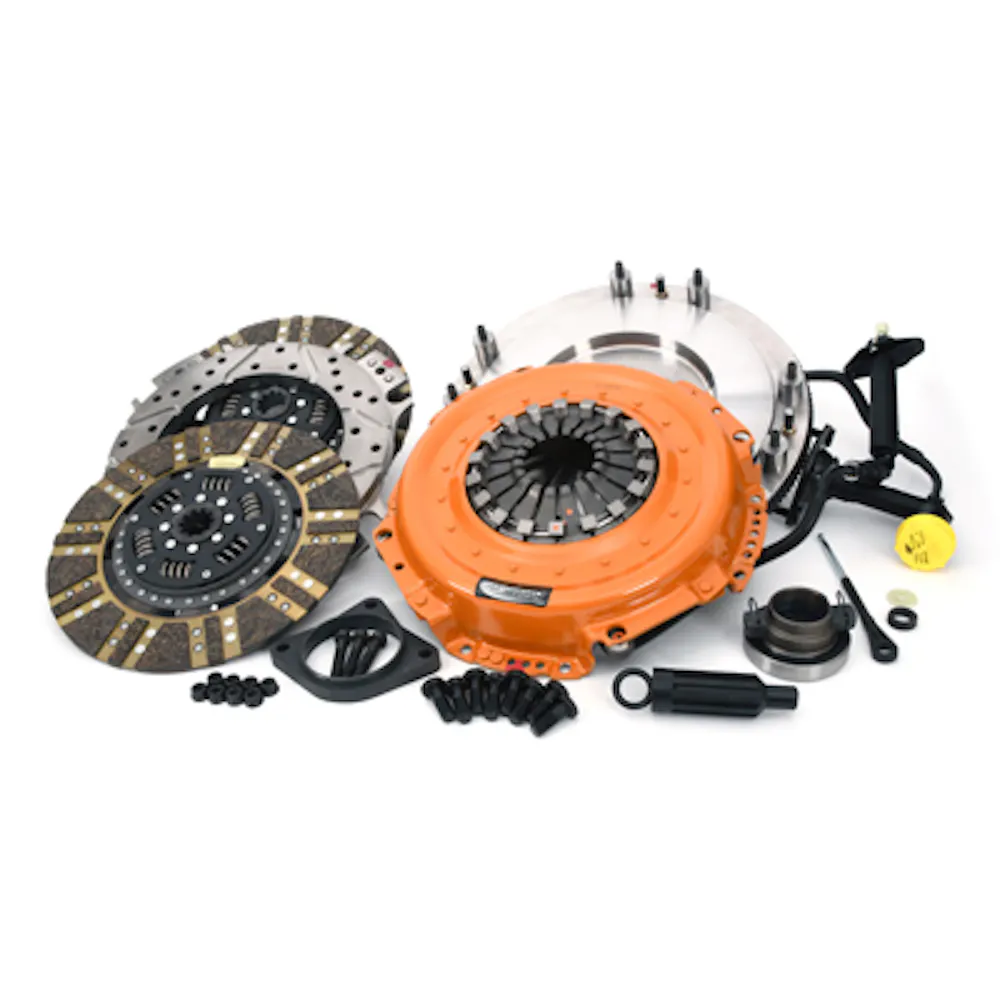

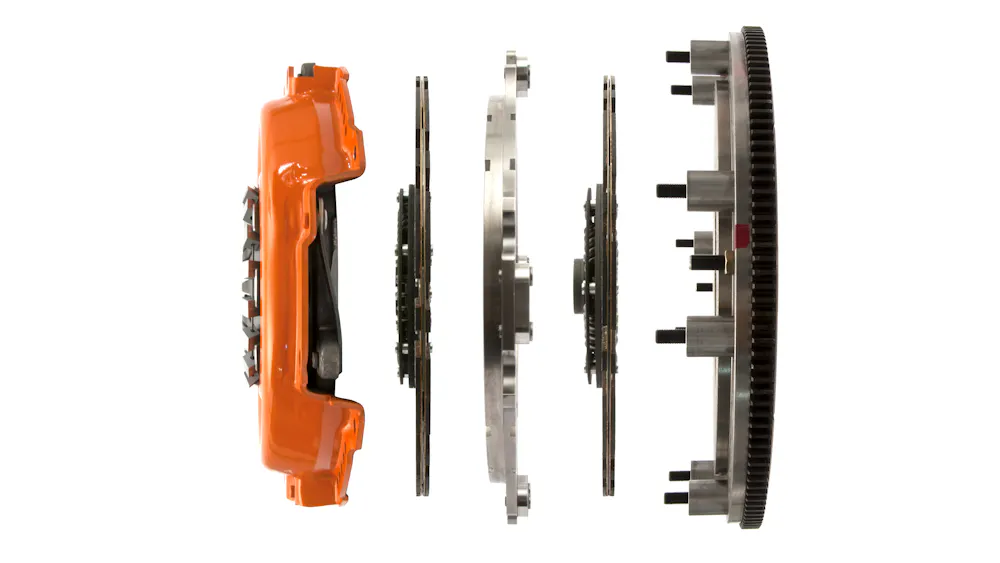

Description: Centerforce(R) Diesel Twin and Flywheel Kit; This Centerforce Twin Disc clutch offers smooth engagement, quiet operation, light pedal, and high-end holding capacity.
Description:
This part number superseded 04026651.
Description
Available for Dodge Cummins Diesel equipped 2500-5500 trucks. Centerforce announces their NEW Twin Disc clutch set for Heavy-Duty street and towing use. Truck owners pushing power levels up to 1700 ft/lbs will enjoy the smooth and quiet operation this unique clutch set offers. All components are match balanced and ready for installation.
Application summary
| Year | Make / model |
|---|---|
| 2005-2010 | Dodge Ram 2500 |
| 2005-2010 | Dodge Ram 3500 |
| 2008-2010 | Dodge Ram 4500 |
| 2008-2010 | Dodge Ram 5500 |
| 2011-2018 | Ram 2500 |
| 2011-2018 | Ram 3500 |
| 2011-2017 | Ram 4500 |
| 2011-2016 | Ram 5500 |
Specifications
- GTIN
- 00788442033779
- Weight
- 114.8 lb
- Height
- 15 in
- Length
- 19 in
- Width
- 18.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 22
- Clutch Disc Diameter
- 311.2
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 8

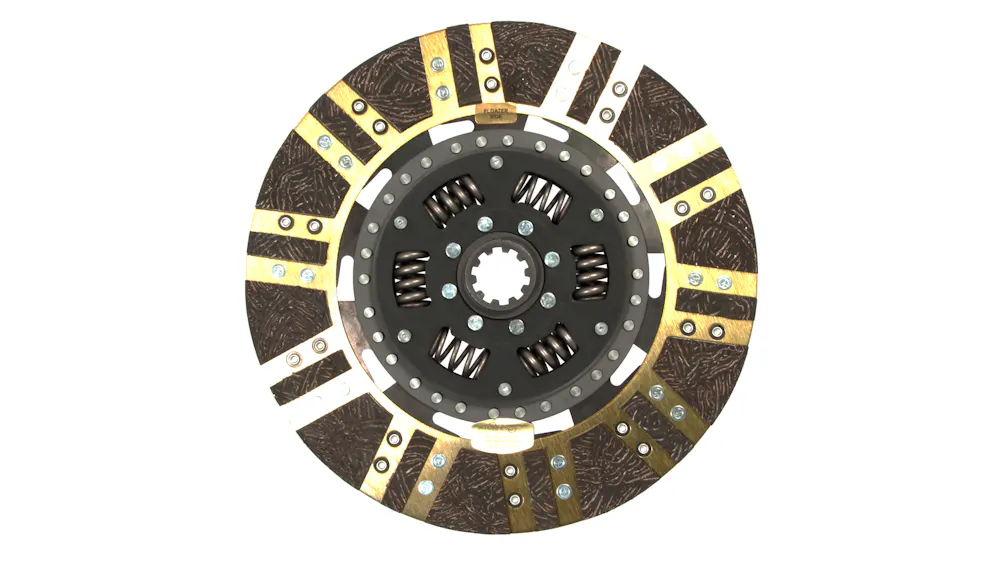

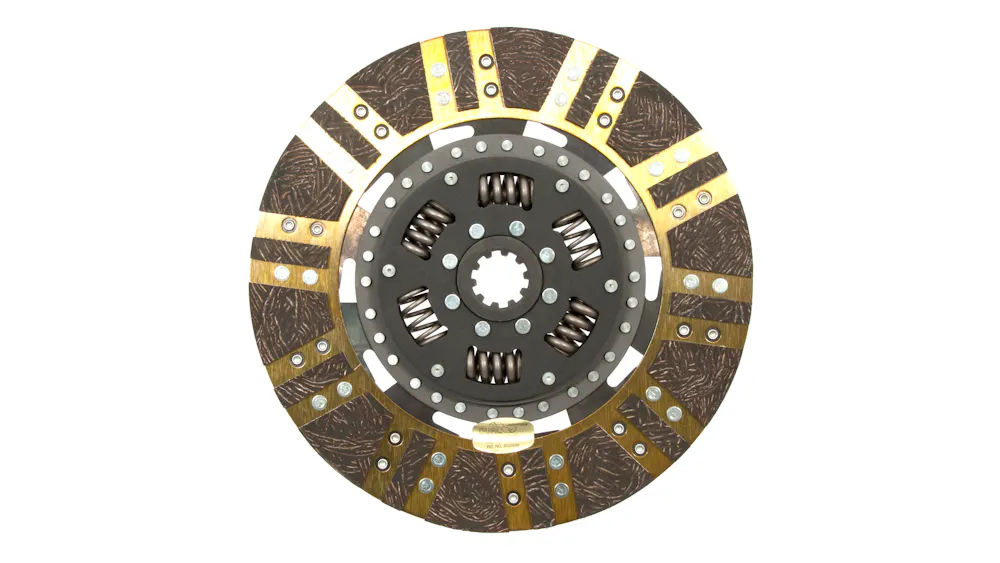

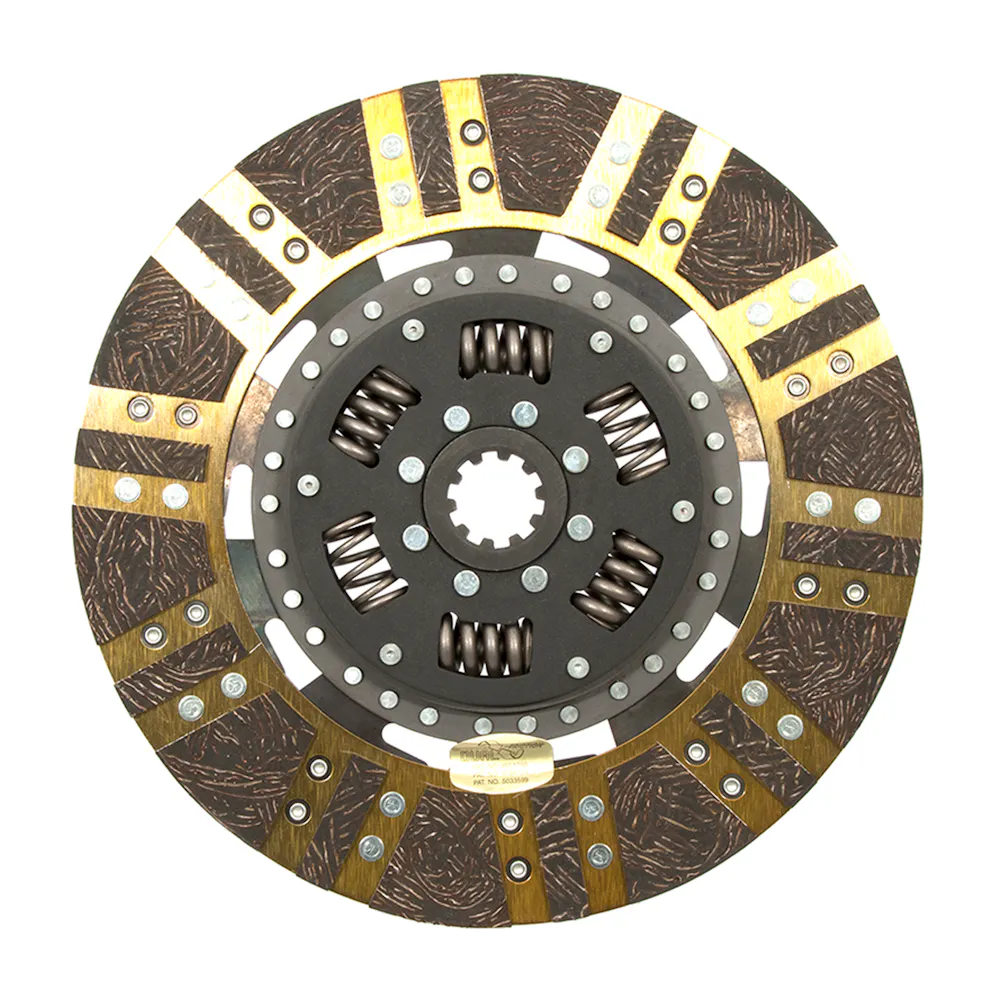

- Disc Material
- Organic/Carbon composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- M12 x 1.25 x 32
- Flywheel Crank Flange Register
- 5.118
- Input Shaft Diameter
- 1-3/8
- Input Spline Quantity
- 10
- Installed Height
- 4.475
- Made In The USA
- Assembled
- Material

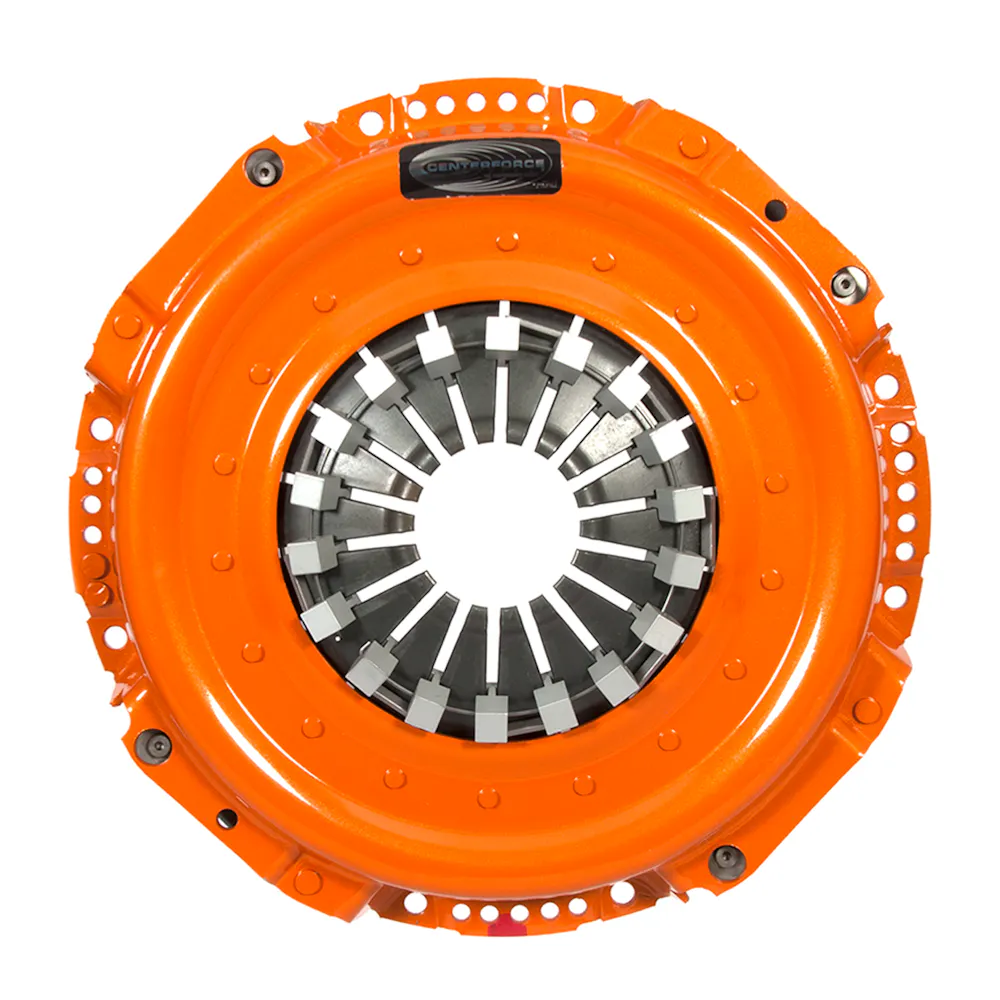

- Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction

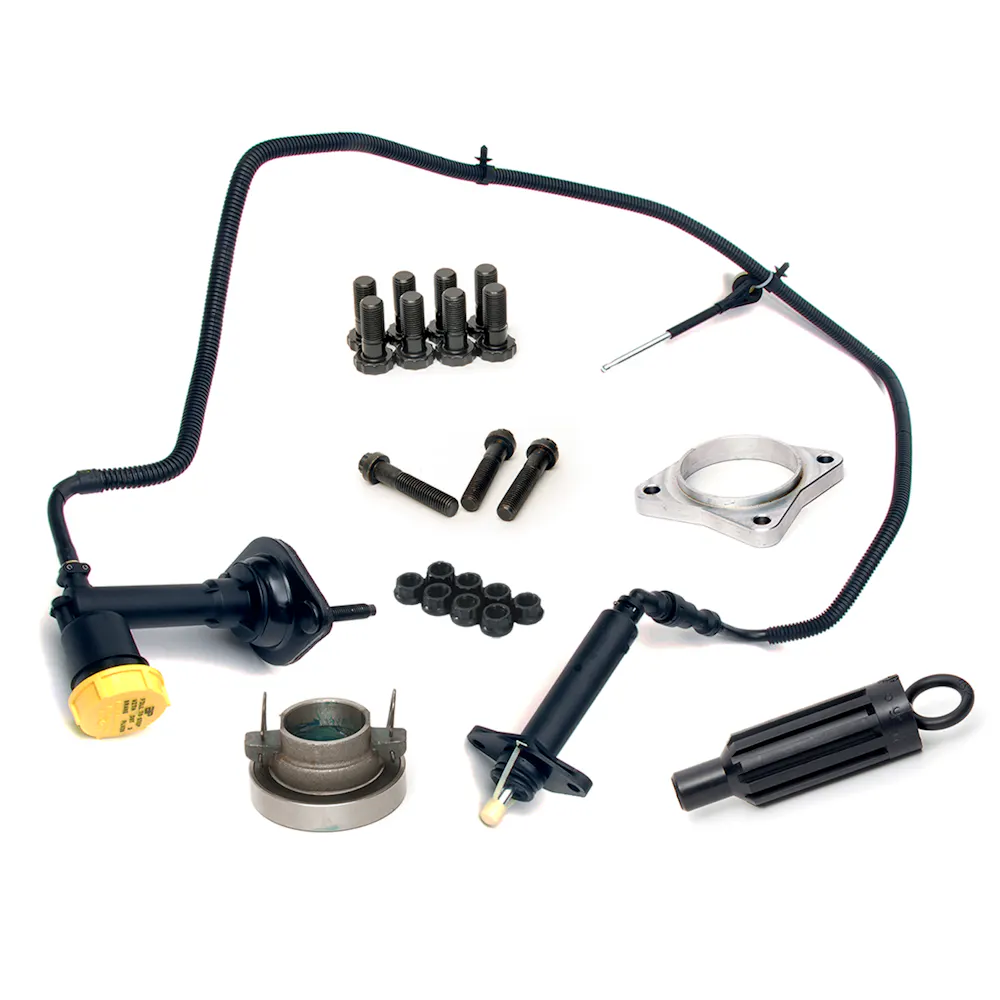

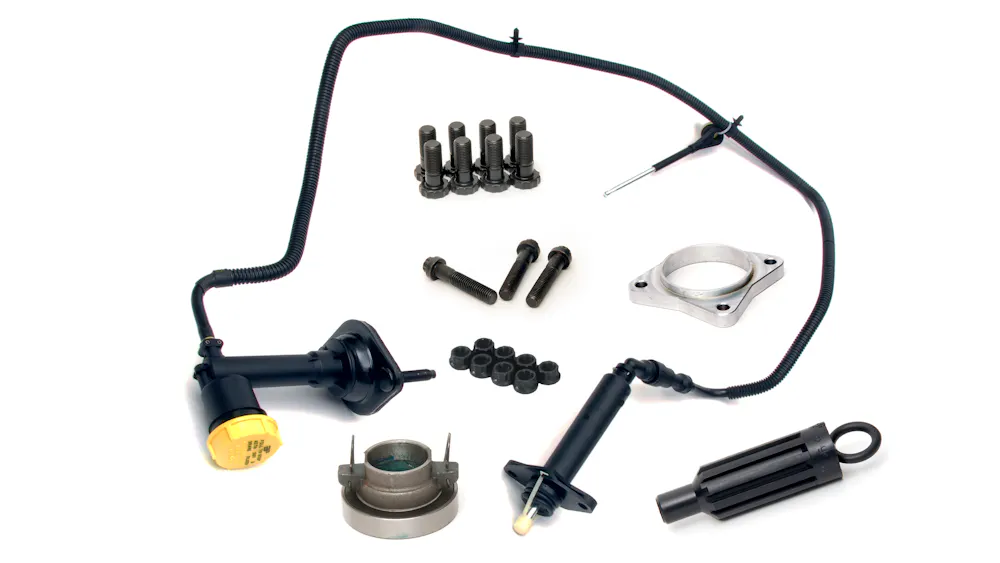

- Mounting Hardware Included
- Yes
- Out of Package Weight
- 109.10
- Outside Diameter
- 15.625
- Pilot Bushing Included
- Yes
- Pilot Bushing Material
- Bearing
- Release Bearing Included
- Yes
- Release Bearing Style
- Flat Face
- Ring Gear O.D
- 15.625
- Ring Gear O.D.
- 15.625
- Ring Gear OD
- 15.625
- Ring Gear Tooth Count
- 152
- Title
- Centerforce ? Diesel Twin and Flywheel Kit, 109.10 lbs, 152 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1700 ft/lbs Capacity, 12.250in Dia., 10-Spline, Fits Dodge/Ram Cars and Trucks 5.9L/6.7L
- Tooth Quantity
- 152
- Torque Capacity
- 1700
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2005-2010 Dodge Ram 2500; 2005-2010 Dodge Ram 3500; 2008-2010 Dodge Ram 4500; 2008-2010 Dodge Ram 5500; 2011-2018 Ram 2500; 2011-2018 Ram 3500; 2011-2017 Ram 4500; 2011-2016 Ram 5500
