Centerforce · 427613092

Part #: 427613092
UPC: 788442032512

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: DYAD XDS Twin-Disc Clutch Kits

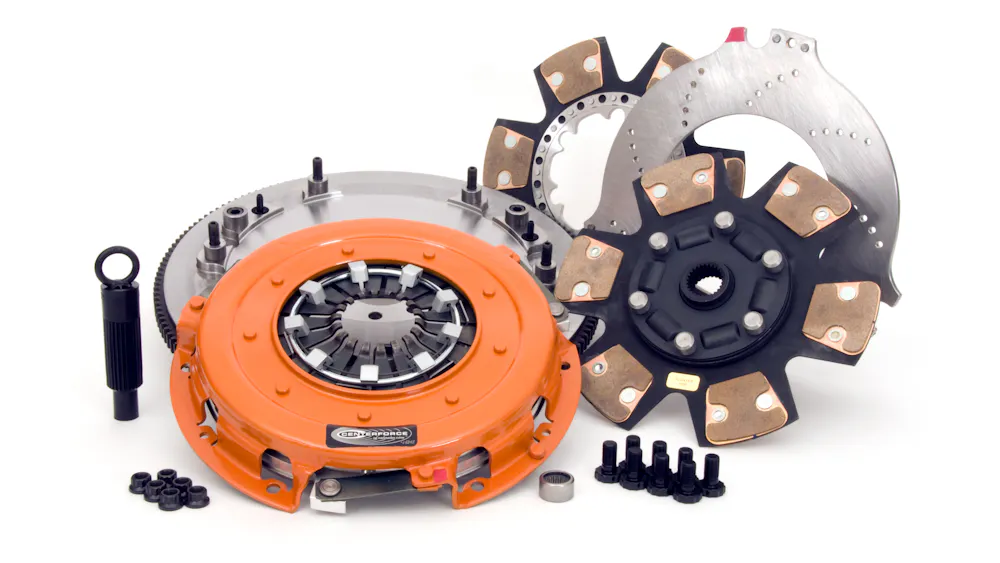

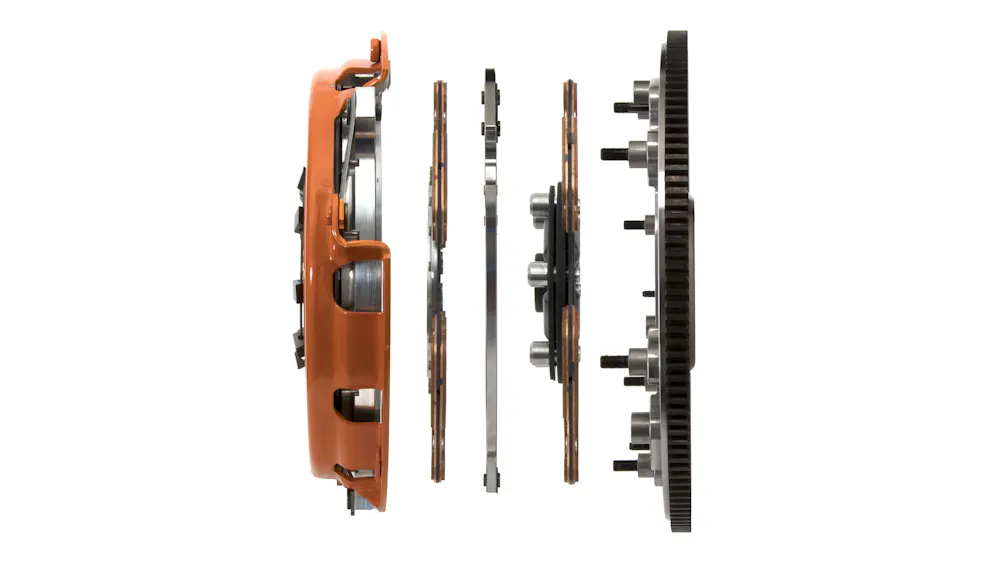

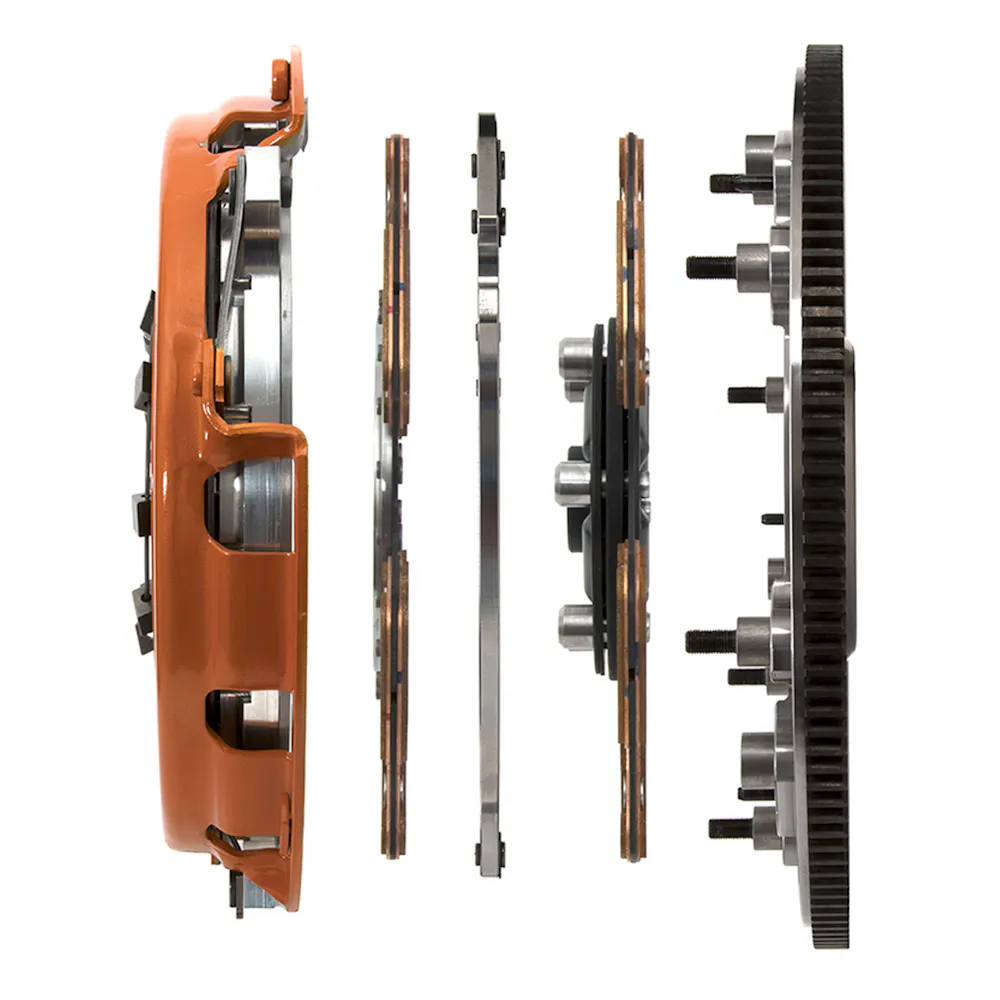

Description: DYAD(R) XDS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 700 to 1600 ft /lbs.

Cancer - www.P65Warnings.ca.gov

Description

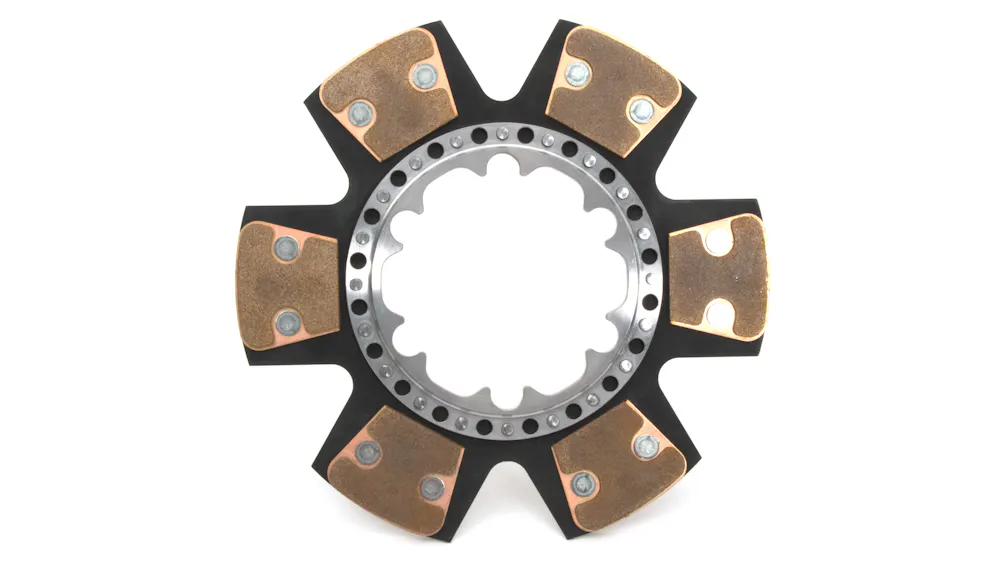

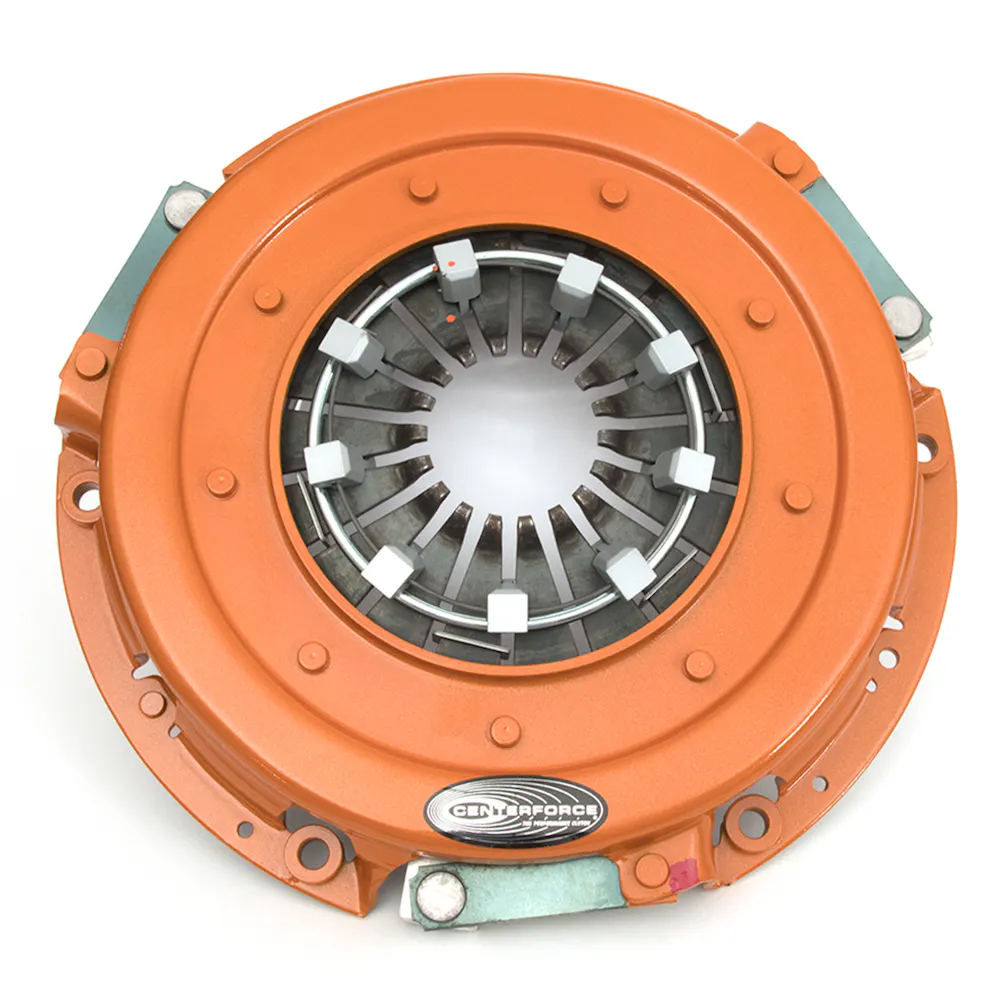

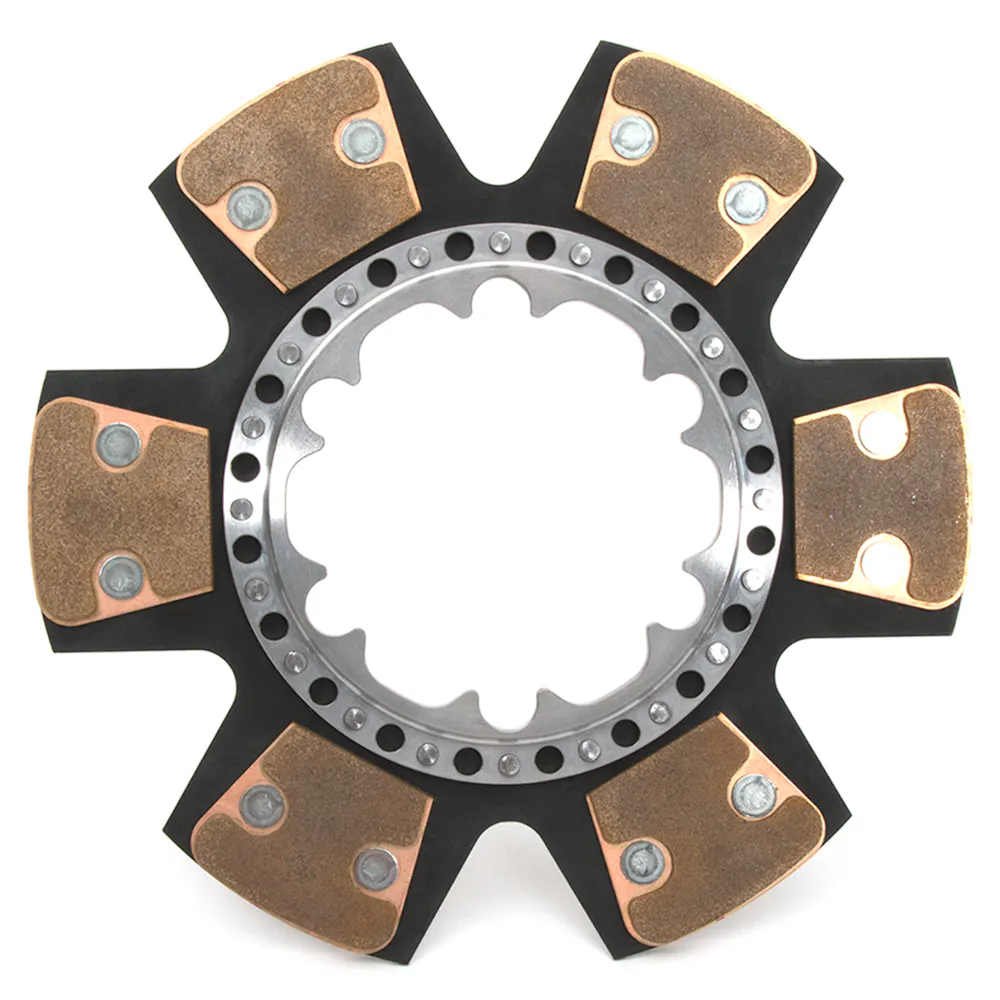

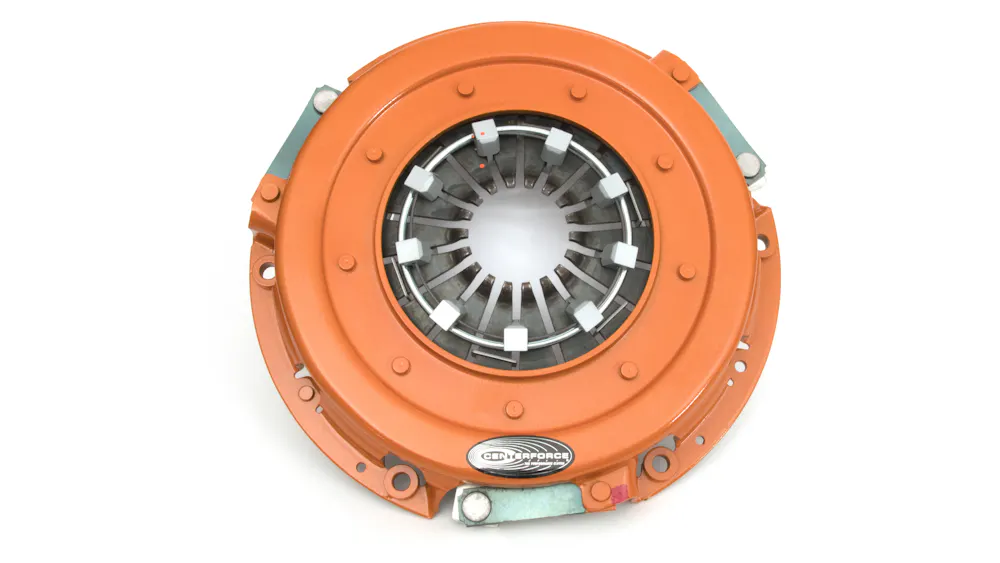

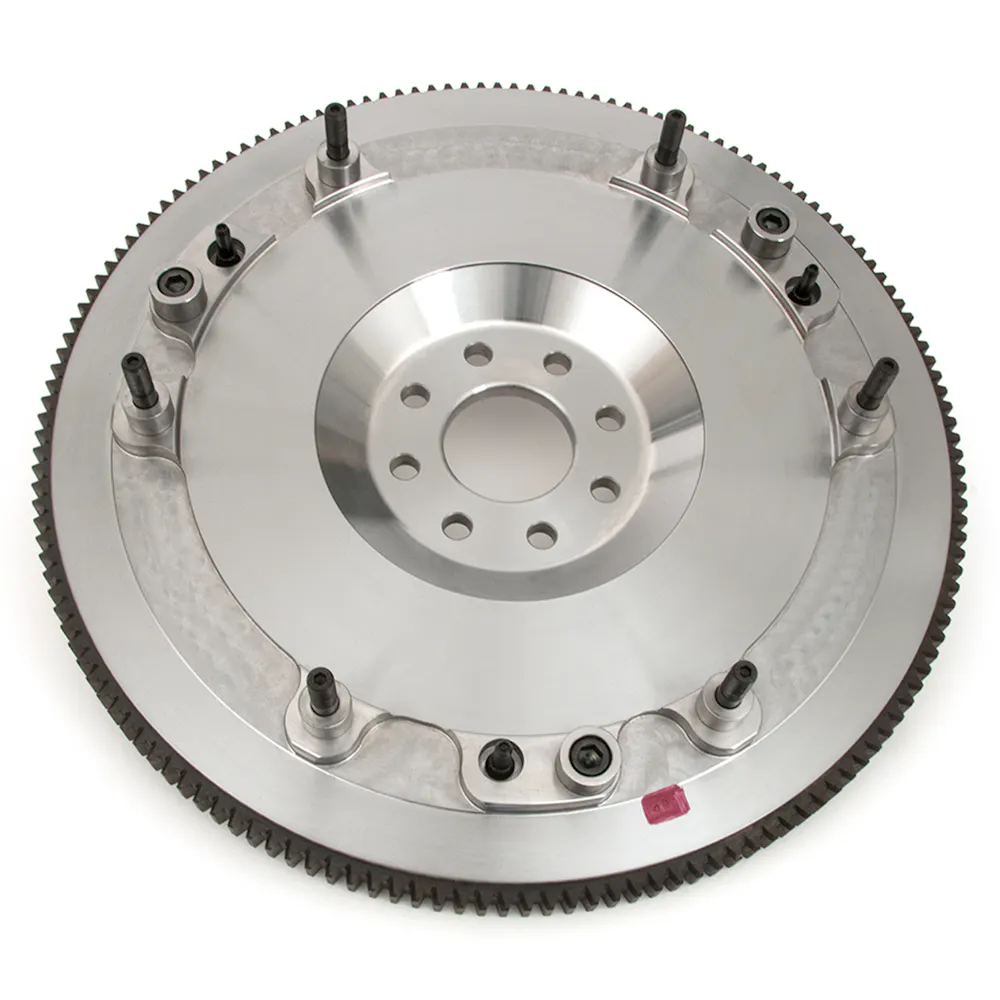

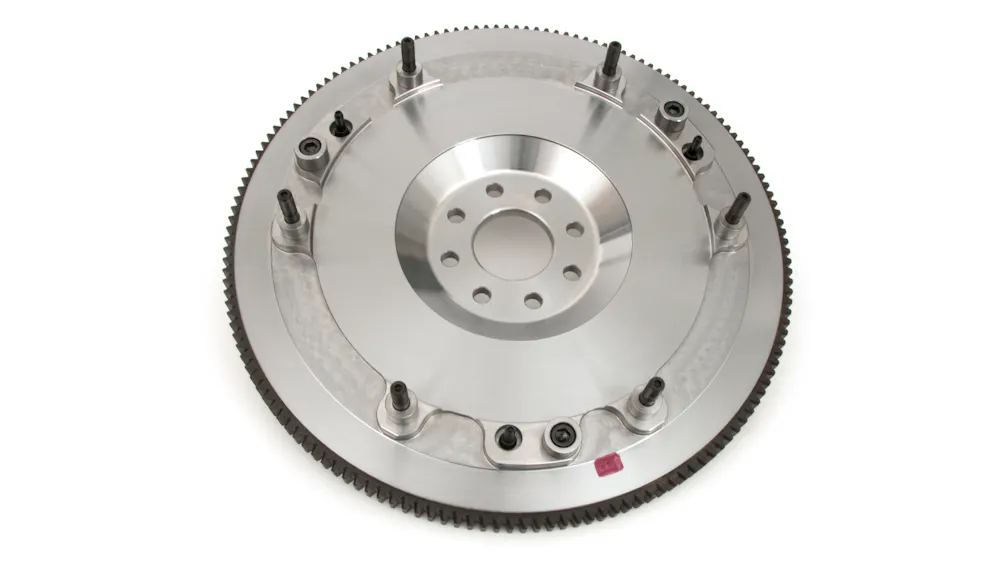

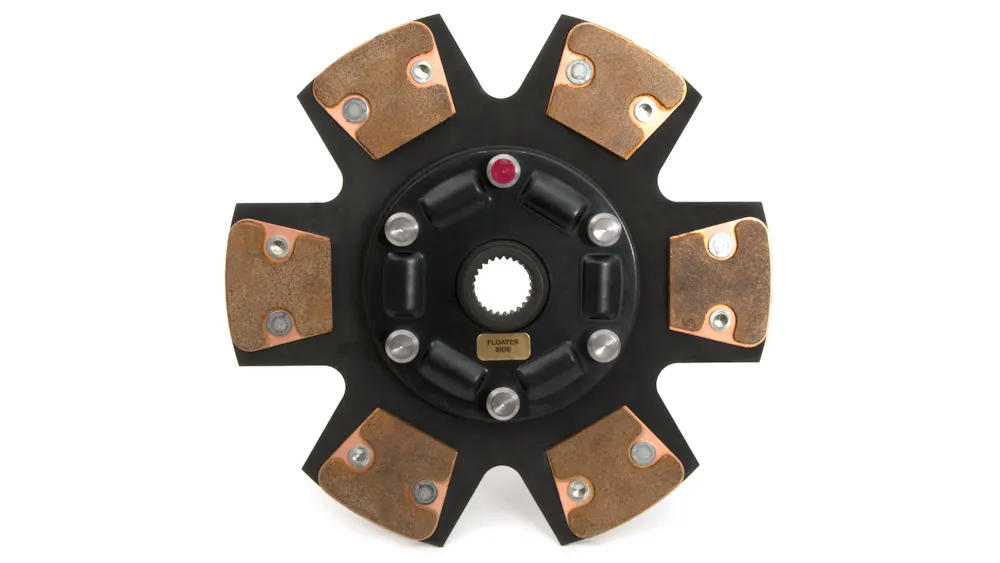

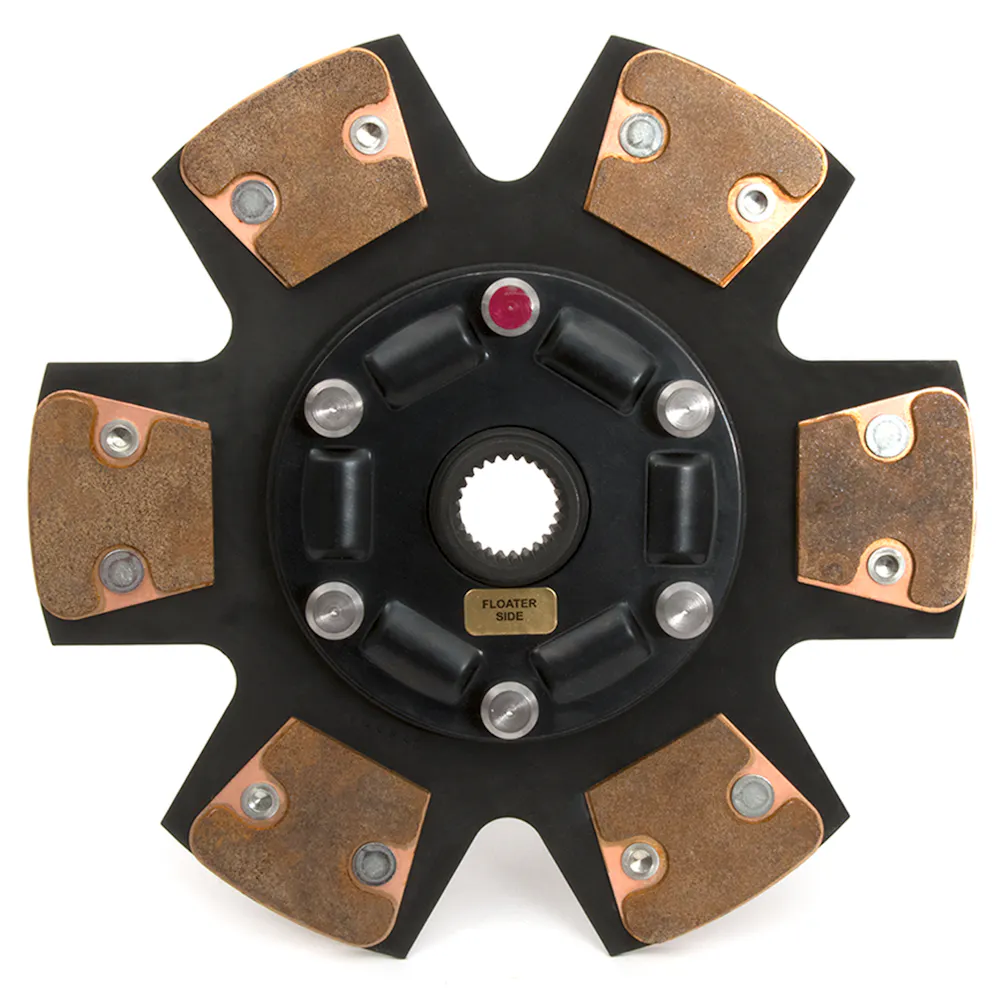

The Centerforce(R) DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

Application summary

Year	Make / model
1992-2002	Dodge Viper

Specifications

GTIN: 00788442032512
Weight: 61.65 lb
Height: 5.5 in
Length: 18 in
Width: 18 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

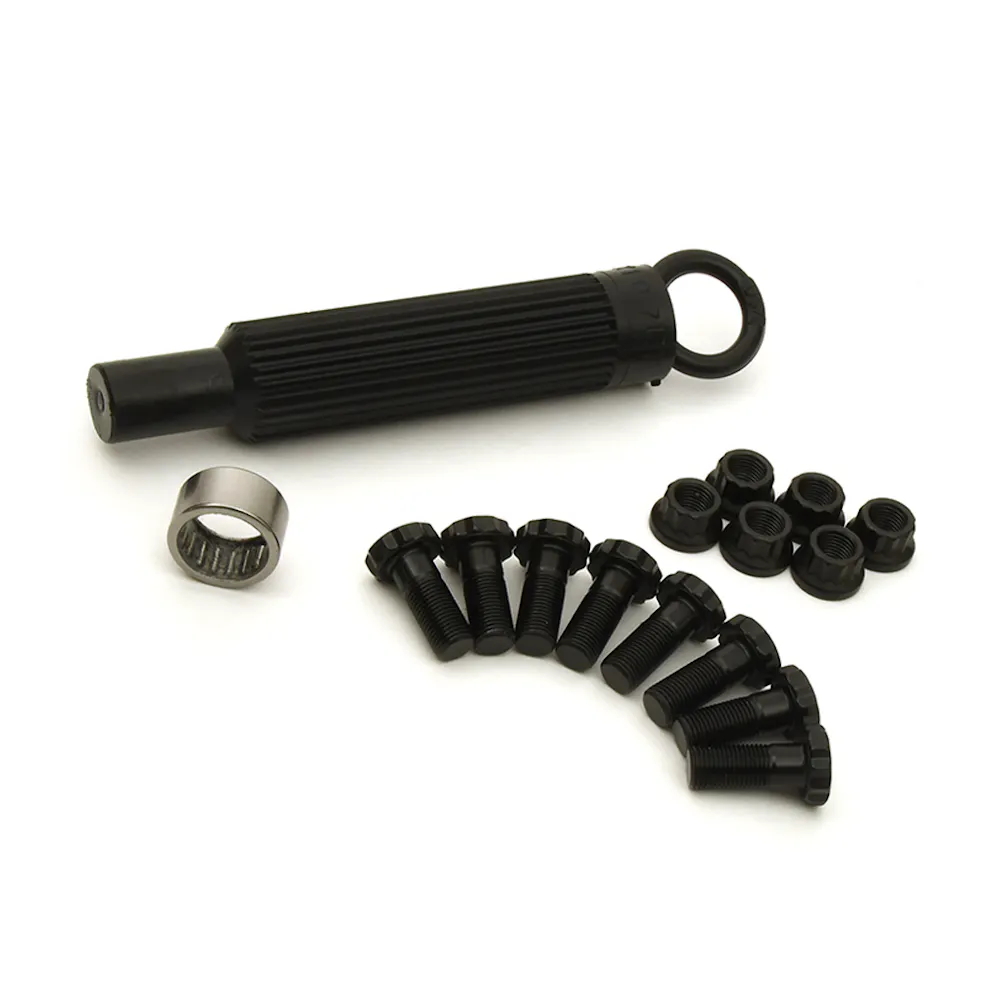

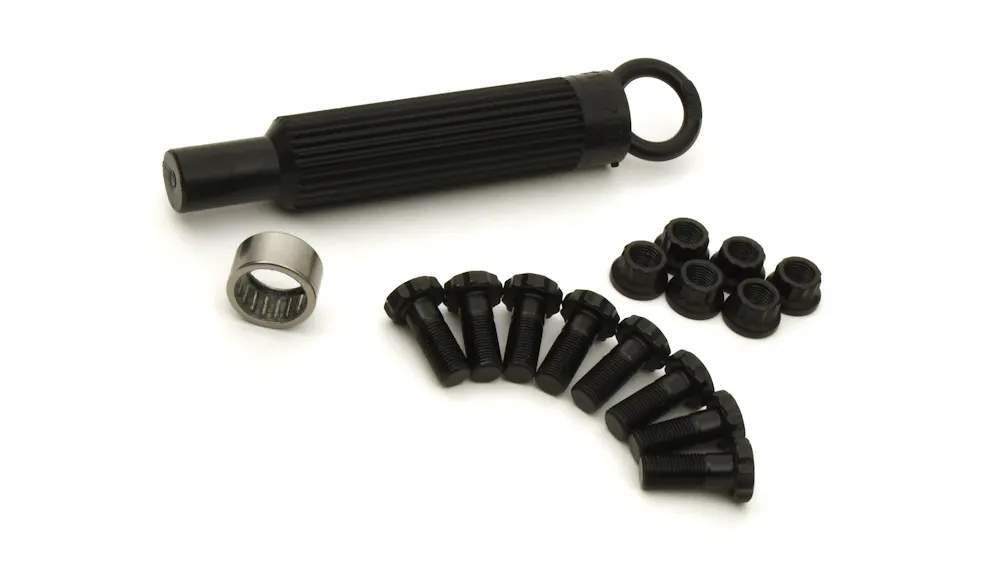

Alignment Tool Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Disc Diameter: 264.2
Counterweight Assist: YES
Crankshaft Bolt Hole Quantity: 8
Disc Material: Sintered Metallic
Disc Type: 6-Paddle
Disc Type Sprung Solid: Sprung
Flywheel Counter Balance Weight: 0
Flywheel Crank Bolt Size: 7/16 in x 20 x 0.875
Flywheel Crank Flange Register: 2.159
Flywheel Deck Height: 3.55
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 26
Installed Height: 3.550
Made In The USA: Assembled
Material: Billet Steel Flywheel / Aluminum Pressure Plate / Cerametallic Button Style Friction
Mounting Hardware Included: Yes
Out of Package Weight: 55.80
Outside Diameter: 15.625
Pilot Bushing Included: Yes
Ring Gear O.D: 15.625
Ring Gear O.D.: 15.625
Ring Gear OD: 15.625
Ring Gear Tooth Count: 152
Title: Centerforce DYAD ? XDS 10.4, Extreme Multi-Disc Clutch and Flywheel Kit, 55.80 lbs, 152 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1600 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Dodge Viper 8.0L
Tooth Quantity: 152
Torque Capacity: 1600
