Centerforce · 415614867
Part #: 415614867
UPC: 788442036251
Log in for inventory
Notify me when this item is in stock.

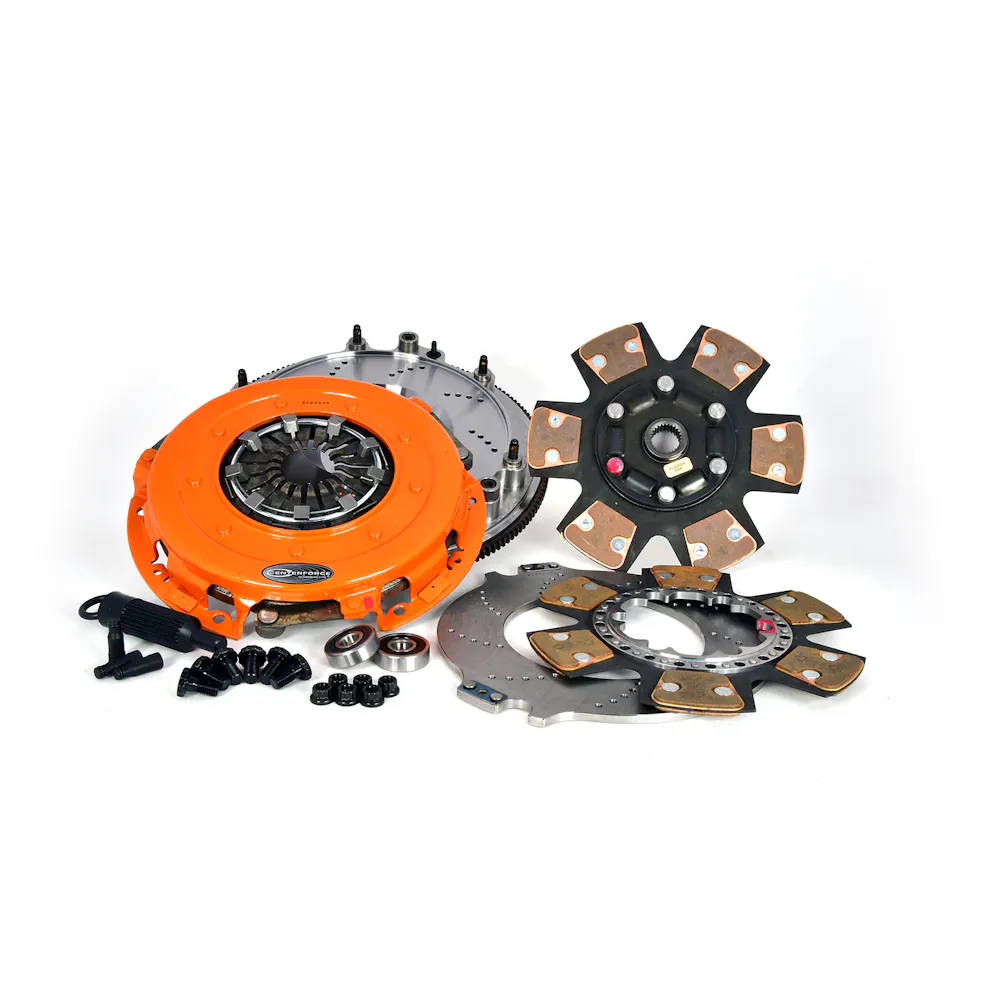

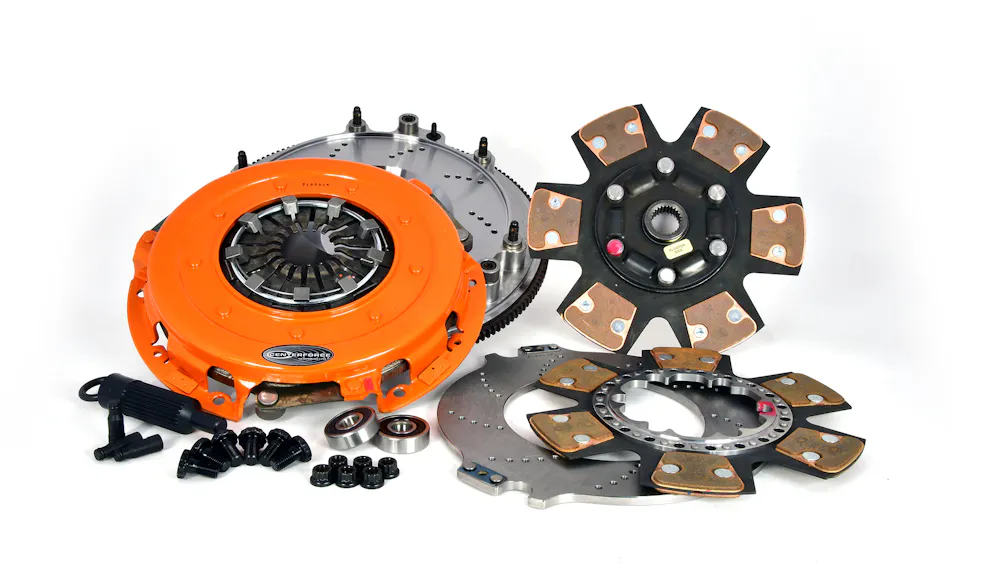

Description: DYAD(R) XDS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 700 to 1600 ft /lbs.
Description:
Description
The Centerforce(R) DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Application summary
| Year | Make / model |
|---|---|
| 2009-2015 | Cadillac CTS |
| 2012-2015 | Chevrolet Camaro |
Specifications
- GTIN
- 00788442036251
- Weight
- 57.2 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- YES
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Cerametallic
- Disc Quantity
- 2
- Disc Type
- 6-Paddle
- Disc Type Sprung Solid
- Spring
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- MM11 x 1.50 x 23
- Flywheel Crank Flange Register
- 2.068
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Made In The USA
- Assembled
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Cerametallic Button Style Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 55.50
- Pilot Bushing Included
- Yes
- Ring Gear O.D
- 14.096
- Ring Gear O.D.
- 14.105
- Ring Gear Tooth Count
- 168
- Title
- Centerforce DYAD ? XDS 10.4, Extreme Multi-Disc Clutch and Flywheel Kit, 55.50 lbs, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1600 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Cadillac/Chevrolet CTS and Camaro V 6.2L
- Tooth Quantity
- 168
- Torque Capacity
- 1600
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2009-2015 Cadillac CTS; 2012-2015 Chevrolet Camaro
