Centerforce / 413714844
Part #: 413714844
UPC: 788442037029
Loading...
Notify me when this item is in stock.
Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
Description

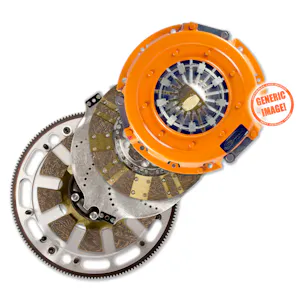

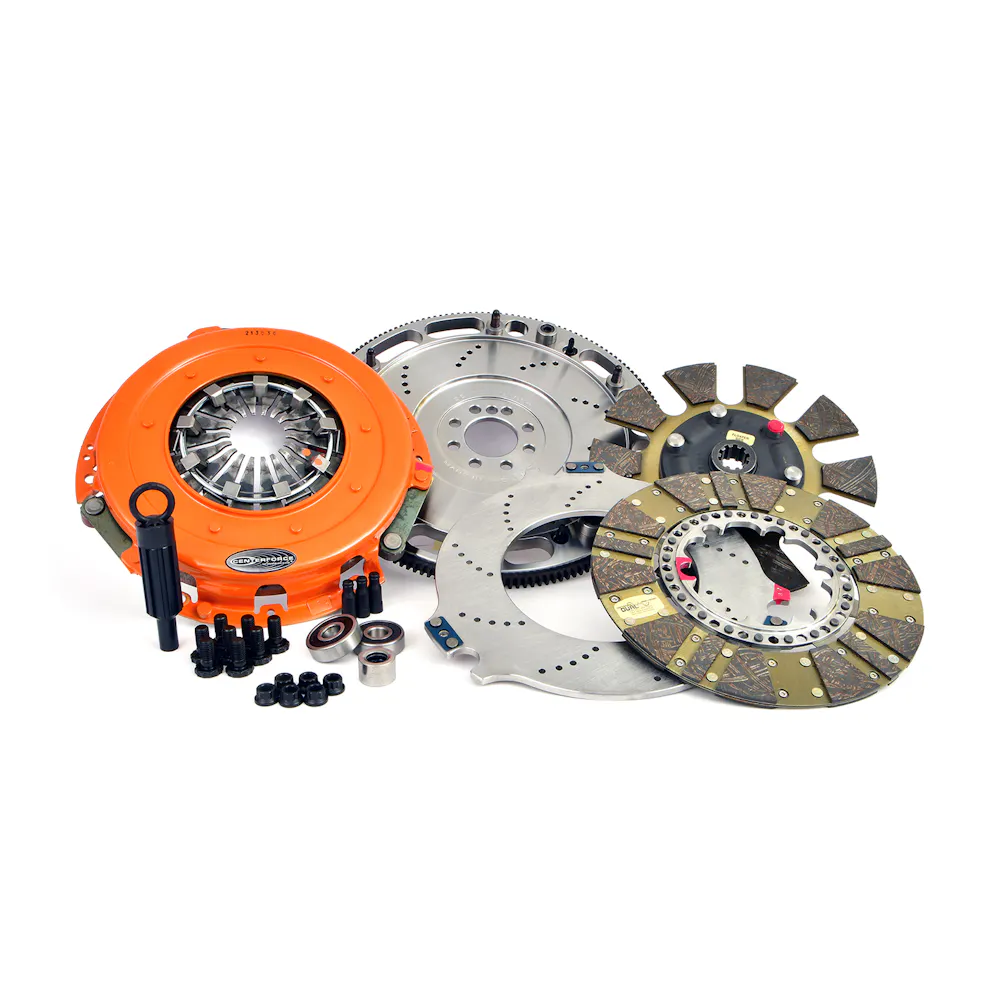

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Specifications
- GTIN
- 00788442037029
- Weight
- 49.55 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 10.4
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 8
- Disc Material
- Organic
- Disc Quantity
- 2
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- MM11 x 1.50 x 23
- Flywheel Crank Flange Register
- 2.068
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Installed Height
- 2.760
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Cerametallic Button Style Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 45.75
- Pilot Bushing Included
- Yes
- Ring Gear O.D.
- 14.105
- Title
- Centerforce DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 45.75 lbs, 168 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Chevrolet Crate Engines & Swaps LSA, LSX 6.2L/7.4L
- Tooth Quantity
- 168
- Torque Capacity
- 1300
Fitment status
This product is universal and will fit your application.

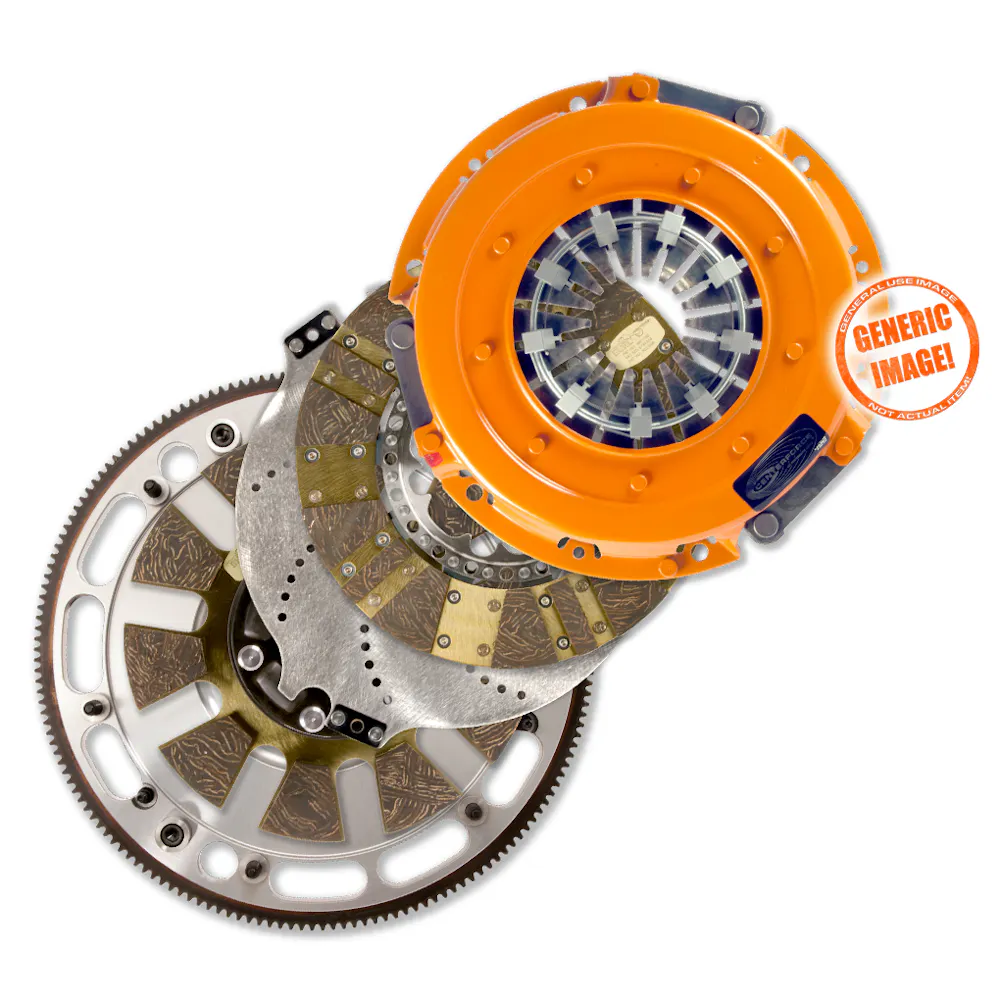

Centerforce 413714844
