Centerforce · 413703380
Part #: 413703380
UPC: 788442035636
Log in for inventory
Notify me when this item is in stock.
Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
Description
The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Application summary
| Year | Make / model |
|---|---|
| 1969-1971 | Ford Galaxie 500 |
| 1970-1971 | Ford Mustang |
| 1970-1971 | Ford Torino |
Specifications
- GTIN
- 00788442035636
- Weight
- 58 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- YES
- Crankshaft Bolt Hole Quantity
- 6
- Disc Quantity
- 2
- Disc Type Sprung Solid
- Sprung
- Flywheel Crank Bolt Size
- 7/16 in x 20 x 0.875
- Input Shaft Diameter
- 1-3/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 52
- Outside Diameter
- 15.503
- Ring Gear O.D.
- 15.515
- Ring Gear OD
- 15.503
- Ring Gear Tooth Count
- 184
- Title
- Centerforce DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 52 lbs, 184 Tooth Gear, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Ford Cars 7.0L
- Tooth Quantity
- 184
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1969-1971 Ford Galaxie 500; 1970-1971 Ford Mustang; 1970-1971 Ford Torino

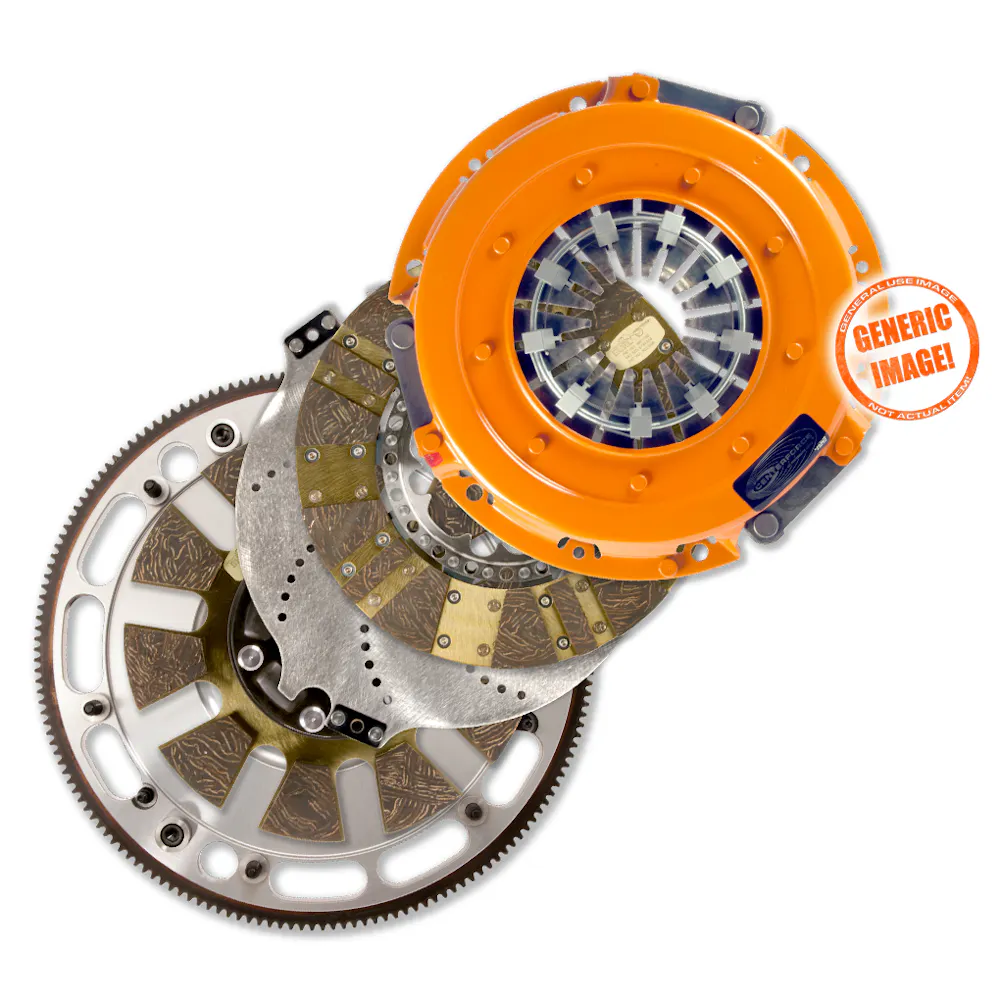

Centerforce 413703380
