Centerforce · 413614860
Part #: 413614860
UPC: 788442034189
Log in for inventory
Notify me when this item is in stock.

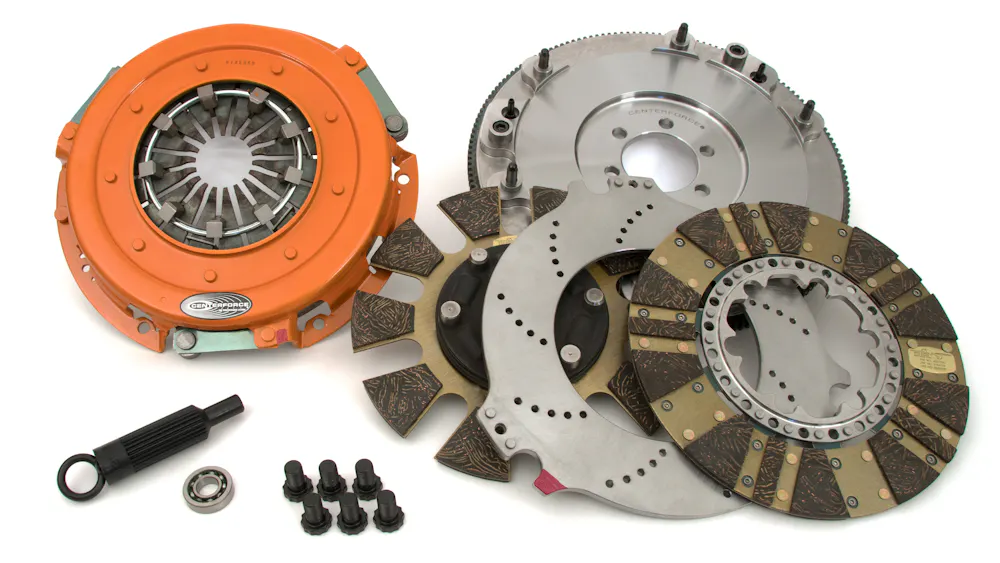

Description: DYAD(R) DS 10.4, Clutch and Flywheel Kit; The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
Description:
This part number superseded 04614860.
Description

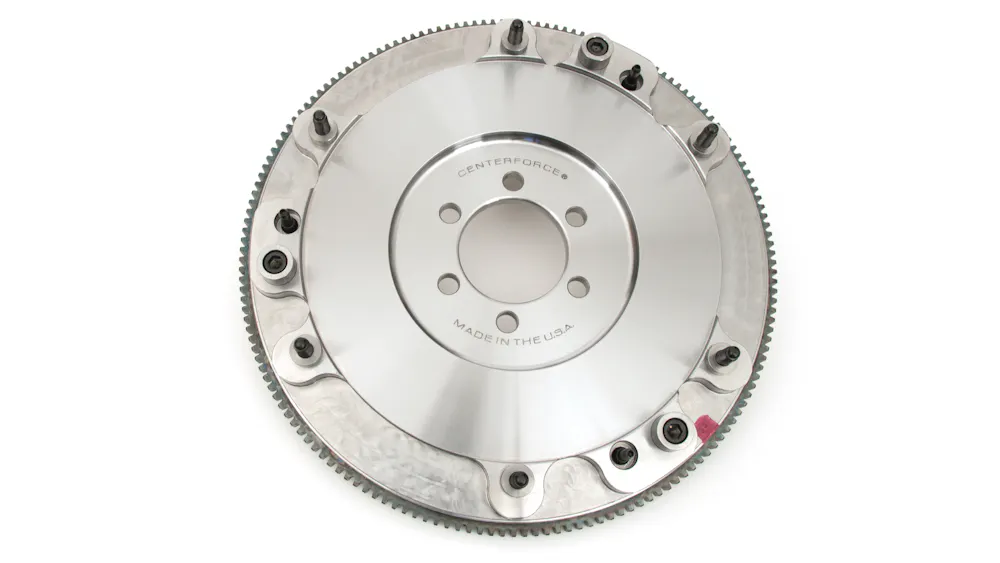

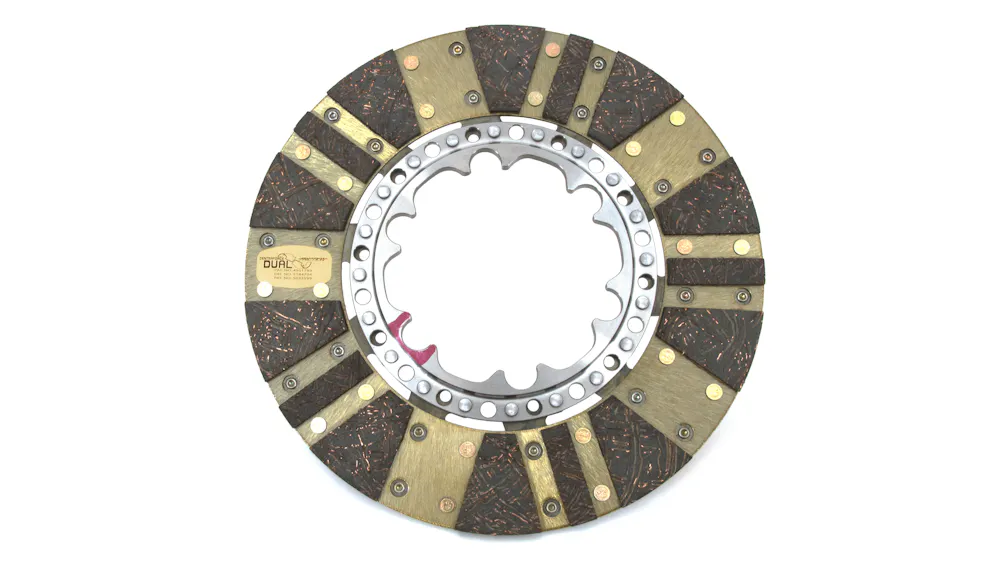

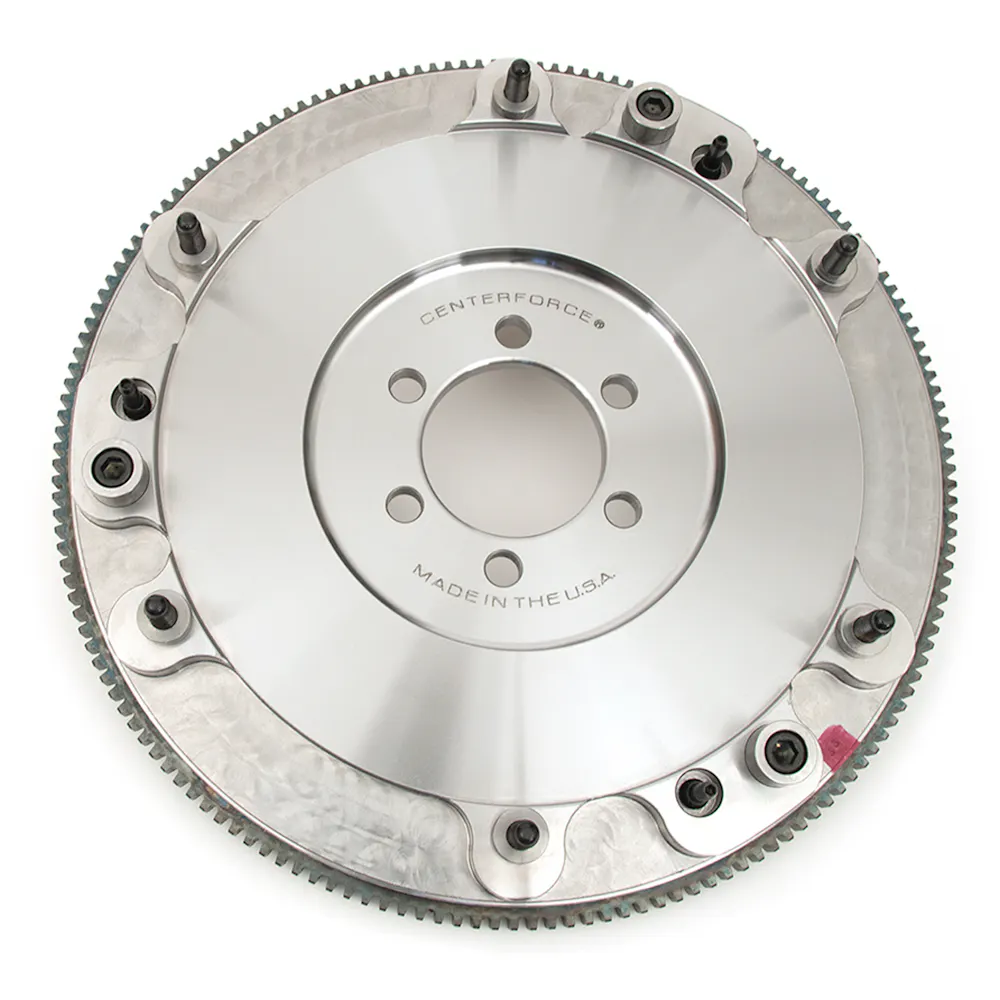

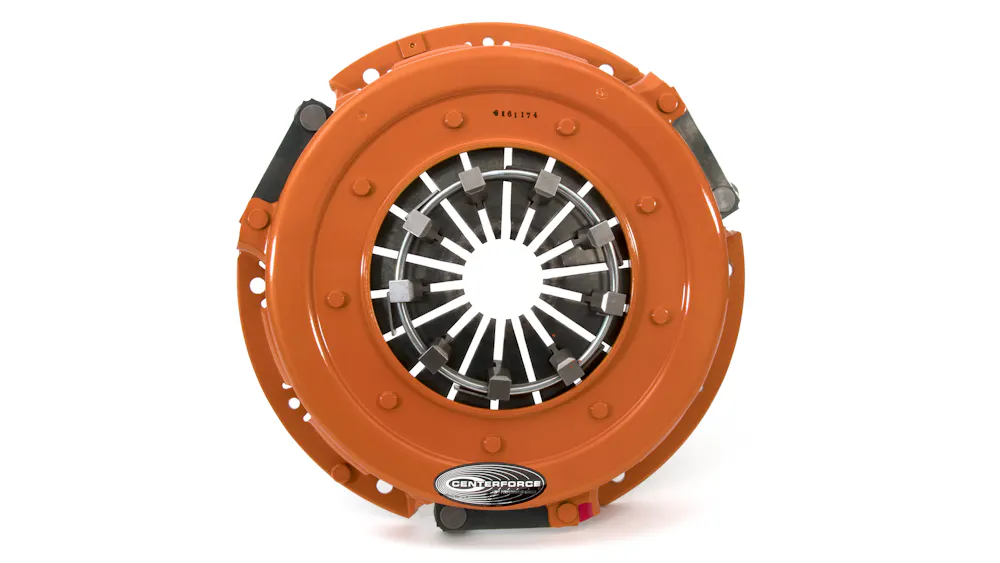

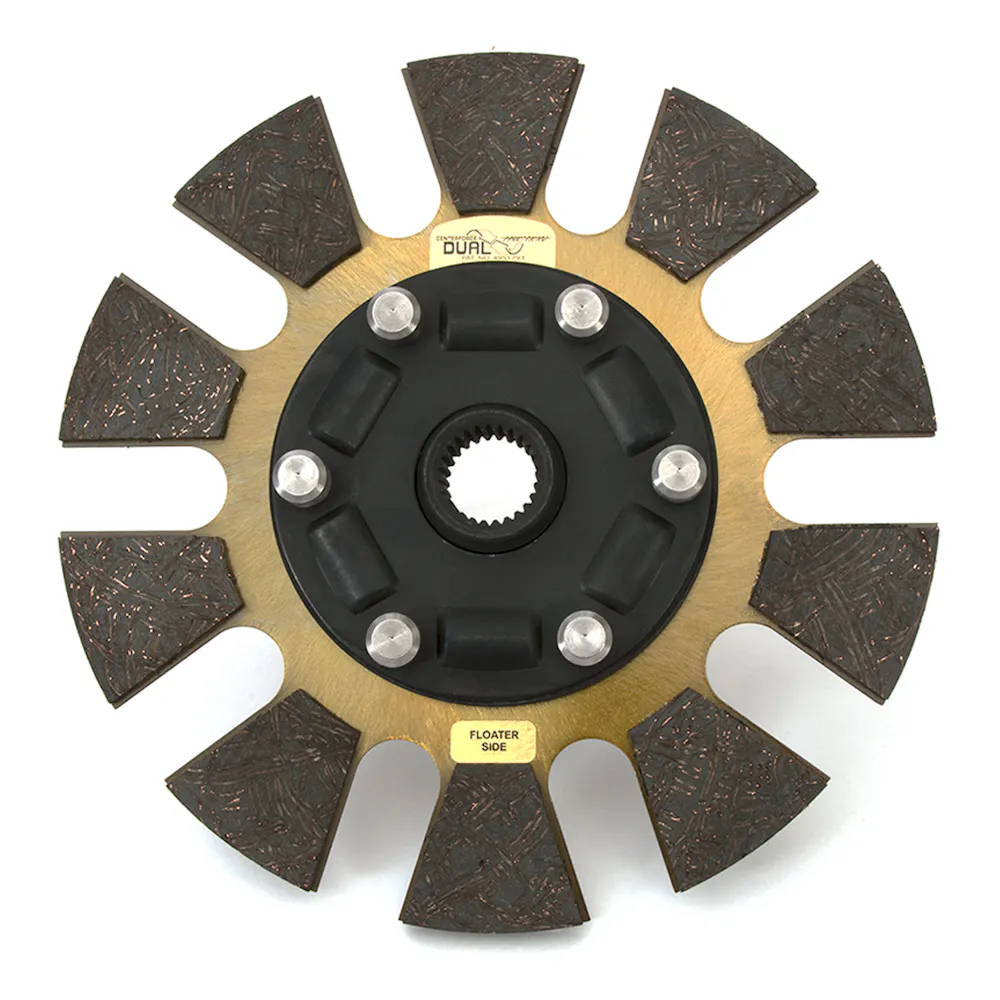

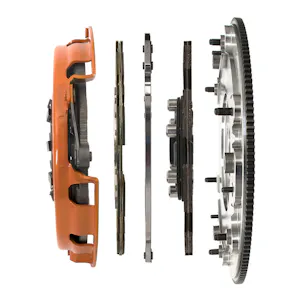

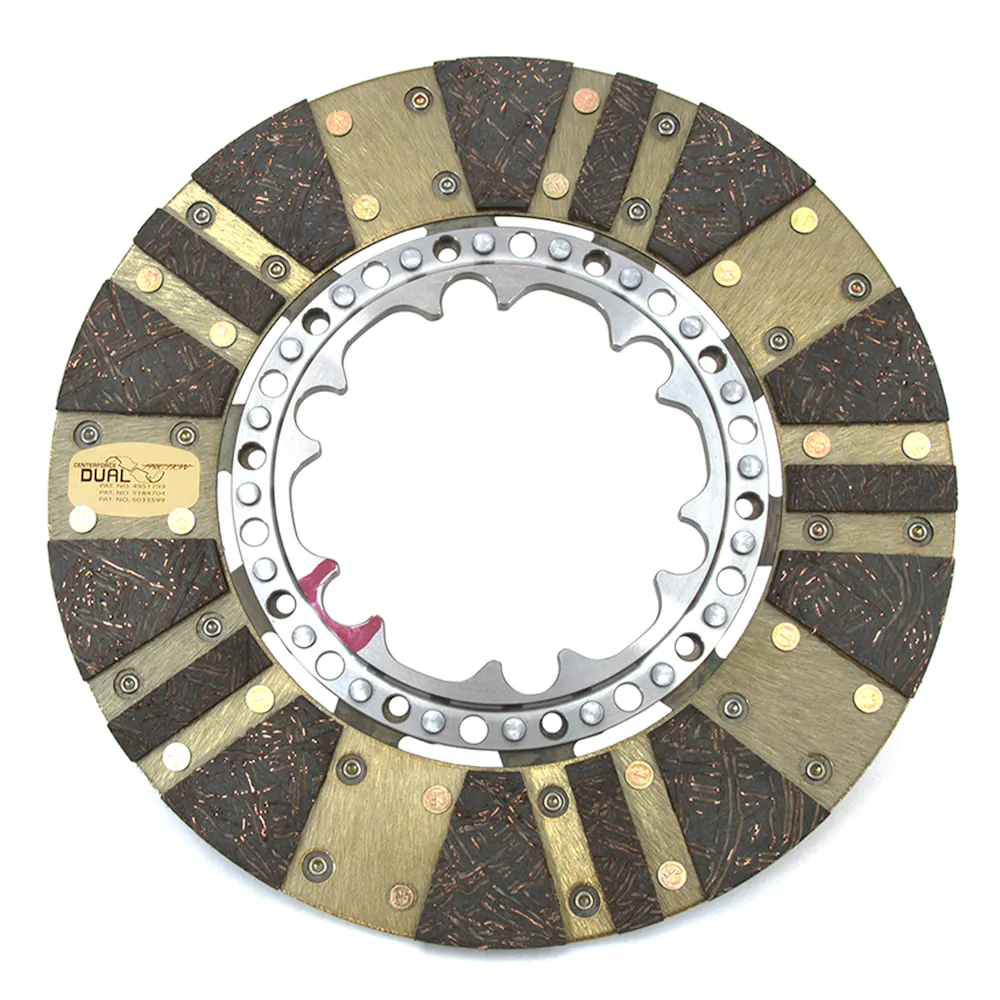

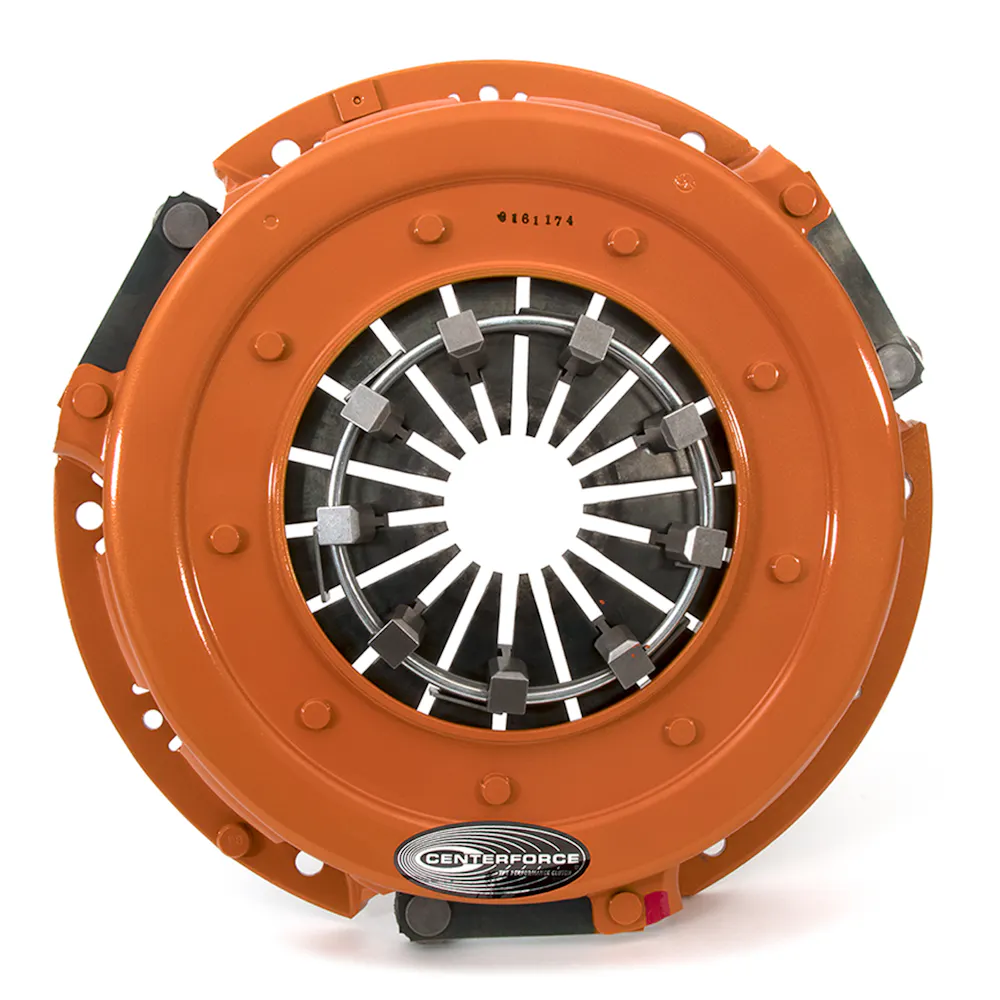

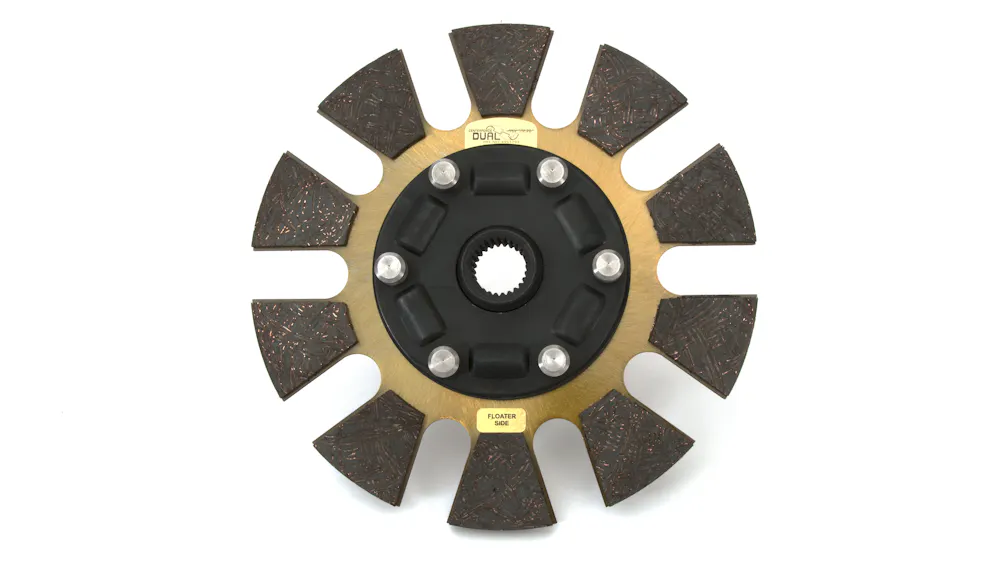

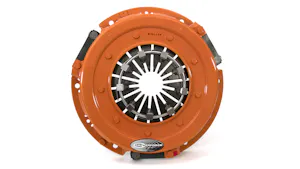

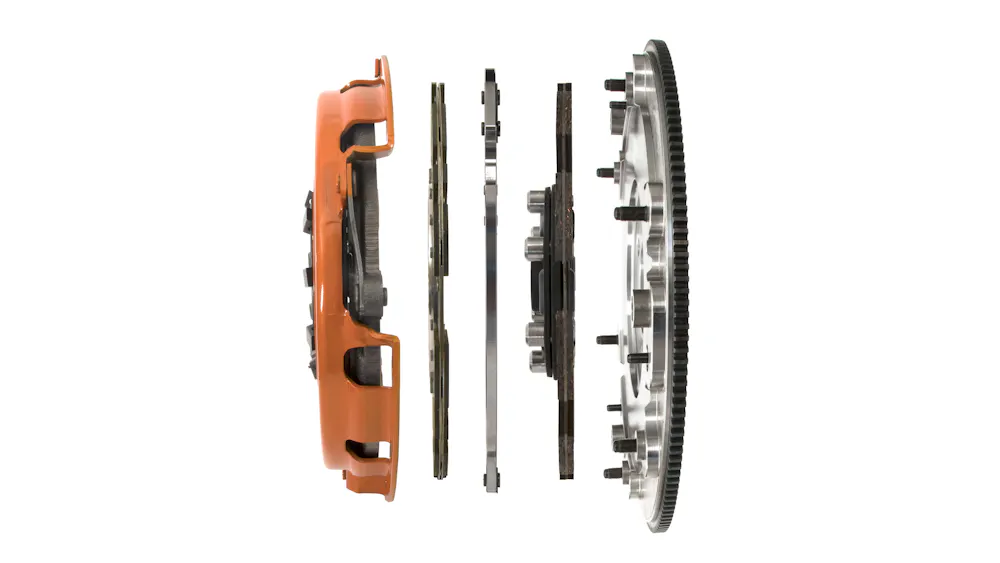

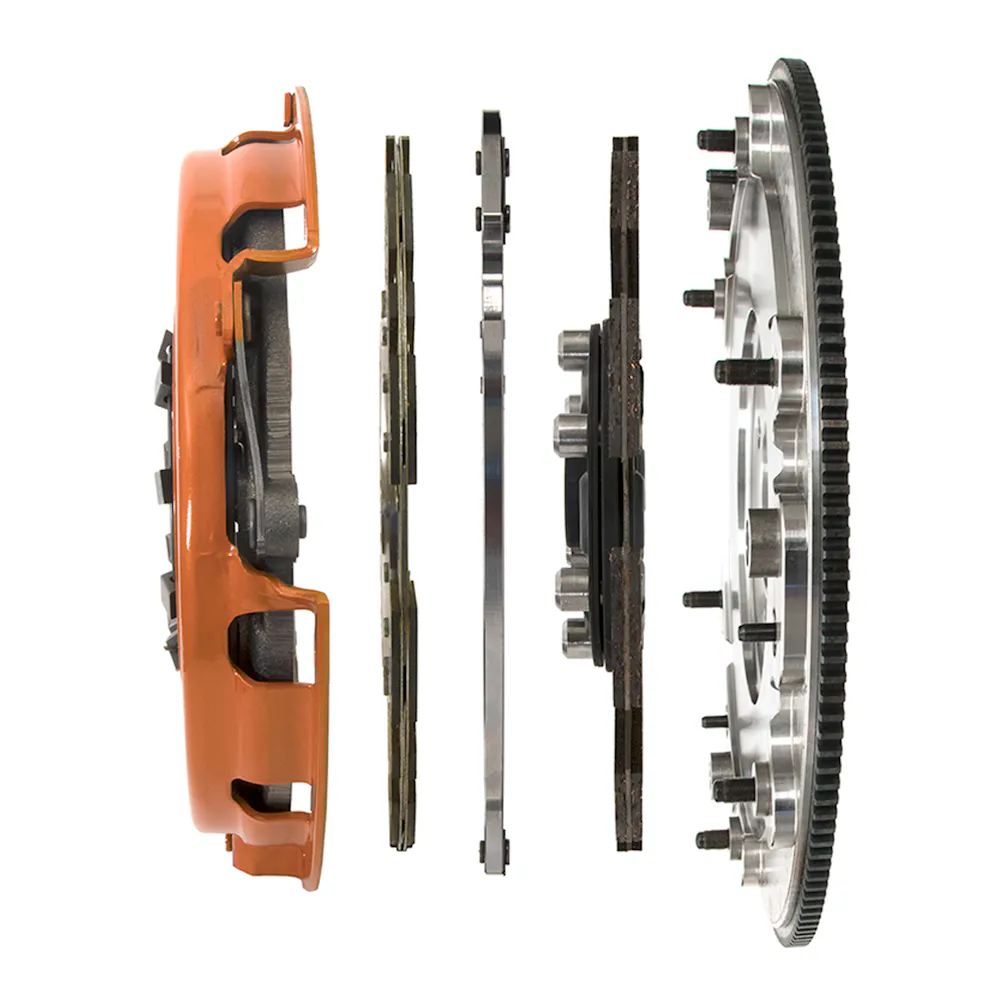

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Application summary
| Year | Make / model |
|---|---|
| 1967-1971 | Pontiac Bonneville |
| 1967-1971 | Pontiac Catalina |
| 1967-1970 | Pontiac Executive |
| 1967-1979 | Pontiac Firebird |
| 1973-1975 | Pontiac Grand Am |
| 1967-1971 | Pontiac Grand Prix |
| 1967-1971 | Pontiac GTO |
| 1964-1971 | Pontiac LeMans |
| 1975-1977 | Pontiac LeMans |
| 1964-1970 | Pontiac Tempest |
| 1971-1977 | Pontiac Ventura |
Specifications
- GTIN
- 00788442034189
- Weight
- 55.45 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes

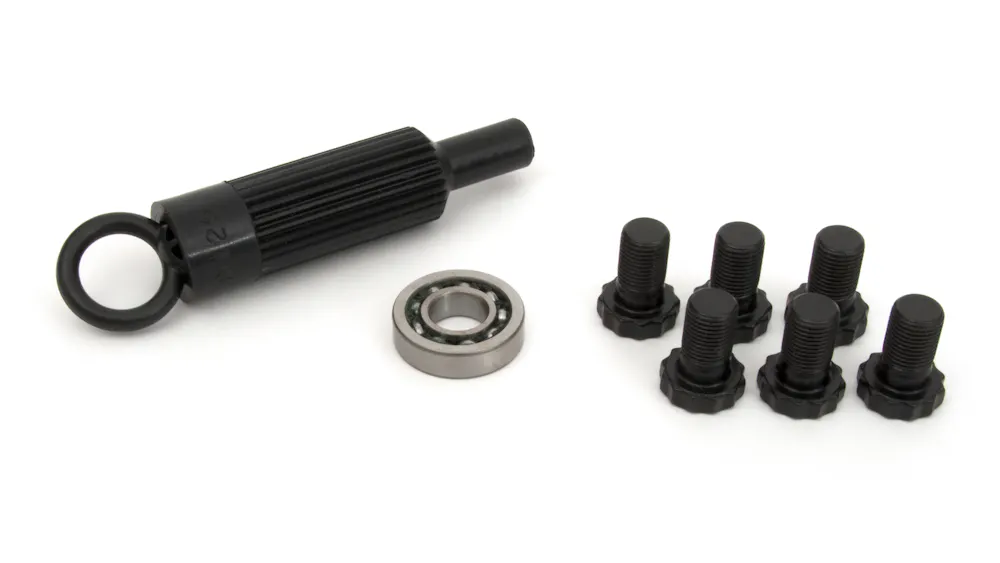

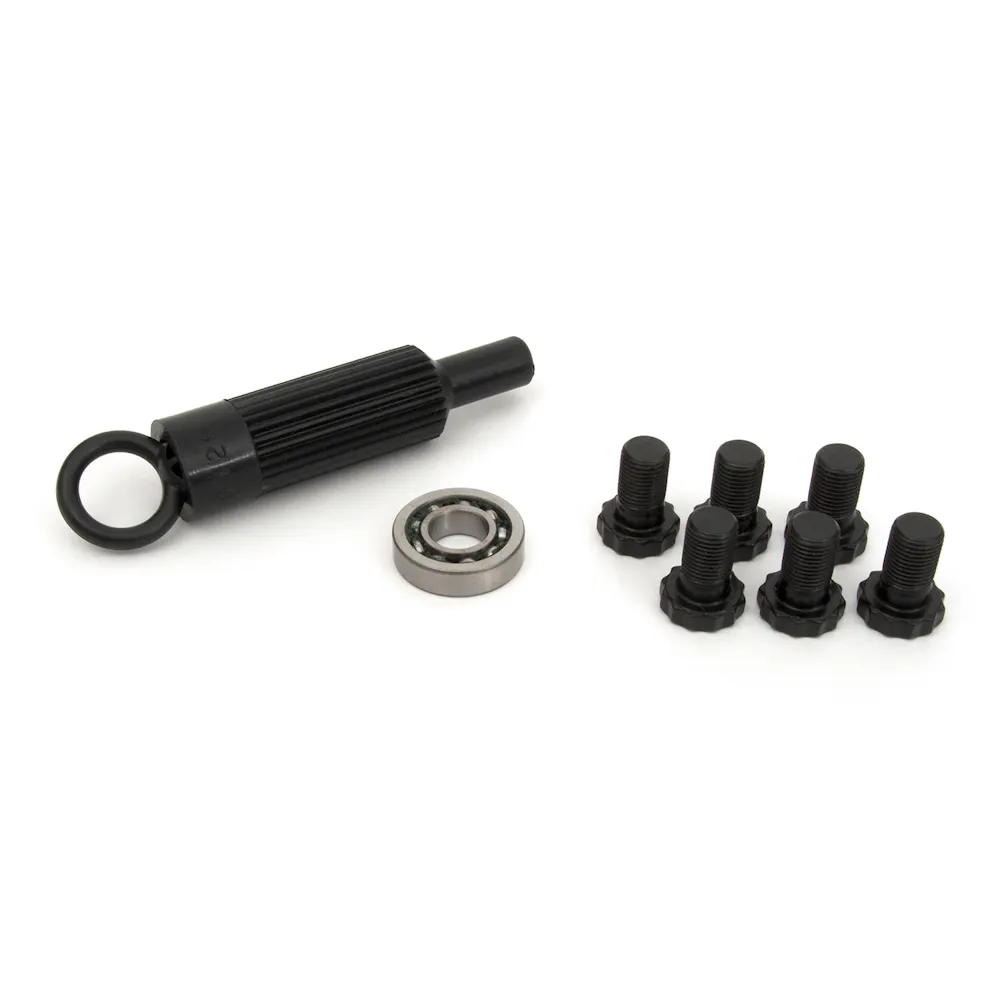

- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- YES
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 1/2 in x 20 x .875
- Flywheel Crank Flange Register
- 2.750
- Flywheel Deck Height
- 2.91
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Installed Height
- 2.910
- Made In The USA
- Assembled
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 51.75
- Outside Diameter
- 13.979
- Pilot Bushing Included
- Yes
- Ring Gear O.D
- 13.979
- Ring Gear O.D.
- 13.889
- Ring Gear OD
- 13.979
- Ring Gear Tooth Count
- 166
- Title
- Centerforce DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 51.75 lbs, 166 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Pontiac Cars 8 Cyl
- Tooth Quantity
- 166
- Torque Capacity
- 1300
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1967-1971 Pontiac Bonneville; 1967-1971 Pontiac Catalina; 1967-1970 Pontiac Executive; 1967-1979 Pontiac Firebird; 1973-1975 Pontiac Grand Am; 1967-1971 Pontiac Grand Prix; 1967-1971 Pontiac GTO; 1964-1971 Pontiac LeMans; 1975-1977 Pontiac LeMans; 1964-1970 Pontiac Tempest; 1971-1977 Pontiac Ventura
