Centerforce · 412614820
Part #: 412614820
UPC: 788442035162
Log in for inventory
Notify me when this item is in stock.
Description: SST 10.4, Clutch and Flywheel Kit; The Centerforce(R) SST (Solid Street Twin) 10.4 Inch multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 400 to 925 ft /lbs.
Description:
Description

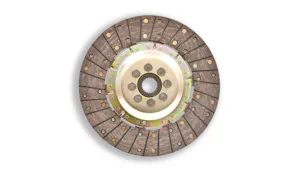

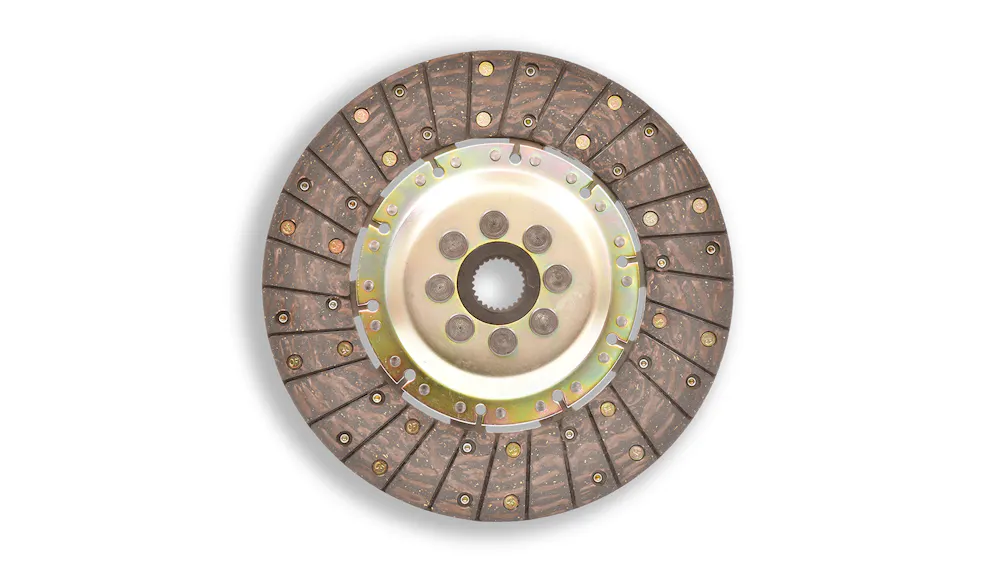

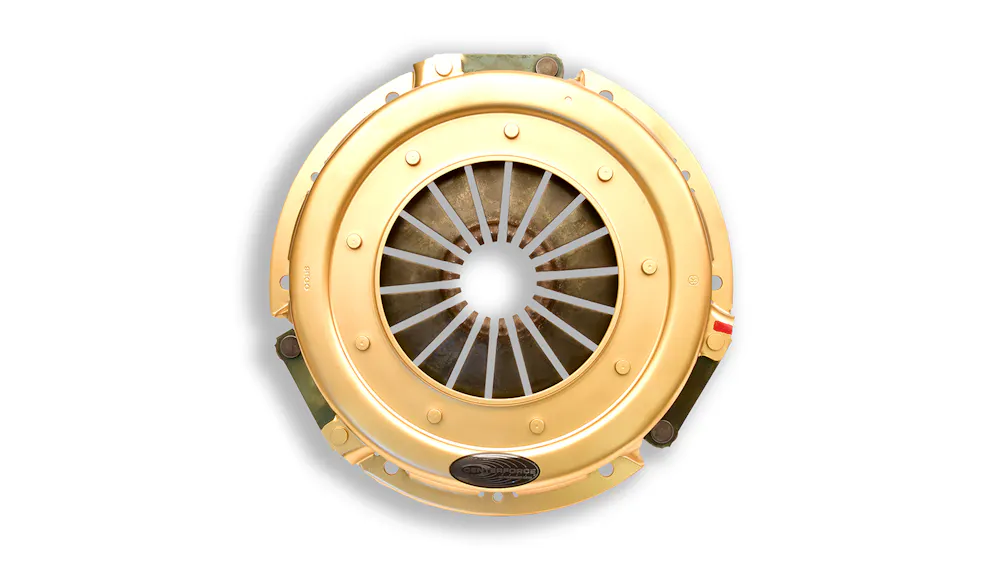

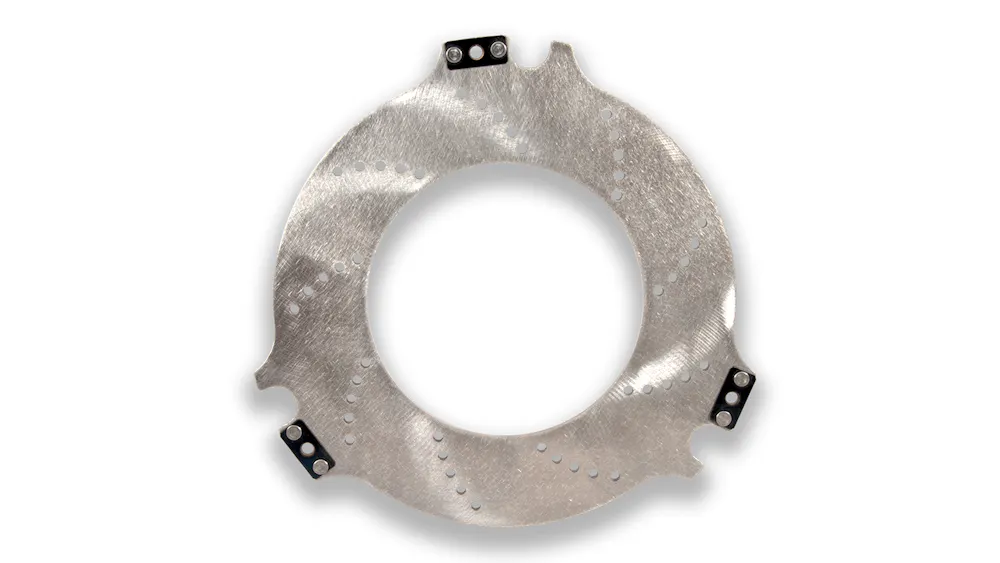

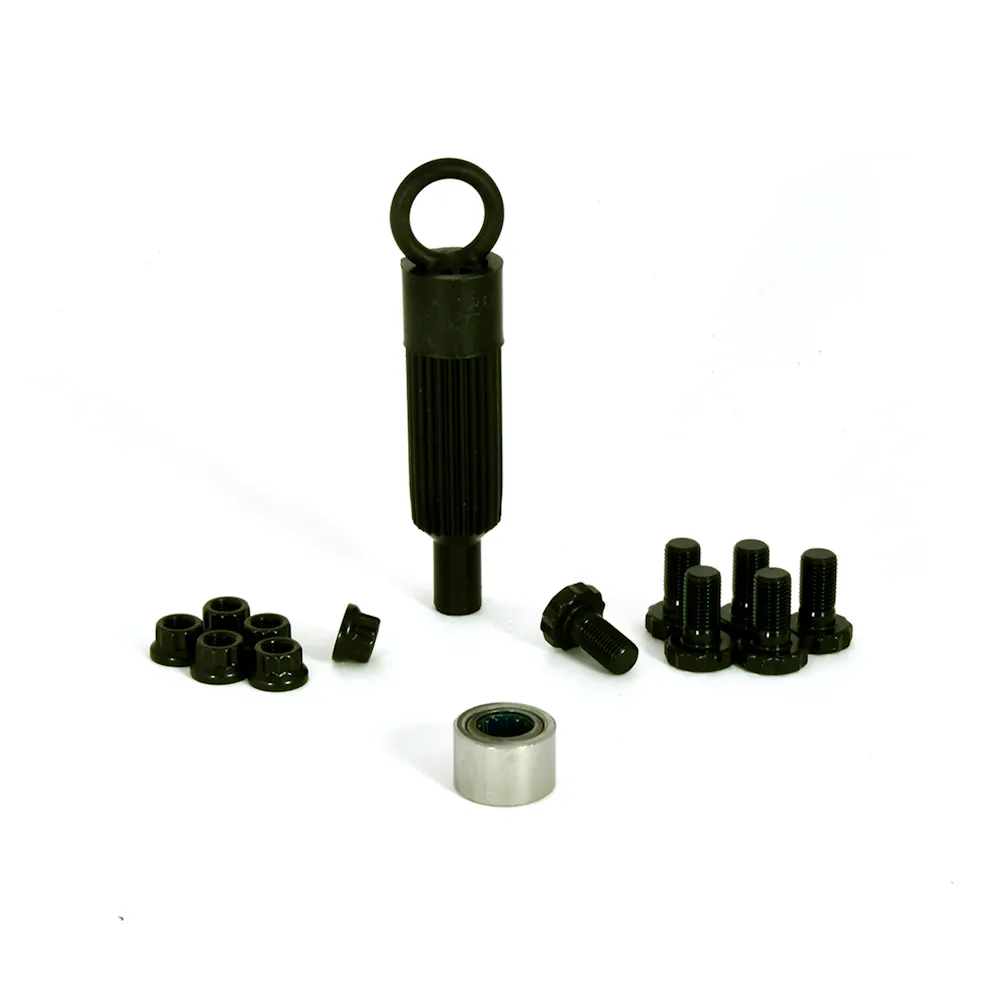

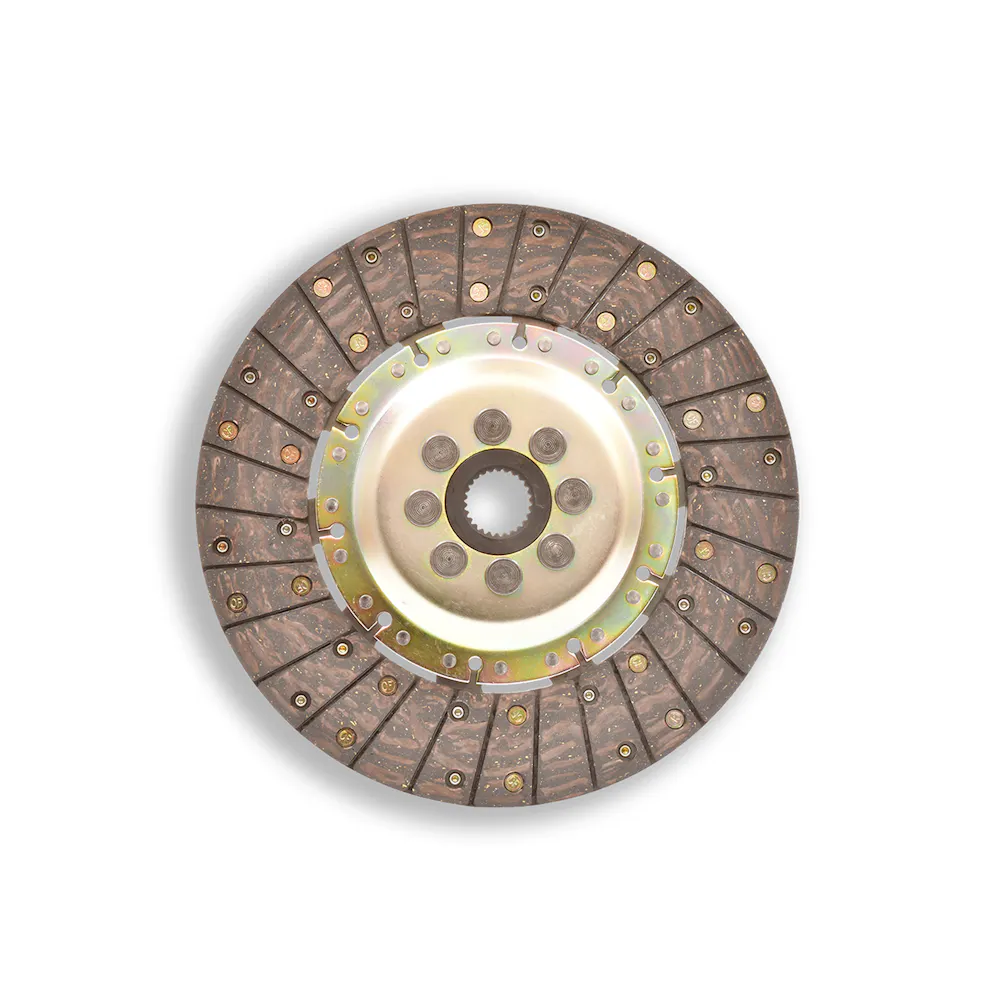

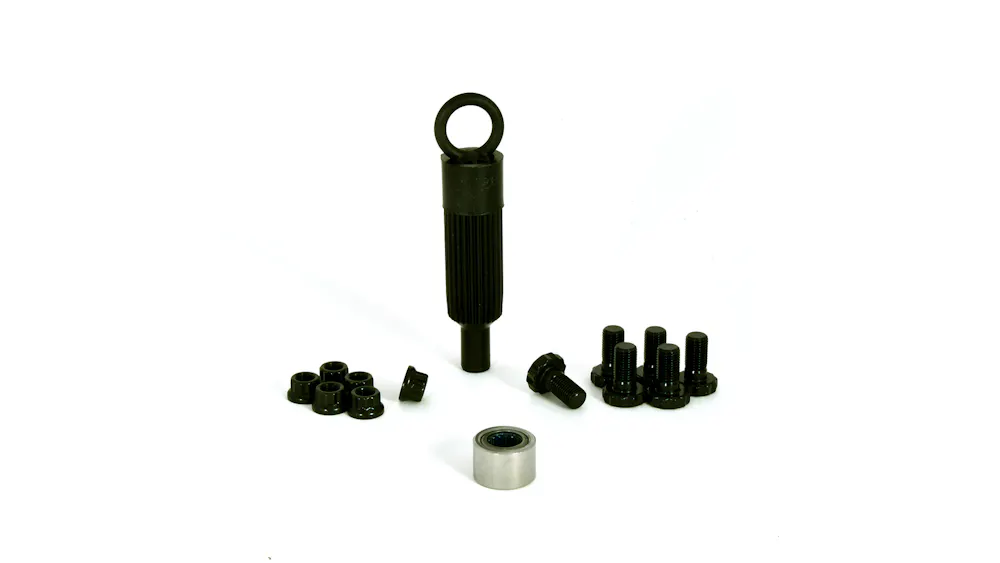

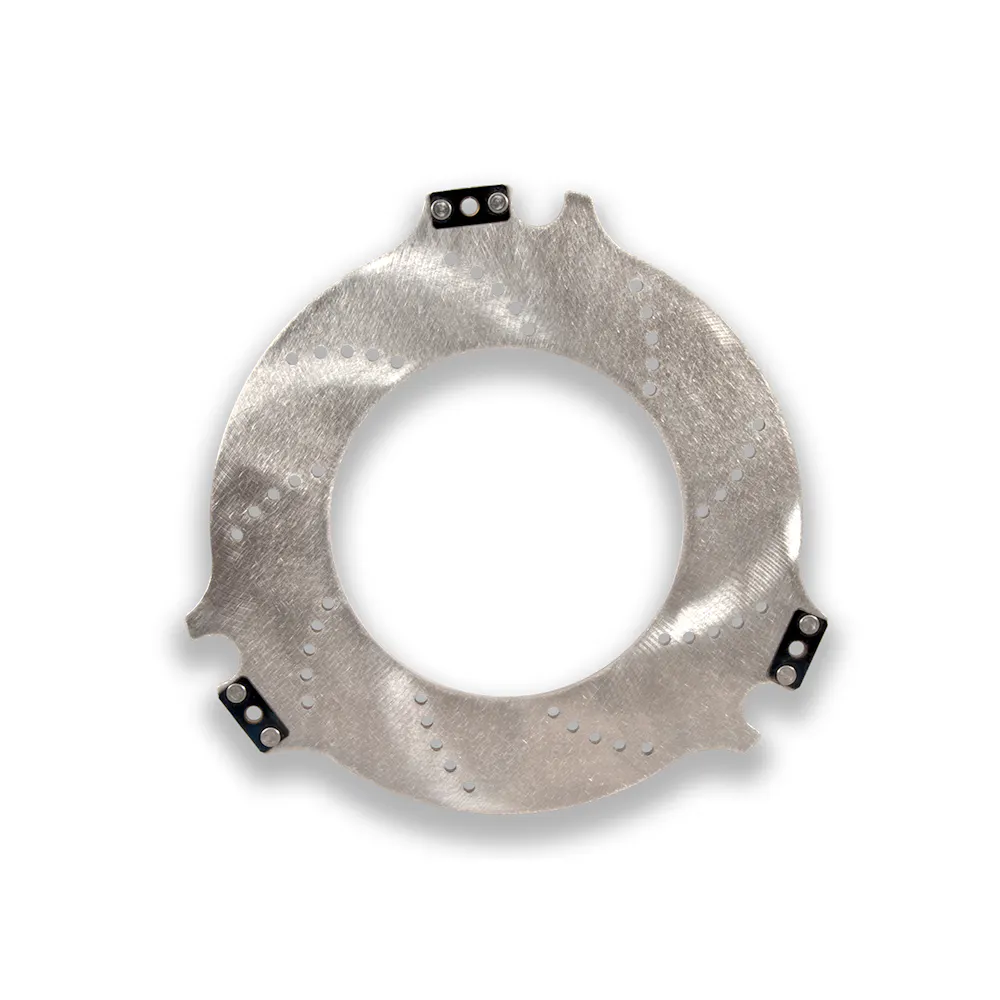

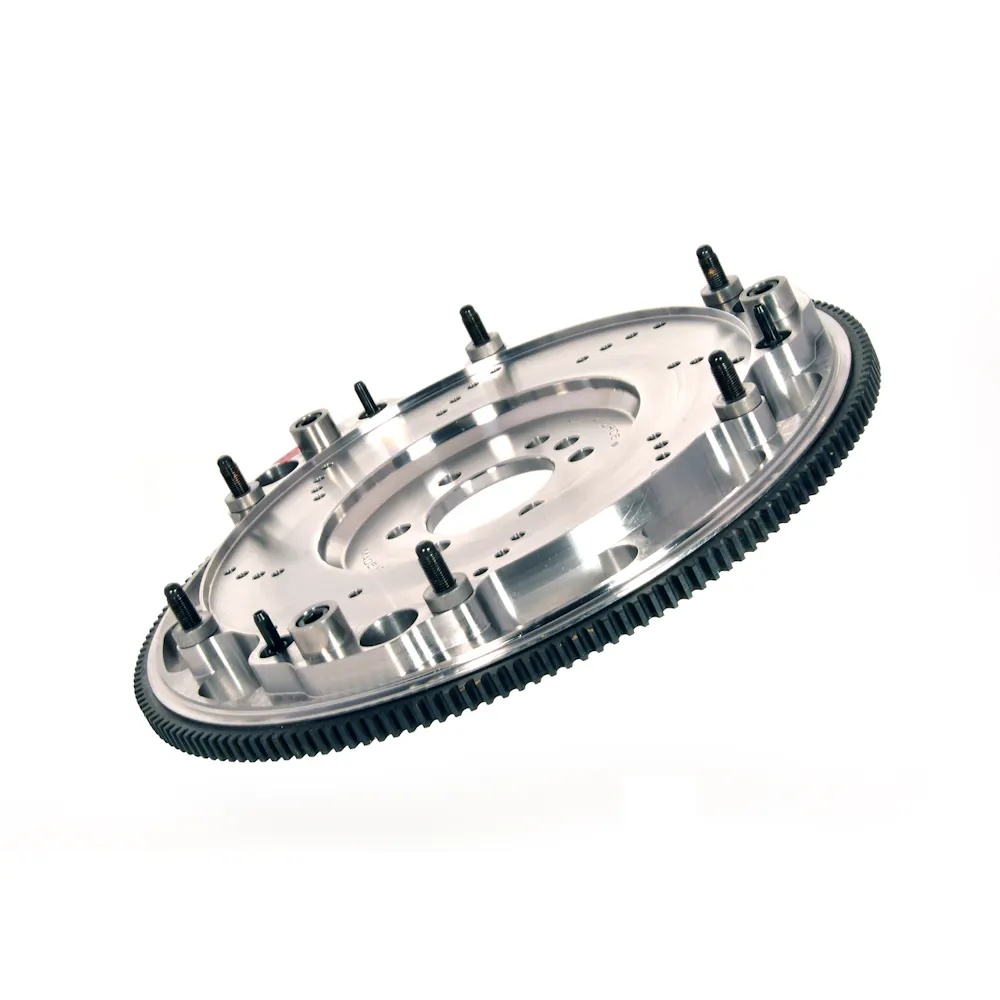

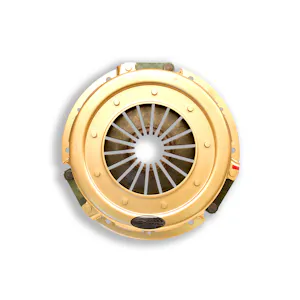

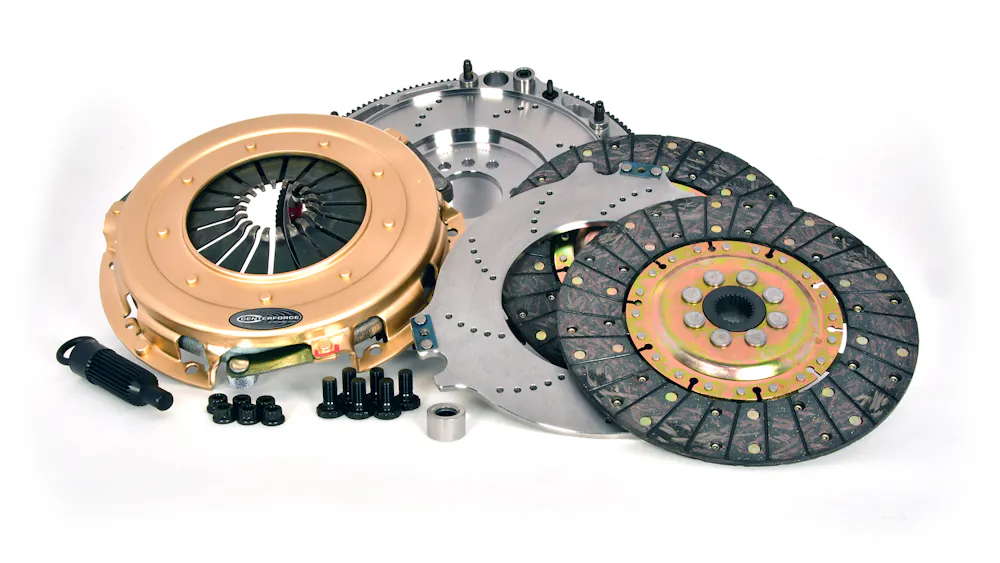

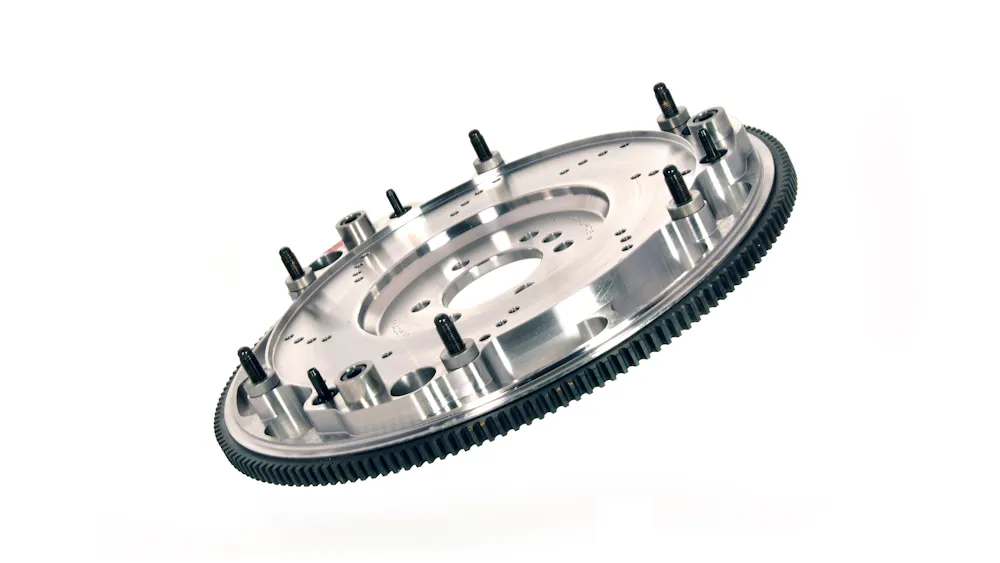

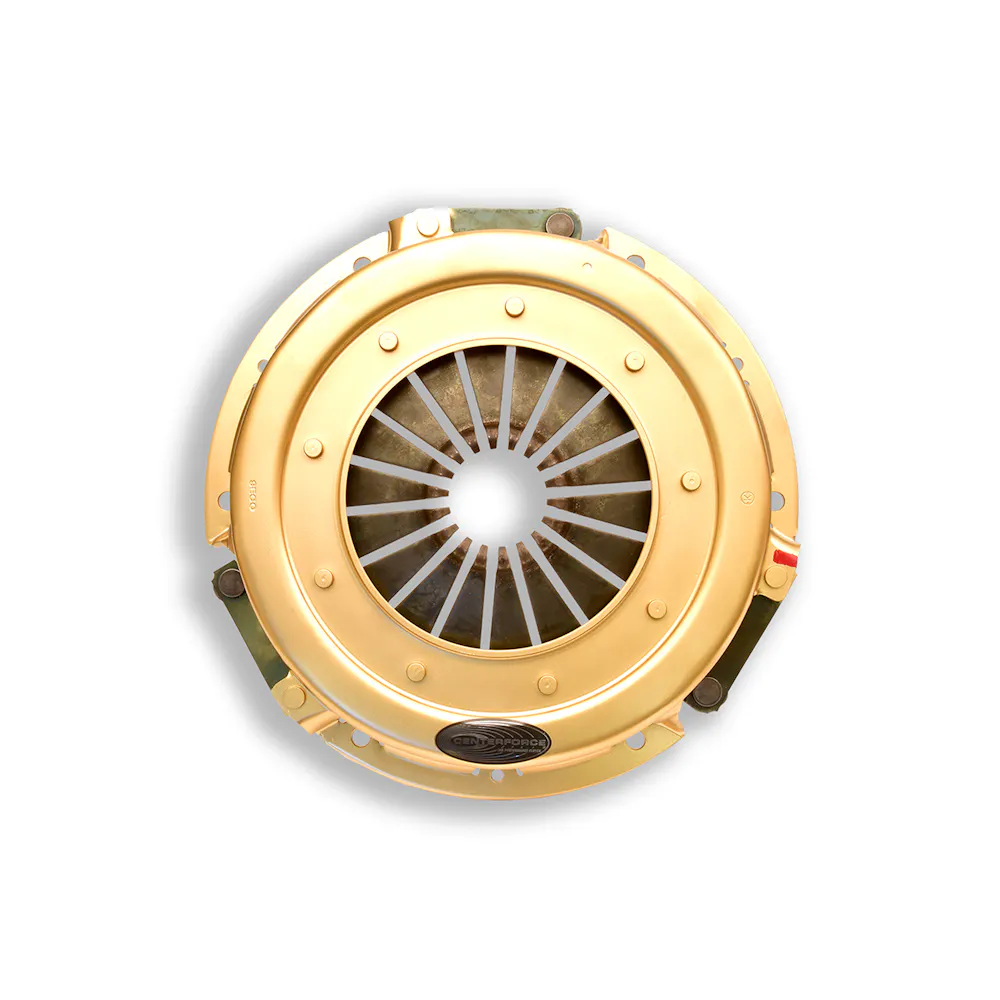

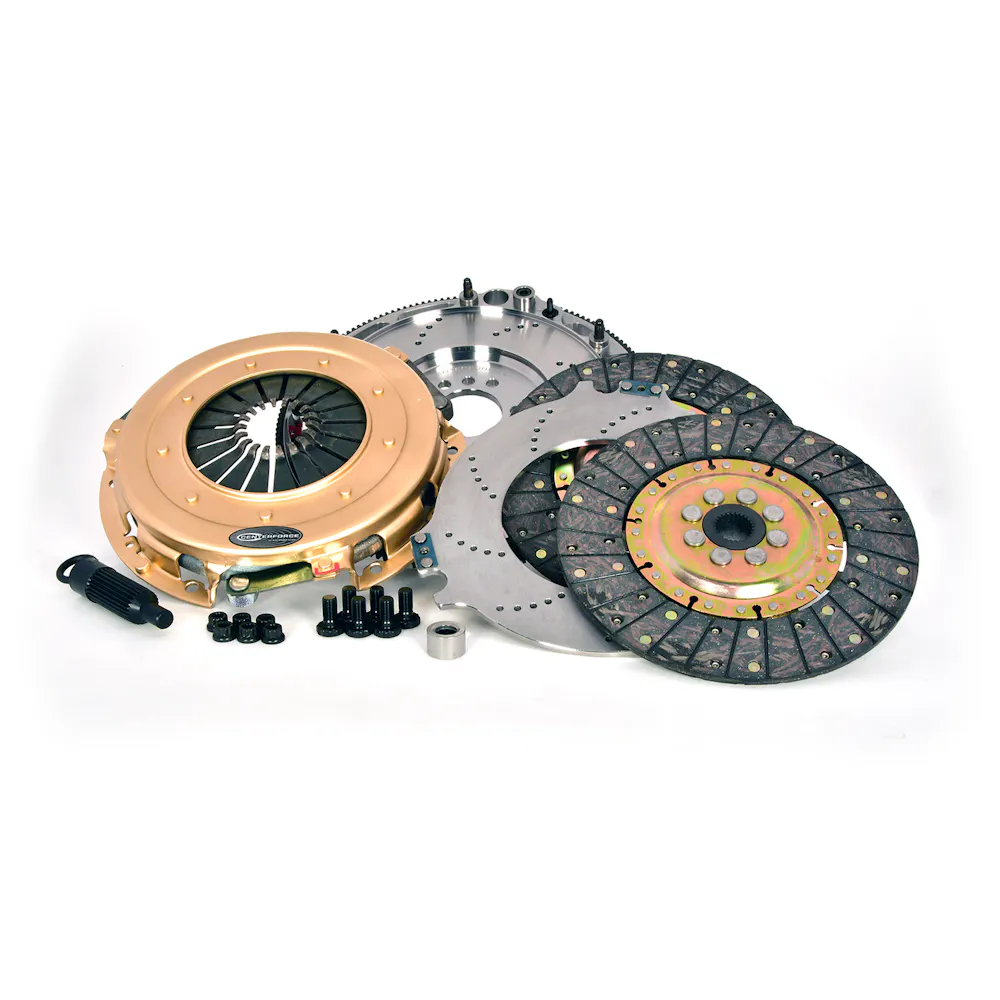

Introducing the NEW Centerforce(R) SST (Solid Street Twin). The SST clutch system has been engineered and developed for vehicles producing 400 to 925 ft/lbs of torque. The SST 10.4" discs utilize solid hubs (possible gear noise) to reduce the rotational weight on the input shaft for quick clean shifts. The discs in this assembly are built using high quality friction materials, for smooth engagement and longevity. The SST features a lightened billet steel flywheel, providing low inertia resulting in quicker RPM and the Centerforce anti-rattle system to reduce floater rattle/noise. No complicated setup or adjustments required, just bolt it in and "Get a Grip". The Centerforce SST includes a billet steel flywheel, 2 discs, floater plate, pressure plate, pilot bearing, alignment tool, and ARP pressure plate and flywheel hardware. The SST clutch system is an economical choice for streetcar enthusiasts looking for a complete high-quality twin disc clutch system. This new clutch assembly can be used for everyday use and spirited days on the track.
Application summary
| Year | Make / model |
|---|---|
| 1966-1972 | Chevrolet Bel Air |
| 1958-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1975-1985 | Chevrolet C10 |
| 1969-1974 | Chevrolet C10 Pickup |
| 1968-1974 | Chevrolet C10 Suburban |
| 1977-1984 | Chevrolet C10 Suburban |
| 1975-1985 | Chevrolet C20 |
| 1968-1974 | Chevrolet C20 Suburban |
| 1977-1984 | Chevrolet C20 Suburban |
| 1975-1985 | Chevrolet C30 |
| 1962-1967 | Chevrolet C30 Pickup |
| 1967-1981 | Chevrolet Camaro |
| 1966-1972 | Chevrolet Caprice |
| 1967-1969 | Chevrolet Chevelle |
| 1971-1972 | Chevrolet Chevelle |
| 1966-1971 | Chevrolet Corvette |
| 1973-1981 | Chevrolet Corvette |
| 1966-1972 | Chevrolet El Camino |
| 1958-1972 | Chevrolet Impala |
| 1975-1985 | Chevrolet K10 |
| 1968-1973 | Chevrolet K10 Suburban |
| 1977-1984 | Chevrolet K10 Suburban |
| 1975-1985 | Chevrolet K20 |
| 1968-1974 | Chevrolet K20 Suburban |
| 1980-1984 | Chevrolet K20 Suburban |
| 1977-1985 | Chevrolet K30 |
| 1975-1985 | Chevrolet K5 Blazer |
| 1970-1972 | Chevrolet Monte Carlo |
| 1969-1970 | Chevrolet Nova |
| 1962-1963 | GMC 1500 Series |
| 1962-1963 | GMC 2500 Series |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1967-1974 | GMC C15/C1500 Pickup |
| 1968-1974 | GMC C15/C1500 Suburban |
| 1979-1985 | GMC C1500 |
| 1979-1984 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1967-1974 | GMC C25/C2500 Pickup |
| 1968-1974 | GMC C25/C2500 Suburban |
| 1979-1985 | GMC C2500 |
| 1979-1984 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1967-1974 | GMC C35/C3500 Pickup |
| 1979-1985 | GMC C3500 |
| 1970-1985 | GMC Jimmy |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1967-1974 | GMC K15/K1500 Pickup |
| 1968-1974 | GMC K15/K1500 Suburban |
| 1979-1985 | GMC K1500 |
| 1979-1984 | GMC K1500 Suburban |
| 1975-1978 | GMC K25 |
| 1975-1978 | GMC K25 Suburban |
| 1967-1974 | GMC K25/K2500 Pickup |
| 1968-1974 | GMC K25/K2500 Suburban |
| 1979-1985 | GMC K2500 |
| 1979-1984 | GMC K2500 Suburban |
| 1977-1978 | GMC K35 |
| 1970-1974 | GMC K35/K3500 Pickup |
| 1979-1985 | GMC K3500 |
| 1972 | GMC Sprint |
Specifications
- GTIN
- 00788442035162
- Weight
- 49.3 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- No
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic
- Disc Quantity
- 2
- Disc Type
- Full Face
- Disc Type Sprung Solid
- Solid
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 7/16 in x 20 x 0.875
- Flywheel Crank Flange Register
- 2.485
- Flywheel Deck Height
- 2.87
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Installed Height
- 2.870
- Made In The USA
- Assembled
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Organic Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 45.60
- Outside Diameter
- 14.096
- Pilot Bushing Included
- Yes
- Ring Gear O.D.
- 14.105
- Ring Gear OD
- 14.096
- Ring Gear Tooth Count
- 168
- Seal Type
- 2
- Title
- Centerforce SST 10.4, Multi=Disc Clutch and Flywheel Kit, 45.60 lbs, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 925 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Chevrolet/GMC Cars and Trucks 8 Cyl
- Tooth Quantity
- 168
- Torque Capacity
- 925
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966-1972 Chevrolet Bel Air; 1958-1972 Chevrolet Biscayne; 1969-1974 Chevrolet Blazer; 1975-1985 Chevrolet C10; 1969-1974 Chevrolet C10 Pickup; 1968-1974 Chevrolet C10 Suburban; 1977-1984 Chevrolet C10 Suburban; 1975-1985 Chevrolet C20; 1968-1974 Chevrolet C20 Suburban; 1977-1984 Chevrolet C20 Suburban; 1975-1985 Chevrolet C30; 1962-1967 Chevrolet C30 Pickup; 1967-1981 Chevrolet Camaro; 1966-1972 Chevrolet Caprice; 1967-1969 Chevrolet Chevelle; 1971-1972 Chevrolet Chevelle; 1966-1971 Chevrolet Corvette; 1973-1981 Chevrolet Corvette; 1966-1972 Chevrolet El Camino; 1958-1972 Chevrolet Impala; 1975-1985 Chevrolet K10; 1968-1973 Chevrolet K10 Suburban; 1977-1984 Chevrolet K10 Suburban; 1975-1985 Chevrolet K20; 1968-1974 Chevrolet K20 Suburban; 1980-1984 Chevrolet K20 Suburban; 1977-1985 Chevrolet K30; 1975-1985 Chevrolet K5 Blazer; 1970-1972 Chevrolet Monte Carlo; 1969-1970 Chevrolet Nova; 1962-1963 GMC 1500 Series; 1962-1963 GMC 2500 Series; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1967-1974 GMC C15/C1500 Pickup; 1968-1974 GMC C15/C1500 Suburban; 1979-1985 GMC C1500; 1979-1984 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1967-1974 GMC C25/C2500 Pickup; 1968-1974 GMC C25/C2500 Suburban; 1979-1985 GMC C2500; 1979-1984 GMC C2500 Suburban; 1975-1978 GMC C35; 1967-1974 GMC C35/C3500 Pickup; 1979-1985 GMC C3500; 1970-1985 GMC Jimmy; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1967-1974 GMC K15/K1500 Pickup; 1968-1974 GMC K15/K1500 Suburban; 1979-1985 GMC K1500; 1979-1984 GMC K1500 Suburban; 1975-1978 GMC K25; 1975-1978 GMC K25 Suburban; 1967-1974 GMC K25/K2500 Pickup; 1968-1974 GMC K25/K2500 Suburban; 1979-1985 GMC K2500; 1979-1984 GMC K2500 Suburban; 1977-1978 GMC K35; 1970-1974 GMC K35/K3500 Pickup; 1979-1985 GMC K3500; 1972 GMC Sprint
