Centerforce · 412614800
Part #: 412614800
UPC: 788442036985
Log in for inventory
Notify me when this item is in stock.
Description: SST 10.4, Clutch and Flywheel Kit; The Centerforce(R) SST (Solid Street Twin) 10.4 Inch multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 400 to 925 ft /lbs.
Description:
Description

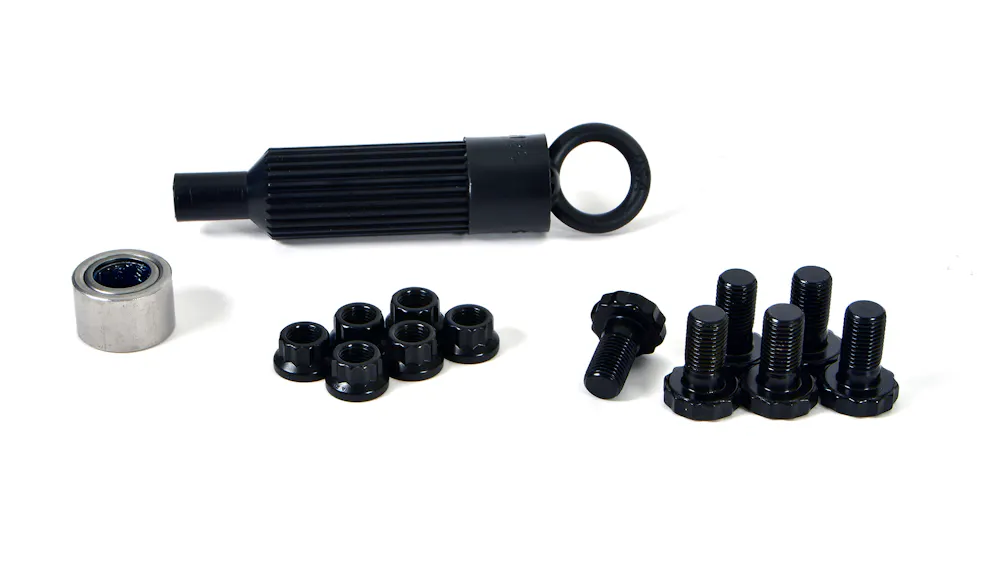

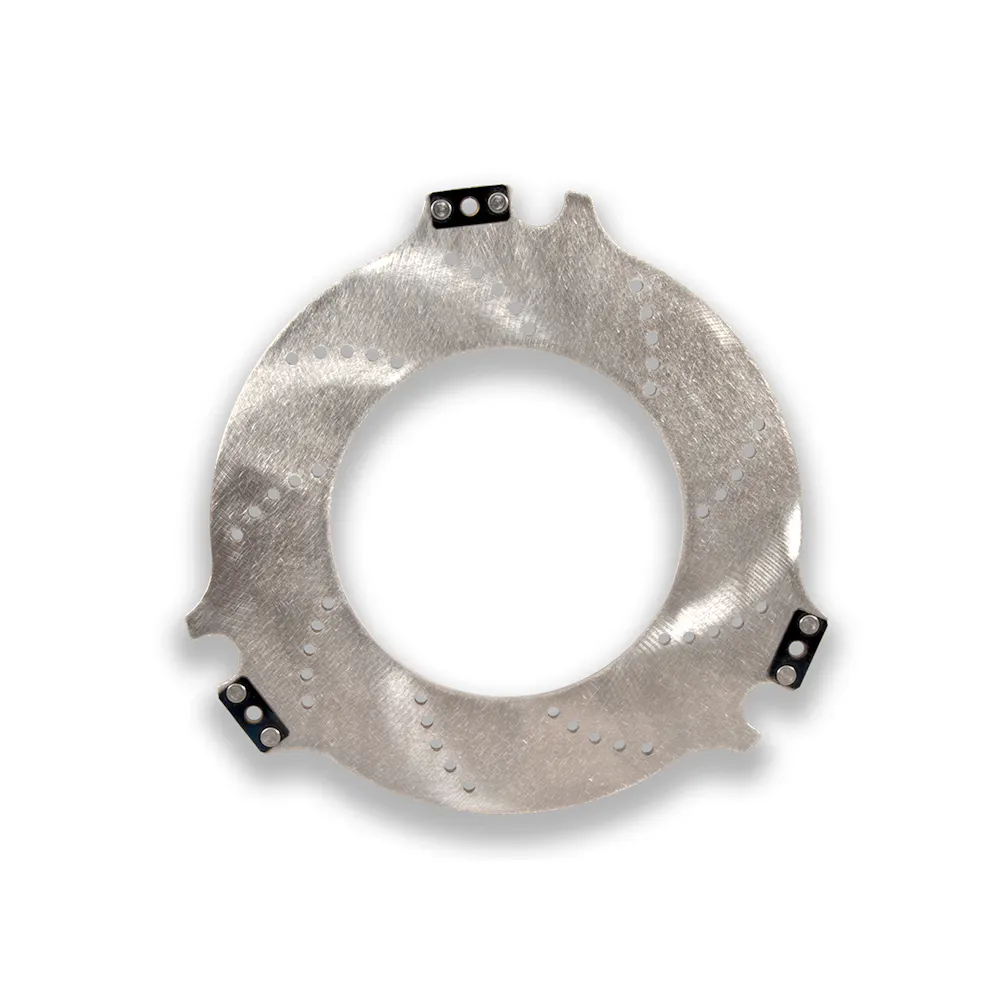

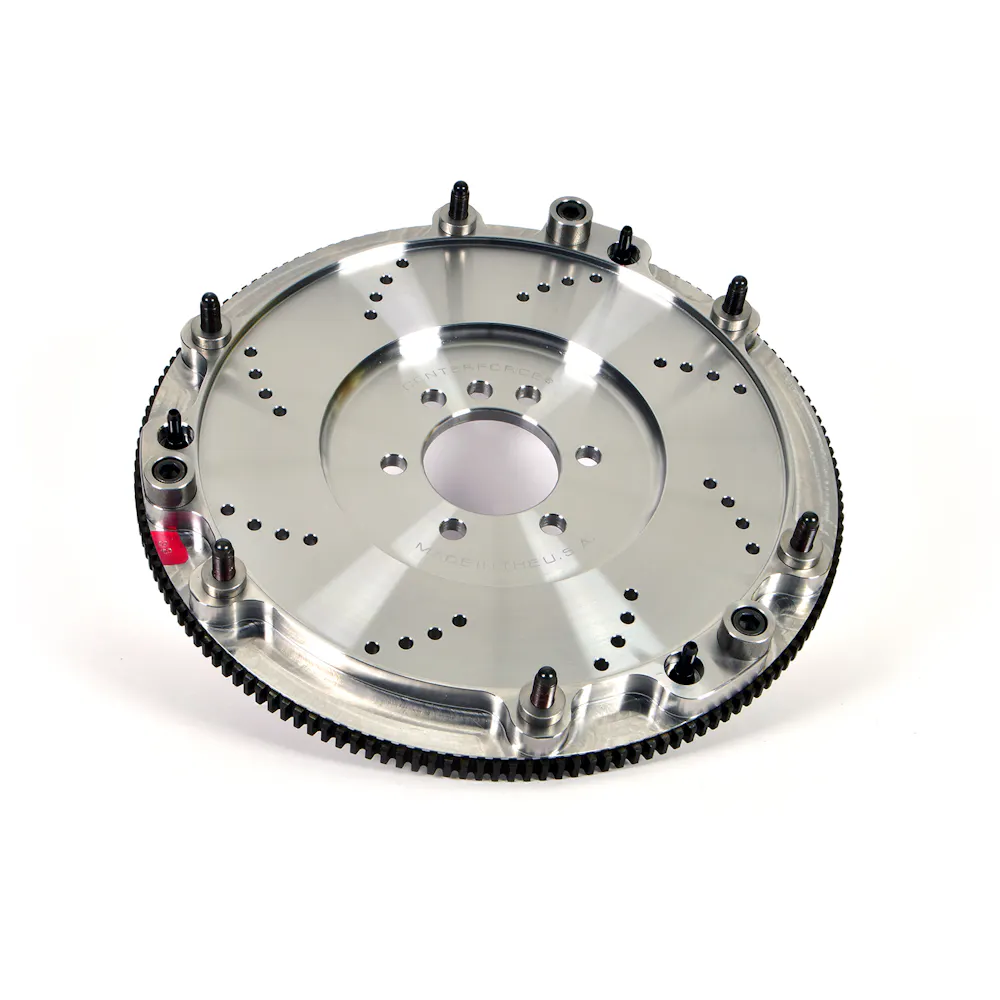

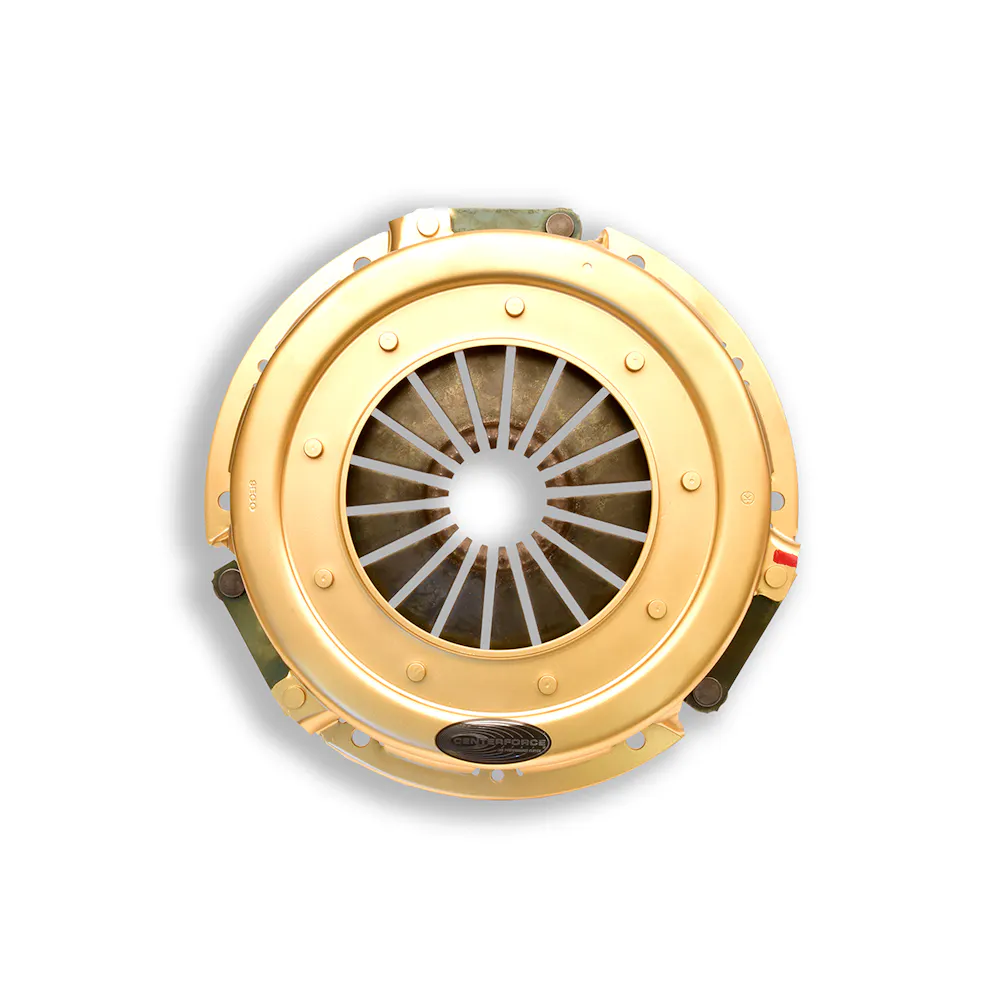

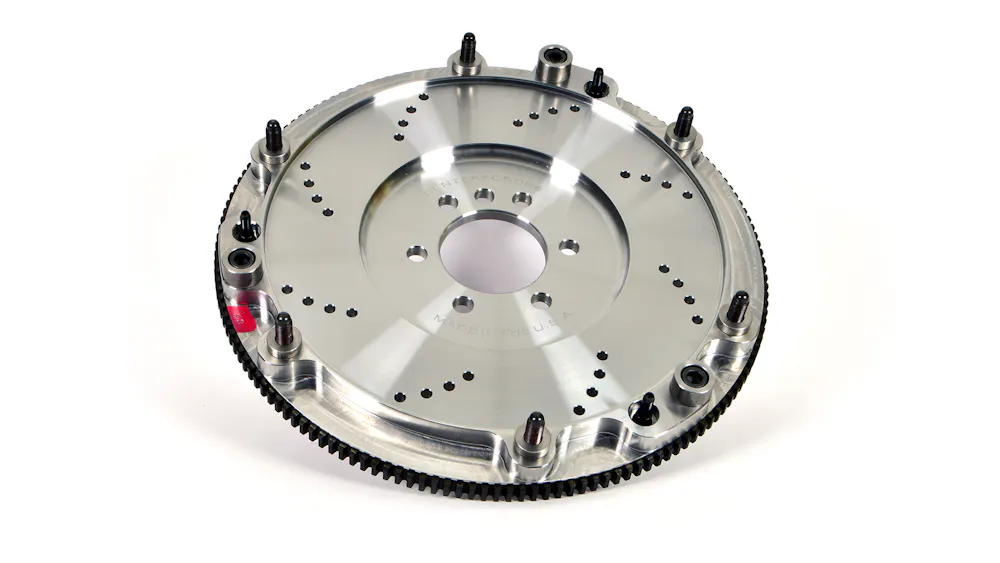

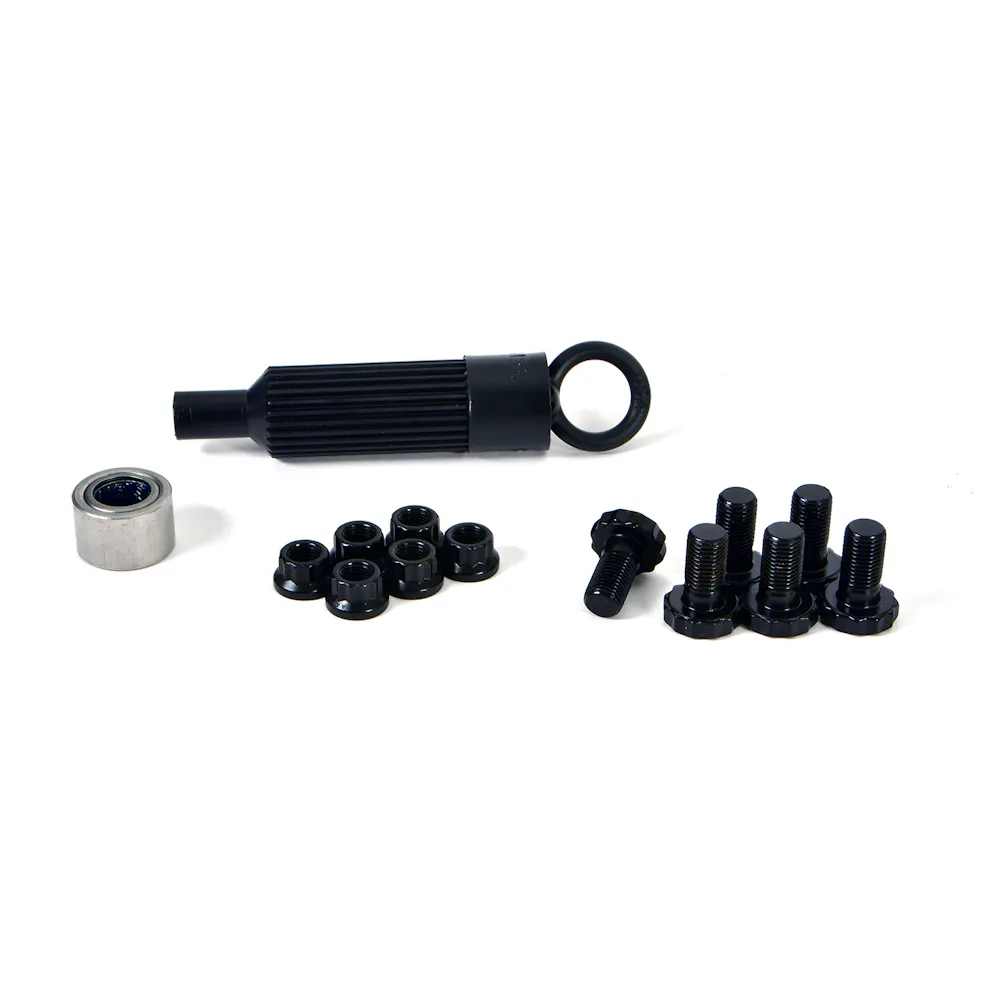

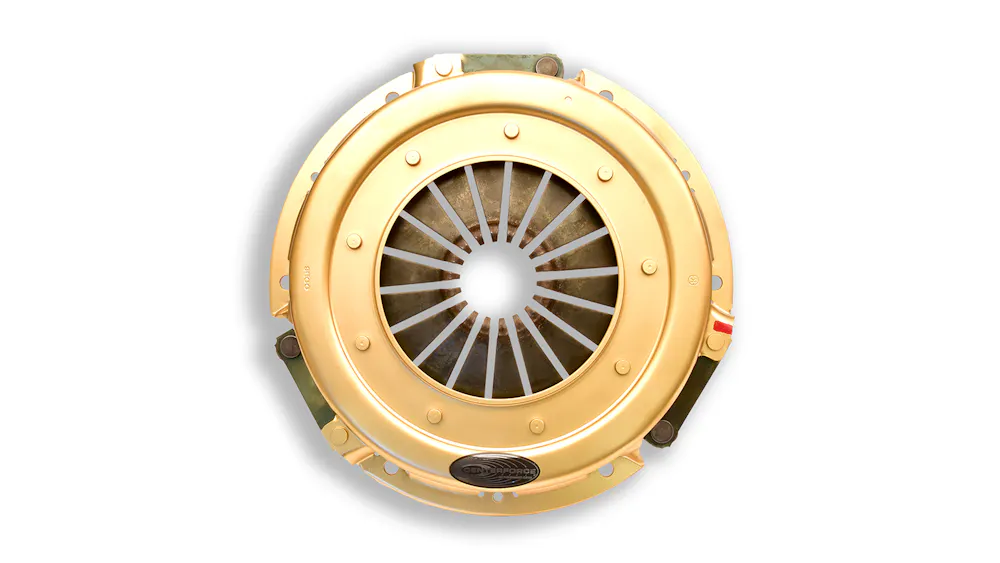

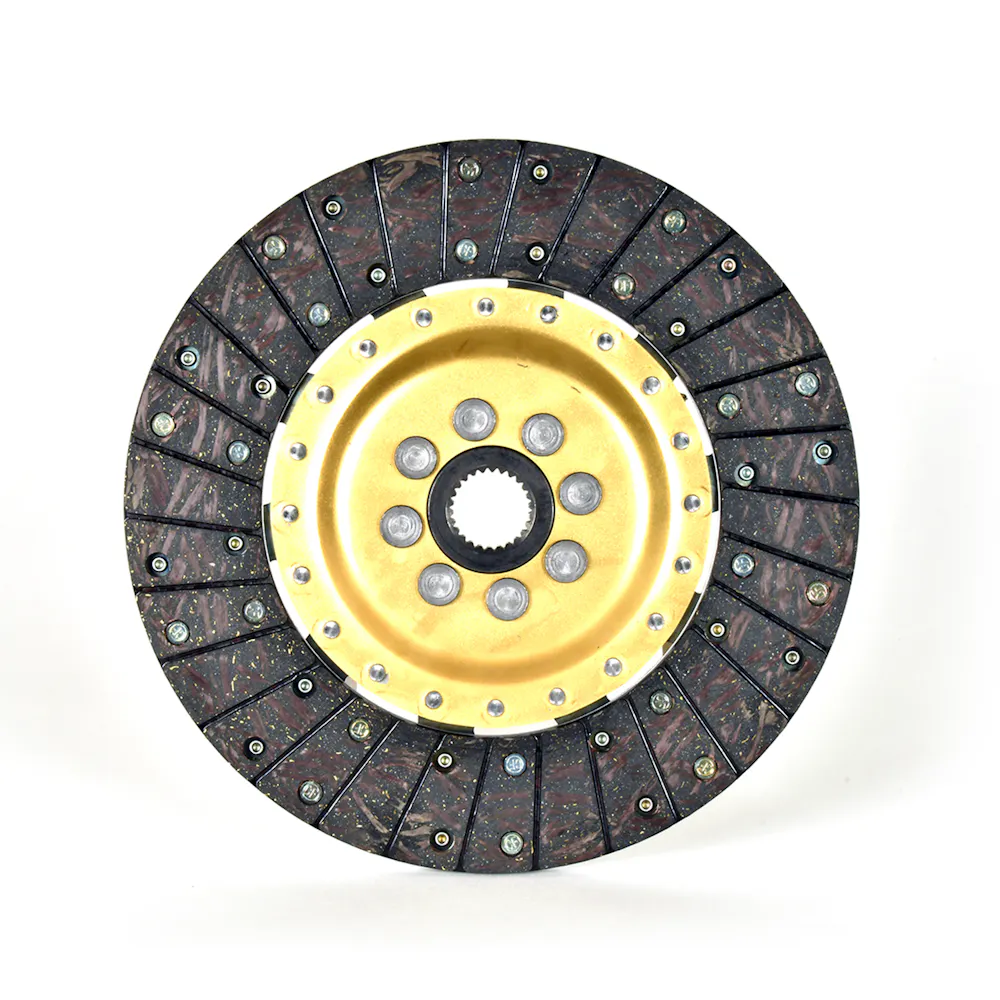

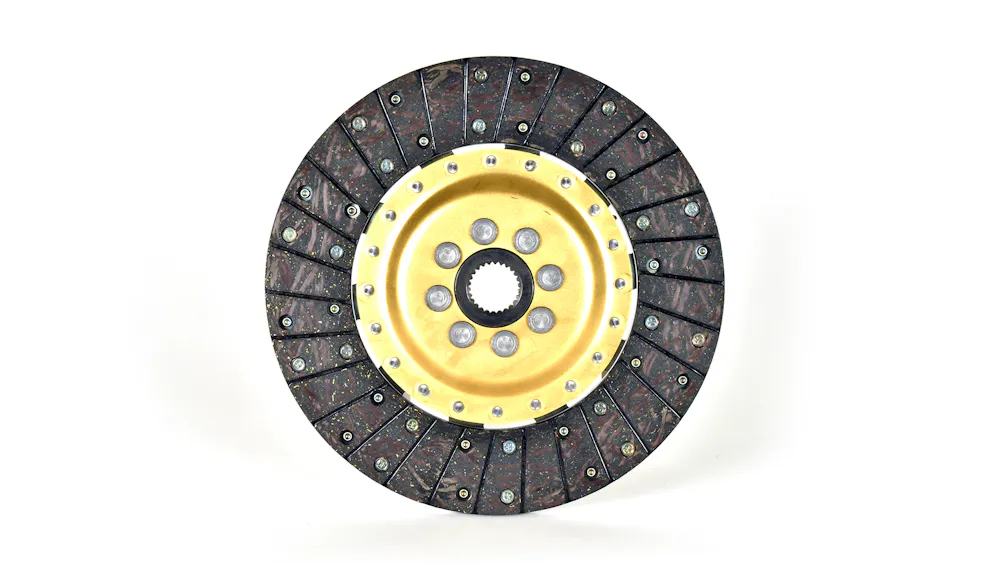

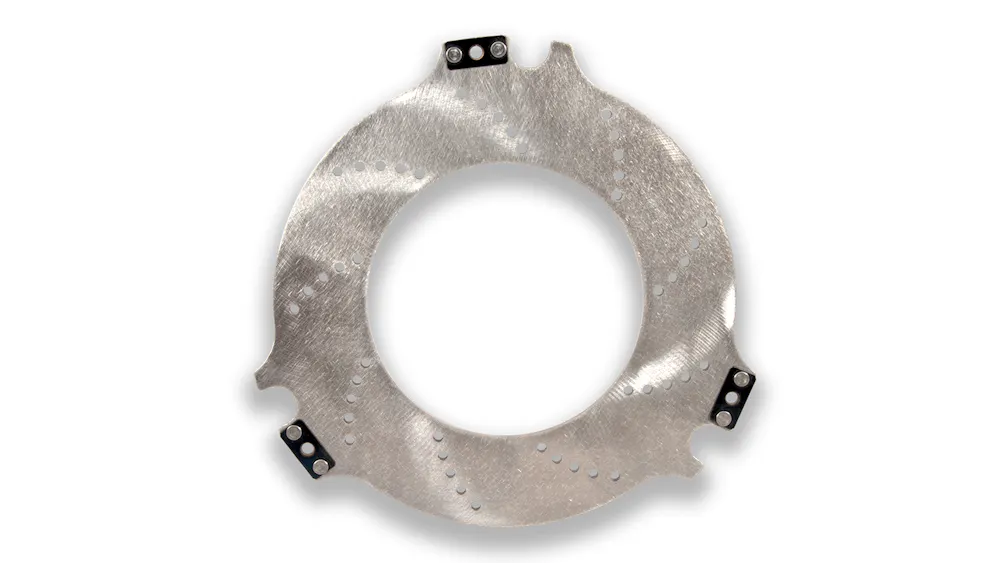

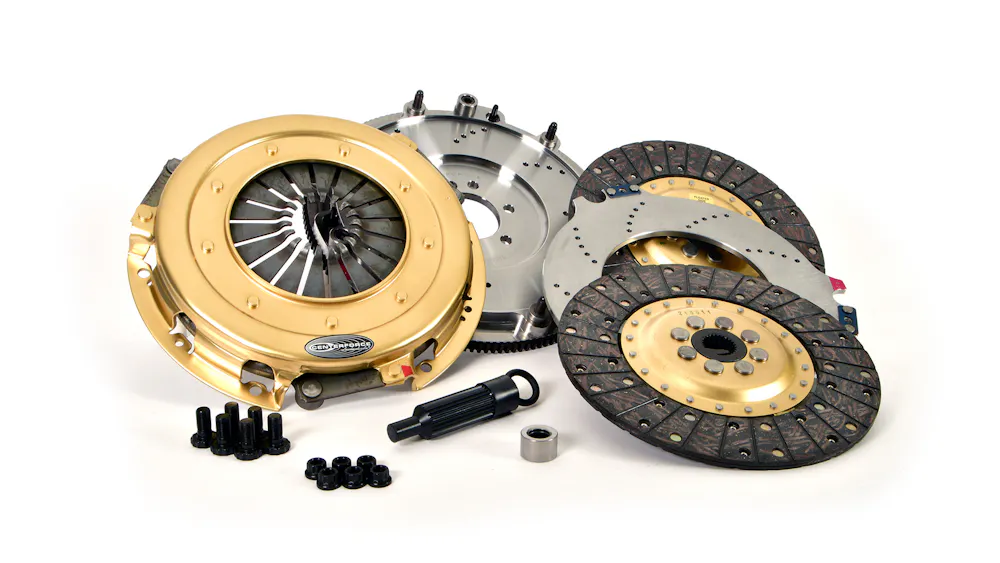

Introducing the NEW Centerforce(R) SST (Solid Street Twin). The SST clutch system has been engineered and developed for vehicles producing 400 to 925 ft/lbs of torque. The SST 10.4" discs utilize solid hubs (possible gear noise) to reduce the rotational weight on the input shaft for quick clean shifts. The discs in this assembly are built using high quality friction materials, for smooth engagement and longevity. The SST features a lightened billet steel flywheel, providing low inertia resulting in quicker RPM and the Centerforce anti-rattle system to reduce floater rattle/noise. No complicated setup or adjustments required, just bolt it in and "Get a Grip". The Centerforce SST includes a billet steel flywheel, 2 discs, floater plate, pressure plate, pilot bearing, alignment tool, and ARP pressure plate and flywheel hardware. The SST clutch system is an economical choice for streetcar enthusiasts looking for a complete high-quality twin disc clutch system. This new clutch assembly can be used for everyday use and spirited days on the track.
Application summary
| Year | Make / model |
|---|---|
| 1955-1956 | Chevrolet Bel Air |
| 1962-1972 | Chevrolet Bel Air |
| 1958-1972 | Chevrolet Biscayne |
| 1967-1974 | Chevrolet Camaro |
| 1977-1985 | Chevrolet Camaro |
| 1966-1972 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1965-1967 | Chevrolet Chevy II |
| 1957-1972 | Chevrolet Corvette |
| 1978 | Chevrolet Corvette |
| 1984-1985 | Chevrolet Corvette |
| 1964-1975 | Chevrolet El Camino |
| 1979-1981 | Chevrolet El Camino |
| 1958-1972 | Chevrolet Impala |
| 1975 | Chevrolet Malibu |
| 1978-1981 | Chevrolet Malibu |
| 1970-1975 | Chevrolet Monte Carlo |
| 1979 | Chevrolet Monte Carlo |
| 1981 | Chevrolet Monte Carlo |
| 1969-1979 | Chevrolet Nova |
| 1978-1981 | GMC Caballero |
| 1971-1977 | GMC Sprint |
Specifications
- GTIN
- 00788442036985
- Weight
- 47.5 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- No
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic
- Disc Quantity
- 2
- Disc Type
- Full Face
- Disc Type Sprung Solid
- Solid
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 7/16 in x 20 x 0.875
- Flywheel Crank Flange Register
- 2.485
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Installed Height
- 2.870
- Made In The USA
- Assembled
- Material
- Billet Steel Flywheel / Nodular Iron Pressure Plate / Organic Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 44.30
- Pilot Bushing Included
- Yes
- Pilot Bushing Material
- Bearing
- Release Bearing Included
- No
- Ring Gear O.D.
- 12.845
- Title
- Centerforce SST 10.4, Multi=Disc Clutch and Flywheel Kit, 44.30 lbs, 153 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 925 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Chevrolet/GMC Cars and Trucks 8 Cyl
- Tooth Quantity
- 153
- Torque Capacity
- 925
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1955-1956 Chevrolet Bel Air; 1962-1972 Chevrolet Bel Air; 1958-1972 Chevrolet Biscayne; 1967-1974 Chevrolet Camaro; 1977-1985 Chevrolet Camaro; 1966-1972 Chevrolet Caprice; 1964-1973 Chevrolet Chevelle; 1965-1967 Chevrolet Chevy II; 1957-1972 Chevrolet Corvette; 1978 Chevrolet Corvette; 1984-1985 Chevrolet Corvette; 1964-1975 Chevrolet El Camino; 1979-1981 Chevrolet El Camino; 1958-1972 Chevrolet Impala; 1975 Chevrolet Malibu; 1978-1981 Chevrolet Malibu; 1970-1975 Chevrolet Monte Carlo; 1979 Chevrolet Monte Carlo; 1981 Chevrolet Monte Carlo; 1969-1979 Chevrolet Nova; 1978-1981 GMC Caballero; 1971-1977 GMC Sprint
