Part #: 412234805
UPC: 788442035391

Loading availability... Log in for inventory
Notify me when this item is in stock.

Description: SST 10.4, Clutch and Flywheel Kit; The Centerforce(R) SST (Solid Street Twin) 10.4 Inch multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 400 to 925 ft /lbs.

Description:

Description

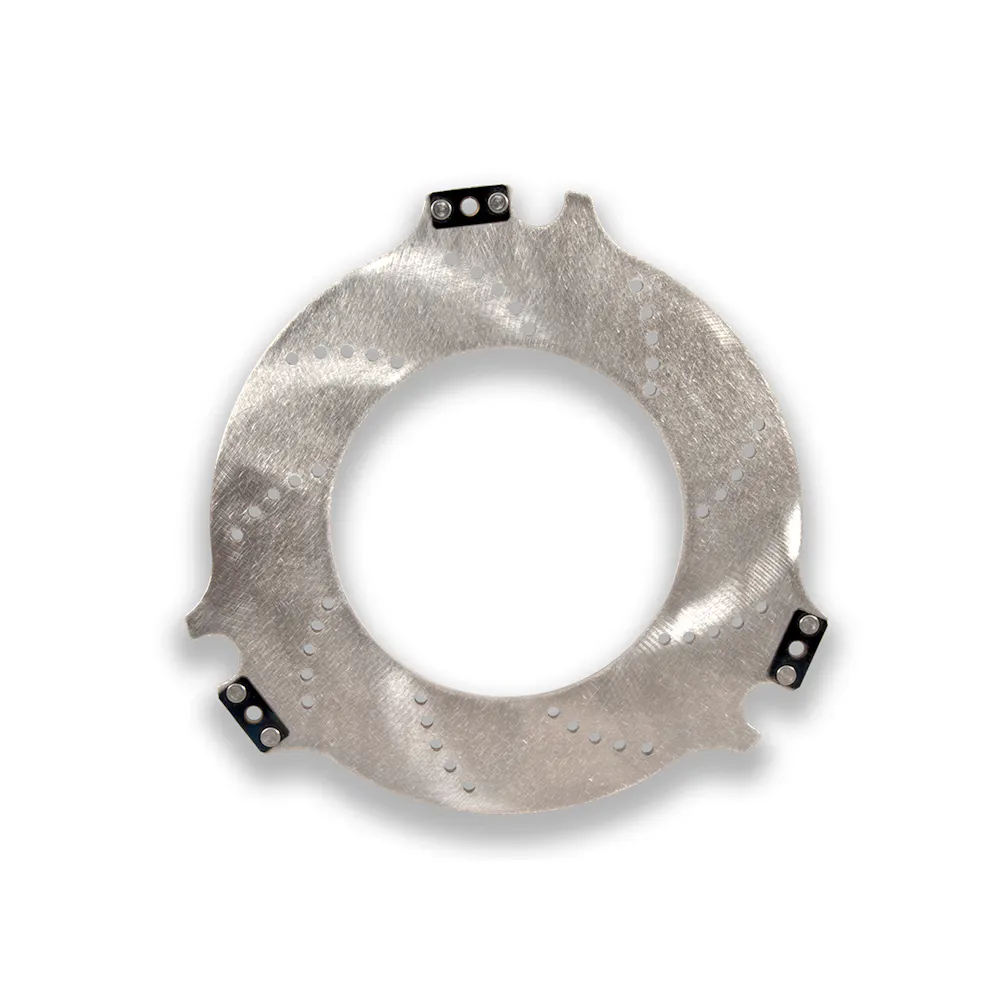

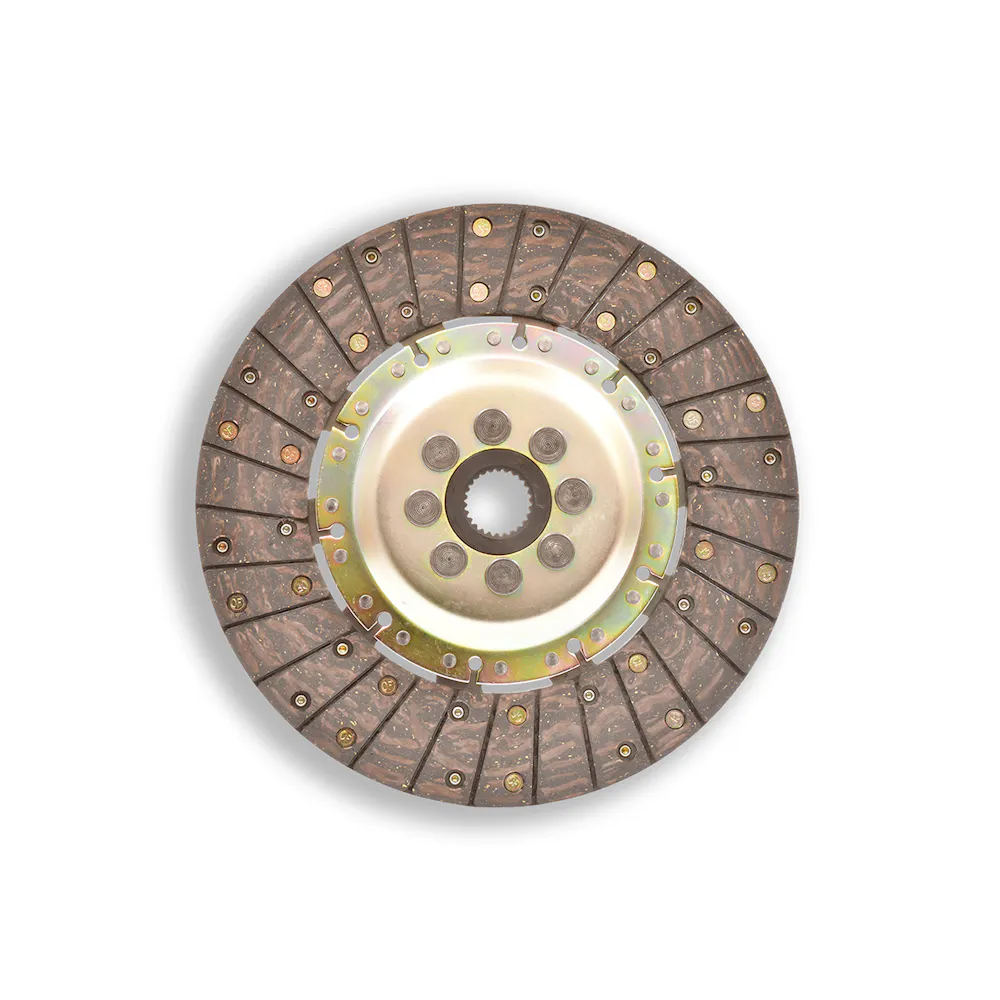

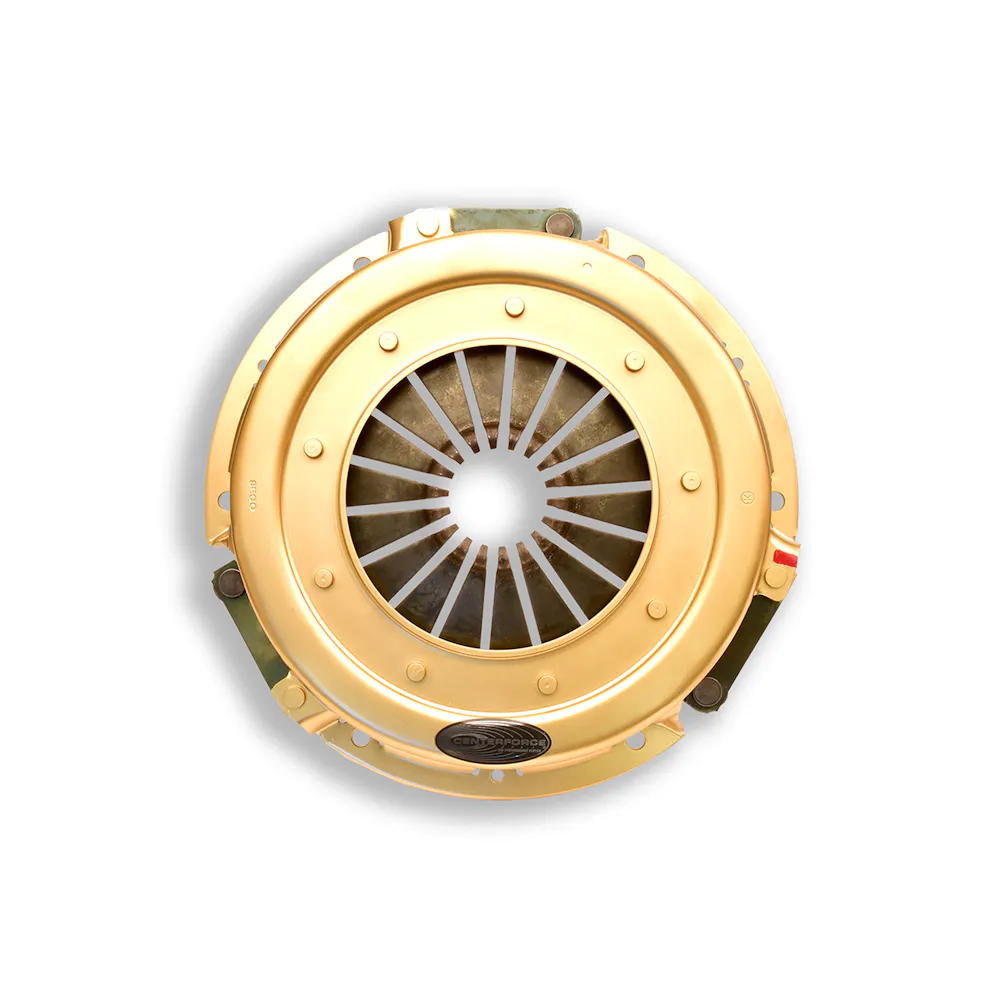

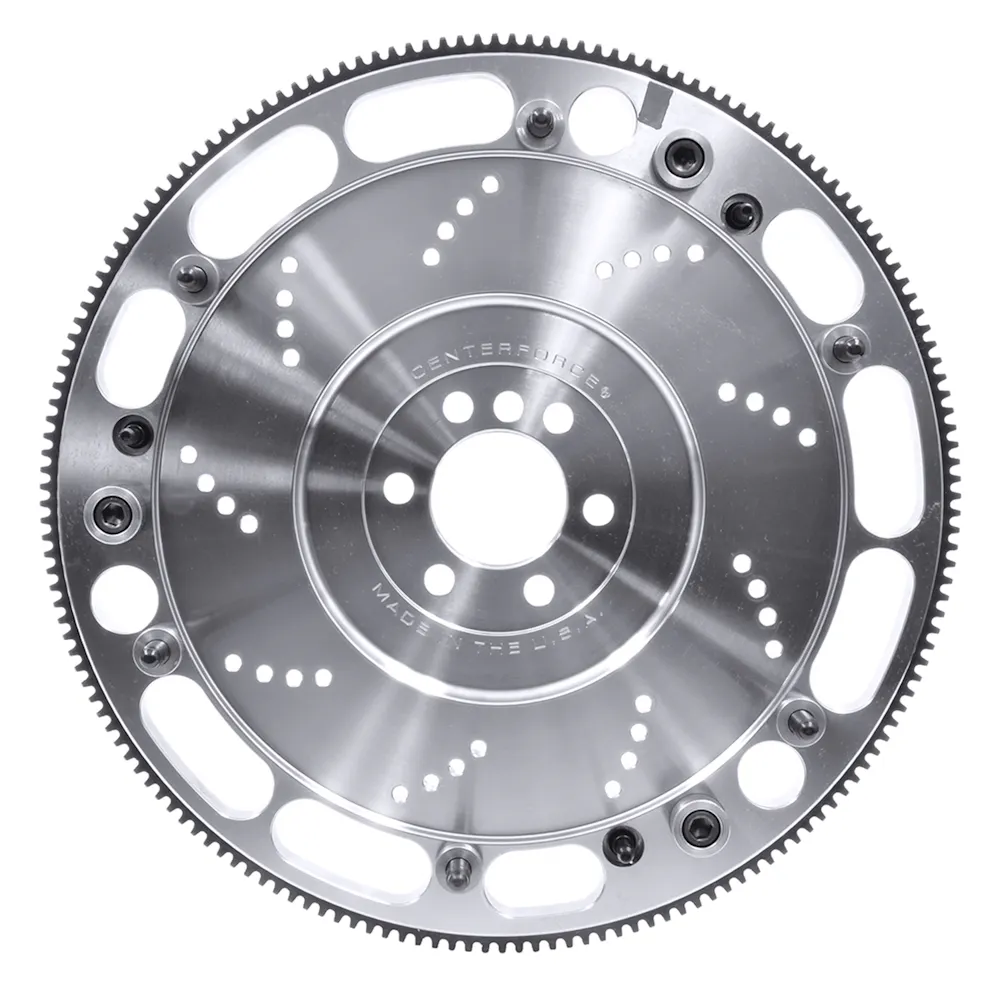

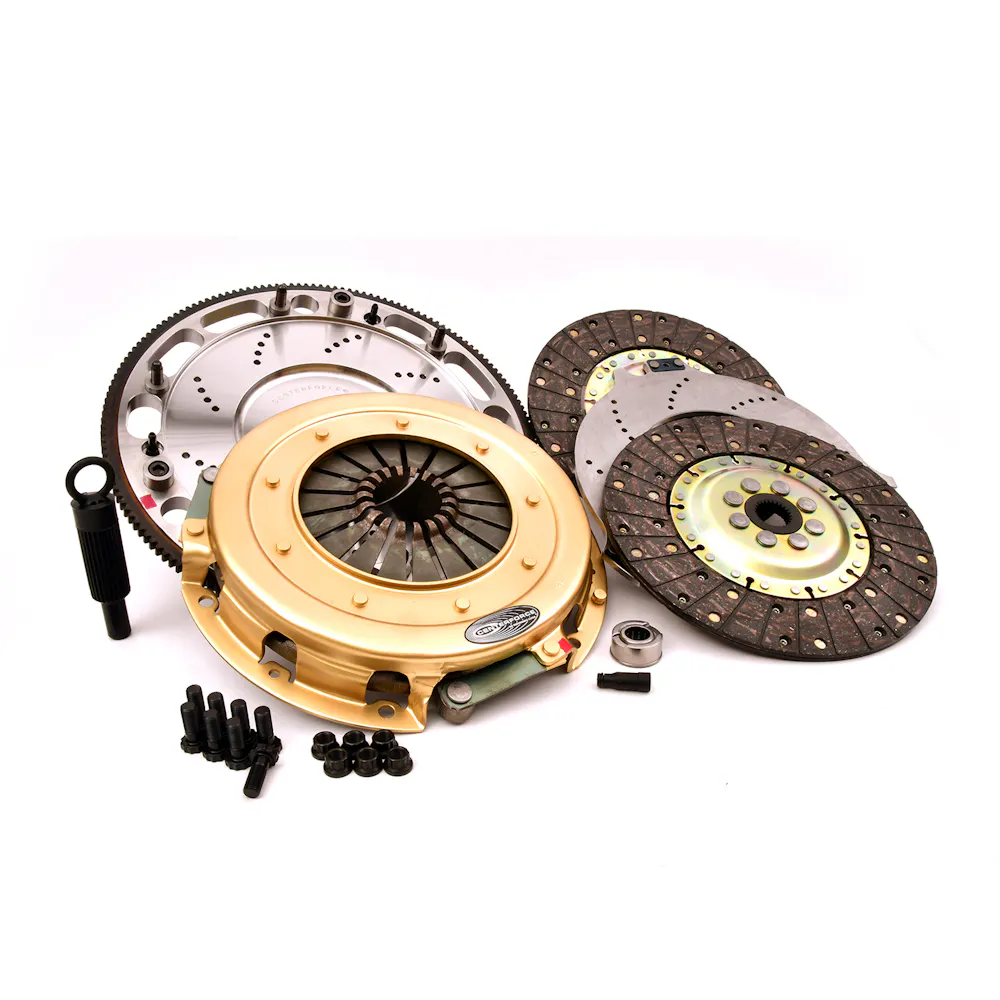

Introducing the NEW Centerforce(R) SST (Solid Street Twin). The SST clutch system has been engineered and developed for vehicles producing 400 to 925 ft/lbs of torque. The SST 10.4" discs utilize solid hubs (possible gear noise) to reduce the rotational weight on the input shaft for quick clean shifts. The discs in this assembly are built using high quality friction materials, for smooth engagement and longevity. The SST features a lightened billet steel flywheel, providing low inertia resulting in quicker RPM and the Centerforce anti-rattle system to reduce floater rattle/noise. No complicated setup or adjustments required, just bolt it in and "Get a Grip". The Centerforce SST includes a billet steel flywheel, 2 discs, floater plate, pressure plate, pilot bearing, alignment tool, and ARP pressure plate and flywheel hardware. The SST clutch system is an economical choice for streetcar enthusiasts looking for a complete high-quality twin disc clutch system. This new clutch assembly can be used for everyday use and spirited days on the track.

Application summary

Year Make / model
2011-2017 Ford Mustang

Specifications

GTIN
00788442035391
Weight
47.3 lb
Height
5.5 in
Length
18 in
Width
18 in
EO
Legal US
Life cycle
Available to Order
AAM brand code
CEN
Warehouse brand code
CEN
AAIA brand code
BDPL

Attributes

Alignment Tool Included
Yes
California Proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Disc Diameter
264.2
Counterweight Assist
No
Crankshaft Bolt Hole Quantity
8
Disc Material
Organic
Disc Quantity
2
Disc Type
Full Face
Disc Type Sprung Solid
Solid
Flywheel Counter Balance Weight
0
Flywheel Crank Bolt Size
M10 x 1.00 x 25
Flywheel Crank Flange Register
1.750
Flywheel Deck Height
2.96
Input Shaft Diameter
1
Input Spline Quantity
23M
Installed Height
2.960
Made In The USA
Assembled
Material
Billet Steel Flywheel / Nodular Iron Pressure Plate / Organic Friction
Mounting Hardware Included
Yes
Out of Package Weight
44.15
Outside Diameter
14.215
Pilot Bushing Included
Yes
Ring Gear O.D.
14.236
Ring Gear OD
14.215
Ring Gear Tooth Count
164
Title
Centerforce SST 10.4, Multi=Disc Clutch and Flywheel Kit, 44.15 lbs, 164 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 925 ft/lbs Capacity, 10.4in Dia., 23M-Spline, Fits Ford Mustang Boss 302 5.0L
Tooth Quantity
164
Torque Capacity
925

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2011-2017 Ford Mustang
