Centerforce / 315489989

Part #: 315489989
UPC: 788442032840

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Centerforce Series: DFX Clutch Kits

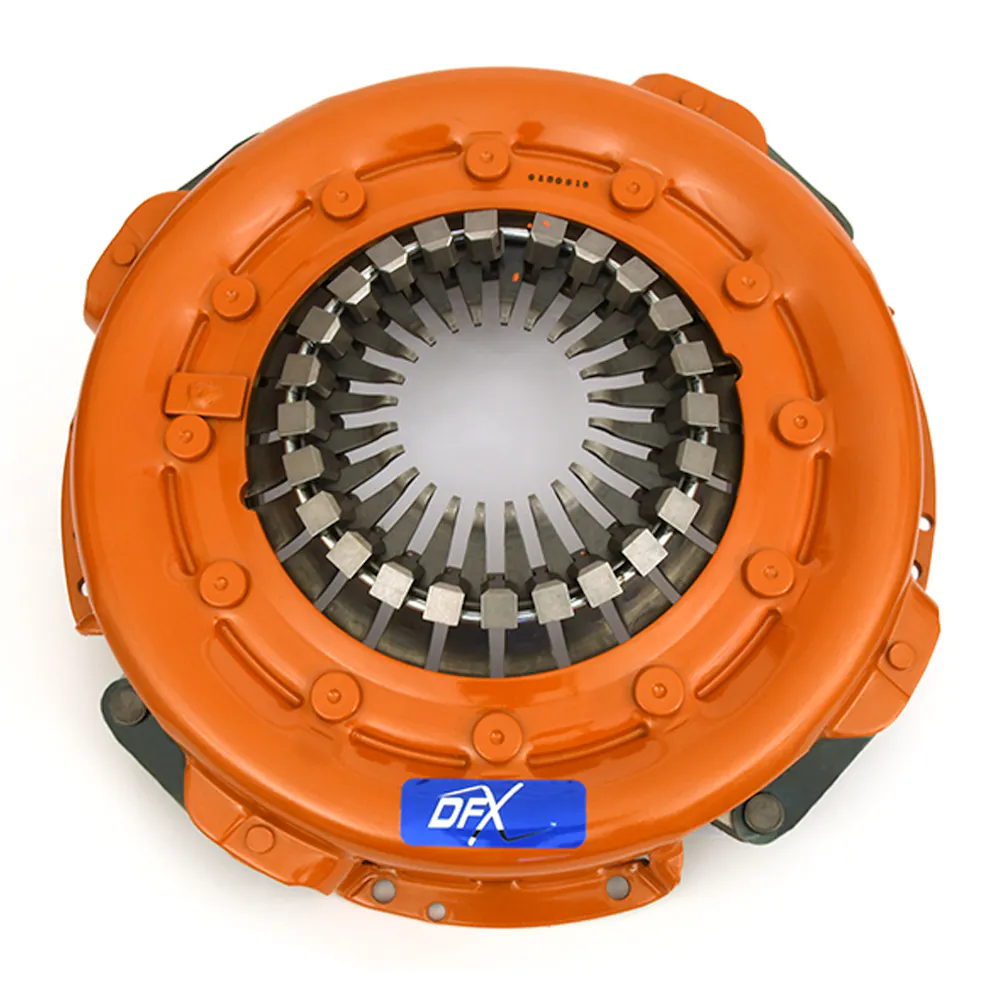

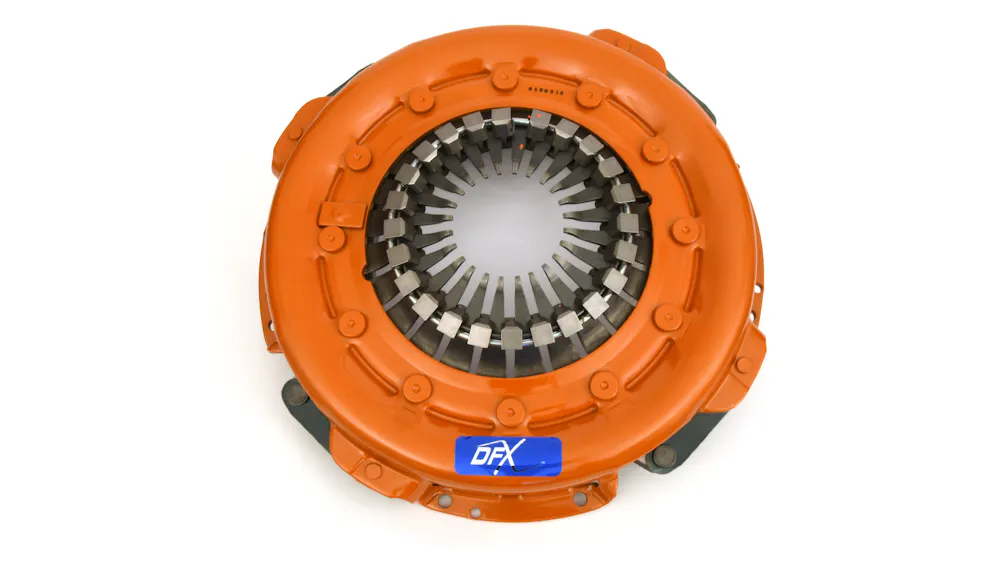

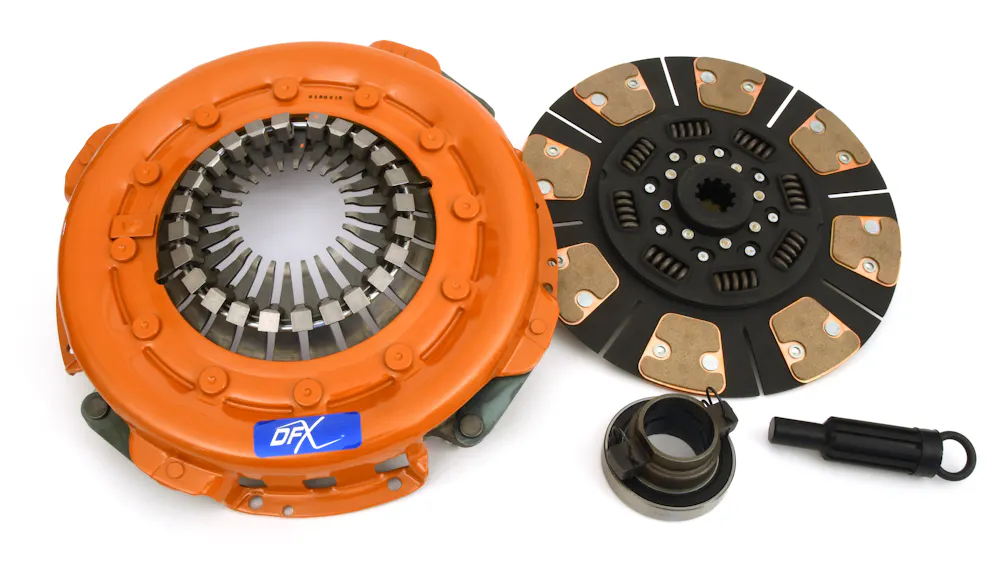

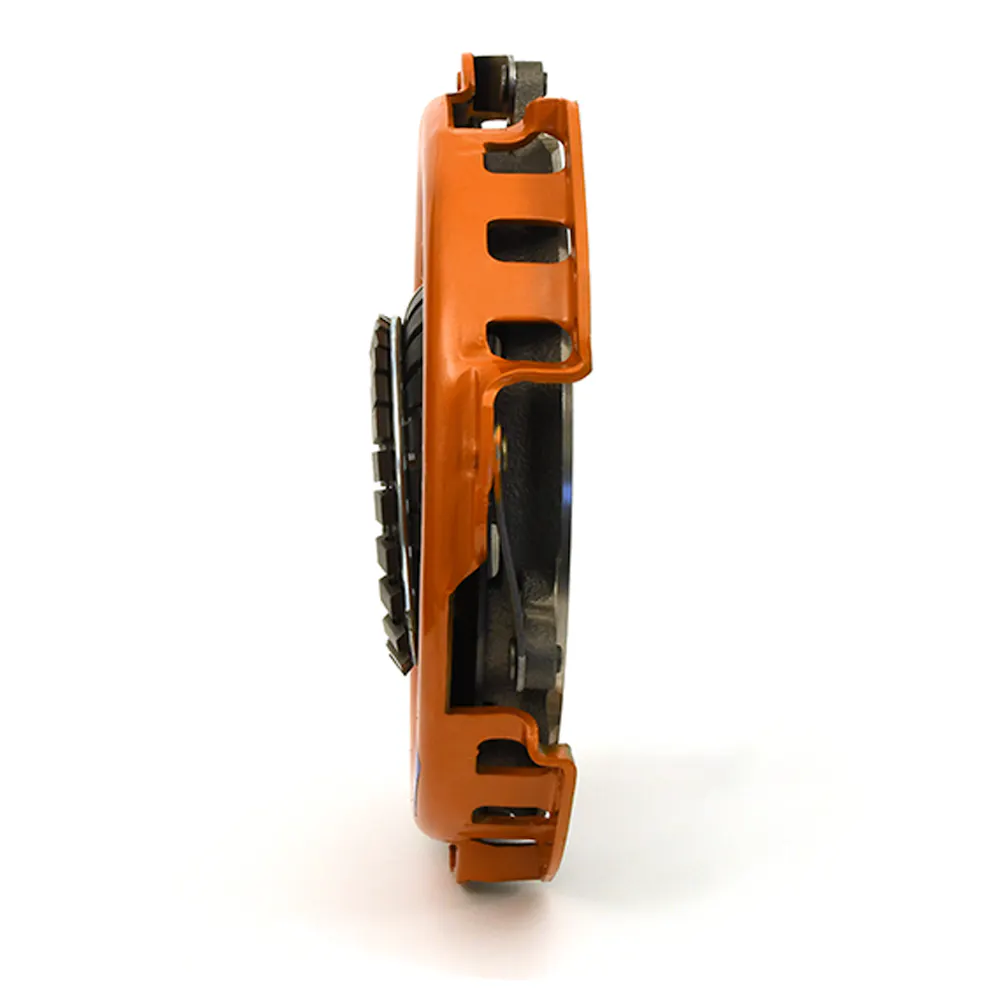

Description: DFX(R), Clutch Pressure Plate and Disc Set; The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.

Cancer - www.P65Warnings.ca.gov

Description

The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.

Application summary

Year	Make / model
1994-2005	Dodge Ram 2500
1994-2005	Dodge Ram 3500

Specifications

GTIN: 00788442032840
Weight: 45 lb
Height: 4 in
Length: 14 in
Width: 14 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

Alignment Tool Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern: 22
Clutch Disc Diameter: 304.8
Counterweight Assist: YES
Disc Material: Cerametallic

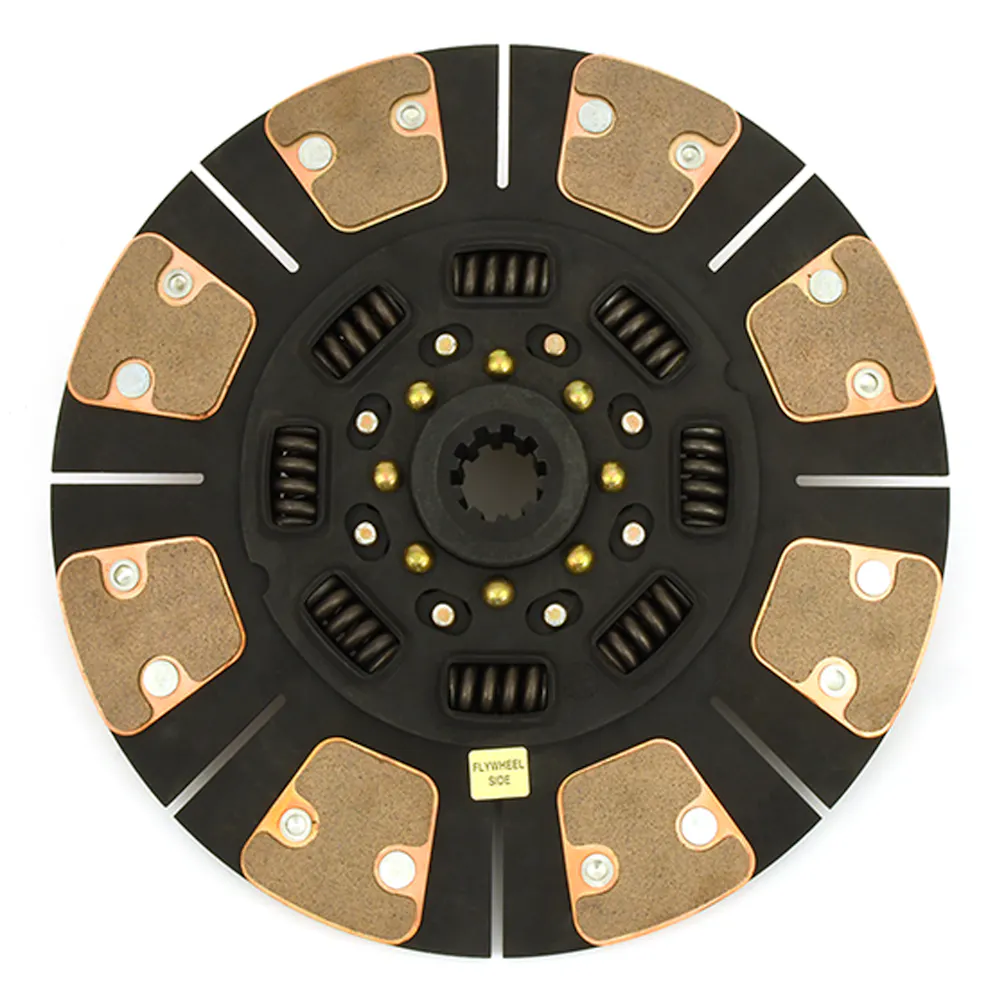

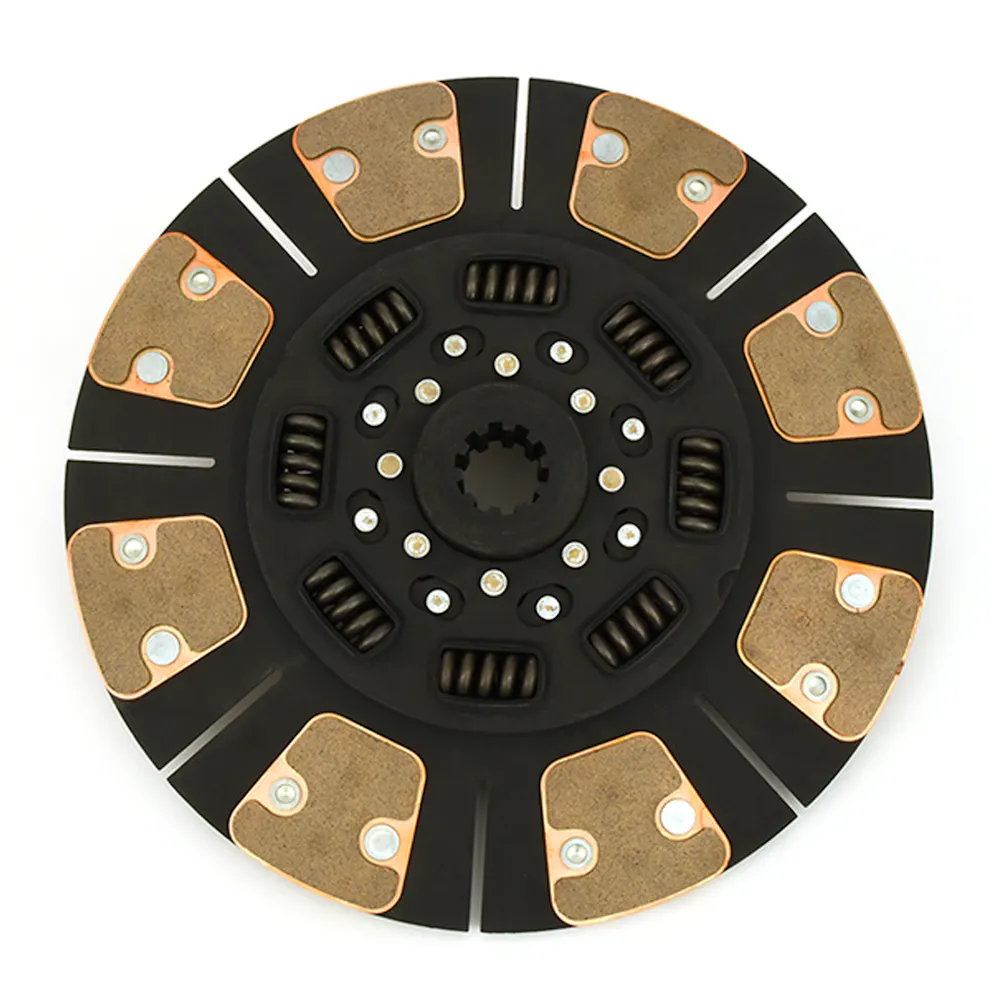

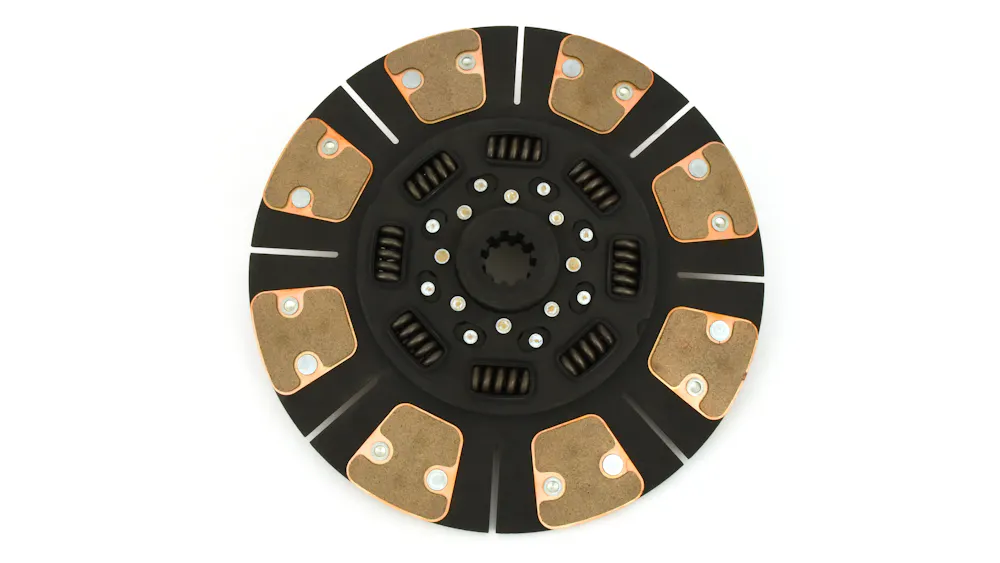

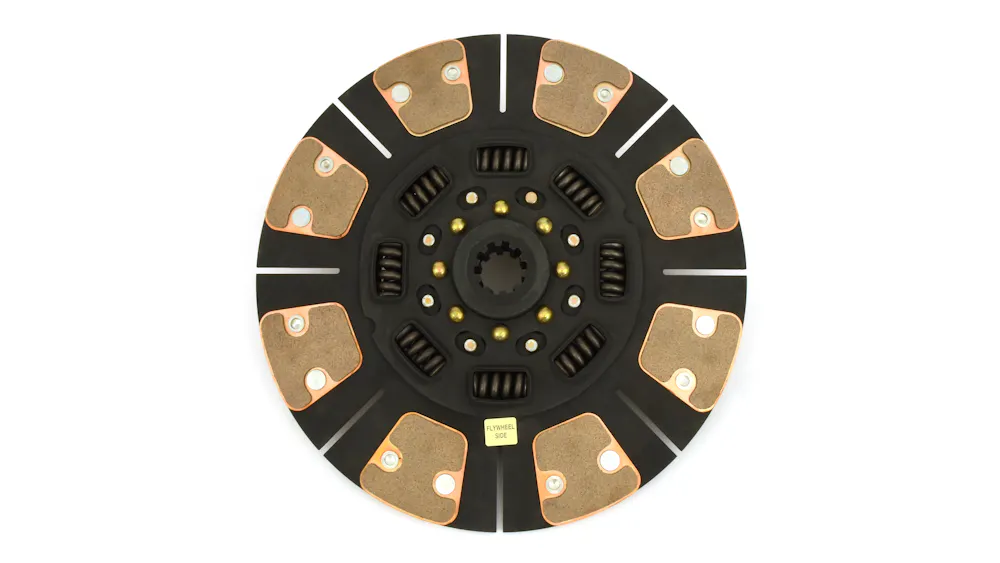

Disc Type: 8-Paddle
Disc Type Sprung Solid: Sprung
Input Shaft Diameter: 1-1/4
Input Spline Quantity: 10
Made In The USA: Assembled

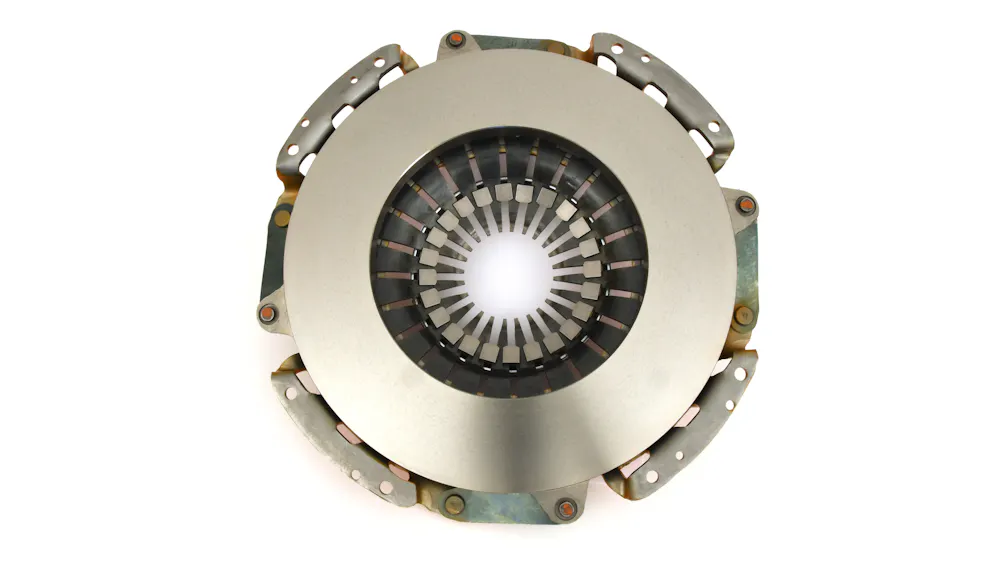

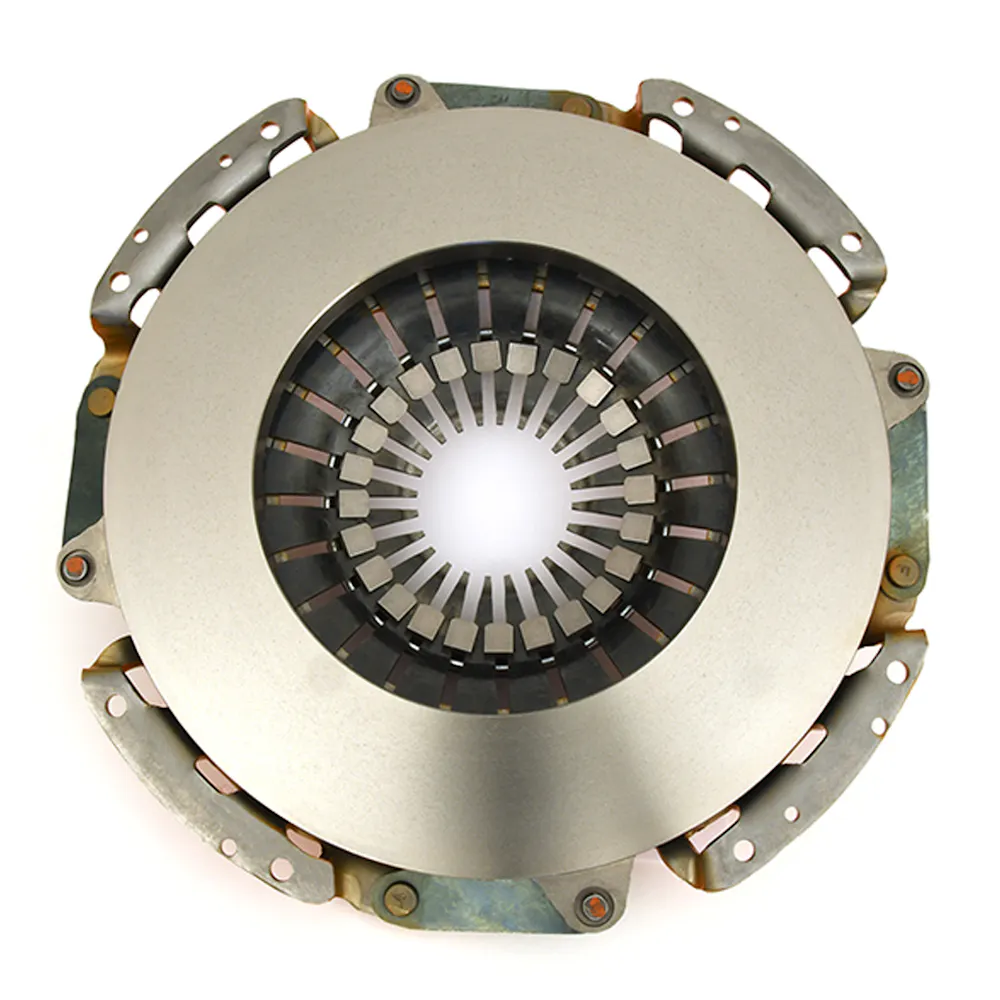

Material: Cast Iron Pressure Plate / Cerametallic Button Style Friction

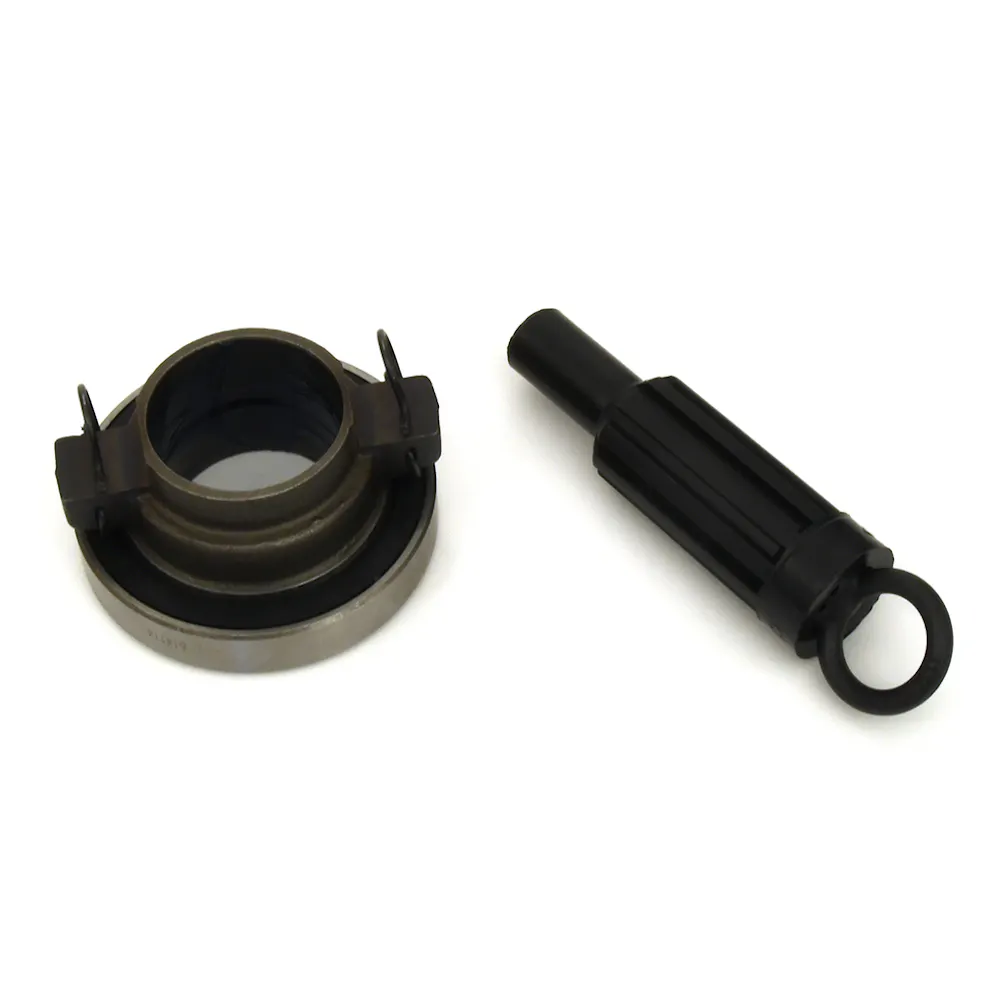

Release Bearing Included: Yes
SFI 1.1 Approved: N
Title: Centerforce DFX ?, Extreme Performance Clutch Pressure Plate and Disc Set, 900 ft/lbs Capacity, 12.250in Dia., 10-Spline, Fits Dodge Ram 2500 and Ram 3500 5.9L/8.0L
Torque Capacity: 900
