Centerforce · 315269739
Part #: 315269739
UPC: 788442032796
Log in for inventory
Notify me when this item is in stock.

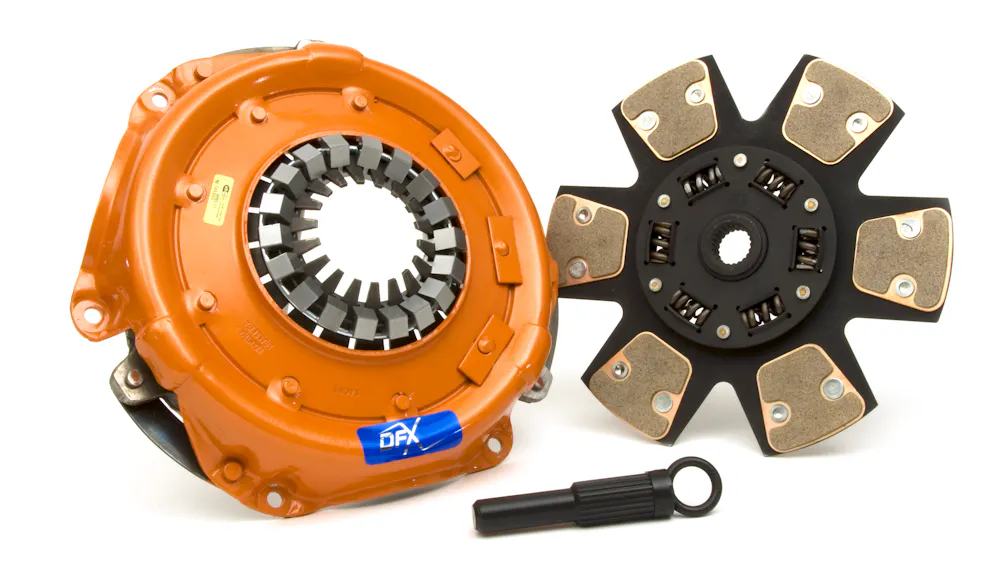

Description: DFX(R), Clutch Pressure Plate and Disc Set; The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.
Description:
This part number superseded 01269739.
Description

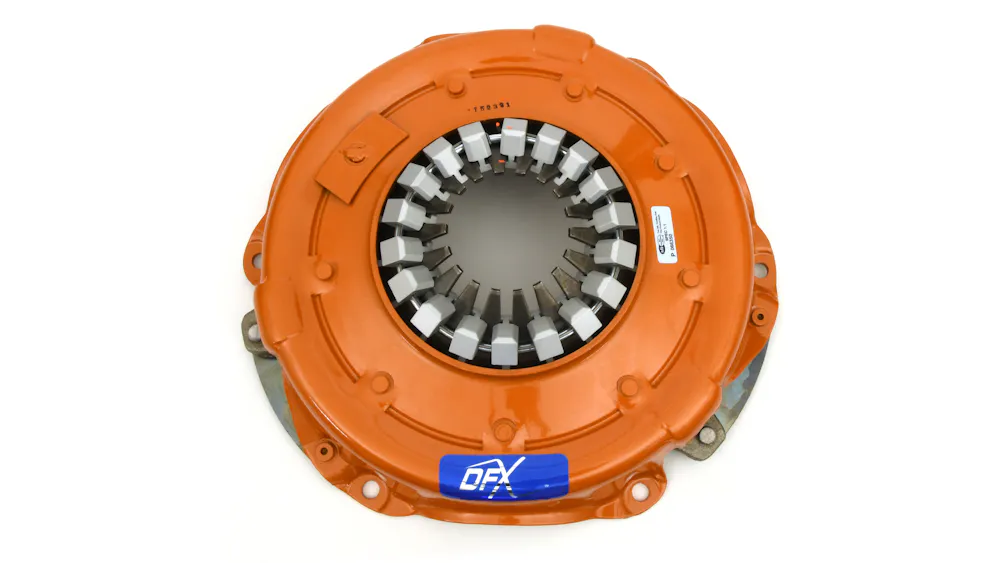

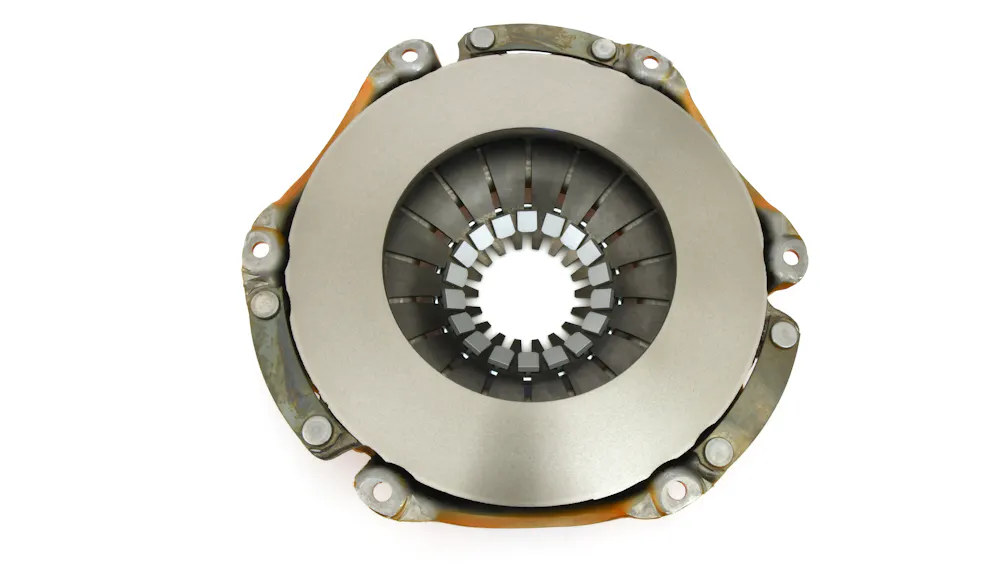

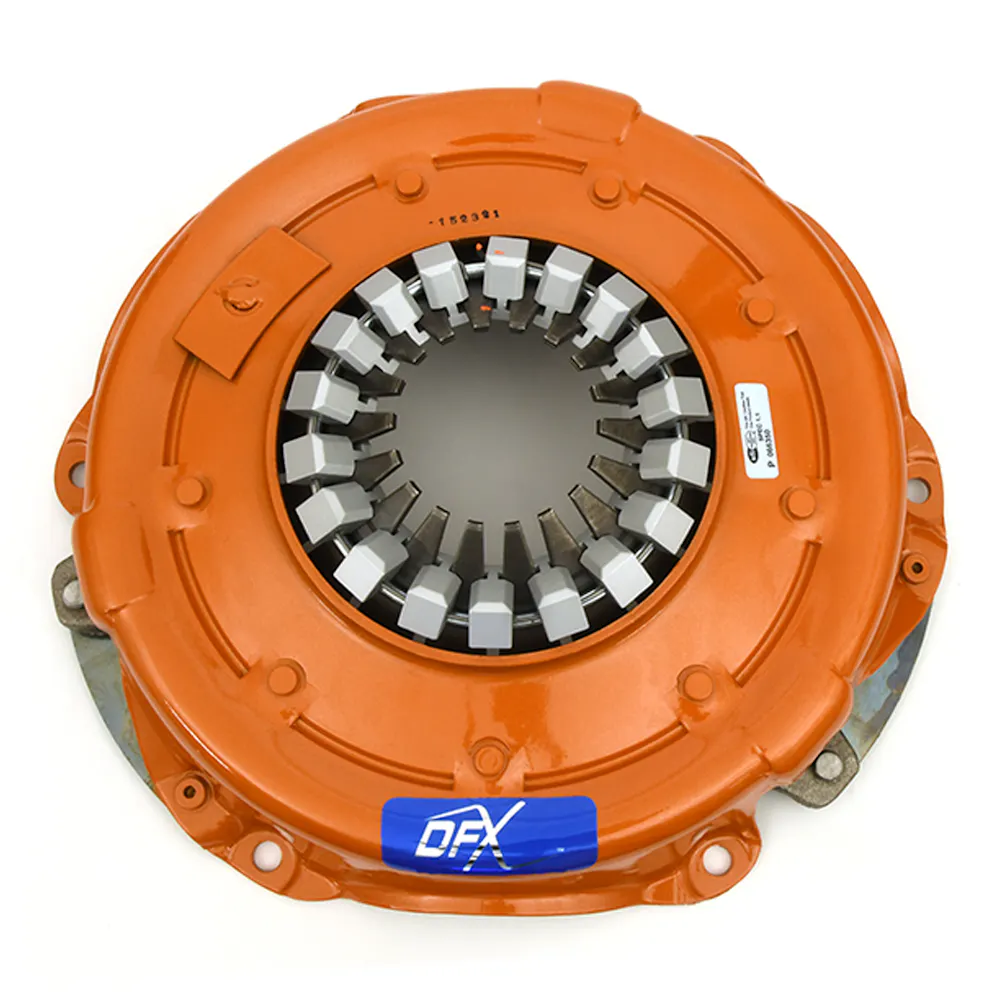

The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
Application summary
| Year | Make / model |
|---|---|
| 1970-1974 | Dodge Challenger |
| 1966-1974 | Dodge Charger |
| 1965-1967 | Dodge Coronet |
| 1970-1974 | Dodge Coronet |
| 1967-1972 | Dodge Dart |
| 1974 | Dodge Dart |
| 1967-1973 | Plymouth Barracuda |
| 1963-1970 | Plymouth Belvedere |
| 1970-1973 | Plymouth Duster |
| 1963-1967 | Plymouth Fury |
| 1968-1969 | Plymouth GTX |
| 1971 | Plymouth GTX |
| 1968-1973 | Plymouth Road Runner |
| 1965-1969 | Plymouth Satellite |
| 1971-1973 | Plymouth Satellite |
Specifications
- GTIN
- 00788442032796
- Weight
- 22.55 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes

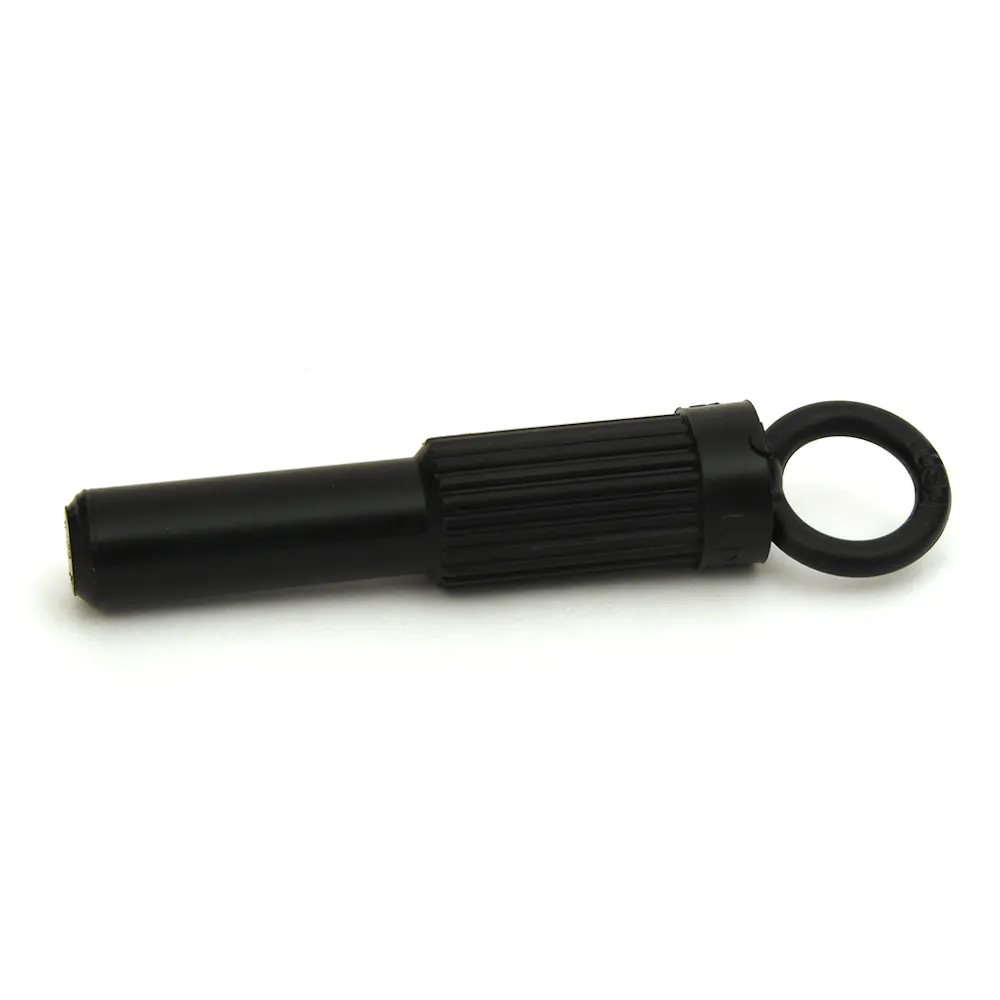

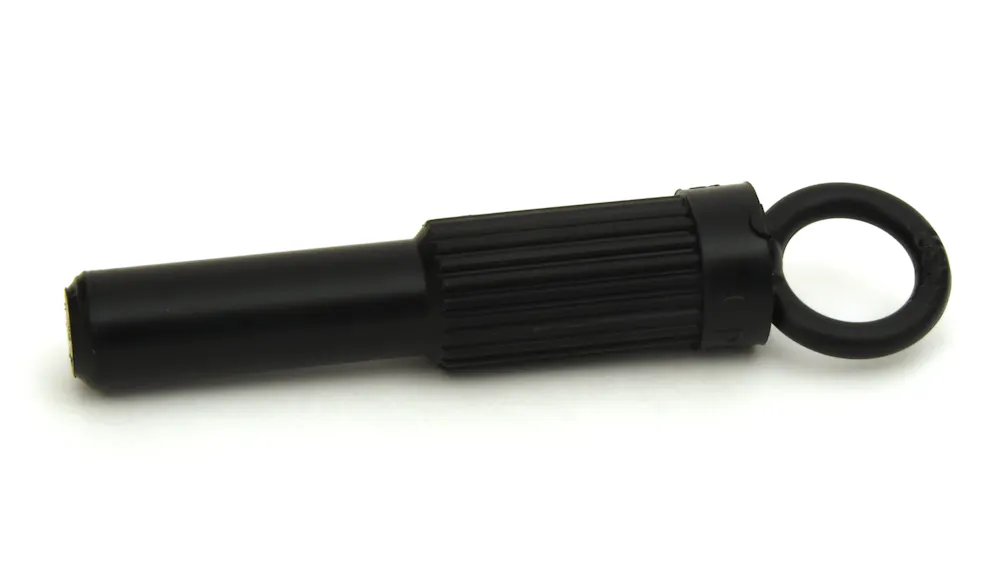

- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 2
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- YES
- Disc Material
- Cerametallic

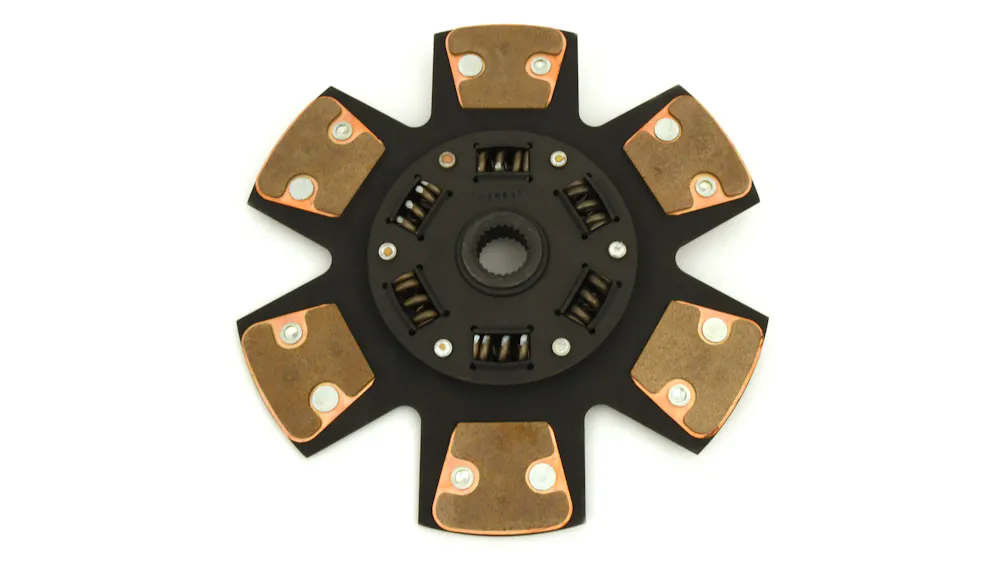

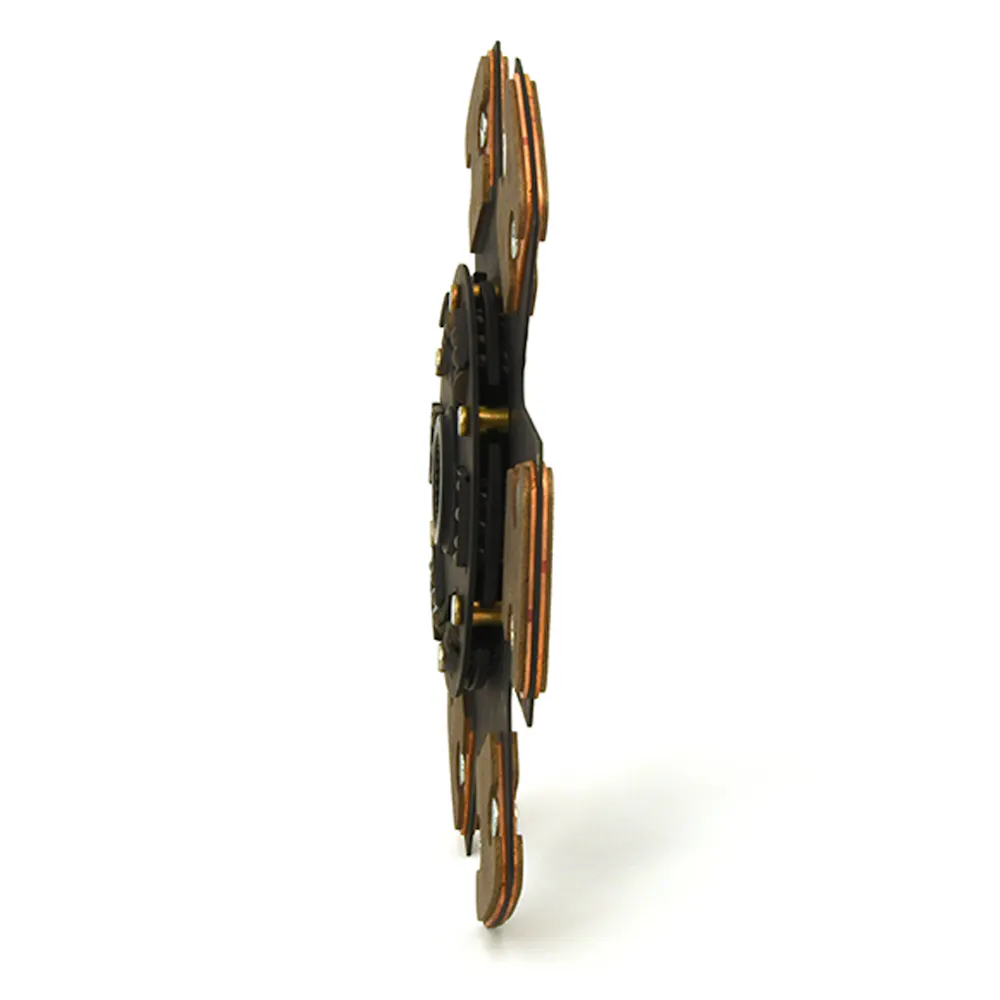

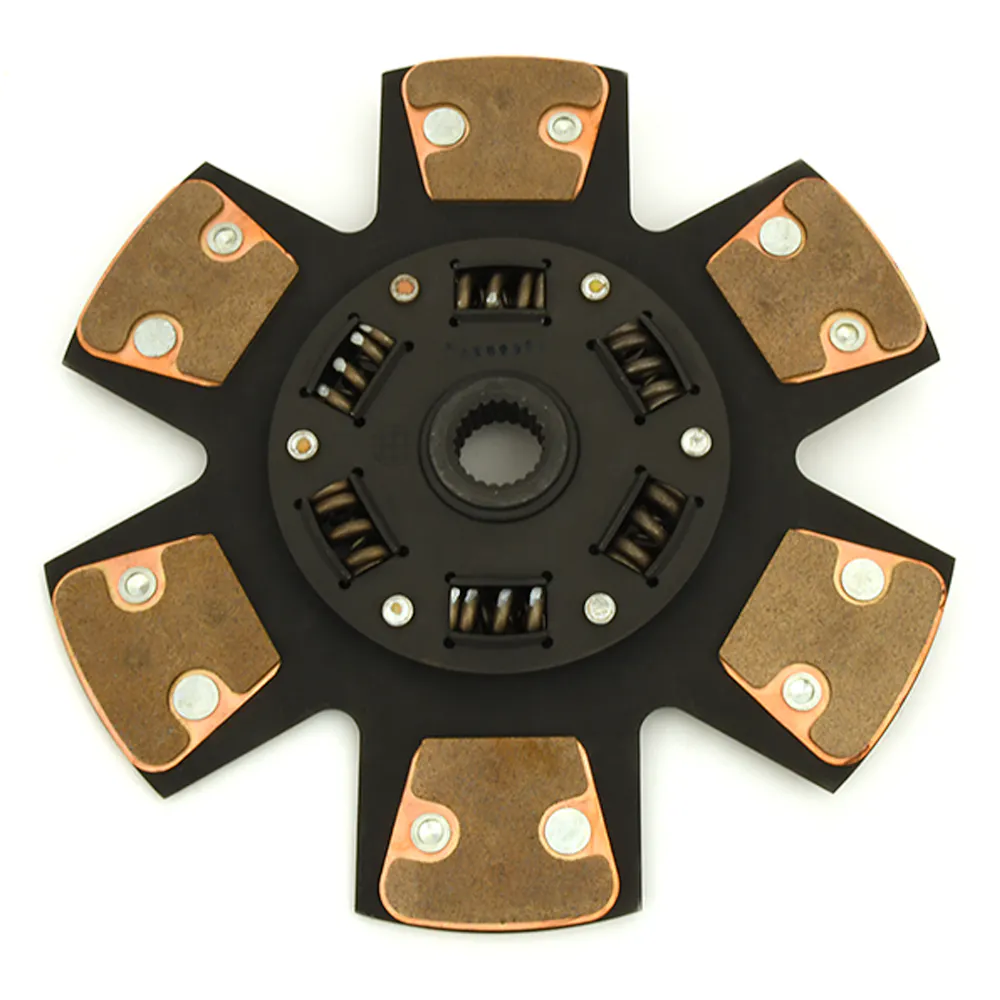

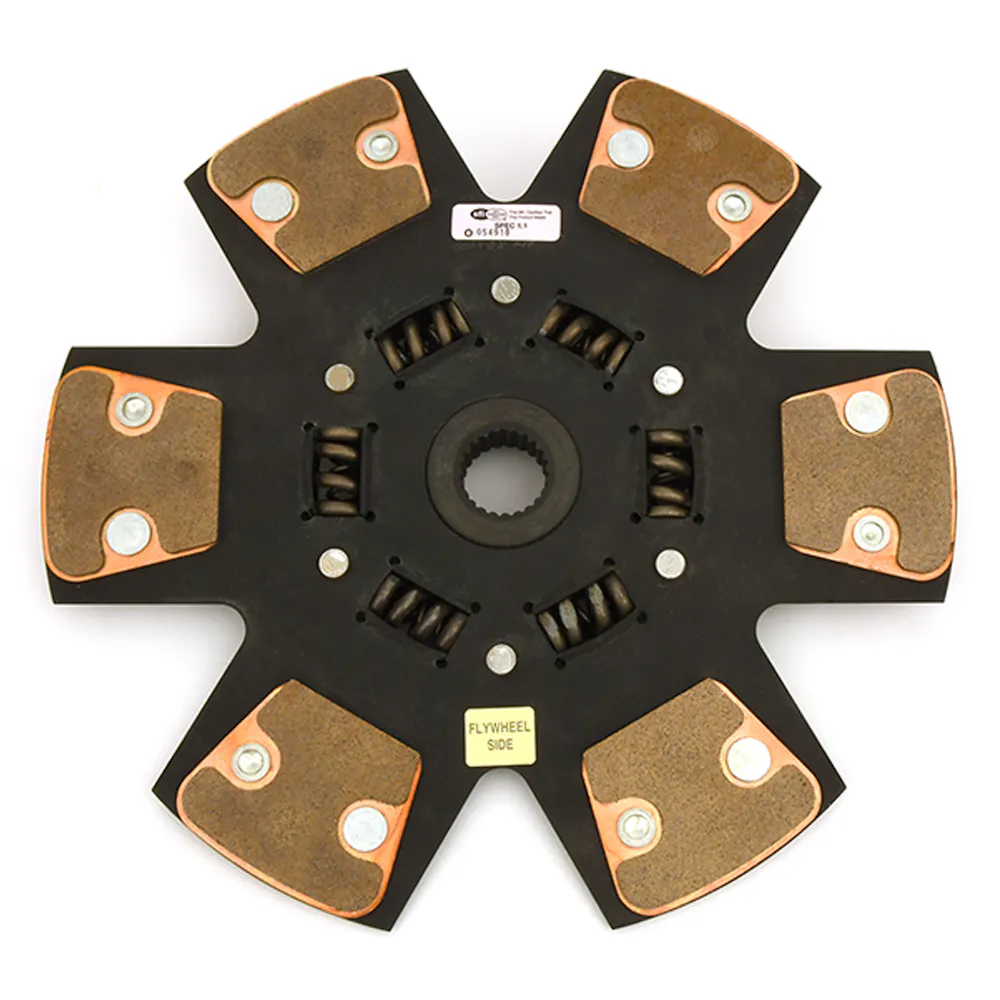

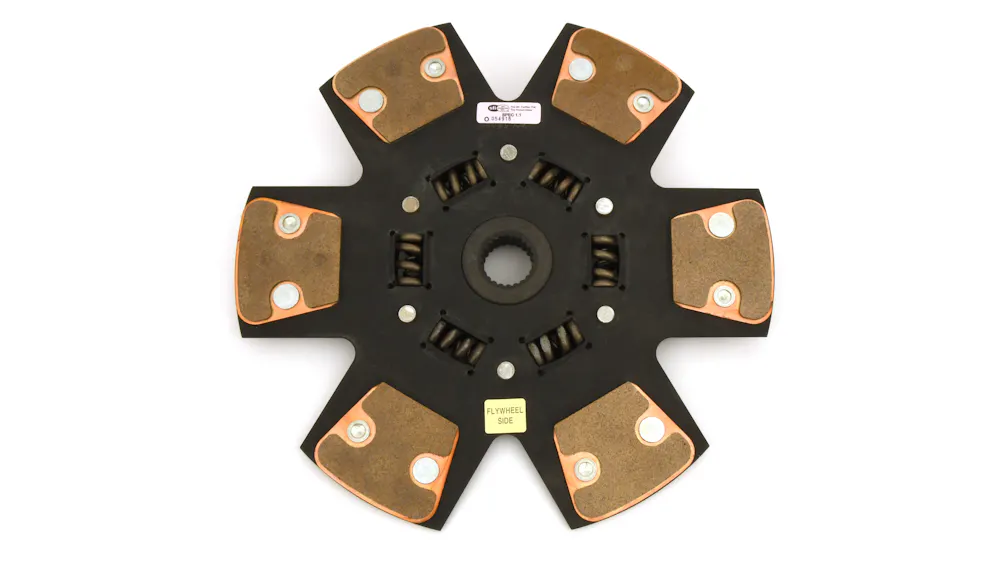

- Disc Type
- 6-Paddle
- Disc Type Sprung Solid
- Sprung
- Input Shaft Diameter
- 1
- Input Spline Quantity
- 23
- Made In The USA
- Assembled

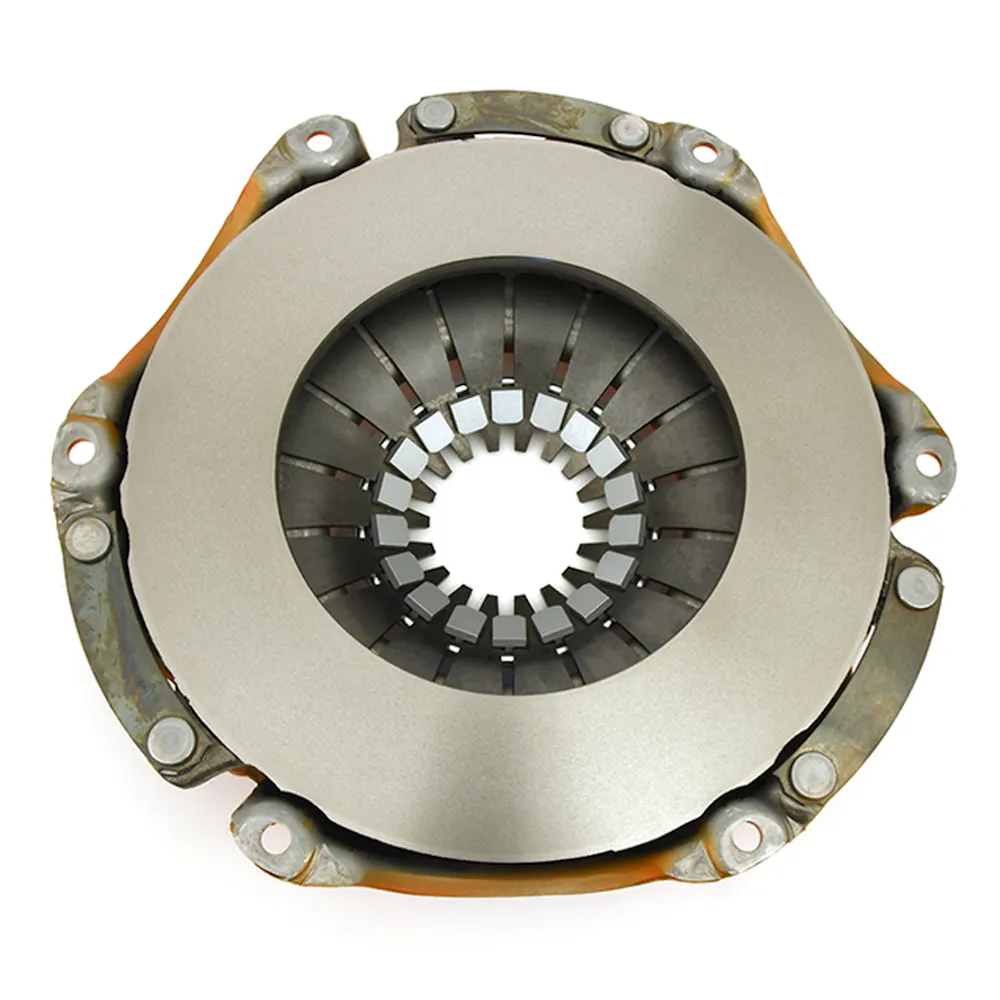

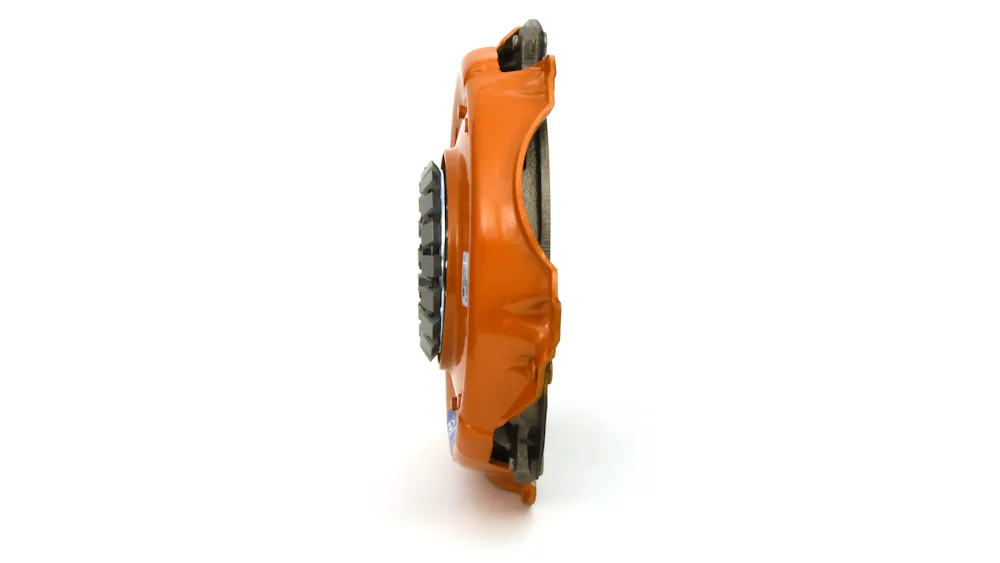

- Material
- Cast Iron Pressure Plate / Cerametallic Button Style Friction
- Out of Package Weight
- 21.25
- SFI 1.1 Approved
- Y
- Title
- Centerforce DFX ?, Extreme Performance Clutch Pressure Plate and Disc Set, 10.4in Dia., 23-Spline, Fits Dodge/Plymouth 8 Cyl
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1970-1974 Dodge Challenger; 1966-1974 Dodge Charger; 1965-1967 Dodge Coronet; 1970-1974 Dodge Coronet; 1967-1972 Dodge Dart; 1974 Dodge Dart; 1967-1973 Plymouth Barracuda; 1963-1970 Plymouth Belvedere; 1970-1973 Plymouth Duster; 1963-1967 Plymouth Fury; 1968-1969 Plymouth GTX; 1971 Plymouth GTX; 1968-1973 Plymouth Road Runner; 1965-1969 Plymouth Satellite; 1971-1973 Plymouth Satellite
