Centerforce · 315148500
Part #: 315148500
UPC: 788442032673
Loading...
Notify me when this item is in stock.

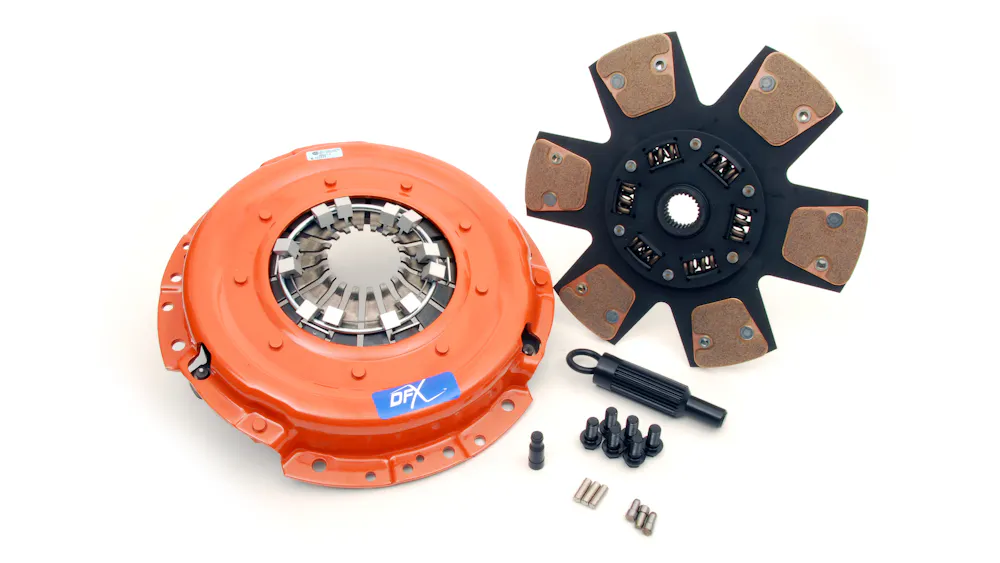

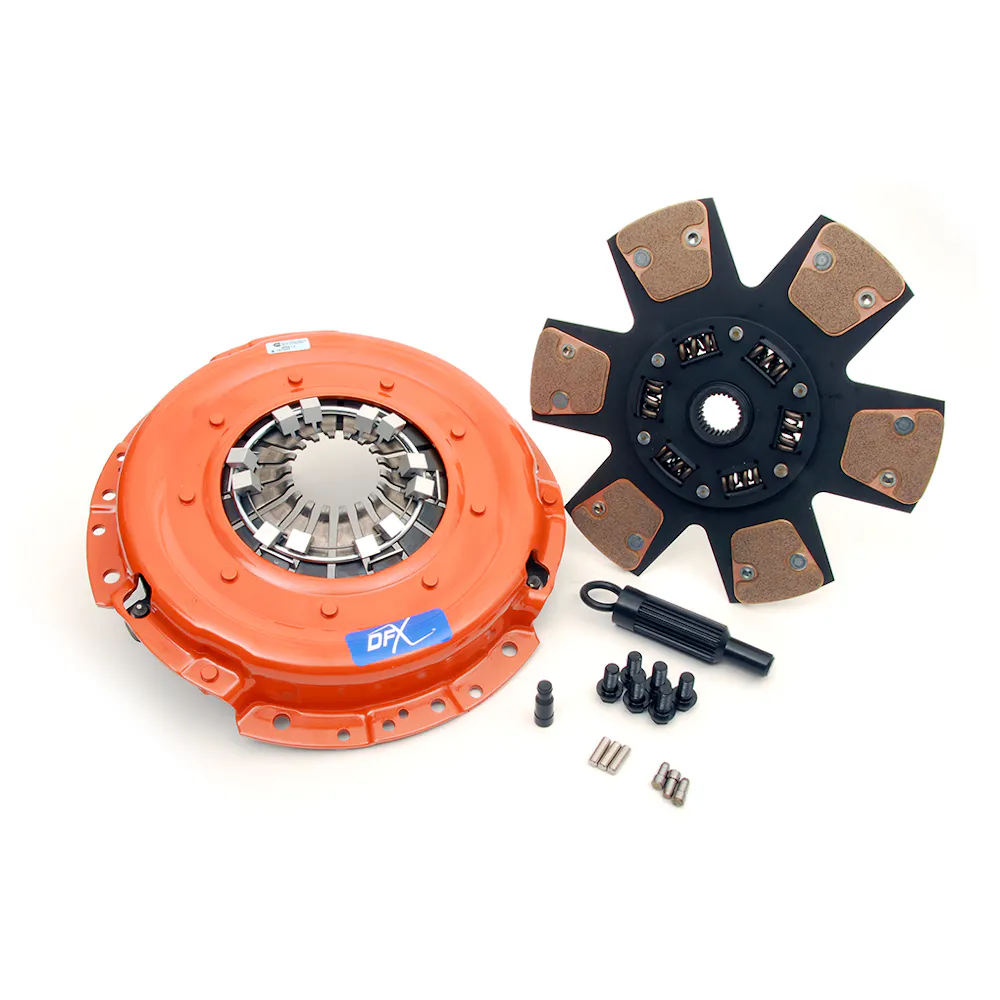

Description: DFX(R), Clutch Pressure Plate and Disc Set; The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.
Description:
This part number superseded 01148500.
Description
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
Application summary
| Year | Make / model |
|---|---|
| 2011-2017 | Ford Mustang |
Specifications
- GTIN
- 00788442032673
- Weight
- 31.5 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 18
- Clutch Disc Diameter
- 279.4
- Counterweight Assist
- YES
- Disc Material
- Cerametallic
- Disc Type
- 6-Paddle
- Disc Type Sprung Solid
- Sprung
- Dowel Pin Quantity Cover To Flywheel
- 6
- Dowel Pins
- 6
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Made In The USA
- Assembled
- Material
- Nodular Iron Pressure Plate / Cerametallic Button Style Friction
- Mounting Hardware Included
- Yes
- SFI 1.1 Approved
- Y
- Title
- Centerforce DFX ?, Extreme Performance Clutch Pressure Plate and Disc Set, 11in Dia., 26-Spline, Fits Ford Mustang Boss 302 5.0L
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2011-2017 Ford Mustang
