Centerforce · 315143253
Part #: 315143253
UPC: 788442032635
Log in for inventory
Notify me when this item is in stock.

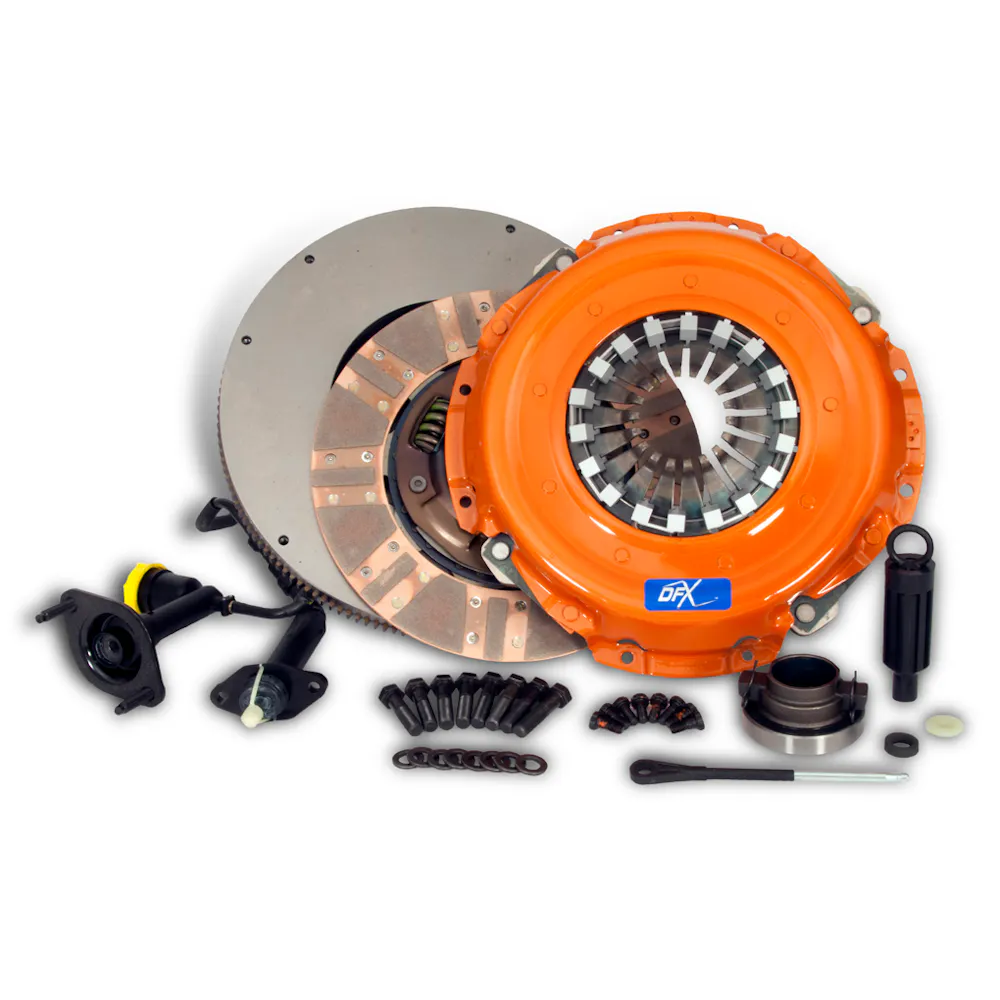

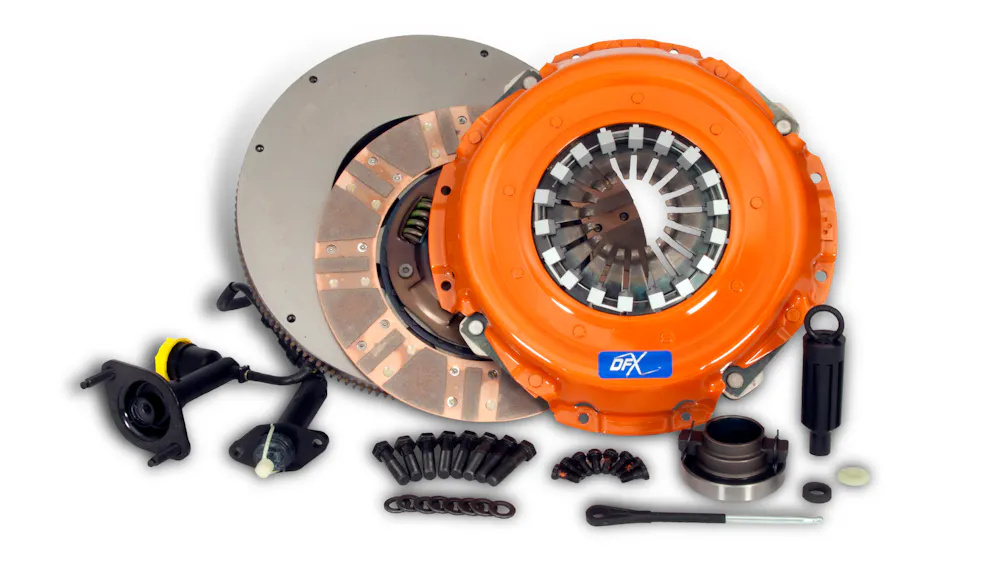

Description: DFX(R), Clutch Pressure Plate, Disc, and Flywheel Set; The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.
Description:
This part number superseded 01143253.
Description
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
Application summary
| Year | Make / model |
|---|---|
| 2005-2010 | Dodge Ram 2500 |
| 2005-2010 | Dodge Ram 3500 |
| 2008-2010 | Dodge Ram 4500 |
| 2008-2010 | Dodge Ram 5500 |
| 2011-2018 | Ram 2500 |
| 2011-2018 | Ram 3500 |
| 2011-2017 | Ram 4500 |
| 2011-2016 | Ram 5500 |
Specifications
- GTIN
- 00788442032635
- Weight
- 113 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 23
- Clutch Disc Diameter
- 330.2
- Counterweight Assist
- YES
- Crankshaft Bolt Hole Quantity
- 8
- Disc Material
- Cerametallic
- Disc Type
- 8-Paddle
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Bolt Size
- 12
- Input Shaft Diameter
- 1-3/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Cast Iron Flywheel / Cast Iron Pressure Plate / Cerametallic Friction
- Mounting Hardware Included
- Yes
- Outside Diameter
- 15.625
- Pilot Bushing Included
- Yes
- Release Bearing Included
- Yes
- Ring Gear O.D
- 15.625
- Ring Gear O.D.
- 15.625
- Ring Gear OD
- 15.625
- Ring Gear Tooth Count
- 152
- SFI 1.1 Approved
- Y
- Title
- Centerforce DFX ?, Extreme Performance Clutch Pressure Plate, Extreme Performance Disc, Extreme Performance and Flywheel Set, 152 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1100 ft/lbs Capacity, 13in Dia., 10-Spline, Fits Dodge/Ram Cars and Trucks 5.9L/6.7L
- Tooth Quantity
- 152
- Torque Capacity
- 1100
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2005-2010 Dodge Ram 2500; 2005-2010 Dodge Ram 3500; 2008-2010 Dodge Ram 4500; 2008-2010 Dodge Ram 5500; 2011-2018 Ram 2500; 2011-2018 Ram 3500; 2011-2017 Ram 4500; 2011-2016 Ram 5500
