Carli Suspension / CS-JKU-PF25-07
Part #: CS-JKU-PF25-07
UPC: 883584146674
Loading...
Notify me when this item is in stock.
Description: Carli Pathfinder Suspension System, Base, 3” Lift, 2007-17 Jeep Wrangler JKU; The Carli Pathfinder 2.5 System combines on-road handling with superior off road performance. The Pathfinder handles like it’s on rails completely removing body-roll from the equation.
Description:
This is a virtual part number representing a kit with the following components: CS-JATB-07-F, CS-JATB-07-R, CS-JATB-07-R-RISER, CS-JBBLKIT-11, CS-JBSF-07-TALL, CS-JBSR-07, CS-JEL-07-F, CS-JEL-07-R, CS-JK25LRC-07-F, CS-JK25MRC-07-R, CS-JKU-PF25SPKG-25-07
Description
The Carli Pathfinder 2.5 System combines on-road handling with superior off road performance. The Pathfinder handles like it’s on rails completely removing body-roll from the equation.
Features & benefits

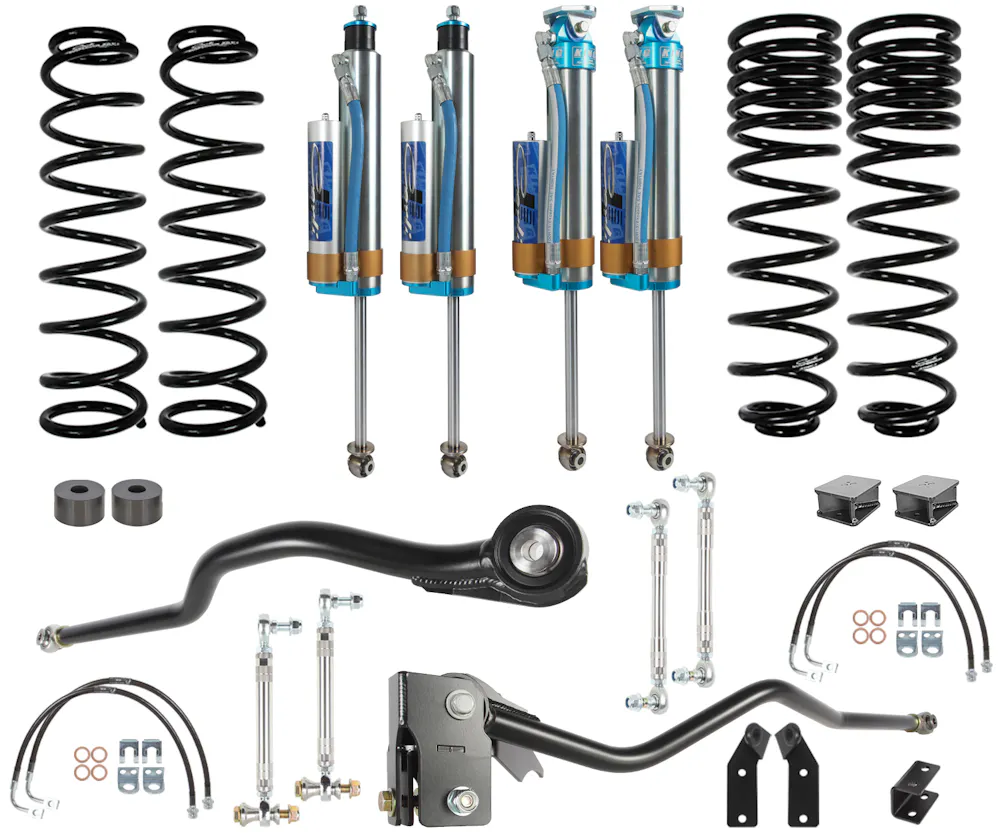

- System includes King 2.5 Remote Reservoir shocks, front and rear coil springs, front and rear track bars, rear track bar bracket, front and rear end links, extended brake lines, bump stop drops, and necessary install hardware.
- Soft ride liner-rate front coils and multi-rate rear coils provide a smooth ride throughout the range of motion.
- Carli-Tuned King 2.5 Remote Reservoir Shocks provide great styling and excellent all-around ride quality and superior off-road performance.
- Front and rear adjustable track bars are fully rebuildable.
- Stainless steel front and rear sway bar end links ensure maximum articulation and are built to last.
Application summary
| Year | Make / model |
|---|---|
| 2007-2017 | Jeep Wrangler |
Component: Carli Suspension CS-JATB-07-F
Component: Carli Suspension CS-JATB-07-R
Component: Carli Suspension CS-JATB-07-R-RISER
Component: Carli Suspension CS-JBBLKIT-11
Component: Carli Suspension CS-JBSF-07-TALL
Component: Carli Suspension CS-JBSR-07
Component: Carli Suspension CS-JEL-07-F
Component: Carli Suspension CS-JEL-07-R
Component: Carli Suspension CS-JK25LRC-07-F
Component: Carli Suspension CS-JK25MRC-07-R
Component: Carli Suspension CS-JKU-PF25SPKG-25-07
Specifications
- GTIN
- 00883584146674
- Weight
- 159 lb
- Height
- 37 in
- Length
- 12 in
- Width
- 13 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLS
- Warehouse brand code
- JVHP
- AAIA brand code
- JVHP
Attributes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2007-2017 Jeep Wrangler
