Carli Suspension · CS-FTSB-45-17

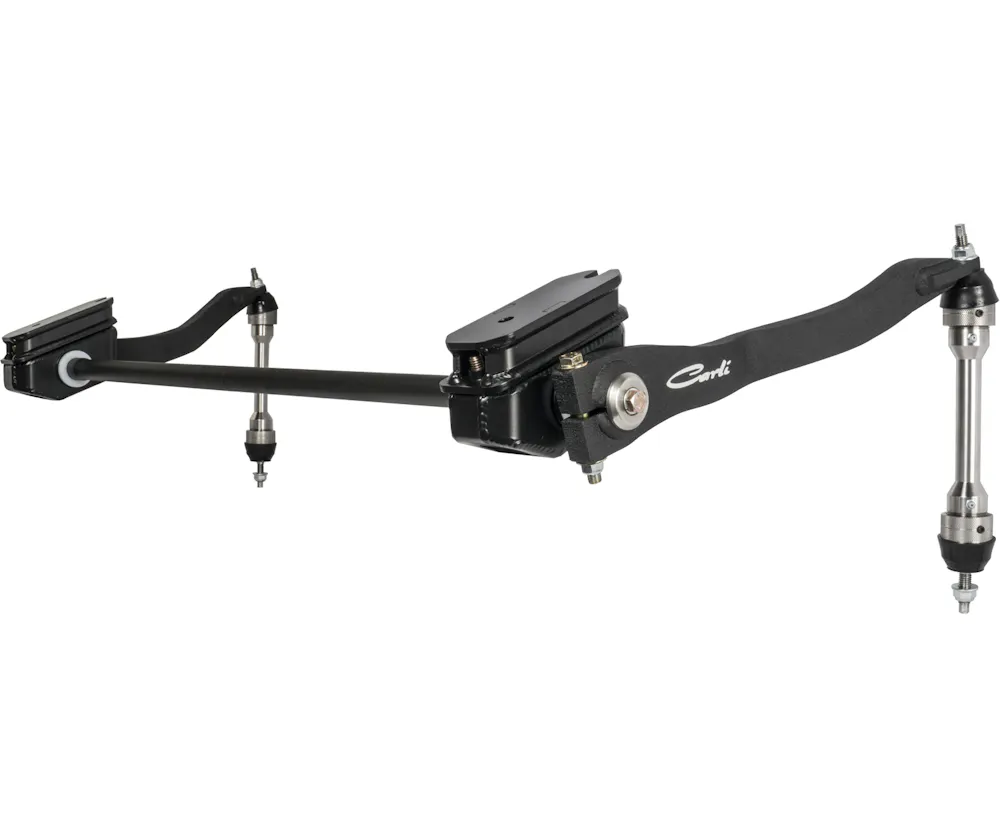

Carli Suspension CS-FTSB-45-17

Part #: CS-FTSB-45-17
UPC: 883584150244

Loading availability... Loading...
Notify me when this item is in stock.

Description: Carli Ford Torsion Sway Bar System, 4.5" Lift - COMPELTE; Unlike the rigid stock offering, the Carli Torsion Sway Bar allows a small amount of differentiation side-to-side before progressively engaging to add the needed control as leverage is applied, increasing ride comfort on the road or trail.

Description:

This is a virtual part number representing a kit with the following components: CS-FEL-17, CS-FSBD-45-1723, CS-FTSBBRKT-45-17, CS-FTSBKIT-17

Description

The factory sway bar on the F250/F350 is nearly immobile, making it one of the most overlooked components for improving the ride quality. Many people focus solely on the front coils and rear leaf springs when aiming to "soften" the factory ride. However, the factory sway bar essentially acts as a brace that locks the axle to the frame. It's designed to perform at the vehicle's maximum load, which can lead to a less refined ride when the truck is not fully loaded. The Carli Torsion Sway Bar offers a more balanced approach by allowing a slight differentiation in side-to-side movement before progressively engaging to provide the necessary control as leverage is applied. This unique design allows you to confidently tackle corners in off-road conditions with precise handling, knowing that there's just the right amount of rate to keep the body steady while navigating through the dirt. On pavement, the vehicle's feel with be reminiscent of an independent front suspension. Say goodbye to the intrusive chassis chatter on small bumps, and cruise around town with improved comfort and handling.

Features & benefits

  • Fits 2017 to 2022 Ford F250/F350 4×4
  • For direct fitment on 4.5- and 5.5-inch Carli Suspension lifts
  • Replaces immobile factory sway bar with a torsion bar with progressive engagement
  • Produces huge ride quality improvement
  • Includes Carli Drop Brackets and Sway Bar Links

Application summary

Year Make / model
2017-2026 Ford F-250 Super Duty
2017-2026 Ford F-350 Super Duty
Component: Carli Suspension CS-FEL-17

Brand: Carli Suspension

Part Number: CS-FEL-17

Quantity in Kit: 1

Loading availability... Loading...
Component: Carli Suspension CS-FSBD-45-1723

Brand: Carli Suspension

Part Number: CS-FSBD-45-1723

Quantity in Kit: 1

Loading availability... Loading...
Component: Carli Suspension CS-FTSBBRKT-45-17

Brand: Carli Suspension

Part Number: CS-FTSBBRKT-45-17

Quantity in Kit: 1

Loading availability... Loading...
Component: Carli Suspension CS-FTSBKIT-17

Brand: Carli Suspension

Part Number: CS-FTSBKIT-17

Quantity in Kit: 1

Loading availability... Loading...

Specifications

GTIN
00883584150244
Weight
40 lb
Height
37 in
Length
12 in
Width
13 in
EO
Legal US
Life cycle
Available to Order
AAM brand code
CLS
Warehouse brand code
JVHP
AAIA brand code
JVHP

Attributes

California Proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2017-2026 Ford F-250 Super Duty; 2017-2026 Ford F-350 Super Duty
