Carli Suspension · CS-FATB-17
Part #: CS-FATB-17
UPC: 883584134398
Loading...
Notify me when this item is in stock.
Description: Carli Adjustable Track Bar, 2.5"-4.5" Systems; Carli Adjustable Track Bar: Tailored for 2017+ Ford F250/F350 with 2.5"-5.5" lifts. Designed for maximum suspension travel with minimal deflection and no bending. Featuring Vibration-Damping CUB Joint.
Description:
This item is a component of the following kits: CS-F45-BC-CS-17, CS-F45-COM-CS-17, CS-F45-D30-17, CS-F45-EV25-17, CS-F45-PT25-17, CS-F55-BC-CS-23, CS-F55-COM-CS-23, CS-F55-D30-23, CS-F55-EV25-23, CS-F55-PT25-23, CS-FLVL-BC-CS-17, CS-FLVL-BC-CS-17-GAS, CS-FLVL-BC-CS-23, CS-FLVL-BC-CS-23-GAS, CS-FLVL-COM-CS-17, CS-FLVL-COM-CS-17-GAS, CS-FLVL-COM-CS-23, CS-FLVL-COM-CS-23-GAS, CS-FLVL-EV25-17, CS-FLVL-EV25-20-GAS, CS-FLVL-EV25-23, CS-FLVL-EV25-23-GAS, CS-FLVL-PT25-17, CS-FLVL-PT25-17-GAS, CS-FLVL-PT25-23, CS-FLVL-PT25-23-GAS
Description
Carli Adjustable Track Bar: Tailored for 2017+ Ford F250/F350 with 2.5"-5.5" lifts. Designed for maximum suspension travel with minimal deflection and no bending. Featuring Vibration-Damping CUB Joint.
Features & benefits

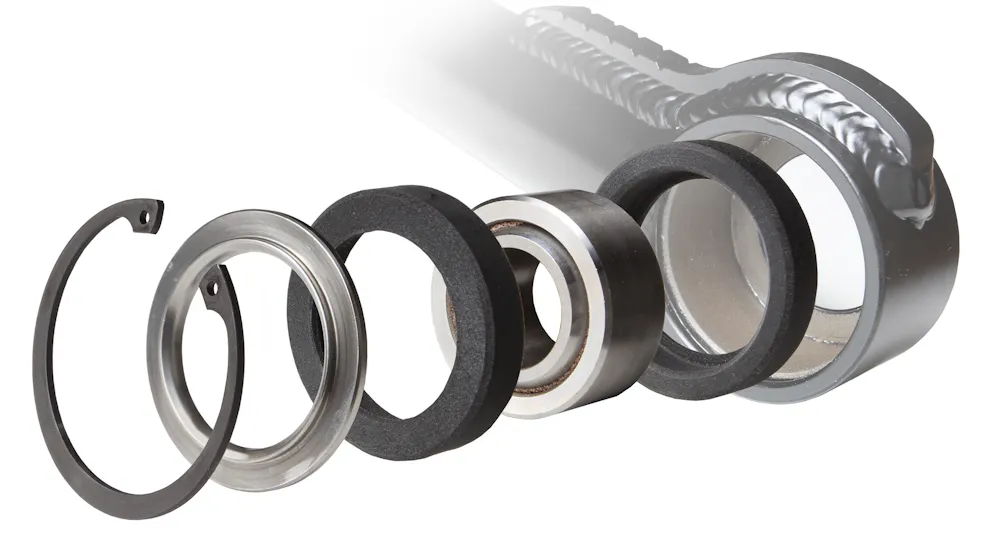

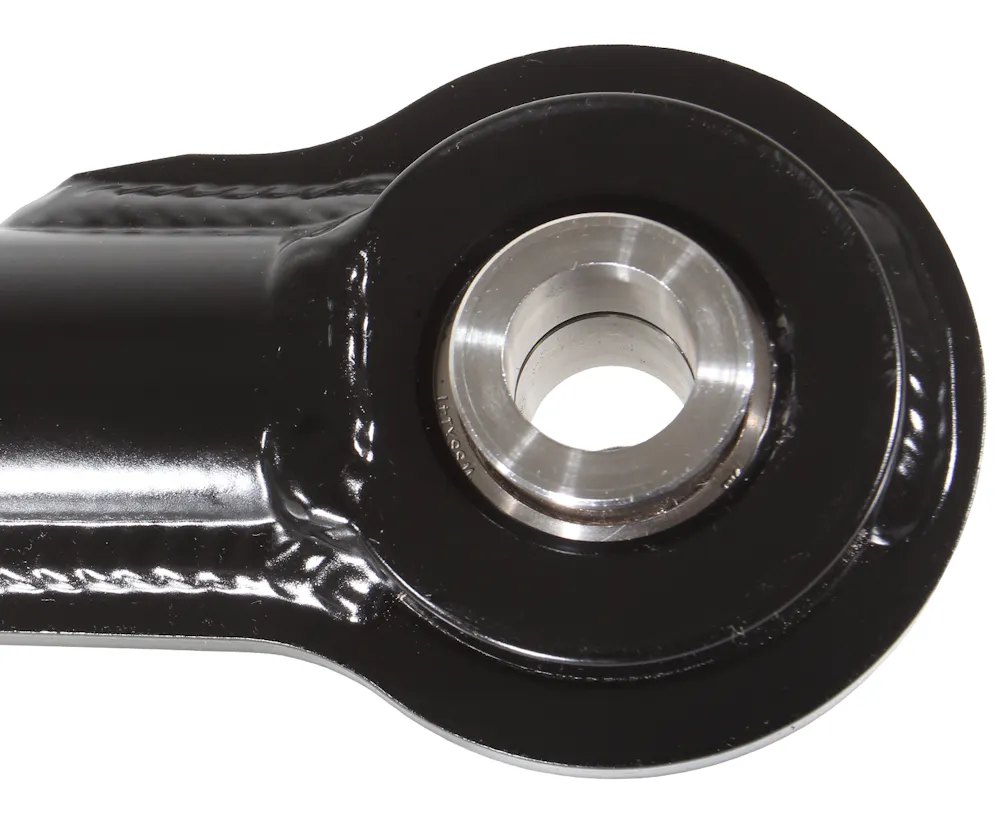

- Vibration Dampening CUB Joint: Captured Uniball Design allows bind-free cycling while reducing vibrations with the use of double vulcanized uniball bushings for the frame side mount.
- Jammit Nut: The Carli "Jammit Nut" design ensures no movement of the heim joint in the tube with the use of our tapered lock nut and tube. Much sturdier than standard Jam nut, you can be sure the FK heim joint will not budge.
- Fully Rebuildable: All components can be replaced individually for easy, cost friendly maintenance.
- Please note that this track bar is NOT suitable for use on stock-height trucks. It is specifically designed for 2017-20 F250/350 4x4 trucks equipped with Carli 2.5-4.5 Lifts and 2020+ F250/350 4x4 trucks equipped with Carli 3.5-5.5 Lifts.
- The Carli Adjustable can also be installed as an upgrade or replacement on trucks utilizing other lift systems, but is NOT compatible with drop-pitman arms or aftermarket track bar drop brackets.
Application summary
| Year | Make / model |
|---|---|
| 2017-2026 | Ford F-250 Super Duty |
| 2017-2026 | Ford F-350 Super Duty |
This item is a component of kit: Carli Suspension CS-F45-BC-CS-17
This item is a component of kit: Carli Suspension CS-F45-COM-CS-17
This item is a component of kit: Carli Suspension CS-F45-D30-17
This item is a component of kit: Carli Suspension CS-F45-EV25-17
This item is a component of kit: Carli Suspension CS-F45-PT25-17
This item is a component of kit: Carli Suspension CS-F55-BC-CS-23
This item is a component of kit: Carli Suspension CS-F55-COM-CS-23
This item is a component of kit: Carli Suspension CS-F55-D30-23
This item is a component of kit: Carli Suspension CS-F55-EV25-23
This item is a component of kit: Carli Suspension CS-F55-PT25-23
This item is a component of kit: Carli Suspension CS-FLVL-BC-CS-17
This item is a component of kit: Carli Suspension CS-FLVL-BC-CS-17-GAS
This item is a component of kit: Carli Suspension CS-FLVL-BC-CS-23
This item is a component of kit: Carli Suspension CS-FLVL-BC-CS-23-GAS
This item is a component of kit: Carli Suspension CS-FLVL-COM-CS-17
This item is a component of kit: Carli Suspension CS-FLVL-COM-CS-17-GAS
This item is a component of kit: Carli Suspension CS-FLVL-COM-CS-23
This item is a component of kit: Carli Suspension CS-FLVL-COM-CS-23-GAS
This item is a component of kit: Carli Suspension CS-FLVL-EV25-17
This item is a component of kit: Carli Suspension CS-FLVL-EV25-20-GAS
This item is a component of kit: Carli Suspension CS-FLVL-EV25-23
This item is a component of kit: Carli Suspension CS-FLVL-EV25-23-GAS
This item is a component of kit: Carli Suspension CS-FLVL-PT25-17
This item is a component of kit: Carli Suspension CS-FLVL-PT25-17-GAS
This item is a component of kit: Carli Suspension CS-FLVL-PT25-23
This item is a component of kit: Carli Suspension CS-FLVL-PT25-23-GAS
Specifications
- GTIN
- 00883584134398
- Weight
- 22 lb
- Height
- 5 in
- Length
- 41 in
- Width
- 5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLS
- Warehouse brand code
- JVHP
- AAIA brand code
- JVHP
Attributes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2017-2026 Ford F-250 Super Duty; 2017-2026 Ford F-350 Super Duty
