Carli Suspension / CS-F45-UC30-08
Part #: CS-F45-UC30-08
UPC: 883584150459
Loading...
Notify me when this item is in stock.
Description: Carli Ford Unchained 4.5" Bypass System, BASE; The Unchanied Kit pulls out all the stops. This system provides uncompromised offroad ability with a civil on-road ride resulting in a truck that’s a blast to drive in all environments.
Description:
This is a virtual part number representing a kit with the following components: AS-FCM-05, AS-FRAD-05, CS-FBDF05-45-SHORT, CS-FCASTERSHIM-45, CS-FFCB-08, CS-FMRC-05, CS-FORDBBL-08, CS-FPRB-05, CS-FRSM-08, CS-FUC30SPKG-45-05
Description
The Unchanied Kit pulls out all the stops. This system provides uncompromised offroad ability with a civil on-road ride resulting in a truck that’s a blast to drive in all environments.
Features & benefits

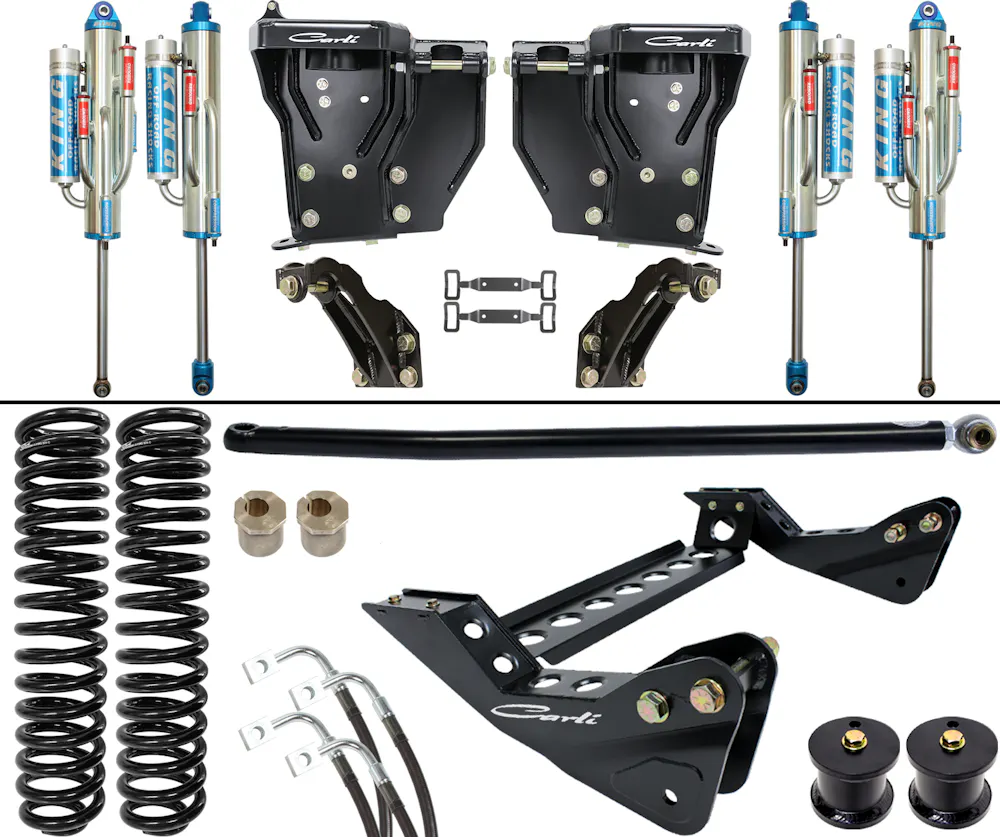

- System includes front and rear shock package, fabricated coil buckets, brake line kit, rear shock mounts, radius arm drop brackets bump stop drops, caster correction shims and adjustable track bar.
- Increases wheel travel to 10.5" front and 13" rear.
- Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
- Requires but does not include rear leaf spring option and sway bar option.
Information
Carrier Bearing Drop: CS-CARRIERDROP-F
Application summary
| Year | Make / model |
|---|---|
| 2008-2010 | Ford F-250 Super Duty |
| 2008-2010 | Ford F-350 Super Duty |
Component: Carli Suspension AS-FCM-05
Component: Carli Suspension AS-FRAD-05
Component: Carli Suspension CS-FBDF05-45-SHORT
Component: Carli Suspension CS-FCASTERSHIM-45
Component: Carli Suspension CS-FFCB-08
Component: Carli Suspension CS-FMRC-05
Component: Carli Suspension CS-FORDBBL-08
Component: Carli Suspension CS-FPRB-05
Component: Carli Suspension CS-FRSM-08
Component: Carli Suspension CS-FUC30SPKG-45-05
Specifications
- GTIN
- 00883584150459
- Weight
- 318 lb
- Height
- 37 in
- Length
- 12 in
- Width
- 13 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLS
- Warehouse brand code
- JVHP
- AAIA brand code
- JVHP
Attributes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2008-2010 Ford F-250 Super Duty; 2008-2010 Ford F-350 Super Duty
Resources
Carli Suspension CS-F45-UC30-08
