Carli Suspension / CS-DD30-1319-D
Part #: CS-DD30-1319-D
UPC: 883584149248
Loading...
Notify me when this item is in stock.
Description: Carli Dodge Leveling Dominator 3.0 System, BASE; Carli Dominator: The ultimate no compromise, utilitarian suspension system. Carli King 3.0” shocks, custom-tuned and ready for any obstacles. This system can handle the toughest of terrain while still getting you around town in comfort.
Description:
This is a virtual part number representing a kit with the following components: AS-DD30SPKG-13-D, CS-D3BBL-14-F-D30, CS-DATB-1419, CS-DCM-20-HK, CS-DD30-14-COILRETAINER, CS-DFBD-1, CS-DLRC-14-D, CS-DLSM-14-F, CS-DRAD-14, CS-DRM-14-25, CS-DUSM-13-R
Description
Carli Dominator: The ultimate no compromise, utilitarian suspension system. Carli King 3.0” shocks, custom-tuned and ready for any obstacles. This system can handle the toughest of terrain while still getting you around town in comfort.
Features & benefits
- The Carli Dominator system utilizes Carli-tuned King 3.0 shocks that provide fantastic on-road ride and superior off road performance

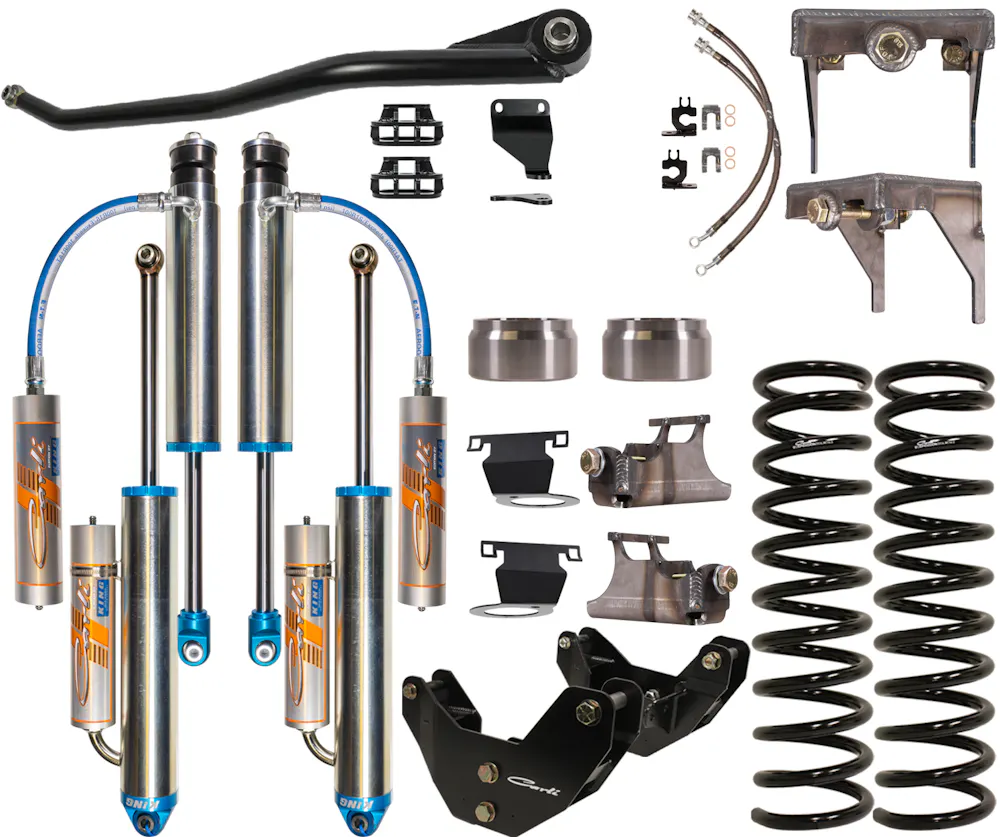

- System includes multi rate front coils, front and rear shock package, shock mounts, brake lines, coil isolator supports, radius arm drop brackets, adjustable track bar, front bump stop drops.
- This system requires weld-in installation of coil isolators, front lower and rear upper shock mounts.
- Allows for 8.5" of front suspension travel and 13" rear.
- Requires but does not include rear lift option and sway bar option.
Information
Leaf Spring Options (REQUIRED): CS-DPAP-03-D or CS-DFSP-13-D
Application summary
| Year | Make / model |
|---|---|
| 2013-2023 | Ram 3500 |
Component: Carli Suspension AS-DD30SPKG-13-D
Component: Carli Suspension CS-D3BBL-14-F-D30
Component: Carli Suspension CS-DATB-1419
Component: Carli Suspension CS-DCM-20-HK
Component: Carli Suspension CS-DD30-14-COILRETAINER
Component: Carli Suspension CS-DFBD-1
Component: Carli Suspension CS-DLRC-14-D
Component: Carli Suspension CS-DLSM-14-F
Component: Carli Suspension CS-DRAD-14
Component: Carli Suspension CS-DRM-14-25
Component: Carli Suspension CS-DUSM-13-R
Specifications
- GTIN
- 00883584149248
- Weight
- 224 lb
- Height
- 37 in
- Length
- 12 in
- Width
- 13 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLS
- Warehouse brand code
- JVHP
- AAIA brand code
- JVHP
Attributes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2013-2023 Ram 3500
Resources
Carli Suspension CS-DD30-1319-D
