Carli Suspension · CS-D3-BC-CS-94-D
Part #: CS-D3-BC-CS-94-D
UPC: 883584162797
Loading...
Notify me when this item is in stock.
Description: Carli Dodge Backcountry Leveling System, BASE; The Backcountry System is made for those seeking the best ride on and off-road without breaking the bank; You’re no longer limited to the highway while gravel roads become dull as you can drive them at speed with one hand on the wheel.
Description:
This is a virtual part number representing a kit with the following components: AS-D3SPKG-CS20RR-D, CS-DLSK9415, CS-DMRC-03-H, CS-SRM-20
Description
This system will fit up to a 35” tire with Extended Control Arms – We recommend wheels with 5.75-6” of backspacing. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. For more details, see our article on wheel and tire selection and tire pressures:
Features & benefits
- Features Carli-Tuned remote reservoir 2.0 shocks which provide a more comfortable on-road feel and better offr-road performance. Corrosion resistant aluminum bodies provide long-lasting finish.

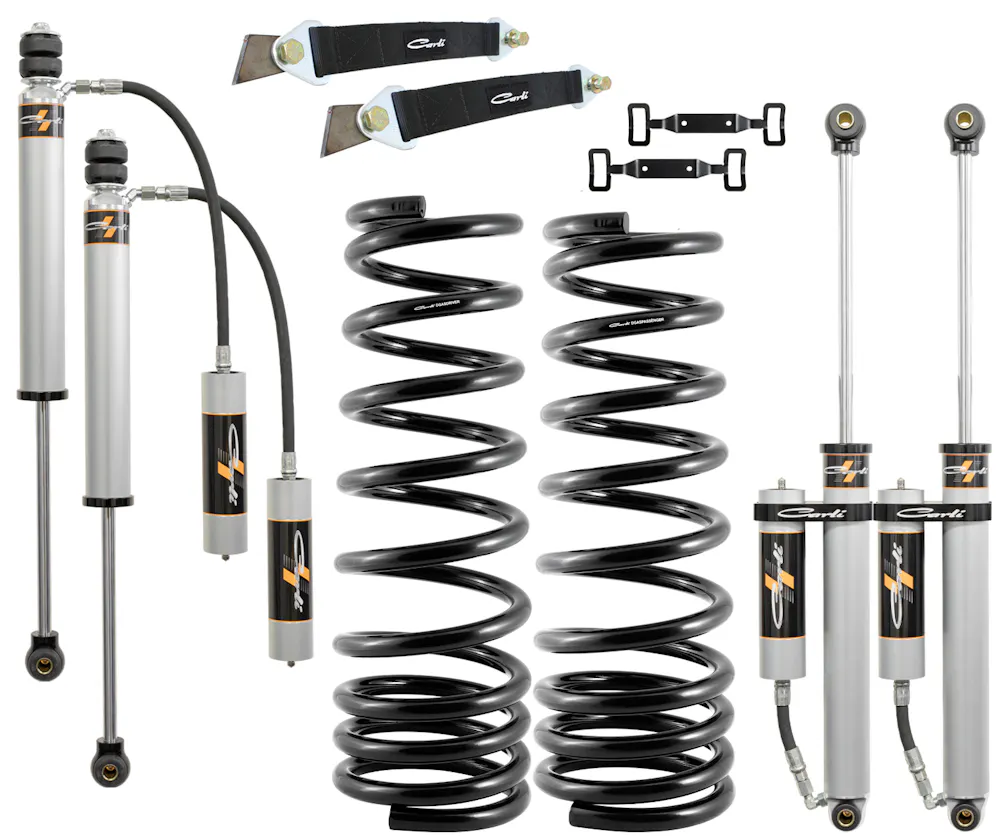

- System includes multi-rate front coil springs, front and rear shock package, and shock tower spacer.

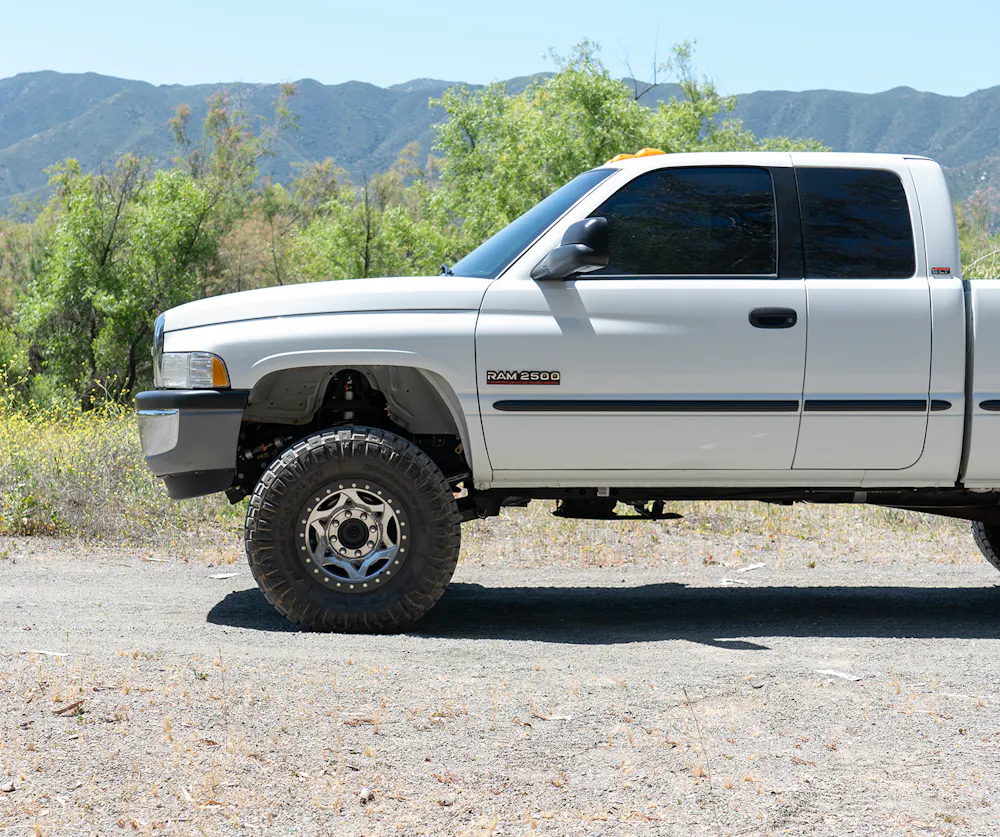

- Truck wil sit 2.5-3" higher (year/cab coniguration dependent) and wheel travel will be increased by 50% thanks to the taller, lighter rate coil springs.
- Fits up to 35" tires for a more aggresize appearance and better offroad performance.
- Requires but does not include leaf spring option and sway bar option.
Information
Leaf Spring Options: CS-DPAP-94 or CS-DFSP-94
Application summary
| Year | Make / model |
|---|---|
| 1994-2002 | Dodge Ram 2500 |
| 1994-2002 | Dodge Ram 3500 |
Component: Carli Suspension AS-D3SPKG-CS20RR-D
Component: Carli Suspension CS-DLSK9415
Component: Carli Suspension CS-DMRC-03-H
Component: Carli Suspension CS-SRM-20
Specifications
- GTIN
- 00883584162797
- Weight
- 101 lb
- Height
- 8 in
- Length
- 42 in
- Width
- 12 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLS
- Warehouse brand code
- JVHP
- AAIA brand code
- JVHP
Attributes
- California Proposition 65
- Yes
- Coils Quantity Front
- 2
- Maximum Lift
- 3.0
- Mounting Hardware Included
- Yes
- Shocks Included
- Yes
- Spring Color
- Black
- Spring Material
- Steel
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1994-2002 Dodge Ram 2500; 1994-2002 Dodge Ram 3500
