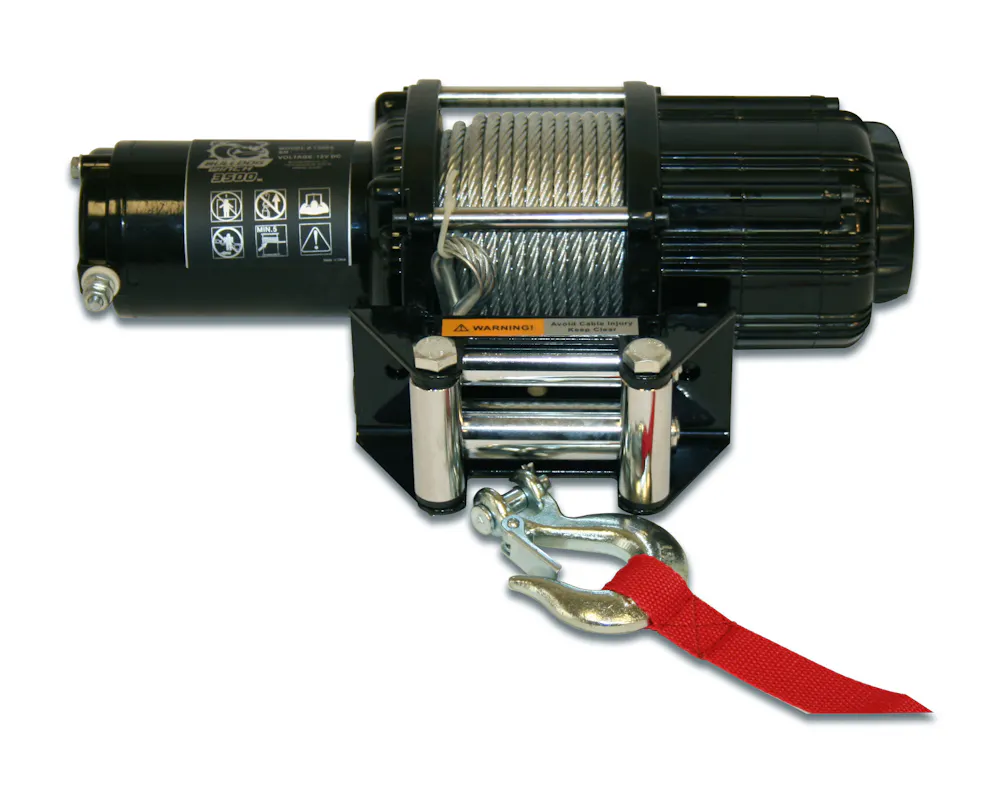

Bulldog Winch Co LLC · 15005
Part #: 15005
UPC: 878850001054
Log in for inventory
Notify me when this item is in stock.

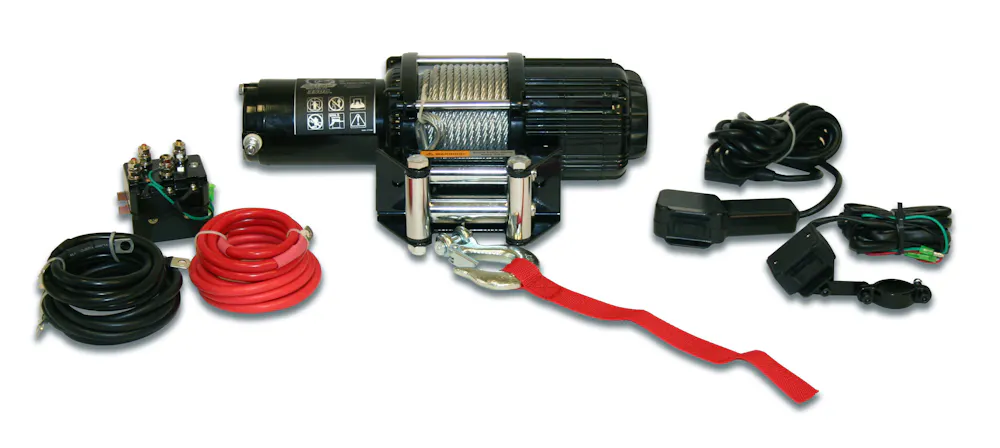

Description: Bulldog 3500lb UTV/Utility Winch, Two Switches, Mounting Channel, Roller Fairlead
Description:
Description
3500 LB UTV Winch 50 Ft wire rope Two Switches Mounting Channel Roller Fairlead Bulldog Winch. Standard Size Drum with 50' of rope. 4.9 x 3 4-Bolt Mounting Pattern. Popular size for ATV's and Side-by-Sides. Includes 2 Different switches. Includes Basic L-Mounting Channel.
Features & benefits
- 3,500 LB Pull Capacity
- Freespooling Clutch
- Brake is Automatic Load Hold Mechanical in Drum
- 13.6(L) x 4.5(W) x 4.5(H) (345mm x 114mm x 114mm) Overall Dimensions
- 2 x 2.9 (51mm x 73.7mm) Drum Diameter
- 4-Bolt 4.9 X 3(124mm X 76mm) Mounting Bolt Pattern
- 2 Year Limited Warranty
- 7/32 x 50' (5.5mm X 15.2m)Wire Rope
- 1.6 HP Permanent Magnet Motor
- Switch is 250A Sealed contactor
- First Controller is Handlebar Mounted mini rocker switch included
- Second Controller is Hand Held Controller with Female Plug and Wiring Harness
- Optional-Wireless Controller 20156 Available
- Battery Leads are 6 GA
- 3 stage Planetary Gear Train
- 136:1 Gear Ratio
Specifications
- GTIN
- 00878850001054
- Weight
- 31.6 lb
- Height
- 6 in
- Length
- 17.5 in
- Width
- 11 in
- Life cycle
- Available to Order
- AAM brand code
- BDW
- Warehouse brand code
- BDW
- AAIA brand code
- FMJR
Attributes
- California Proposition 65
- Yes
Fitment status
This product is universal and will fit your application.
