Bulldog Winch Co LLC · 15004
Part #: 15004
UPC: 878850000873
Log in for inventory
Notify me when this item is in stock.

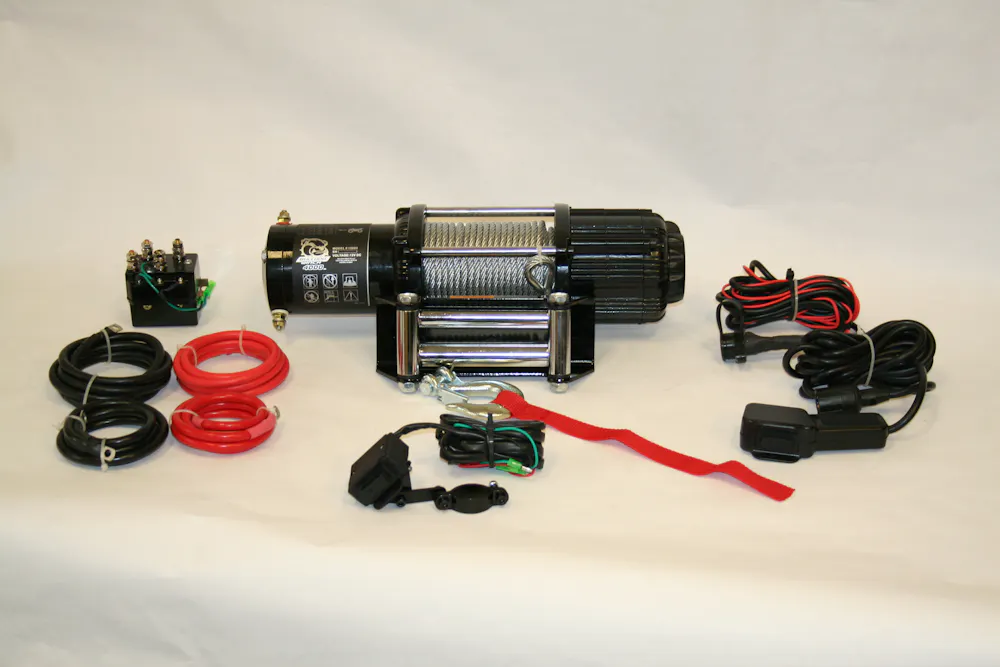

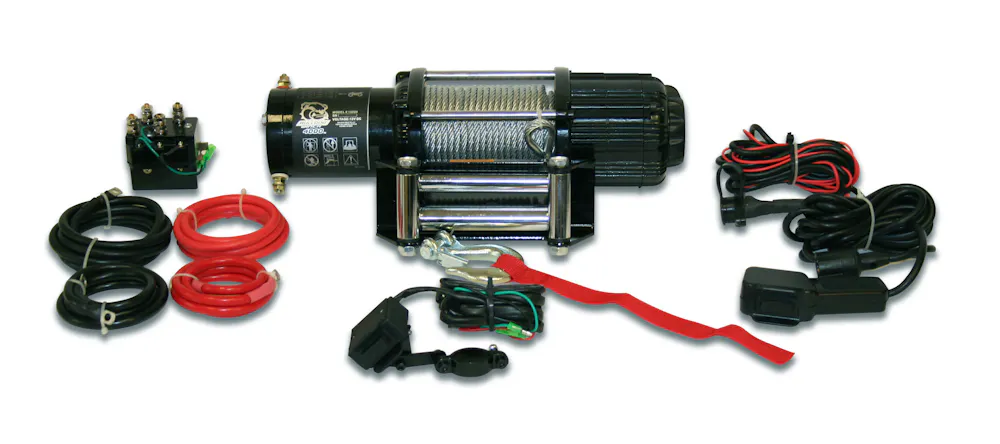

Description: Bulldog 4000lb UTV/Utility Winch, Two Switches, Mounting Channel, Roller Fairlead
Description:
Description

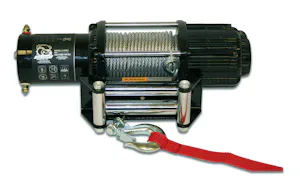

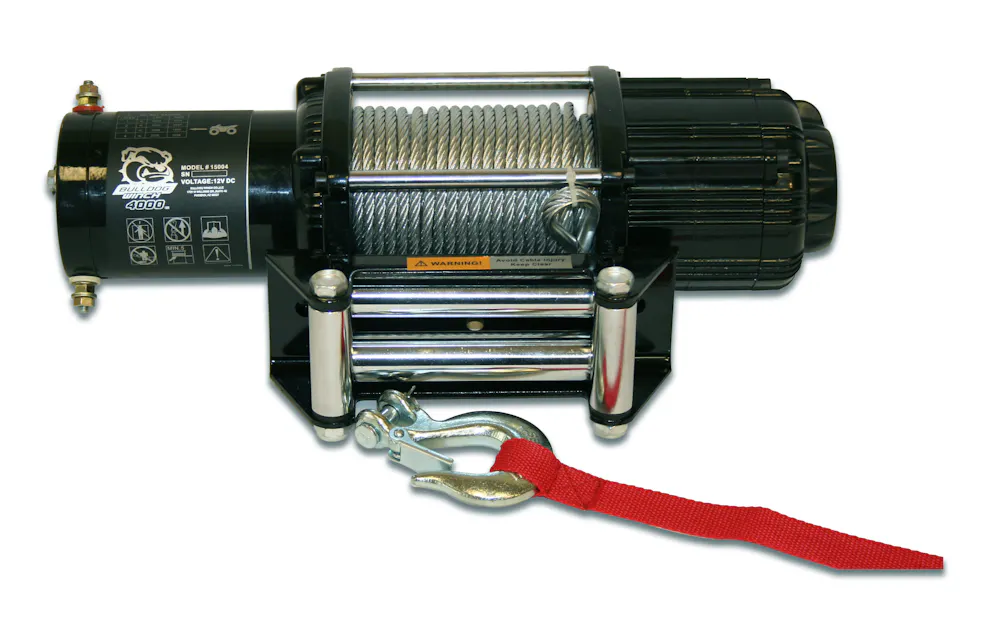

4,000 LB UTV Winch 55 Ft Wire Rope Two Switches Mounting Channel Roller Fairlead Bulldog Winch. Oversize Drum with 55ft of wire rope. Larger 6.6 inch x 3 inch 4-Bolt Mounting Pattern. Designed for side-by-sides and larger ATV's. Includes 2 Different Switches.
Features & benefits
- 4,000 LB Pull Capacity
- Freespooling Clutch
- Brake is Automatic Load Hold Mechanical in Drum
- 2 X 4.8 (51mm X 122mm)Drum Diameter
- 16.3 X 4.6 X 4.6 (415mm x 117mm x 117mm)Overall Dimensions
- 6.6 X 3 (168mm x 76mm) Mounting Bolt Pattern
- 2 Year Limited Warranty
- 7/32x 55' Wire Rope
- 1.8 HP Permanent Magnet Motor
- Switch is a 250A Sealed contactor
- First Controller is Handlebar Mounted mini rocker switch included
- Second Controller is Hand Held Controller with Female Plug and Wiring Harness Included
- Optional Wireless Controller 20156 Available
- Battery Leads are 6GA
- 3 stage Planetary Gear Train
- 136:1 Gear Ratio
Specifications
- GTIN
- 00878850000873
- Weight
- 35.6 lb
- Height
- 6.2 in
- Length
- 20 in
- Width
- 11.2 in
- Life cycle
- Available to Order
- AAM brand code
- BDW
- Warehouse brand code
- BDW
- AAIA brand code
- FMJR
Attributes
- California Proposition 65
- Yes
Fitment status
This product is universal and will fit your application.
