Bulldog Winch Co LLC / 10059
Part #: 10059
UPC: 878850008114
Loading...
Notify me when this item is in stock.
Description: 18,500lb Heavy-Duty Winch with 85ft Wire Rope Bulldog Winch
Description:
Description

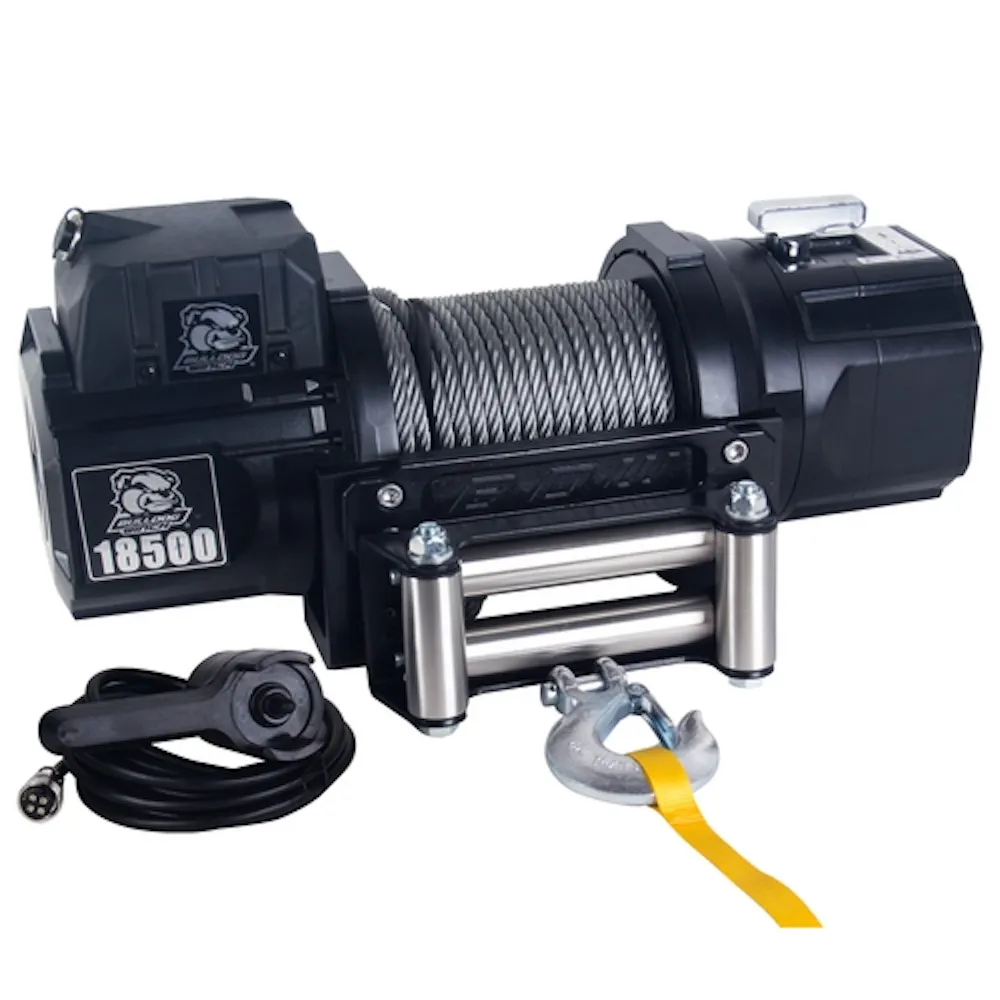

18,500lb Heavy-Duty Winch with 85ft Wire Rope from Bulldog Winch. Features: 18,500lb Heavy-Duty Winch with 85ft Wire Rope, Heavy Duty Steel Housing and Frame Components for Maximum Strength, Durability and Reliability, Premium Series Wound 5.6HP Motor for Maximum Performance, Powers Load In and Out, and Automatic Load Holding Brake.
Features & benefits
- 18,500 LB Pull Capacity
- Powers Load IN and OUT
- Automatic Load Holding Brake
- 1/2 x 85.3' Wire Rope
- Series Wound 12vDC 5.6HP Motor
- Battery Leads are 7.87' (2.4m):4 Stage Planetary Gear Train
- 505:1 Gear Ratio
- Pull & Turn Clutch
- Brake is Automatic in Ratchet Wheel
- 27.76(L) x 10.5(W) x 12.5(H)(705mm x 266mm x 318mm) Overall Dimensions)
- 3.46 X 8.66 (88mm X 220mm) Drum Diameter
- 10 x 4.5 (254mm x 114.3mm) Inside Mounting Bolt Pattern
- 10 x 6.5 (254mm x 165.1mm) Middle Mounting Bolt Pattern
- 10 x 8.5 (254mm x 215.9mm) Outside Mounting Bolt Pattern
Specifications
- GTIN
- 00878850008114
- Weight
- 218 lb
- Height
- 19 in
- Length
- 34 in
- Width
- 16 in
- Life cycle
- Available to Order
- AAM brand code
- BDW
- Warehouse brand code
- BDW
- AAIA brand code
- FMJR
Attributes
- California Proposition 65
- Yes
Fitment status
This product is universal and will fit your application.
