Bulldog Winch Co LLC / 10058
Part #: 10058
UPC: 878850008107
Loading...
Notify me when this item is in stock.
Description: 16500lb HD Synthetic rope; 16,500lb Heavy-Duty Winch with 80ft Synthetic Rope Bulldog Winch
Description:
Description

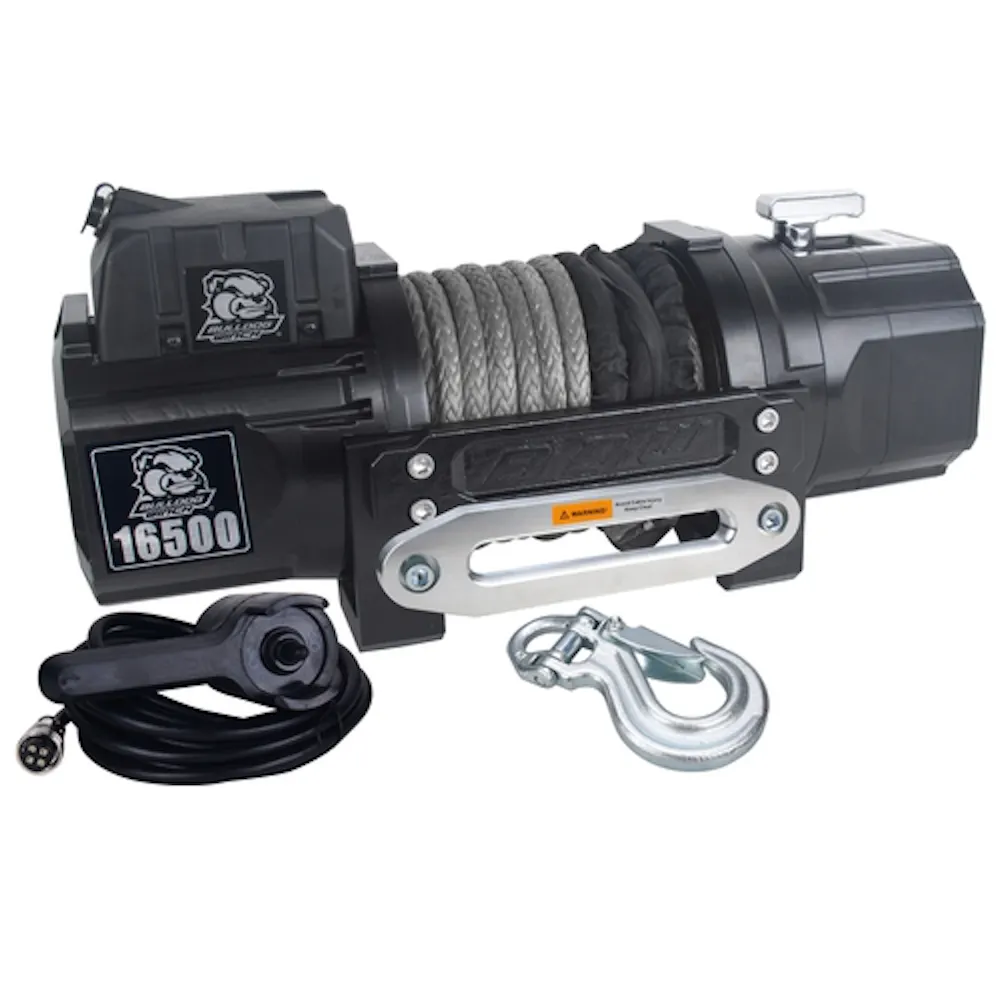

16500lb Heavy-Duty Winch with 80ft Synthetic Rope from Bulldog Winch. Features: 16500lb Heavy-Duty Winch with 80ft Synthetic Rope, Heavy Duty Steel Housing and Frame Components for Maximum Strength, Durability and Reliability, Premium Series Wound 5.6HP Motor for Maximum Performance, Powers Load In and Out, and Automatic Load Holding Brake.
Features & benefits
- 16,500 LB Pull Capacity
- Battery Leads are 7.87' (2.4m):4 Stage Planetary Gear Train
- 505:1 Gear Ratio
- Pull & Turn Clutch
- Brake is Automatic in Ratchet Wheel
- 27.76(L) x 10.5(W) x 12.5(H)(705mm x 266mm x 318mm) Overall Dimensions)
- 3.46 X 8.66 (88mm X 220mm) Drum Diameter
- 10 x 4.5 (254mm x 114.3mm) Inside Mounting Bolt Pattern
- 10 x 6.5 (254mm x 165.1mm) Middle Mounting Bolt Pattern
- 10 x 8.5 (254mm x 215.9mm) Outside Mounting Bolt Pattern
- 12mm x 80' Synthetic Rope
- Series Wound 12vDC 5.6HP Motor
Specifications
- GTIN
- 00878850008107
- Weight
- 188 lb
- Height
- 19 in
- Length
- 34 in
- Width
- 16 in
- Life cycle
- Available to Order
- AAM brand code
- BDW
- Warehouse brand code
- BDW
- AAIA brand code
- FMJR
Attributes
- California Proposition 65
- Yes
Fitment status
This product is universal and will fit your application.
