Bulldog Winch Co LLC / 10057
Part #: 10057
UPC: 878850008091
Loading...
Notify me when this item is in stock.

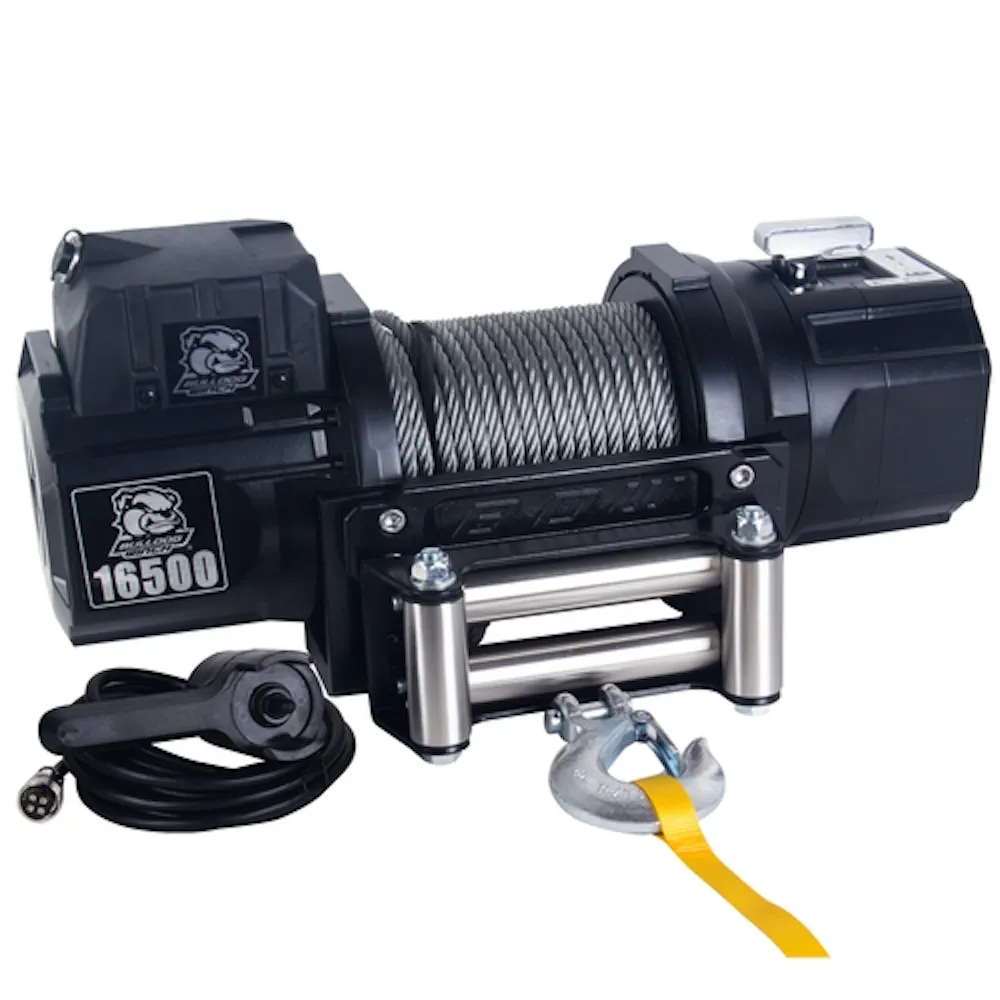

Description: 16,500lb Heavy-Duty Winch with 92ft Wire Rope Bulldog Winch
Description:
Description
16500lb Heavy-Duty Winch with 92Ft Wire Rope from Bulldog Winch. Features: 16500lb Heavy-Duty Winch with 80ft Synthetic Rope, Heavy Duty Steel Housing and Frame Components for Maximum Strength, Durability and Reliability, Premium Series Wound 5.6HP Motor for Maximum Performance, Powers Load In and Out, and Automatic Load Holding Brake.
Features & benefits
- 16,500 LB Pull Capacity
- Battery Leads are 7.87' (2.4m):4 Stage Planetary Gear Train
- 505:1 Gear Ratio
- Pull & Turn Clutch
- Brake is Automatic in Ratchet Wheel
- 27.76(L) x 10.5(W) x 12.5(H)(705mm x 266mm x 318mm) Overall Dimensions)
- 3.46 X 8.66 (88mm X 220mm) Drum Diameter
- 10 x 4.5 (254mm x 114.3mm) Inside Mounting Bolt Pattern
- 10 x 6.5 (254mm x 165.1mm) Middle Mounting Bolt Pattern
- 10 x 8.5 (254mm x 215.9mm) Outside Mounting Bolt Pattern
- 15/32 x 92' Wire Rope
- Series Wound 12vDC 5.6HP Motor
Specifications
- GTIN
- 00878850008091
- Weight
- 218 lb
- Height
- 19 in
- Length
- 34 in
- Width
- 16 in
- Life cycle
- Available to Order
- AAM brand code
- BDW
- Warehouse brand code
- BDW
- AAIA brand code
- FMJR
Attributes
- California Proposition 65
- Yes
Fitment status
This product is universal and will fit your application.
Bulldog Winch Co LLC 10057
