Bulldog Winch Co LLC · 10005
Part #: 10005
UPC: 878850000316
Loading...
Notify me when this item is in stock.

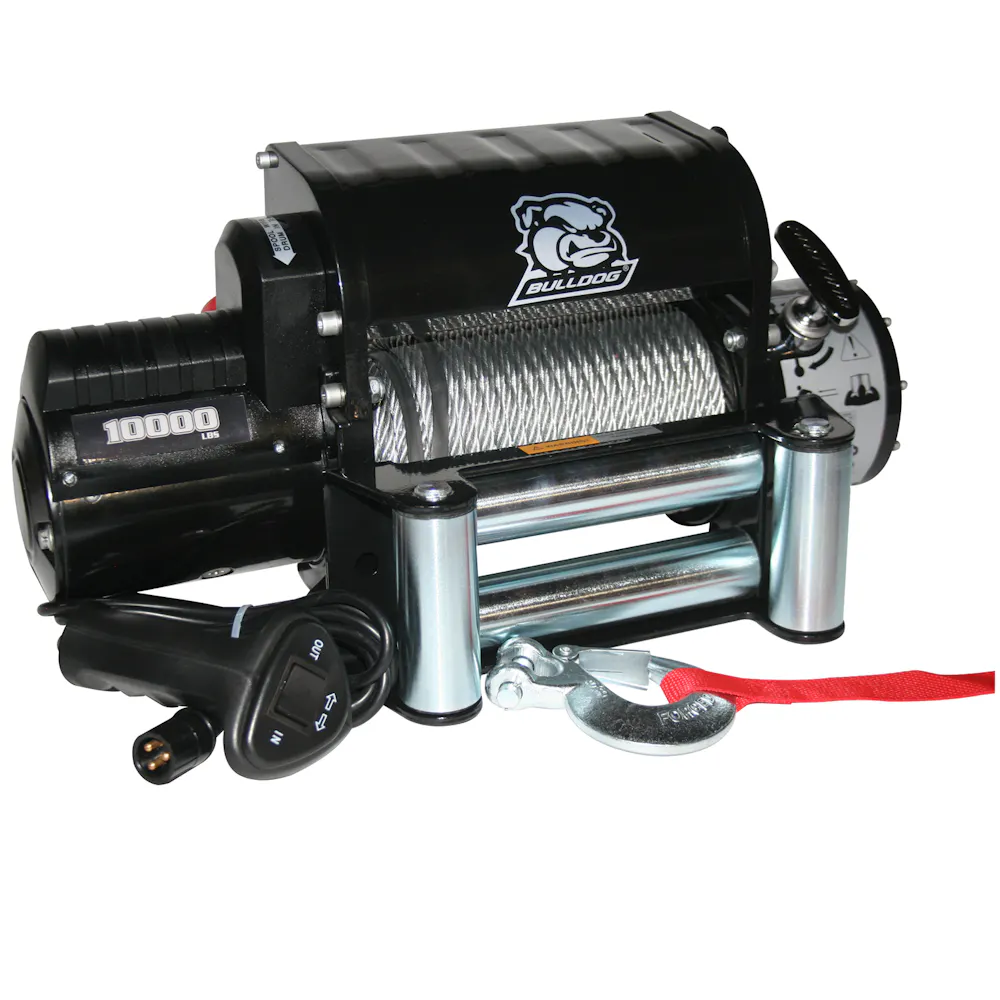

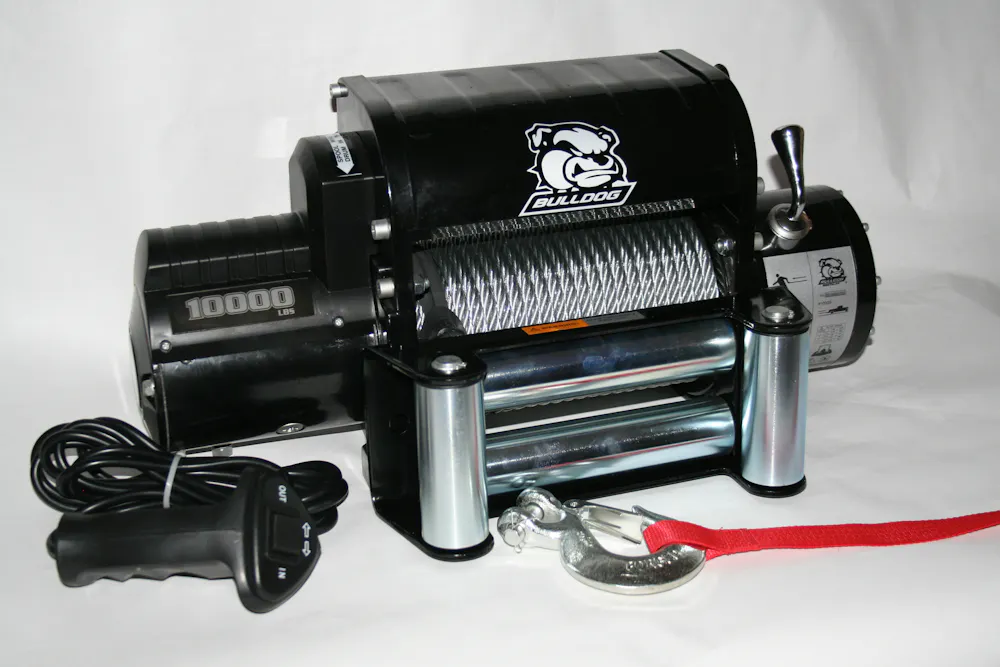

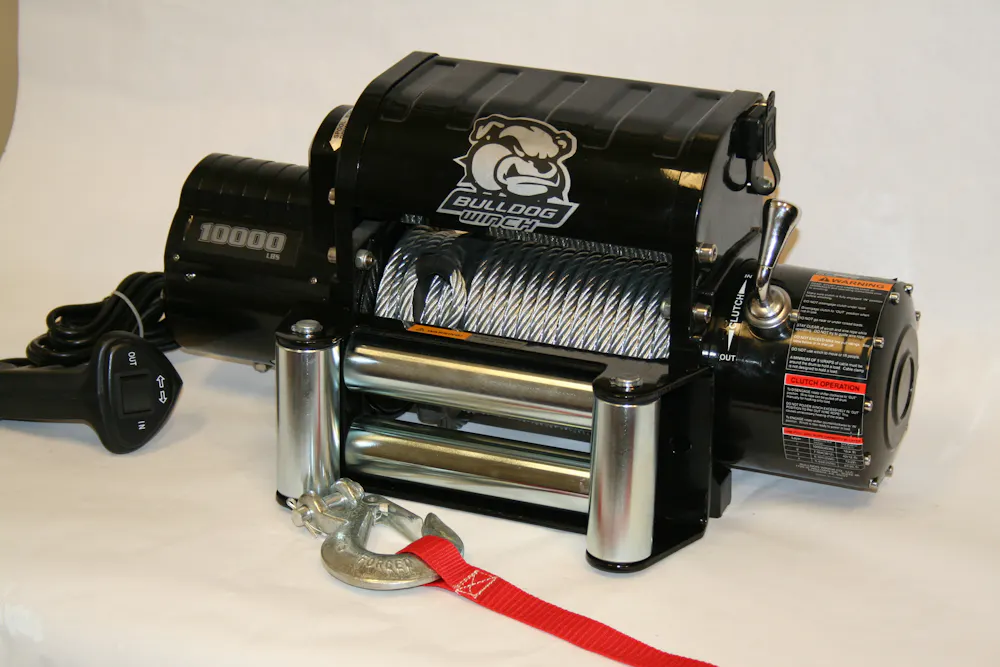

Description: Bulldog 10000lb Winch w/5.8hp Series Wnd Motor, Integrated Pwr Unit, Roller Fairlead
Description:
Description
10,000 LB Winch Integrated W/87 Ft Wire Rope from Bulldog Winch. This is from our Standard Series and includes 87 feet of wire rope.Details:Pull Capacity: 10,000 Lb87 Foot Wire RopeMotor: 5.8 HP Series Wound 12v DCSwitch: 450A Sealed ContactorController: Wired hand control with 12 foot lead includedPower unit: IntegratedBattery Leads: 6 footGear Train: 3 Stage PanetaryGear Ratio: 265:1Gear Box: Clockable to Rotate ShifterClutch: FreespoolingBrake:Automatic Load Hold In DrumDrum (DIA X L) 2.5 X 8.8 inch (63.5mm X 223.5mm)Overall Dimensions: (LxWxH) 21.7 x 6.3 x 8.6 (551 x 160 x 218mm)Mounting Bolt Pattern: 10x4.5 inchWarranty: 2 Year LimitedBattery Recommendation: 650CCA
Specifications
- GTIN
- 00878850000316
- Weight
- 94.4 lb
- Height
- 13.5 in
- Length
- 24 in
- Width
- 12.5 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- BDW
- Warehouse brand code
- BDW
- AAIA brand code
- FMJR
Attributes
- California Proposition 65
- Yes
