Boostline · LS6125-927
Part #: LS6125-927
UPC: 193564024084
Log in for inventory
Notify me when this item is in stock.

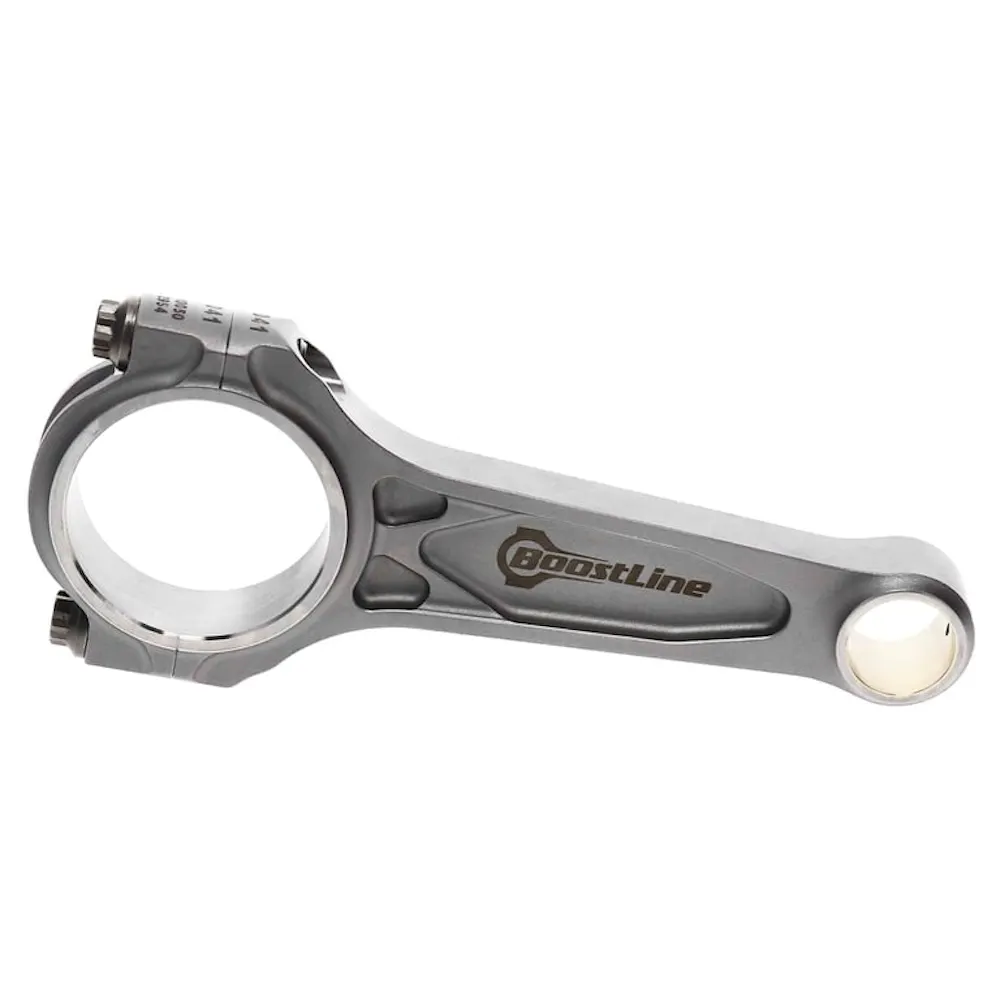

Description: Connecting Rod, Chevy Ls / Gen V Lt1, 6.125 in. Length, ARP2000, Set of 8; Boostline Chevrolet LS Connecting Rod Set, 6.125 in. Length, 0.927 in. Pin, 2.100 in. Journal, 7/16 in. ARP 2000 Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 8
Description:
Description
BoostLine connecting rods are designed and built for the stressful demands of high-powered, forced induction and nitrous GM LS and LT engines. Proven in the lab and on the track in 2000 HP eight-cylinder applications, BoostLine rods are forged from premium 4340 steel and utilize a patented, three-pocket design, maximizing strength while minimizing rotating weight. This revolutionary design dramatically improves each rods’ big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs, benefits crucial to durability in four-digit-horsepower engines. Each rod is equipped standard with industry leading ARP hardware and is subject to a 26-point, CMM inspection with all critical dimensions provided via an inspection card provided with every set of BoostLine rods. BoostLine connecting rods are the complete package for everything from powerful marine engines to all-out race cars.
Features & benefits
- Purpose-Built For Boost High Boost and Nitrous LS Applications
- Forged From Ultra-Strong 4340 Steel
- Patented Three-Pocket Design
- Capable of 2000 HP
- Stroker Clearance
- 7/16 x 1.400 in. ARP 2000 Fasteners
- High Quality APMCO Bronze Pin Bushing
- 26 Point Detailed CMM Inspection Report Included
Information
Chevrolet L20 / L33 / L59 / L76 / L77 / L83 / L86 / L8B / L92 / L96 / L98 / L99 / L9H / LC8 / LC9 / LFA / LH6 / LH8 / LH9 / LM4 / LM7 / LMF / LMG / LQ4 / LQ9 / LR4 / LS1 / LS2 / LS3 / LS4 / LS6 / LS7 / LS9 / LSA / LT1 / LT4 / LT5 / LY2 / LY5 / LY6 / LZ1
Specifications
- GTIN
- 00193564024084
- Weight
- 14 lb
- Height
- 16 in
- Length
- 3.5 in
- Width
- 11.5 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- BOO
- Warehouse brand code
- JCTQ
- AAIA brand code
- JCTQ
Attributes
- Add-On
- BT71401-2S
- Average Gram Weight
- 694
- Big End Bore
- 2.225
- Big End Width
- 0.9402
- Bolt Diameter
- 7/16
- Bolt Part Number
- BT71401-2S
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Connecting Rod Kits>Domestic
- Center To Center Length
- 6.125
- Center to Center Length (in)
- 6.125
- Center to Center Length (mm)
- 155.575
- Connecting Rod Journal Diameter
- 2.100
- Connecting Rod Material
- Forged 4340 Steel
- Connecting Rod Type
- I-Beam
- Emissions Code
- 3
- Engine
- CHEVROLET LT5 GEN V
- Engine - Web
- CHEVROLET LT5 GEN V
- Engine Type
- ICE
- Grade Type
- Performance
- Industry
- Automotive
- Journal Size
- 2.100
- Length Center Bore To Center Bore
- 6.125
- Main Bearing Bore Diameter
- 2.225
- Make
- GM
- Make - Web
- GM
- Material
- Forged 4340 Steel
- Out of Stock Message
- Estimated Ship Date 3-4 Weeks
- Pin End Bore
- 0.927
- Product Market
- Domestic
- Product Type
- Connecting Rod Kits
- Rod Type
- I-Beam
- Small End Width
- 1.0100
- Title
- Chevrolet, LS, 6.125 in. Length, Connecting Rod Set
- Title - Web
- Chevrolet, LS, 6.125 in. Length, Connecting Rod Set
- Weight
- 694
- Weight w/ Bolts
- 692
- Wrist Pin Diameter
- 0.927
- Wrist Pin Journal Bushing Width
- 1.010
Fitment status
This product is universal and will fit your application.
Application summary
Chevrolet L20 / L33 / L59 / L76 / L77 / L83 / L86 / L8B / L92 / L96 / L98 / L99 / L9H / LC8 / LC9 / LFA / LH6 / LH8 / LH9 / LM4 / LM7 / LMF / LMG / LQ4 / LQ9 / LR4 / LS1 / LS2 / LS3 / LS4 / LS6 / LS7 / LS9 / LSA / LT1 / LT4 / LT5 / LY2 / LY5 / LY6 / LZ1
