Boostline · DO7559-575S
Part #: DO7559-575S
UPC: 193564265975
Loading...
Notify me when this item is in stock.

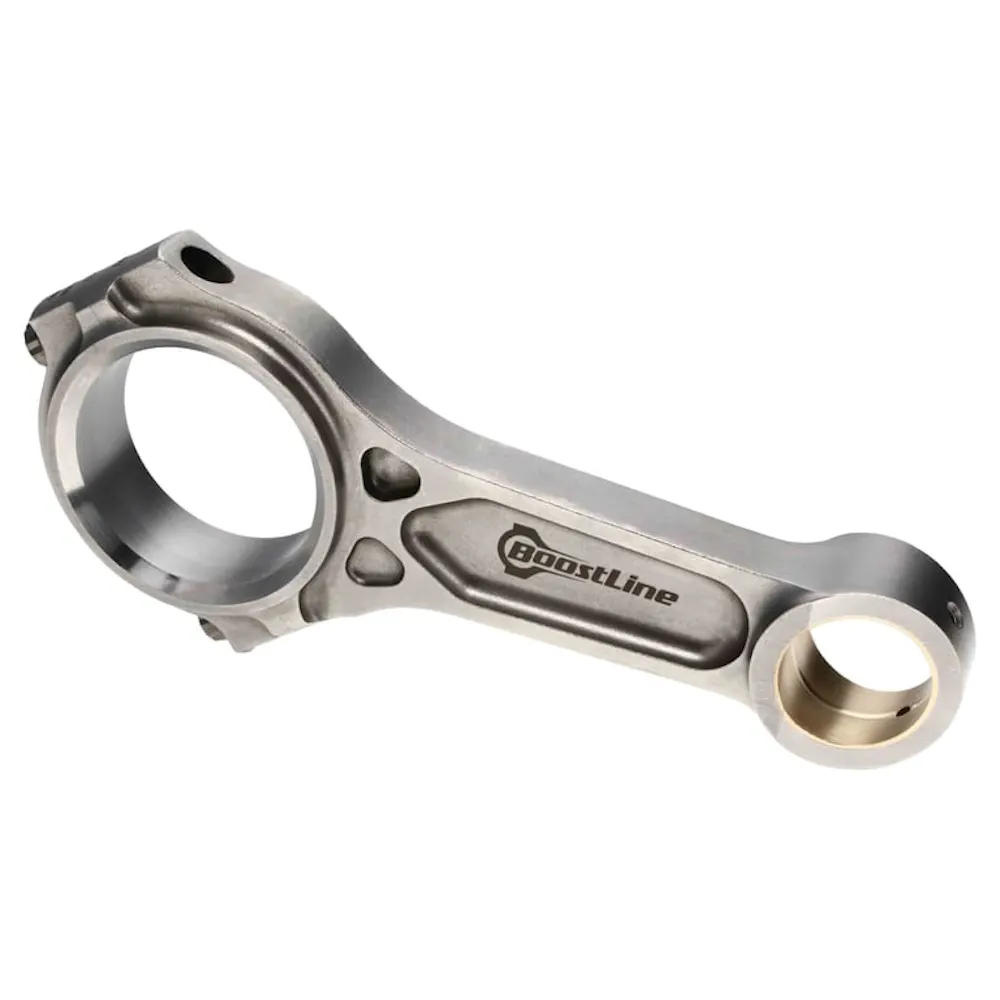

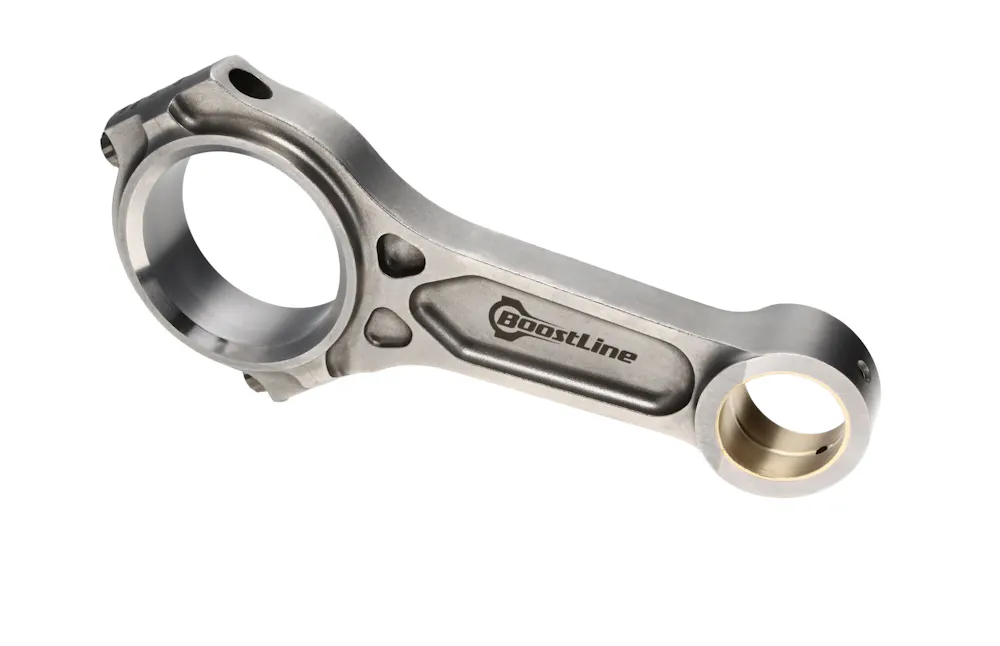

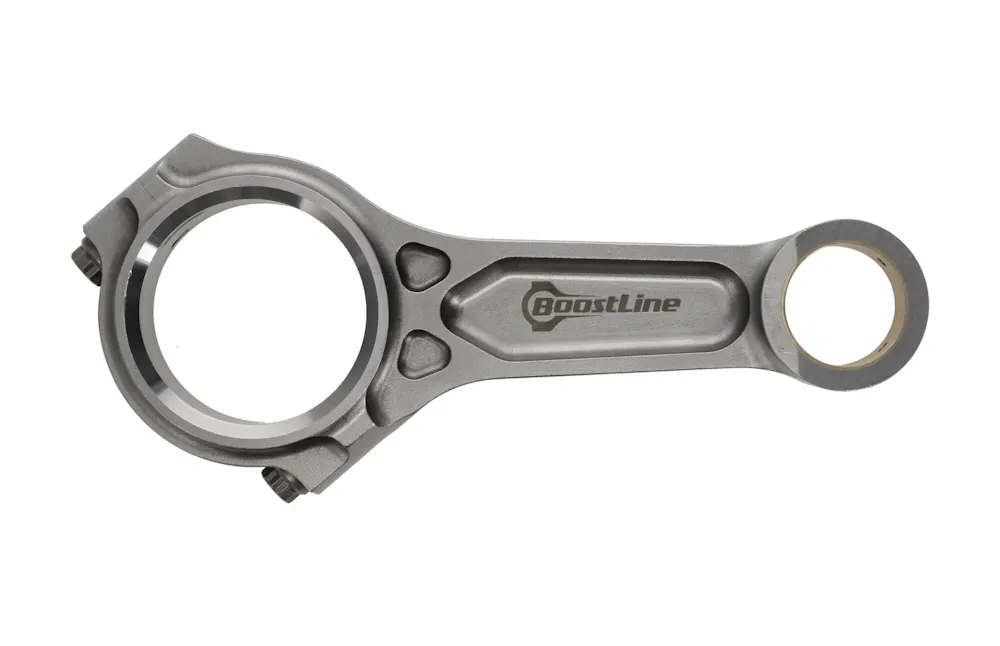

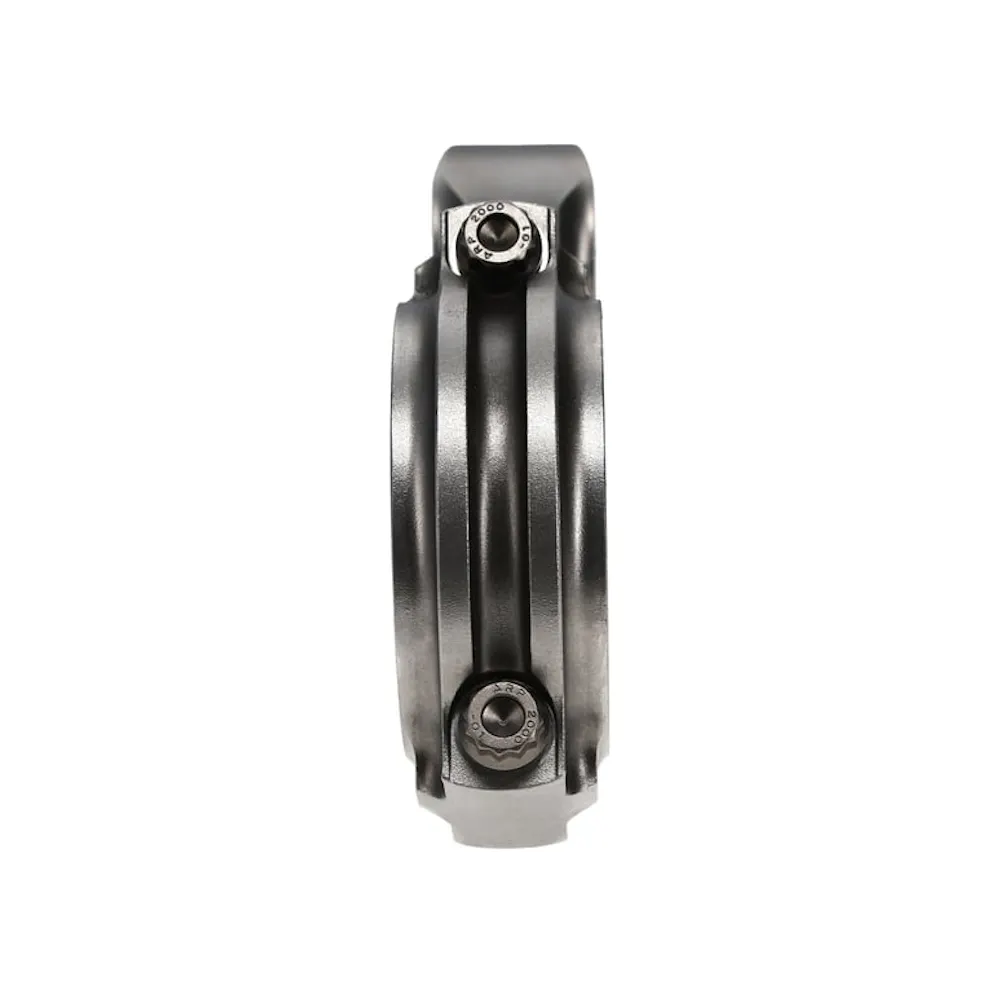

Description: Connecting Rod, Dodge Cummins, 7.559 in. Length, ARP2000, Set of 1; Boostline Dodge 5.9/6.7L Cummins Connecting Rod, 7.559 in. Length, 1.575 in. Pin, 2.710 in. Journal, 12.00 mm ARP 2000 Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 1
Description:
Description
BoostLine connecting rods are designed and built for the stressful demands of high-powered, forced induction and nitrous Dodge Cummins engines. Proven in the lab and on the track in 250 HP per-cylinder applications, BoostLine rods are forged from premium 4340 steel and utilize a patented, three-pocket design, maximizing strength while minimizing rotating weight. This revolutionary design dramatically improves each rods’ big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs, benefits crucial to durability in four-digit-horsepower engines. Each rod is equipped standard with industry leading ARP hardware and is subject to a 26-point, CMM inspection with all critical dimensions provided via an inspection card provided with every set of BoostLine rods. BoostLine connecting rods are the complete package for everything from powerful marine engines to all-out race cars.
Features & benefits
- Purpose-Built For Boost High Boost Dodge Cummins Applications
- Forged From Ultra-Strong 4340 Steel
- Patented Three-Pocket Design
- Capable of 2000 HP & 2000 Ft Lbs
- 12mm x 1.800 in. ARP 2000 Fasteners
- High Quality APMCO Bronze Pin Bushing
- 26 Point Detailed CMM Inspection Report Included
Information
Dodge Cummins 5.9/6.7L
Application summary
| Year | Make / model |
|---|---|
| 1989-1993 | Dodge D250 |
| 1989-1993 | Dodge D350 |
| 1994-2010 | Dodge Ram 2500 |
| 1994-2010 | Dodge Ram 3500 |
| 1989-1993 | Dodge W250 |
| 1989-1993 | Dodge W350 |
| 2011-2024 | Ram 2500 |
| 2011-2024 | Ram 3500 |
| 2011-2013 | Ram 4000 |
Specifications
- GTIN
- 00193564265975
- Weight
- 2.5 lb
- Height
- 4.5 in
- Length
- 20.75 in
- Width
- 11.75 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- BOO
- Warehouse brand code
- JCTQ
- AAIA brand code
- JCTQ
Attributes
- Add-On
- BT81800-S
- Average Gram Weight
- 1958
- Big End Bore
- 2.874
- Big End Width
- 1.526
- Bolt Diameter
- 12.00
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Individual Connecting Rods>Domestic
- Center To Center Length
- 7.559
- Center to Center Length (in)
- 7.559
- Center to Center Length (mm)
- 191.9986
- Connecting Rod Journal Diameter
- 2.710
- Connecting Rod Material
- Forged 4340 Steel
- Connecting Rod Type
- I-Beam
- Emissions Code
- 3
- Engine
- 5.9/6.7L CUMMINS
- Engine - Web
- 5.9/6.7L CUMMINS
- Engine Type
- ICE
- Grade Type
- Performance
- Industry
- Automotive
- Journal Size
- 2.710
- Length Center Bore To Center Bore
- 7.559
- Main Bearing Bore Diameter
- 2.874
- Make
- DODGE
- Make - Web
- DODGE
- Material
- Forged 4340 Steel
- Out of Stock Message
- Estimated Ship Date 3-4 Weeks
- Pin End Bore
- 1.575
- Product Market
- Domestic
- Product Type
- Individual Connecting Rods
- Rod Type
- I-Beam
- Small End Width
- 1.526
- Title
- Dodge, 5.9/6.7L Cummins, 7.559 in. Length, Connecting Rod
- Title - Web
- Dodge, 5.9/6.7L Cummins, 7.559 in. Length, Connecting Rod
- Weight
- 1958
- Weight w/ Bolts
- 958
- Wrist Pin Diameter
- 1.575
- Wrist Pin Journal Bushing Width
- 1.526
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1989-1993 Dodge D250; 1989-1993 Dodge D350; 1994-2010 Dodge Ram 2500; 1994-2010 Dodge Ram 3500; 1989-1993 Dodge W250; 1989-1993 Dodge W350; 2011-2024 Ram 2500; 2011-2024 Ram 3500; 2011-2013 Ram 4000
