Boostline / BC6700-990S
Part #: BC6700-990S
UPC: 193564265814
Loading...
Notify me when this item is in stock.

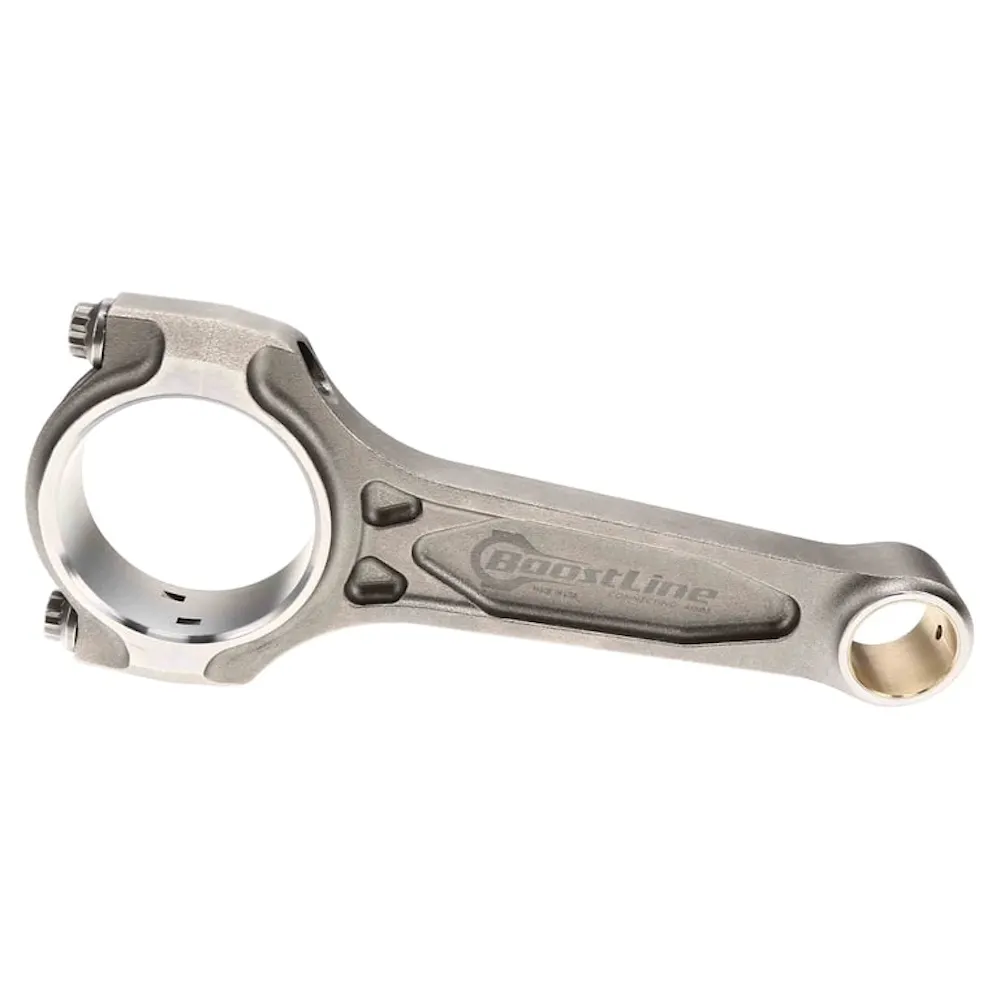

Description: Connecting Rod, Chevy Big Block, 6.700 in. Length, ARP2000, Set of 1; Boostline Chevrolet Big Block Connecting Rod, 6.700 in. Length, 0.990 in. Pin, 2.200 in. Journal, 7/16 in. ARP 2000 Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 1
Description:
Description
BoostLine connecting rods are designed and built for the stressful demands of high-powered, forced induction and nitrous Big Block Chevy engines. Proven in the lab and on the track in 250 HP per-cylinder applications, BoostLine rods are forged from premium 4340 steel and utilize a patented, three-pocket design, maximizing strength while minimizing rotating weight. This revolutionary design dramatically improves each rods’ big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs, benefits crucial to durability in four-digit-horsepower engines. Each rod is equipped standard with industry leading ARP hardware and is subject to a 26-point, CMM inspection with all critical dimensions provided via an inspection card provided with every set of BoostLine rods. BoostLine connecting rods are the complete package for everything from powerful marine engines to all-out race cars.
Features & benefits
- Purpose-Built For Boost High Boost and Nitrous Big Block Chevy Applications
- Forged From Ultra-Strong 4340 Steel
- Patented Three-Pocket Design
- Capable of 2000 HP
- Stroker Clearance
- 7/16 x 1.600 in. ARP 2000 Fasteners
- High Quality APMCO Bronze Pin Bushing
- 26 Point Detailed CMM Inspection Report Included
Information
Big Block Chevrolet with .990 Pin with 2.200in Crank Rod Journal
Specifications
- GTIN
- 00193564265814
- Weight
- 1.5 lb
- Height
- 10.5 in
- Length
- 1.5 in
- Width
- 4 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- BOO
- Warehouse brand code
- JCTQ
- AAIA brand code
- JCTQ
Attributes
- Add-On
- BT71601-S
- Average Gram Weight
- 777
- Big End Bore
- 2.325
- Big End Width
- 0.992
- Bolt Diameter
- 7/16
- Bolt Part Number
- BT71601-S
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Individual Connecting Rods>Domestic
- Center To Center Length
- 6.700
- Center to Center Length (in)
- 6.700
- Center to Center Length (mm)
- 170.18
- Connecting Rod Beam Style
- I Beam
- Connecting Rod Journal Diameter
- 2.200
- Connecting Rod Material
- Forged 4340 Steel
- Connecting Rod Type
- I-Beam
- Emissions Code
- 3
- Engine
- BIG BLOCK CHEVROLET
- Engine - Web
- BIG BLOCK CHEVROLET
- Engine Type
- ICE
- Grade Type
- Performance
- Industry
- Automotive
- Journal Size
- 2.200
- Length Center Bore To Center Bore
- 6.700
- Main Bearing Bore Diameter
- 2.325
- Make
- GM
- Make - Web
- GM
- Material
- Forged 4340 Steel
- Out of Stock Message
- Estimated Ship Date 3-4 Weeks
- Pin End Bore
- 0.990
- Product Market
- Domestic
- Product Type
- Individual Connecting Rods
- Rod Type
- I-Beam
- Small End Width
- 1.0620
- Title
- Chevrolet, Big Block, 6.700 in. Length, Connecting Rod
- Title - Web
- Chevrolet, Big Block, 6.700 in. Length, Connecting Rod
- Weight
- 777
- Weight w/ Bolts
- 777
- Wrist Pin Bore Diameter
- 0.990
- Wrist Pin Diameter
- 0.990
- Wrist Pin Journal Bushing Width
- 1.062
Fitment status
This product is universal and will fit your application.
Application summary
Big Block Chevrolet with .990 Pin with 2.200in Crank Rod Journal
