Baja Designs / 82-1005
Part #: 82-1005
UPC: 810160464549
Loading...
Notify me when this item is in stock.

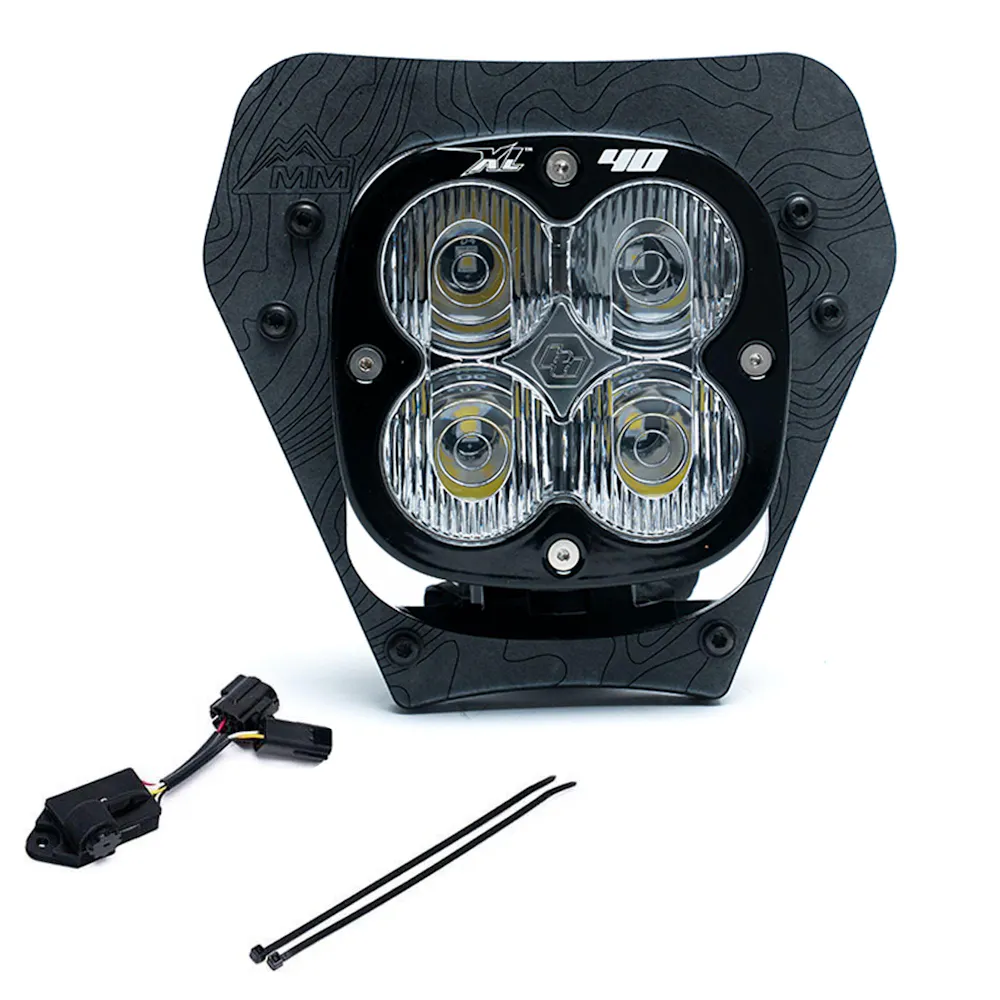

Description: XL40 (D/C) LED Headlight Kit w/ Hi-Low Harness; KTM, XL40 LED Headlight Kit (24-26) w/ Hi-Low Harness
Description:
Description

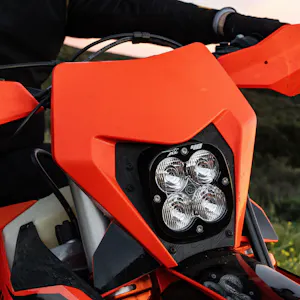

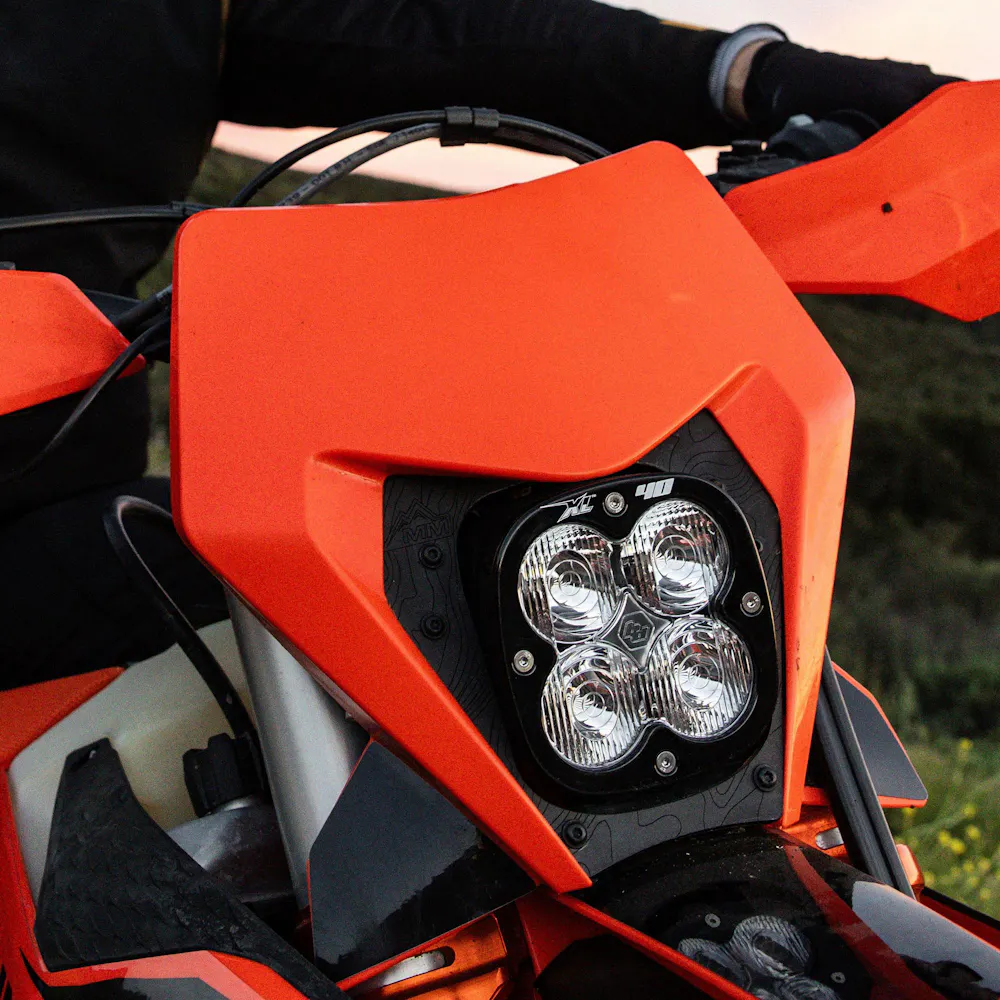

Upgrade your off-road lighting with the Baja Designs XL40 LED Headlight Kit with Hi/Low harness — built for KTM XC-W, XW-F, and XCF-W motorcycles. Derived from the powerhouse XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes. The included Hi/Low harness lets riders reduce output in low-beam mode by about 25% of high beam, producing 1,435 lumens when full brightness isn't needed.
Features & benefits
- Derived from the powerhouse XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes
- The included Hi/Low harness lets riders reduce output in low-beam mode by about 25% of high beam, producing 1,435 lumens when full brightness isn't needed
Information
Headlight Kit
Application summary
| Year | Make / model |
|---|---|
| 2024-2025 | KTM 350 EXC-F |
| 2024-2025 | KTM 500 EXC-F |
Specifications
- GTIN
- 00810160464549
- Weight
- 3.6 lb
- Height
- 5 in
- Length
- 12 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- BAJ
- Warehouse brand code
- FGXX
- AAIA brand code
- FGXX
Attributes
- Amperage Rating (A)
- 3.4
- Average Rated Life (hr.)
- 49930
- Beam Pattern
- Trail
- Bezel Material
- Powder Coated Cast Aluminum
- Brightness (Lumens)
- 5,224 (Hi) / 1,435 (Low)
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- DES
- XL40 (D/C) LED Headlight Kit w/ Hi-Low Harness
- Depth (in.)
- 3.65
- Description
- Trail; Clear
- EXT
- KTM, XL40 LED Headlight Kit (24-26) w/ Hi-Low Harness
- Effective Lighting Score (ELS)
- High: 92°/5.9/226’/5224; Low: 74°/5.9/119’/1435
- Height (in.)
- 4.43
- Housing Color
- Black
- Housing Material
- Powder Coated Cast Aluminum
- Length (in.)
- 4.43
- Lens Color
- Clear
- Lens Material
- Hardcoated Polycarbonate
- Light Quantity
- 1
- Lighting Modes
- Beam
- Lighting Quantity
- 4
- Lighting Technology
- LED
- Lighting Type
- Forward Projecting
- Mounting Hardware Included
- Yes
- Mounting Hardware Material
- Stainless Steel
- Overvoltage Protection
- Built-In
- Product Type
- XL40
- Standards/Compliance (Durability)
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards/Compliance (Impact Resistance)
- IK10 Compliant (Mechanical Impact Testing)
- Standards/Compliance (Water Resistance)
- IP69K (Waterproof up to 9ft & Pressure Washable)
- TLE
- KTM, XL40 LED Headlight Kit (24-26) w/ Hi-Low Harness
- Universal or Specific
- Universal
- Wattage (W)
- 43.5
- Weight (lbs.)
- 2.45
- Wiring Harness Included
- Yes
Fitment status
This product is universal and will fit your application.
Application summary
2024-2025 KTM 350 EXC-F; 2024-2025 KTM 500 EXC-F
