Baja Designs / 702001
Part #: 702001
UPC: 819314020778
Loading...
Notify me when this item is in stock.
Description: S8 Straight LED Light Bar (20 Inch; Spot; Clear)
Description:
pro mess
Description
The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle. The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30").
Features & benefits
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- NOTE: *This light does NOT come with a harness, The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10?-30?).
- Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle
- The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness
- The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30")
Information
One Light Bar
Specifications
- GTIN
- 00819314020778
- Weight
- 7 lb
- Height
- 7 in
- Length
- 25 in
- Width
- 5 in
- Life cycle
- Available to Order
- AAM brand code
- BAJ
- Warehouse brand code
- FGXX
- AAIA brand code
- FGXX
Attributes
- Add-On
- Compatible Products-640115-Wiring Harness (On/Off)
- Amperage Rating (A)
- 8.0
- Average Rated Life (hr.)
- 49,930
- Beam Pattern
- Spot
- Bezel Material
- Billet Machined Aluminum
- Brightness (Lumens)
- 12,700
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Clear
- DES
- S8 Straight LED Light Bar
- Depth (in.)
- 3
- Description
- Spot; Clear
- EXT
- S8 Straight LED Light Bar (20 Inch; Spot; Clear)
- Height (in.)
- 1.6
- Housing Color
- Black
- Housing Material
- Aircraft Grade Aluminum with Mil-Spec Hard Anodize
- Length (in.)
- 20
- Lens Color
- Clear
- Lens Material
- Hardcoated Polycarbonate
- Light Pattern
- Spot
- Light Quantity
- 1
- Lighting Modes
- Beam/Amber Backlit Feature
- Lighting Quantity
- 16
- Lighting Technology
- Cree LED
- Lighting Type
- Forward Projecting
- Mounting Hardware Description
- Mounting Brackets
- Mounting Hardware Included
- Yes
- Mounting Hardware Material
- Stainless Steel
- Overvoltage Protection
- Built-In
- Patent No.
- D780,964
- Product Fitment
- Universal
- Product Information
- One Light Bar
- Product Type
- S8 20 Inch LED Light Bar
- Size
- 20 Inch
- Standards/Compliance (Durability)
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards/Compliance (Impact Resistance)
- IK10 Compliant (Mechanical Impact Testing)
- Standards/Compliance (Water Resistance)
- IP69K (Waterproof up to 9ft & Pressure Washable)
- TLE
- S8 Straight LED Light Bar (20 Inch; Spot; Clear)
- Title
- Baja Designs - 702001 - S8 Straight LED Light Bar
- Universal or Specific
- Universal
- Wattage (W)
- 120
- Weight (lbs.)
- 4.5
- Wiring Harness Included
- No
Fitment status
This product is universal and will fit your application.
Application summary
Universal

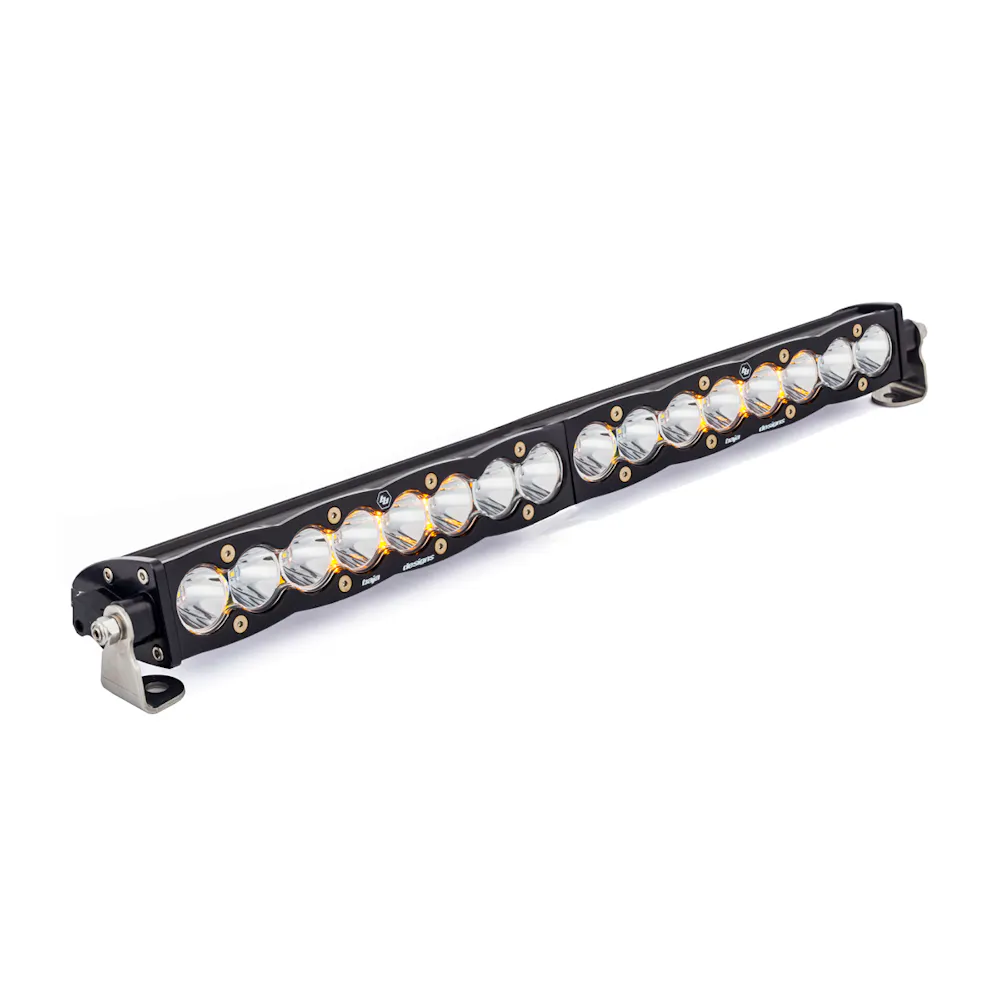

Baja Designs 702001
