Baja Designs / 701004

View More

Part #: 701004
UPC: 819314020730

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Baja Designs Series: S8 LED Light Bars

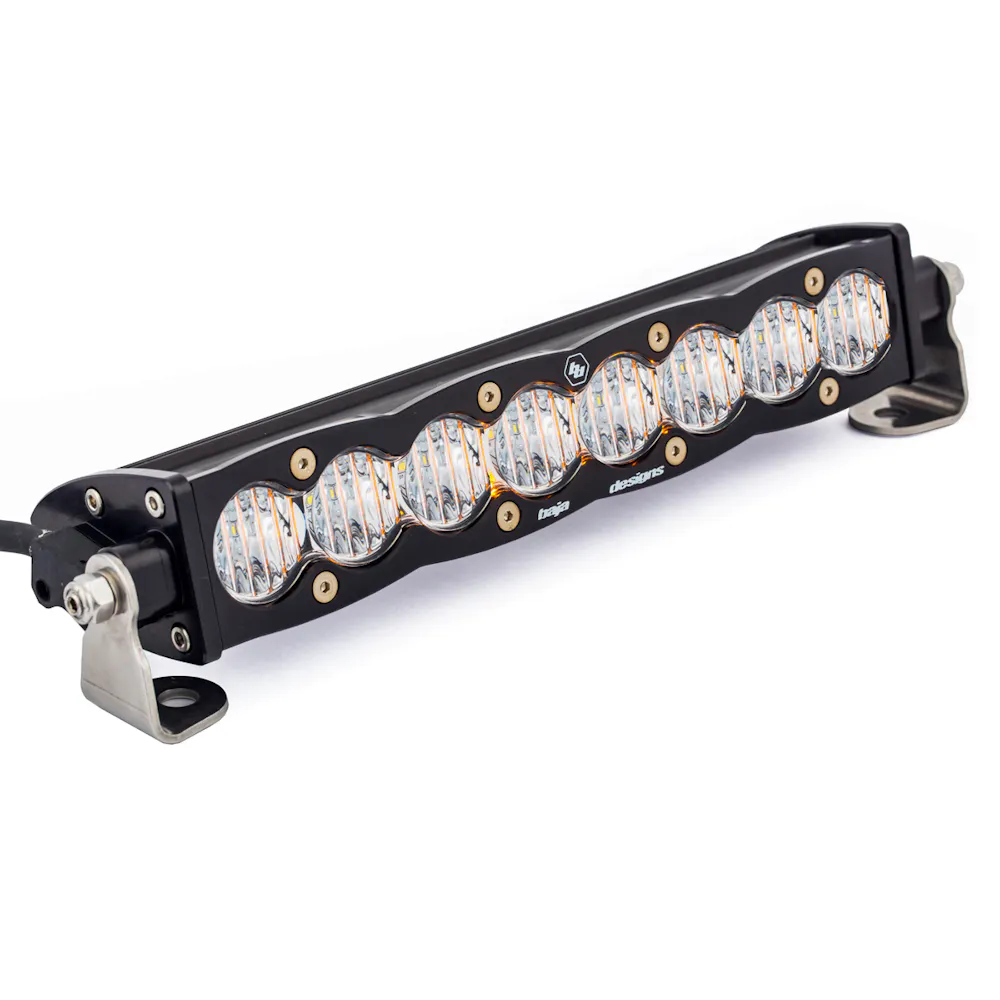

Description: S8 Straight LED Light Bar (10 Inch; Wide Cornering; Clear)

pro mess

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle. The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30").

Features & benefits

Satisfaction Guarantee – 30-Day Money Back Guarantee
NOTE: *This light does NOT come with a harness, The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10?-30?).
Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle
The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness
The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30")

Information

One Light Bar

Specifications

GTIN: 00819314020730
Weight: 5 lb
Height: 7 in
Length: 16 in
Width: 5 in
Life cycle: Available to Order
AAM brand code: BAJ
Warehouse brand code: FGXX
AAIA brand code: FGXX

Attributes

Add-On: Compatible Products-640122-Wiring Harness (Mode Switch)
Amperage Rating (A): 4.200
Average Rated Life (hr.): 49,930
Beam Pattern: Wide Cornering
Bezel Material: Billet Machined Aluminum
Brightness (Lumens): 6324
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Color: Clear
DES: S8 Straight LED Light Bar
Depth (in.): 3
Description: Wide Cornering; Clear
EXT: S8 Straight LED Light Bar (10 Inch; Wide Cornering; Clear)
Effective Lighting Score (ELS): 4455 / (5.9, 126 degree) / 158
Height (in.): 1.600
Housing Color: Black
Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Length (in.): 10
Lens Color: Clear
Lens Material: Hardcoated Polycarbonate
Light Pattern: Wide Cornering
Light Quantity: 1
Lighting Modes: Beam/Amber Backlit Feature
Lighting Quantity: 8
Lighting Technology: Cree LED
Lighting Type: Forward Projecting
Mounting Hardware Description: Mounting Brackets
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Patent No.: D780,964
Product Fitment: Universal
Product Information: One Light Bar
Product Type: S8 10 Inch LED Light Bar
Size: 10 Inch
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
TLE: S8 Straight LED Light Bar (10 Inch; Wide Cornering; Clear)
Title: Baja Designs - 701004 - S8 Straight LED Light Bar
Universal or Specific: Universal
Wattage (W): 57.960
Weight (lbs.): 2.400
Wiring Harness Included: No
