Baja Designs / 524003
Part #: 524003
UPC: 852156007101
Loading...
Notify me when this item is in stock.

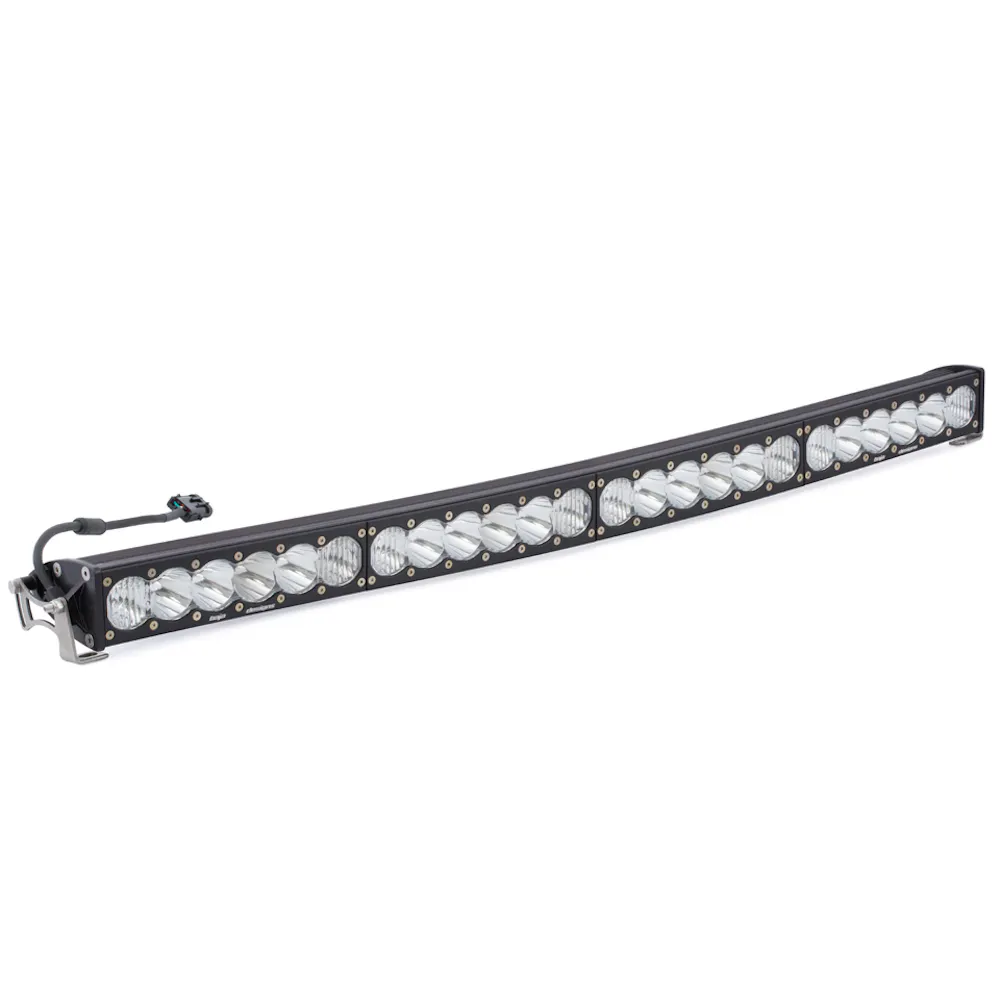

Description: OnX6 Arc LED Light Bar (40 Inch; Driving/Combo; Clear)
Description:
pro mess
Description
The OnX6+ Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility. We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.
Features & benefits
- NOTE: *This light does NOT come with a harness, the applicable harness is 640119*
- The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility
- We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue
- Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar
Information
One Light Bar
Specifications
- GTIN
- 00852156007101
- Weight
- 15 lb
- Height
- 8 in
- Length
- 48 in
- Width
- 8 in
- Life cycle
- Available to Order
- AAM brand code
- BAJ
- Warehouse brand code
- FGXX
- AAIA brand code
- FGXX
Attributes
- Add-On
- Compatible Products-640115-Wiring Harness (On/Off)
- Amperage Rating (A)
- 26.8 (High); 22.4 (Low)
- Average Rated Life (hr.)
- 49,930
- Beam Pattern
- Driving/Combo
- Bezel Material
- Billet Machined Aluminum
- Brightness (Lumens)
- 39,220 (High); 32,760 (Low)
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Clear
- DES
- OnX6 Arc LED Light Bar
- Depth (in.)
- 4.29
- Description
- Arc; Driving/Combo; Clear
- EXT
- OnX6 Arc LED Light Bar (40 Inch; Driving/Combo; Clear)
- Height (in.)
- 2.69
- Housing Color
- Black
- Housing Material
- Aircraft Grade Aluminum with Mil-Spec Hard Anodize
- Length (in.)
- 40
- Lens Color
- Clear
- Lens Material
- Hardcoated Polycarbonate
- Light Pattern
- Driving/Combo
- Light Quantity
- 1
- Lighting Modes
- High Beam/Low Beam
- Lighting Quantity
- 24
- Lighting Technology
- LED
- Lighting Type
- Forward Projecting
- Mounting Hardware Description
- Mounting Brackets
- Mounting Hardware Included
- Yes
- Mounting Hardware Material
- Stainless Steel
- Overvoltage Protection
- Built-In
- Product Fitment
- Universal
- Product Information
- One Light Bar
- Product Type
- OnX6+ 40 Inch Arc LED Light Bar
- Size
- 40 Inch
- Standards/Compliance (Durability)
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards/Compliance (Impact Resistance)
- IK10 Compliant (Mechanical Impact Testing)
- Standards/Compliance (Water Resistance)
- IP69K (Waterproof up to 9ft & Pressure Washable)
- TLE
- OnX6 Arc LED Light Bar (40 Inch; Driving/Combo; Clear)
- Title
- Baja Designs - 524003 - OnX6 Arc LED Light Bar
- Universal or Specific
- Universal
- Wattage (W)
- 340 (High); 284 (Low)
- Weight (lbs.)
- 15.05
- Wiring Harness Description
- Hi-Low Dongle
- Wiring Harness Included
- No
Fitment status
This product is universal and will fit your application.
Application summary
Universal
