Baja Designs · 320003
Part #: 320003
UPC: 819314026619
Log in for inventory
Notify me when this item is in stock.
pro mess

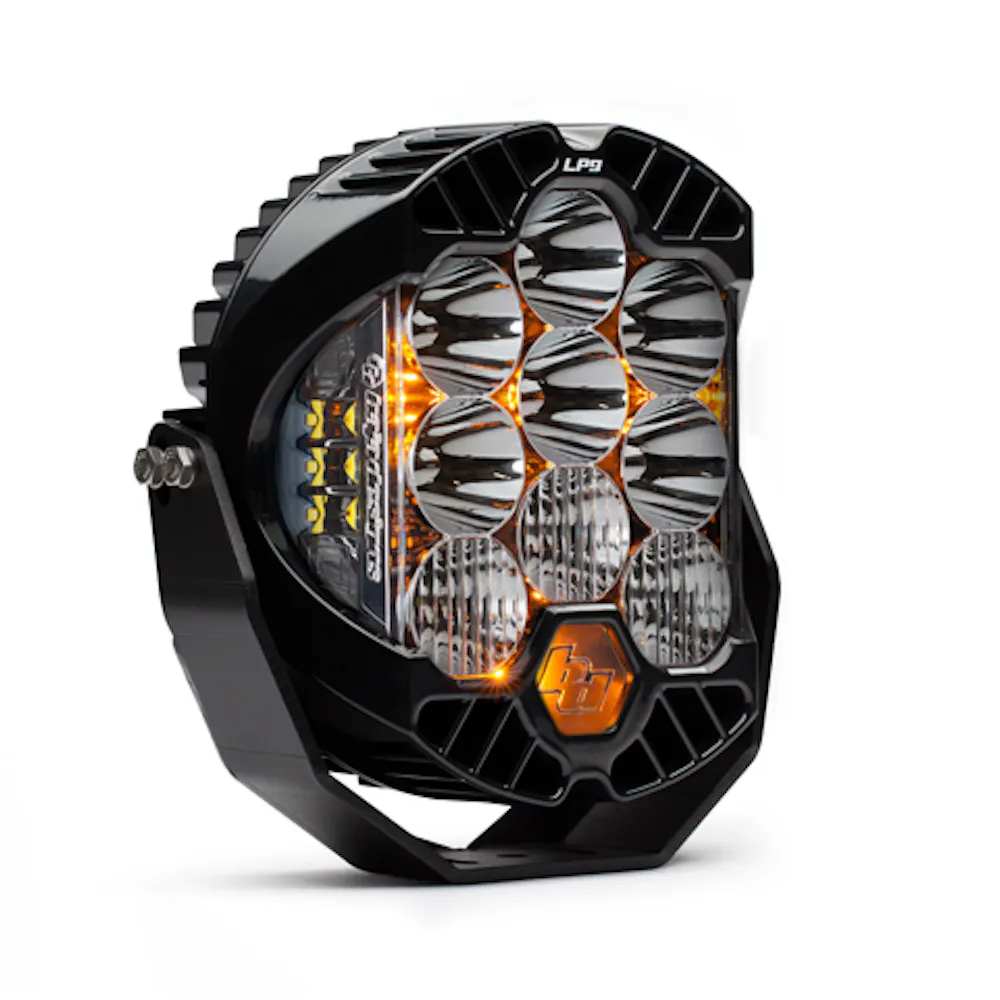

Description: LP9 Pro LED Auxiliary Light Pod; LP9 Pro LED Light Pod (Driving/Combo; Clear)
Description:
Description
A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
Features & benefits
- The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A
- The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear
- With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs
Information
One Light Pod
Specifications
- GTIN
- 00819314026619
- Weight
- 6.5 lb
- Height
- 8 in
- Length
- 12 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- BAJ
- Warehouse brand code
- FGXX
- AAIA brand code
- FGXX
Attributes
- Add-On
- Compatible Products-640167-Upfitter Lock Out Harness
- Amperage Rating (A)
- 9
- Average Rated Life (hr.)
- 49,930
- Backlight
- Amber
- Backlight Amperage Rating (A)
- 0.200
- Backlight Wattage (W)
- 2.800
- Beam Pattern
- Driving/Combo
- Bezel Material
- Powder Coat Cast Aluminum
- Brightness (Lumens)
- 12547
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Clear
- DES
- LP9 Pro LED Auxiliary Light Pod
- Depth (in.)
- 3.250
- Description
- Driving/Combo; Clear
- EXT
- LP9 Pro LED Light Pod (Driving/Combo; Clear)
- Effective Lighting Score (ELS)
- 9757 / (6.8, 142 degree) / 665
- Height (in.)
- 8
- Housing Color
- Black
- Housing Material
- Powder Coat Cast Aluminum
- Length (in.)
- 8
- Lens Color
- Clear
- Lens Material
- Hardcoated Polycarbonate
- Light Pattern
- Driving/Combo
- Light Quantity
- 1
- Lighting Modes
- High Beam/Low Beam/Day-Time Running Backlighting
- Lighting Quantity
- 9
- Lighting Technology
- LED
- Lighting Type
- Forward Projecting
- Mounting Hardware Included
- Yes
- Mounting Hardware Material
- Stainless Steel
- Overvoltage Protection
- Built-In
- Patent No.
- 5,504,603
- Product Fitment
- Universal
- Product Information
- One Light Pod
- Product Type
- LP9 Pro LED Light Pod
- Secondary Amperage Rating (A)
- 1.520
- Secondary Brightness (Lumens)
- 2302
- Secondary Light Quantity
- 6 LEDs
- Secondary Lighting Technology
- LED
- Secondary Lighting Type
- Integrated Peripheral Technology (IPT)
- Secondary Wattage (W)
- 21
- Standards/Compliance (Durability)
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards/Compliance (Impact Resistance)
- IK10 Compliant (Mechanical Impact Testing)
- Standards/Compliance (Water Resistance)
- IP69K (Waterproof up to 9ft & Pressure Washable)
- TLE
- LP9 Pro LED Light Pod (Driving/Combo; Clear)
- Terminal Connector
- DT06-4S Deutsch
- Terminal Type
- Mating Connector
- Title
- Baja Designs - 320003 - LP9 Pro LED Auxiliary Light Pod
- Universal or Specific
- Universal
- Wattage (W)
- 124.200
- Weight (lbs.)
- 6.500
- Wiring Harness Included
- No
Fitment status
This product is universal and will fit your application.
Application summary
Universal
