Baja Designs · 290003
Part #: 290003
UPC: 819314029382
Log in for inventory
Notify me when this item is in stock.
pro mess
Description: LP4 Pro LED Auxiliary Light Pod; LP4 Pro LED Light Pod (Driving/Combo; Clear)
Description:
Description
The LP4 is the smallest variant in the LP lineup but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200 degree spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance. The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.
Features & benefits
- The LP4 features a total of 8,750 lumens and a 200 degree spread of useable LED light
- This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT)
- To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology
Information
One Light Pod
Specifications
- GTIN
- 00819314029382
- Weight
- 5 lb
- Height
- 8 in
- Length
- 12 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- BAJ
- Warehouse brand code
- FGXX
- AAIA brand code
- FGXX
Attributes
- Add-On
- Compatible Products-640188-Upfitter Harness (Single Light)
- Amperage Rating (A)
- 5.500
- Average Rated Life (hr.)
- 49,930
- Backlight
- Amber
- Backlight Amperage Rating (A)
- 0.350
- Backlight Wattage (W)
- 4.830
- Beam Pattern
- Driving/Combo
- Bezel Material
- Powder Coat Cast Aluminum
- Brightness (Lumens)
- 8857
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Clear
- DES
- LP4 Pro LED Auxiliary Light Pod
- Depth (in.)
- 3.200
- Description
- Driving/Combo; Clear
- EXT
- LP4 Pro LED Light Pod (Driving/Combo; Clear)
- Effective Lighting Score (ELS)
- 6474 / (7.0, 136 degree) / 395
- Height (in.)
- 5.100
- Housing Color
- Black
- Housing Material
- Powder Coat Cast Aluminum
- Length (in.)
- 5.100
- Lens Color
- Clear
- Lens Material
- Hardcoated Polycarbonate
- Light Pattern
- Driving/Combo
- Light Quantity
- 1
- Lighting Modes
- Beam/Day-Time Running Backlighting
- Lighting Quantity
- 4
- Lighting Technology
- LED
- Lighting Type
- Forward Projecting
- Mounting Hardware Included
- Yes
- Mounting Hardware Material
- Stainless Steel
- Overvoltage Protection
- Built-In
- Product Fitment
- Universal
- Product Information
- One Light Pod
- Product Type
- LP4 Pro LED Light Pod
- Secondary Amperage Rating (A)
- 1.000
- Secondary Brightness (Lumens)
- 1972
- Secondary Light Quantity
- 4 LEDs
- Secondary Lighting Technology
- LED
- Secondary Lighting Type
- Integrated Peripheral Technology (IPT)
- Secondary Wattage (W)
- 15
- Standards/Compliance (Durability)
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards/Compliance (Impact Resistance)
- IK10 Compliant (Mechanical Impact Testing)
- Standards/Compliance (Water Resistance)
- IP69K (Waterproof up to 9ft & Pressure Washable)
- TLE
- LP4 Pro LED Light Pod (Driving/Combo; Clear)
- Terminal Connector
- DT06-4S Deutsch
- Terminal Type
- Mating Connector
- Title
- Baja Designs - 290003 - LP4 Pro LED Auxiliary Light Pod
- Universal or Specific
- Universal
- Wattage (W)
- 75.900
- Weight (lbs.)
- 2.800
- Wiring Harness Included
- No
Fitment status
This product is universal and will fit your application.
Application summary
Universal
Resources
- Brand logo
- Installation Instructions
- Logo Image
- Photo - Out of Package
- Photo - Primary
- Photo - Close Up
- Photo - Close Up
- Baja Designs LP4 - Power and Perfromance In A Small Footprint!
- American Passion, Quality, and Performance: We are Baja Designs #BajaDesigns
- Warranty
- Baja Designs LP4 Pro LED Light Pods | Compact Design, 10,829 Lumens, 200° Spread

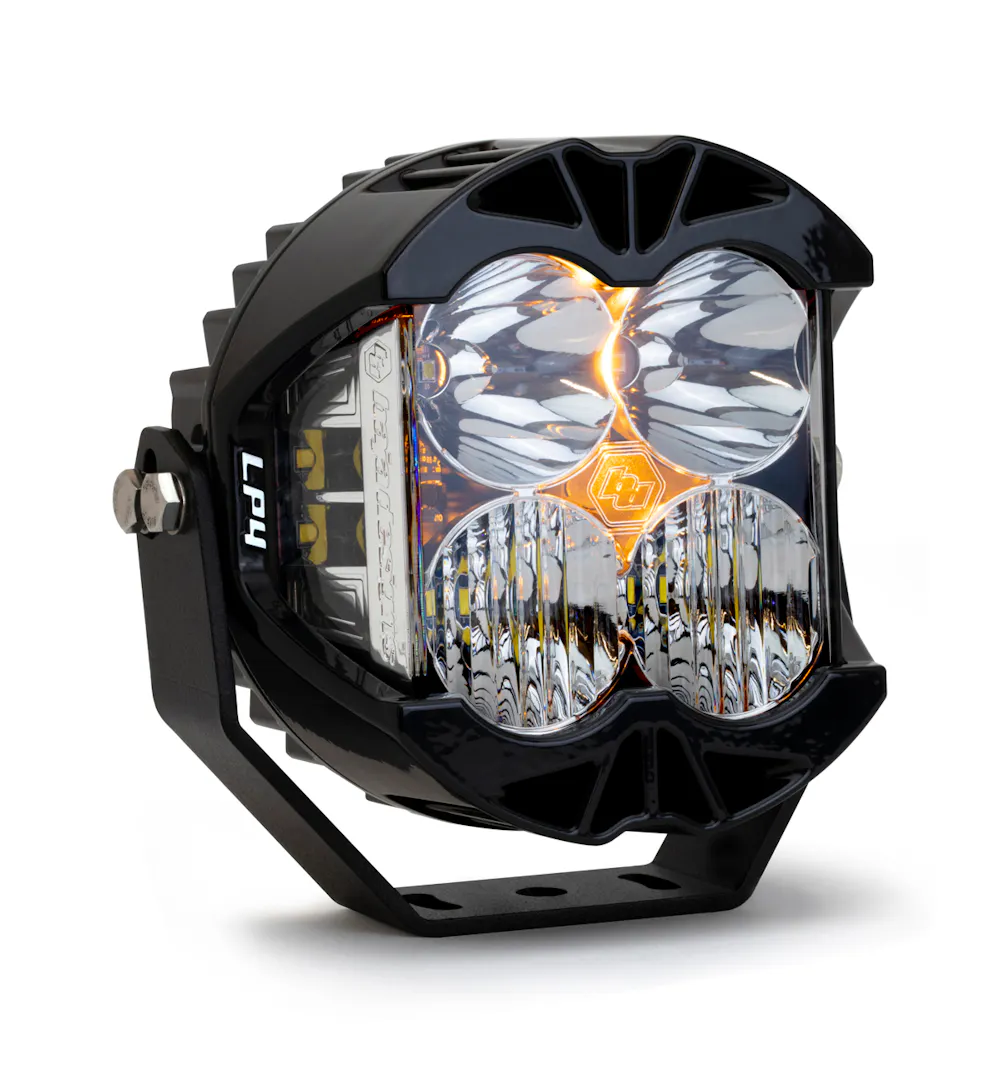

Baja Designs 290003
