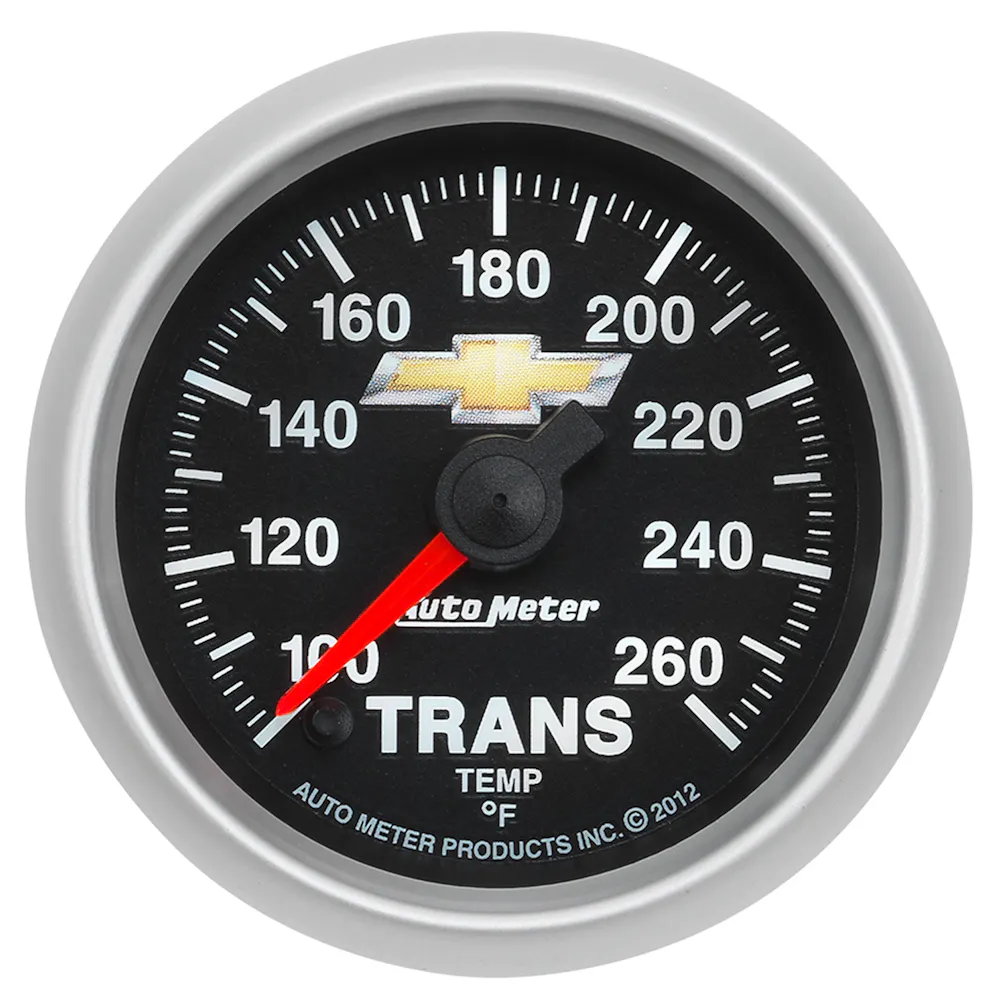

AutoMeter Products · 880448

Part #: 880448
UPC: 046074148439

Loading availability... Loading...

Notify me when this item is in stock.

Brand: AutoMeter Products Series: COPO Camaro Transmission Temperature Gauges

Description: GAUGE; TRANS TEMP; 2 1/16in.; 100-260deg.F; DIGITAL STEPPER MOTOR; CHEVY GOLD BO; 2-1/16in. TRANS TEMP; 100-260 deg.F; DIGITAL STEPPER MOTOR; CHEVY GOLD BOWTIE

Cancer - www.P65Warnings.ca.gov

Description

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8 in. NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.

Features & benefits

Red Pointer For Quick Glance Monitoring
1 Year Limited Warranty
Modern LED Through The Dial Lighting
Incl. Data Acquisition Grade Temp Sender
Incl. 1/8 in. NPT Temp Sender
Incl. 3/8 And 1/2 in. NPT Adapters
Incl. Mounting Hardware/Installation Instructions
Digital Stepper Motor Provides Unmatched Accuracy

Specifications

GTIN: 00046074148439
Weight: 0.6 lb
Height: 4.5 in
Length: 4.75 in
Width: 4.5 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: ATM
Warehouse brand code: ATM
AAIA brand code: BDHZ

Attributes

AAM Standard Pack: 24
Adapters Included: Yes
Add-On Part: N/A
Analog Or Digital: Analog
Anti-Glare Enclosure Included: No
Bezel Color: Brushed Aluminum
Bezel Style: Super Bezel
Bulb Technology: LED
Bulb Type: LED
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Dial (Face Color): Black
Electric Or Mechanical: Electric; Digital Stepper Motor
Face Color: Black
Fitting Type: 0.375 in. NPT and 0.500 in. NPT
Fittings Included: Yes
Font Color: White
Gauge Size: 52.4mm
Gauge Size (mm): 52.4
Gauge Type: Transmission Temperature
Hole Size: 52.4mm
Lens: Flat Clear
Lighting Color: White
Lighting Type: LED
Measurement: US
Mounting Bracket Number: 2230
Movement Type: Electric Digital Stepper Motor
Number Color: White
Outer Bezel Diameter: 2.250 in.
Pointer Color: Fluorescent Red
Sending Unit Included: Yes
Sending Unit Number: 2252
Size: 2.3125 in.
Size (in.): 2-1/16
Sweep: Full
Temperature: 100-260° F
Title: 2-1/16" TRANS TEMP, 100-260 ?F, DIGITAL STEPPER MOTOR, GM COPO CAMARO
Type: Electrical
Voltage: 8-18 V
Wire Harness Number: 5226
