AutoMeter Products / 8449
Part #: 8449
UPC: 046074084492
Loading...
Notify me when this item is in stock.

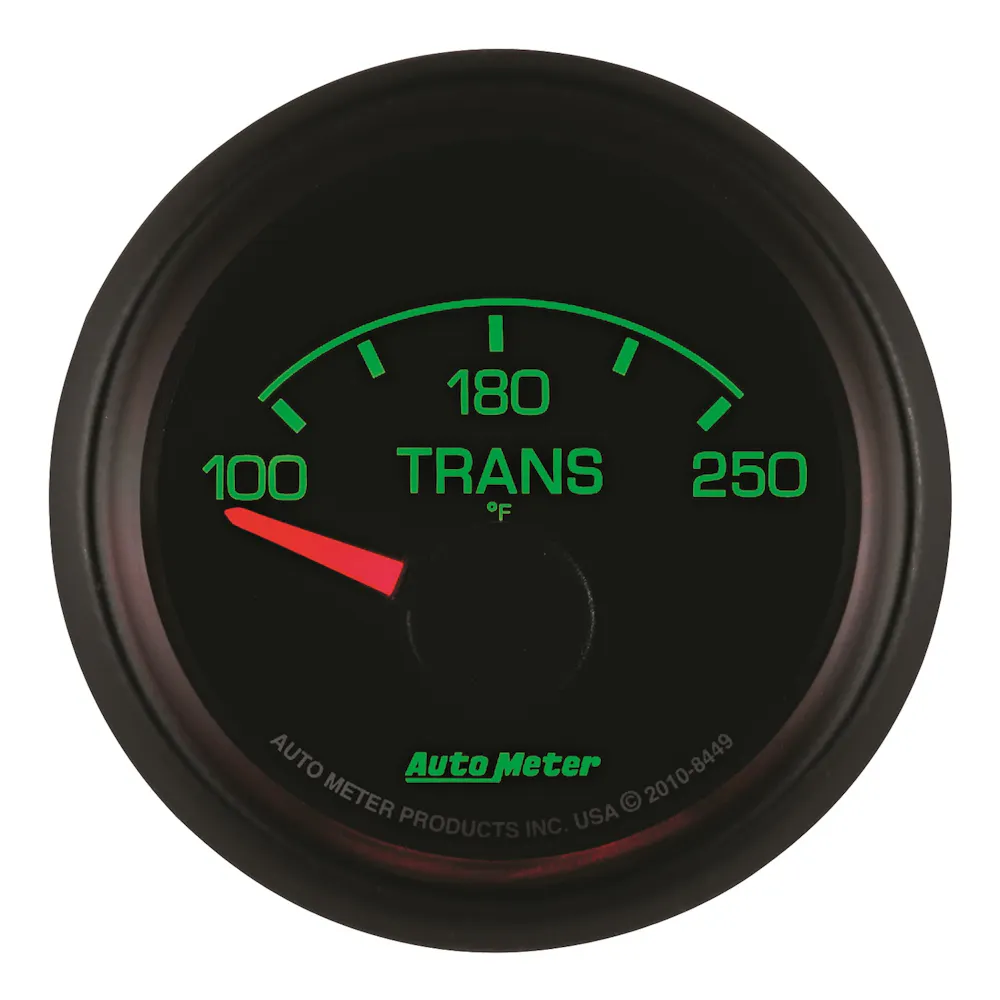

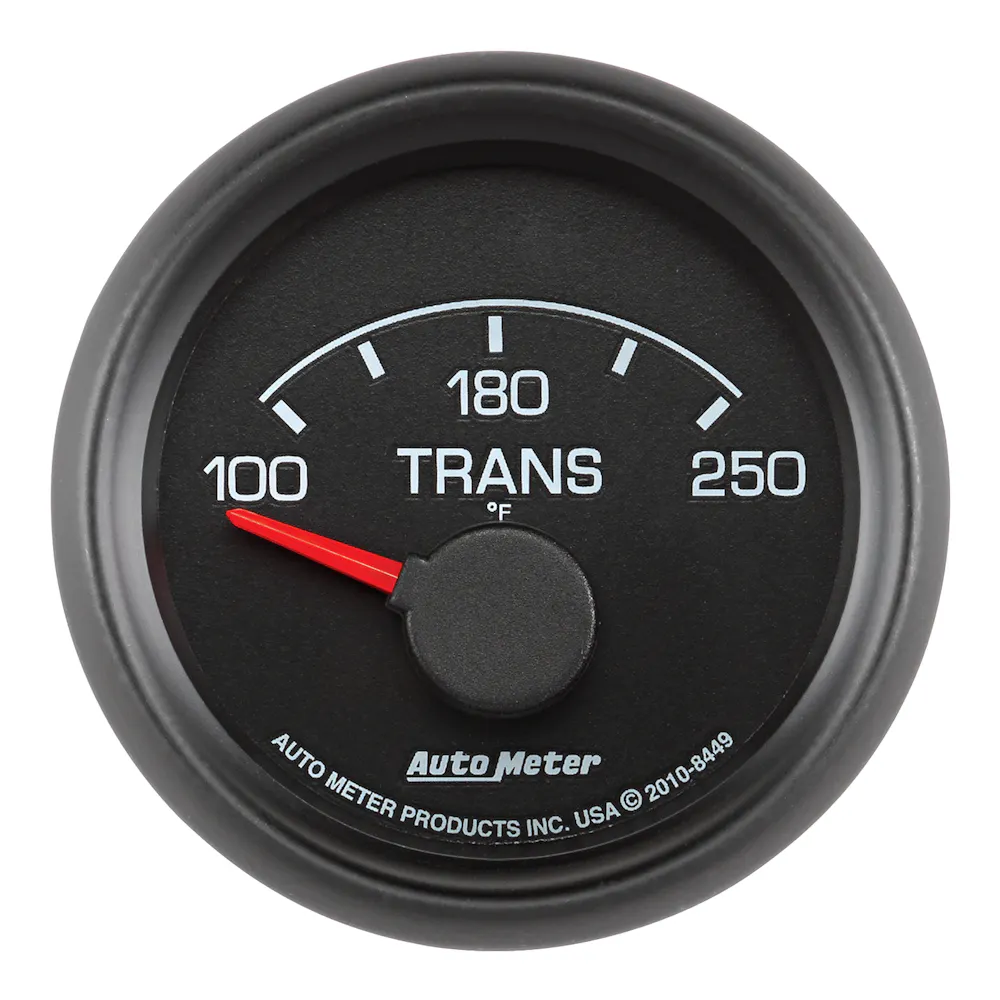

Description: GAUGE; TRANSMISSION TEMP; 2 1/16in.; 100-250deg.F; ELECTRIC; FORD FACTORY MATCH; 2-1/16in. TRANSMISSION TEMPERATURE; 100-250 deg.F; FORD FACTORY MATCH
Description:
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8 in. NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
Features & benefits
- Factory Matched LED Through-The-Dial Lighting
- 12 And 16 Volt Compatible
- Incl. 1/8 in. NPT Temp Sender
- Incl. 3/8 And 1/2 in. NPT Adapters
- Incl. Mounting Hardware/Installation Instructions
- Digital Stepper Motor Provides Unmatched Accuracy
Application summary
| Year | Make / model |
|---|---|
| 1999-2007 | Ford F-250 Super Duty |
| 1999-2007 | Ford F-350 Super Duty |
Specifications
- GTIN
- 00046074084492
- Weight
- 0.5 lb
- Height
- 4.5 in
- Length
- 4.75 in
- Width
- 4.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 24
- Adapters Included
- Yes
- Add-On Part
- N/A
- Analog Or Digital
- Analog
- Anti-Glare Enclosure Included
- No
- Bezel Color
- Black
- Bezel Style
- Super Bezel
- Bulb Technology
- LED
- Bulb Type
- LED
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- Black
- Electric Or Mechanical
- Electric; Air-Core
- Face Color
- Black
- Fitting Type
- 0.500 in. NPT
- Fittings Included
- Yes
- Font Color
- White
- Gauge Size
- 52.4mm
- Gauge Size (mm)
- 52.4
- Gauge Type
- Transmission Temperature
- Hole Size
- 52.4mm
- Lens
- Flat Clear
- Lighting Color
- Green
- Lighting Type
- LED
- Measurement
- US
- Movement Type
- Electric Air-Core
- Number Color
- White
- Outer Bezel Diameter
- 2.250 in.
- Pointer Color
- Fluorescent Red
- Sending Unit Included
- Yes
- Size
- 2.3125 in.
- Size (in.)
- 2-1/16
- Sweep
- Short
- Title
- 2-1/16" TRANSMISSION TEMPERATURE, 100-250 ?F, FORD FACTORY MATCH
- Type
- Electrical
- Voltage
- 8-18 V
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1999-2007 Ford F-250 Super Duty; 1999-2007 Ford F-350 Super Duty
