AutoMeter Products · 8357
Part #: 8357
UPC: 046074083570
Loading...
Notify me when this item is in stock.
Description: GAUGE; TRANS TEMP; 2 1/16in.; 100-260deg.F; DIGITAL STEPPER MOTOR; GM FACTORY MA; 2-1/16in. TRANSMISSION TEMPERATURE; 100-260 deg.F; GM FACTORY MATCH
Description:
Description

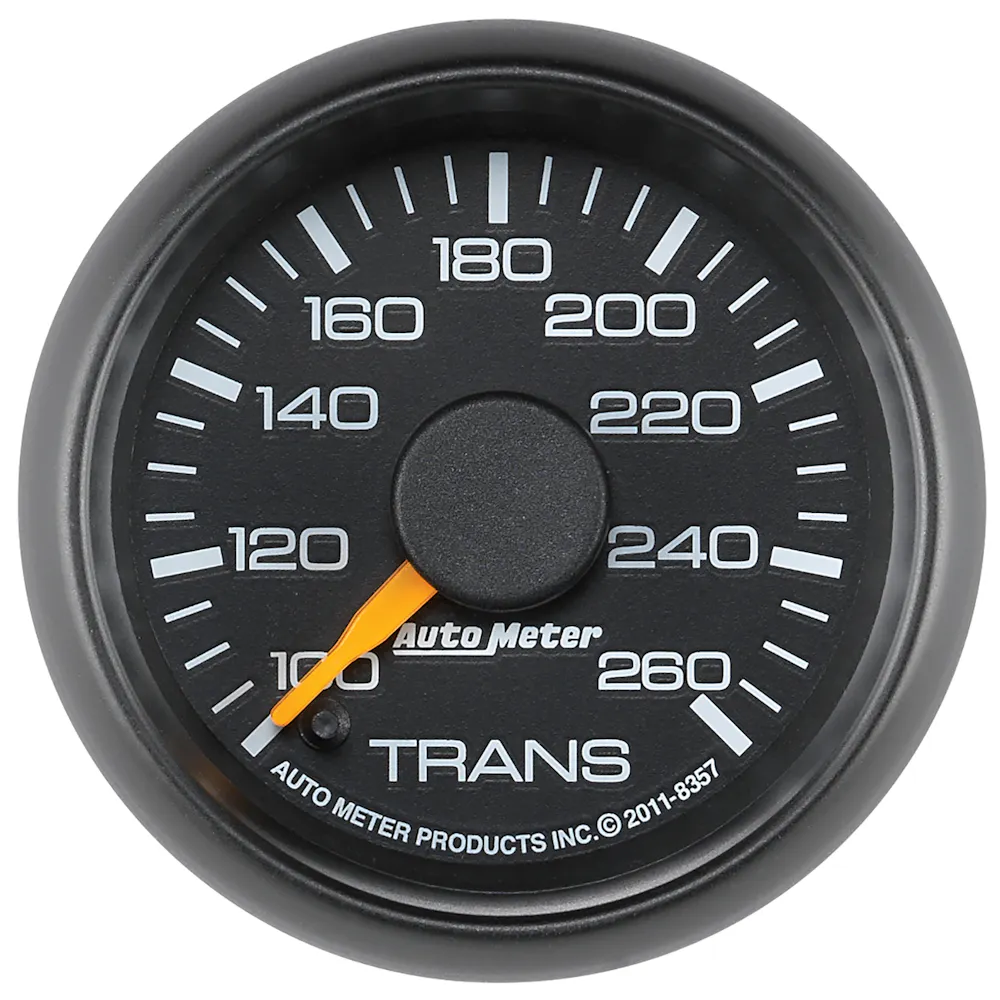

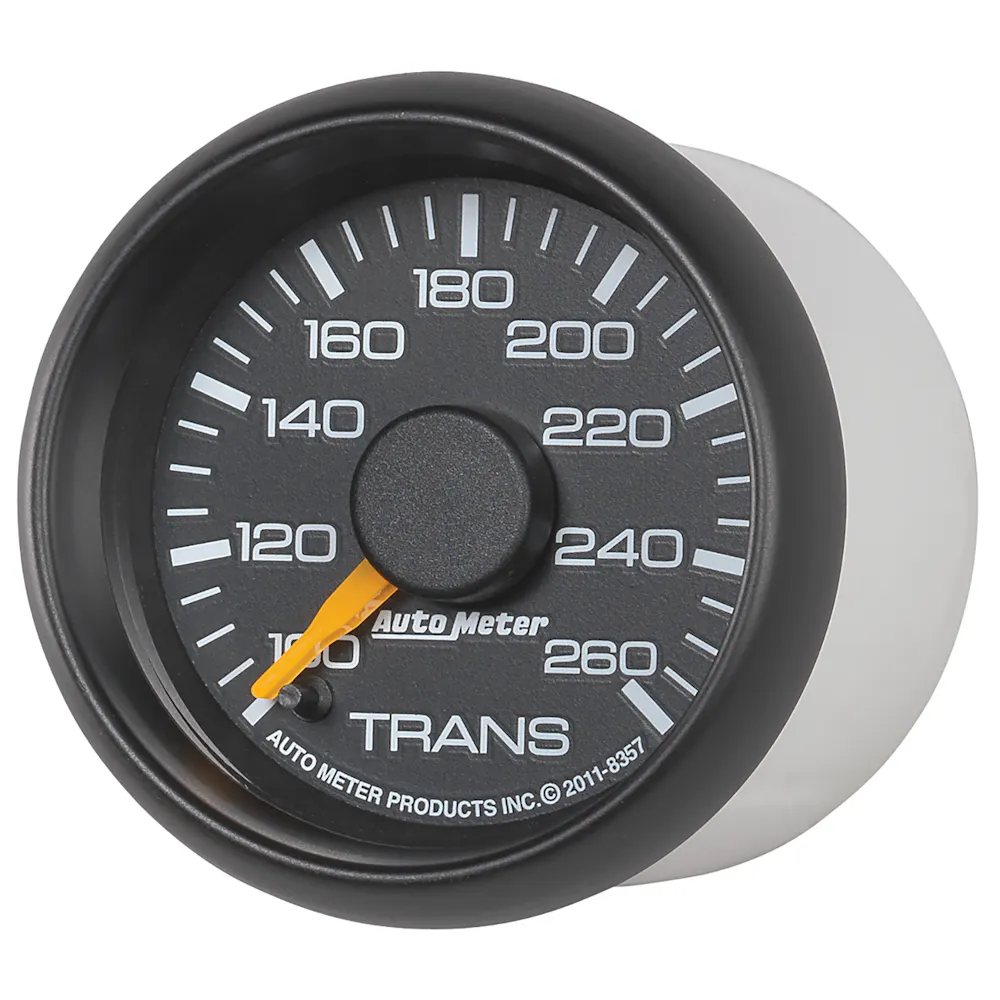

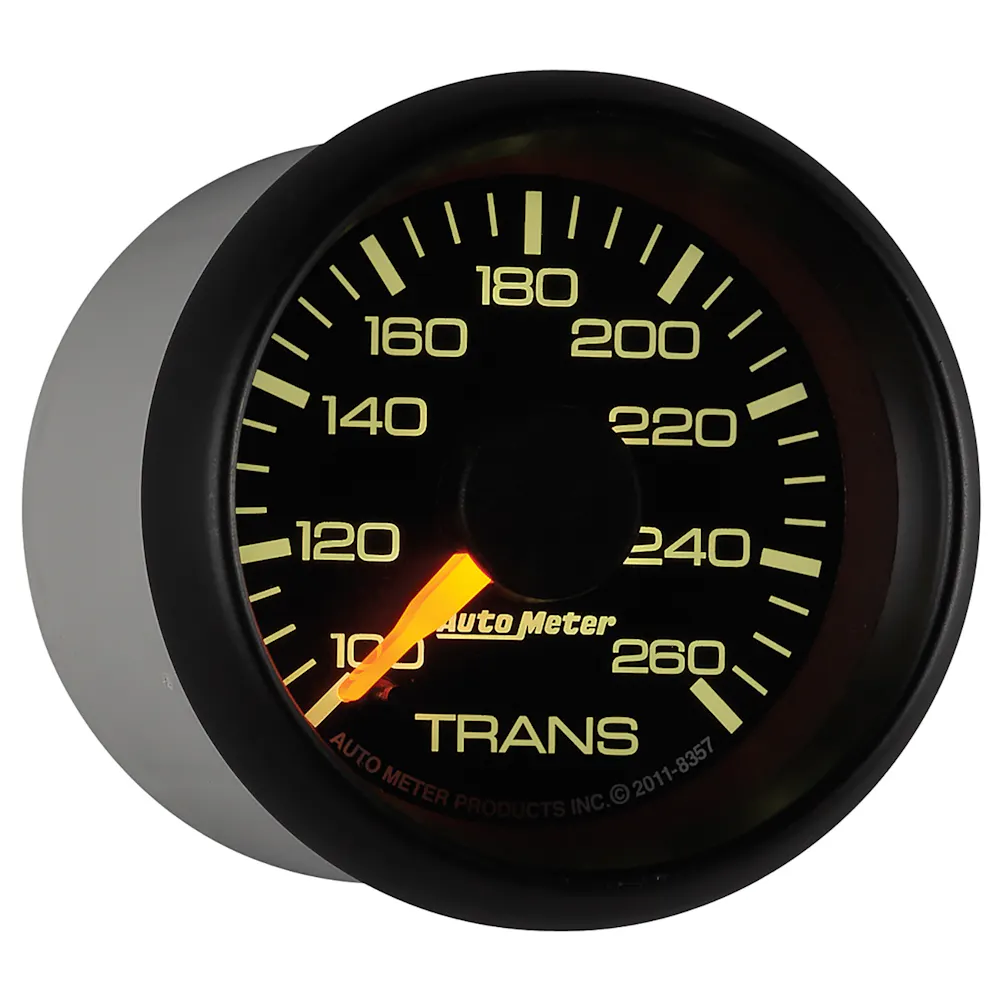

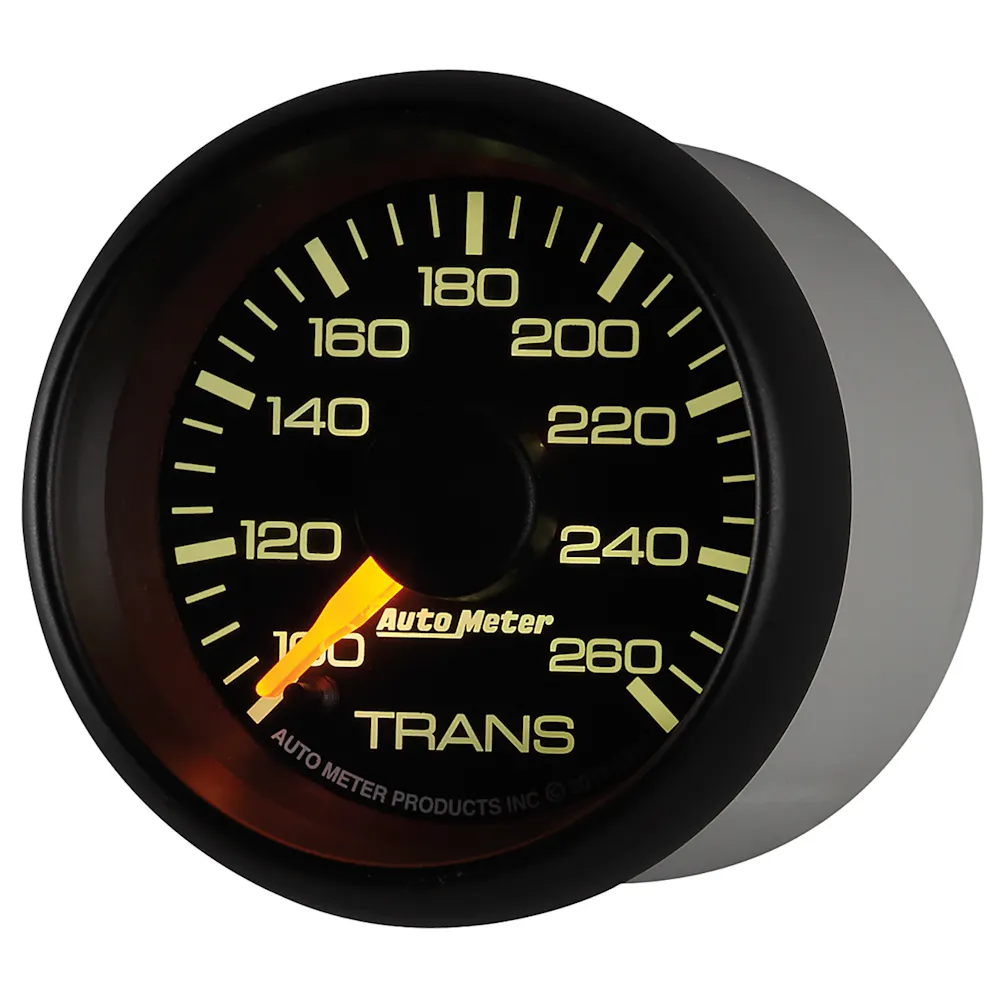

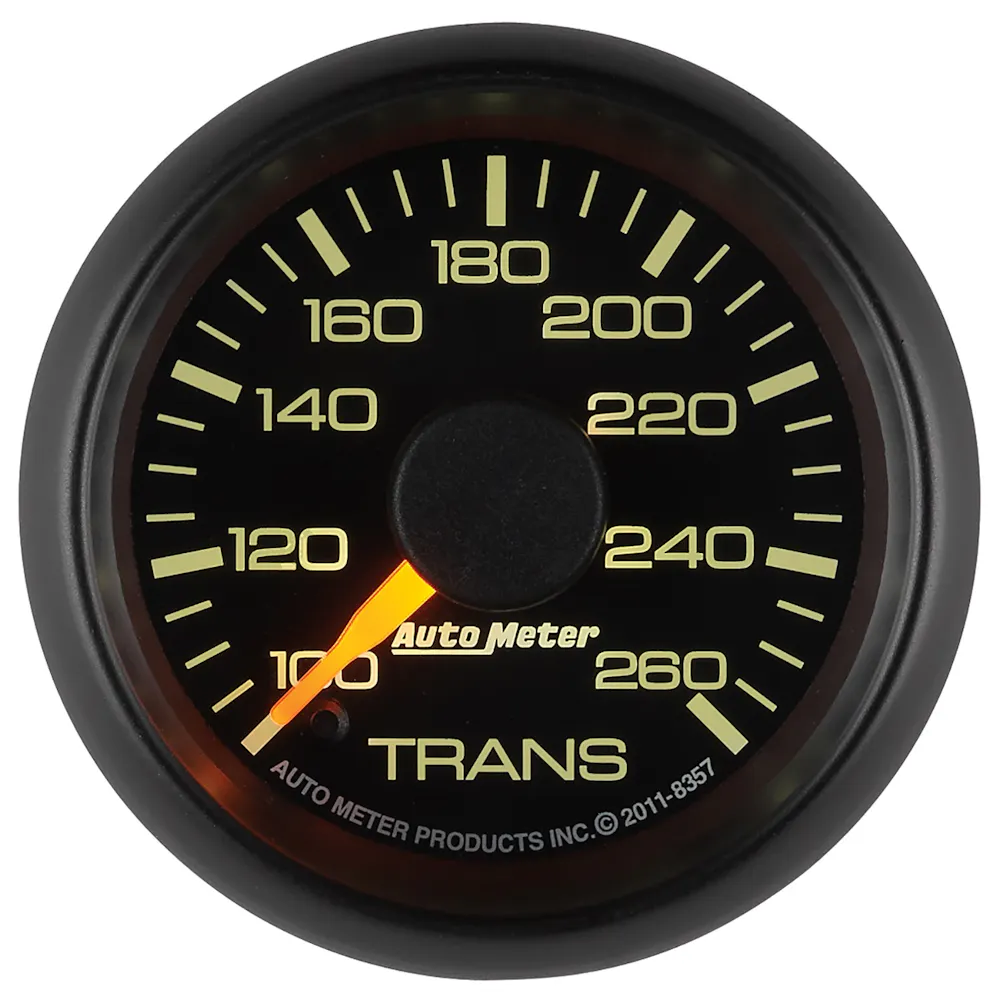

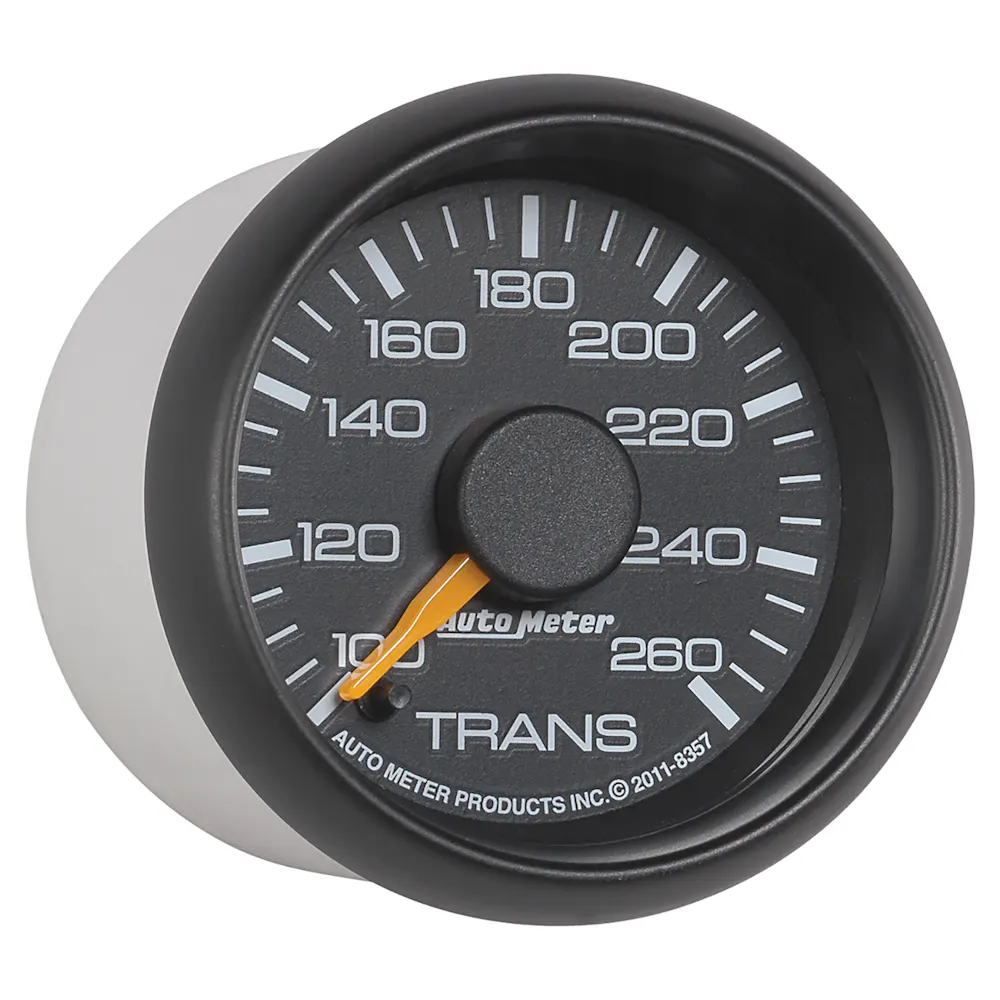

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8 in. NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
Features & benefits
- Factory Matched LED Through-The-Dial Lighting
- Incl. Data Acquisition Grade Temp Sender
- Incl. 1/8 in; NPT Temp Sender; Wiring Harness
- Incl. 3/8 And 1/2 in. NPT Adapters
- Incl. Mounting Hardware/Installation Instructions
- Digital Stepper Motor Provides Unmatched Accuracy
Application summary
| Year | Make / model |
|---|---|
| 1999-2006 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2001-2003 | Chevrolet Silverado 1500 HD |
| 2005-2006 | Chevrolet Silverado 1500 HD |
| 2007 | Chevrolet Silverado 1500 HD Classic |
| 1999-2004 | Chevrolet Silverado 2500 |
| 2001-2006 | Chevrolet Silverado 2500 HD |
| 2007 | Chevrolet Silverado 2500 HD Classic |
| 2001-2006 | Chevrolet Silverado 3500 |
| 2007 | Chevrolet Silverado 3500 Classic |
| 1999-2006 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2001-2003 | GMC Sierra 1500 HD |
| 2005-2006 | GMC Sierra 1500 HD |
| 2007 | GMC Sierra 1500 HD Classic |
| 1999-2004 | GMC Sierra 2500 |
| 2001-2006 | GMC Sierra 2500 HD |
| 2007 | GMC Sierra 2500 HD Classic |
| 2001-2006 | GMC Sierra 3500 |
| 2007 | GMC Sierra 3500 Classic |
Specifications
- GTIN
- 00046074083570
- Weight
- 0.6 lb
- Height
- 4.5 in
- Length
- 4.75 in
- Width
- 4.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 24
- Adapters Included
- Yes
- Add-On Part
- N/A
- Analog Or Digital
- Analog
- Anti-Glare Enclosure Included
- No
- Bezel Color
- Black
- Bezel Style
- Super Bezel
- Bulb Technology
- LED
- Bulb Type
- LED
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- Black
- Electric Or Mechanical
- Electric; Digital Stepper Motor
- Face Color
- Black
- Fitting Type
- 0.500 in. NPT
- Fittings Included
- Yes
- Font Color
- White
- Gauge Size
- 52.4mm
- Gauge Size (mm)
- 52.4
- Gauge Type
- Transmission Temperature
- Hole Size
- 52.4mm
- Lens
- Flat Clear
- Lighting Color
- White
- Lighting Type
- LED
- Measurement
- US
- Movement Type
- Electric Digital Stepper Motor
- Number Color
- White
- Outer Bezel Diameter
- 2.250 in.
- Pointer Color
- Orange
- Sending Unit Included
- Yes
- Size
- 2.3125 in.
- Size (in.)
- 2-1/16
- Sweep
- Full
- Title
- 2-1/16" TRANSMISSION TEMPERATURE, 100-260 ?F, GM FACTORY MATCH
- Type
- Electrical
- Voltage
- 8-18 V
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1999-2006 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2001-2003 Chevrolet Silverado 1500 HD; 2005-2006 Chevrolet Silverado 1500 HD; 2007 Chevrolet Silverado 1500 HD Classic; 1999-2004 Chevrolet Silverado 2500; 2001-2006 Chevrolet Silverado 2500 HD; 2007 Chevrolet Silverado 2500 HD Classic; 2001-2006 Chevrolet Silverado 3500; 2007 Chevrolet Silverado 3500 Classic; 1999-2006 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2001-2003 GMC Sierra 1500 HD; 2005-2006 GMC Sierra 1500 HD; 2007 GMC Sierra 1500 HD Classic; 1999-2004 GMC Sierra 2500; 2001-2006 GMC Sierra 2500 HD; 2007 GMC Sierra 2500 HD Classic; 2001-2006 GMC Sierra 3500; 2007 GMC Sierra 3500 Classic
