AutoMeter Products / 7856
Part #: 7856
UPC: 046074078569
Loading...
Notify me when this item is in stock.

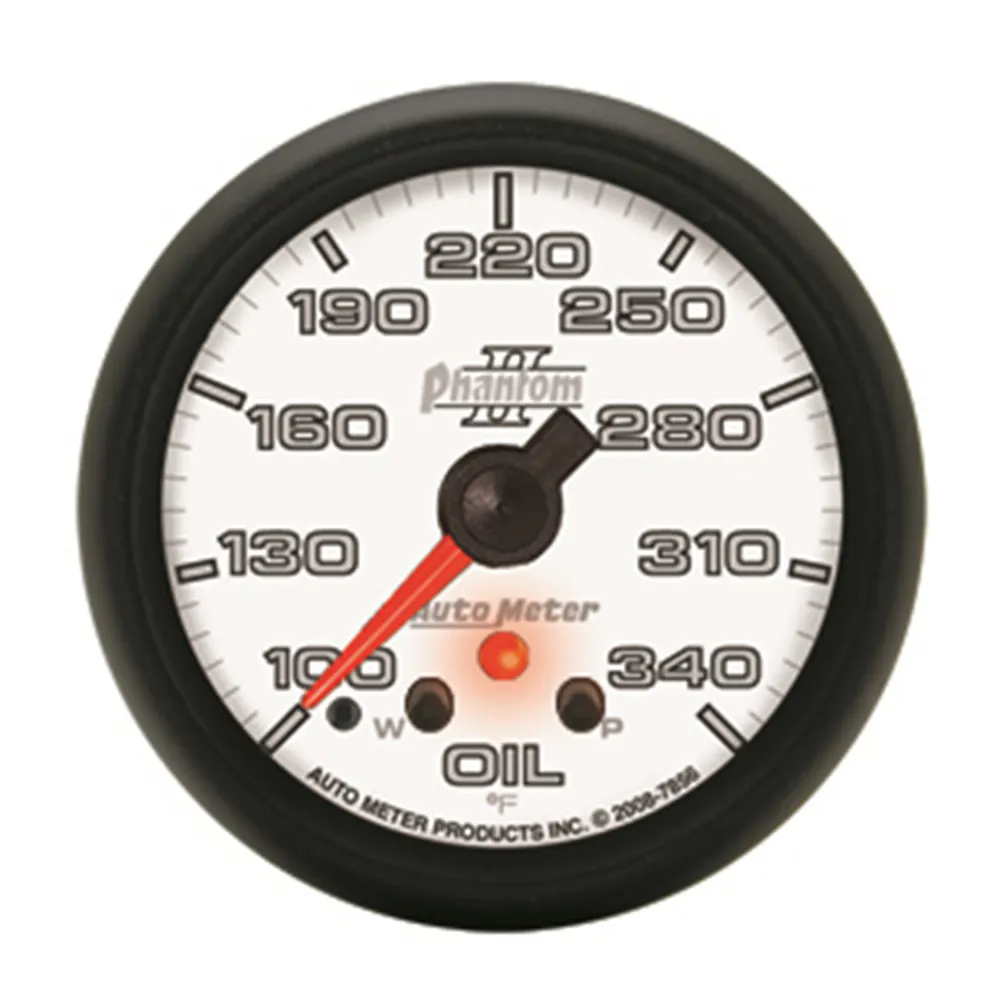

Description: GAUGE; OIL TEMP; 2 5/8in.; 340deg.F; STEPPER MOTOR W/PEAK/WARN; PHANTOM II; 2-5/8in. OIL TEMPERATURE; 100-340 deg.F; PHANTOM II
Description:
Description
One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you've got the proper oil weight and cooling capacity. Using AutoMeter's advanced 1/8 in. NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. Peak value recall and a configurable warning point help you to keep your eyes on the task at hand. A direct plug in wiring harness is included for ease of installation.
Features & benefits
- Modern White LED Through-The-Dial Lighting
- 12 And 16V Compatible
- Incl. Data Acquisition Grade Temp Sender
- Incl. 1/8 in. NPT Temp Sender
- Incl. 3/8 And 1/2 in. NPT Adapters
- Set Custom Alert Specific To Your Vehicle
- One-Touch Peak Recall
- Digital Stepper Motor Provides Unmatched Accuracy
Specifications
- GTIN
- 00046074078569
- Weight
- 0.8 lb
- Height
- 6 in
- Length
- 5.25 in
- Width
- 6.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 18
- Adapters Included
- Yes
- Add-On Part
- N/A
- Analog Or Digital
- Analog
- Anti-Glare Enclosure Included
- No
- Bezel Color
- Black
- Bezel Style
- Super Bezel
- Bulb Technology
- LED
- Bulb Type
- LED
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- White
- Electric Or Mechanical
- Electric; Digital Stepper Motor
- Face Color
- White
- Fitting Type
- 0.375 in. NPT and 0.500 in. NPT
- Font Color
- Black
- Gauge Size
- 66.7mm
- Gauge Size (in.)
- 2.625
- Gauge Size (mm)
- 66.7
- Gauge Type
- Oil Temperature
- Hole Size
- 66.7mm
- Lens
- Flat Clear
- Lighting Color
- White
- Lighting Type
- LED
- Measurement
- US
- Mounting Bracket Number
- 3245
- Movement Type
- Electric Digital Stepper Motor
- Number Color
- Black
- Outer Bezel Diameter
- 2.875 in.
- Pointer Color
- Fluorescent Red
- Sending Unit Included
- Yes
- Sending Unit Number
- 2258
- Size
- 2.625 in.
- Size (in.)
- 2-5/8
- Sweep
- Full
- Temperature
- 0-340° F
- Title
- 2-5/8" OIL TEMPERATURE, 100-340 ?F, PHANTOM II
- Type
- Electrical
- Voltage
- 8-18 V
- Wire Harness Number
- 5226
Fitment status
This product is universal and will fit your application.
