AutoMeter Products · 7848
Part #: 7848
UPC: 046074078484
Loading...
Notify me when this item is in stock.

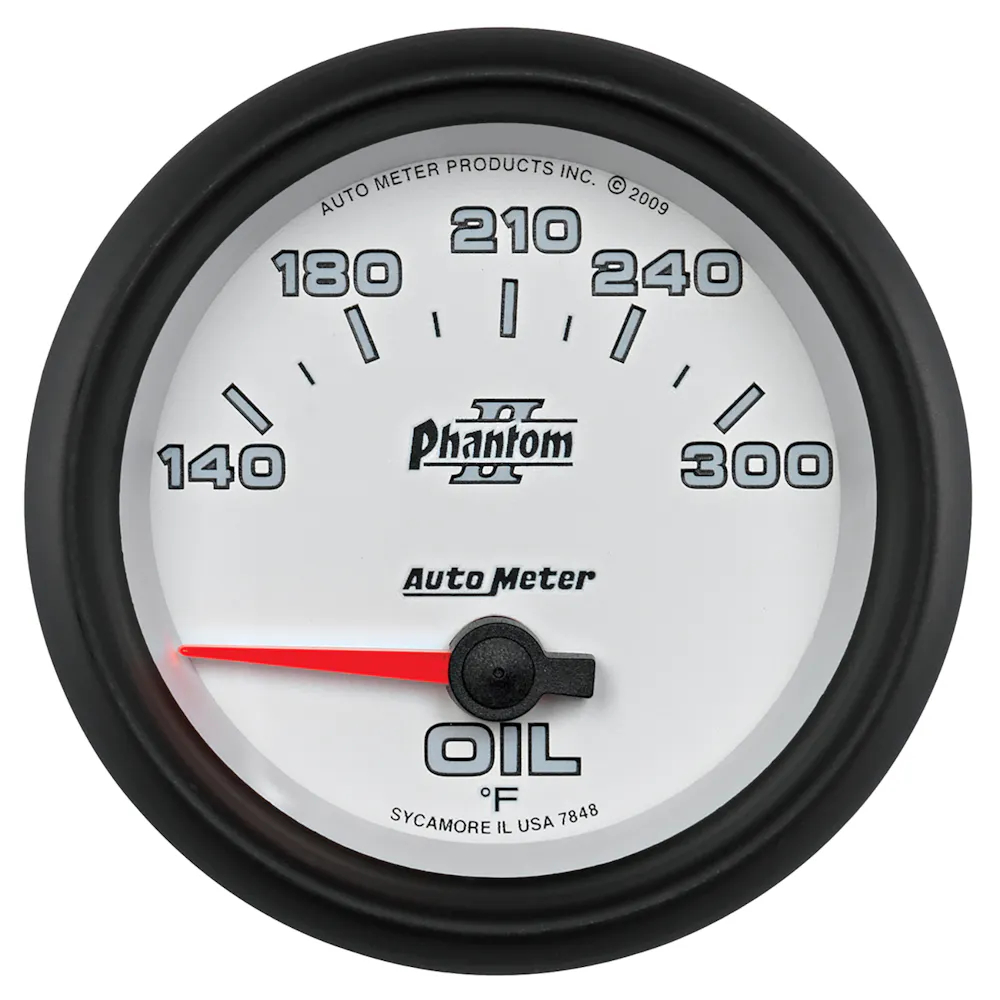

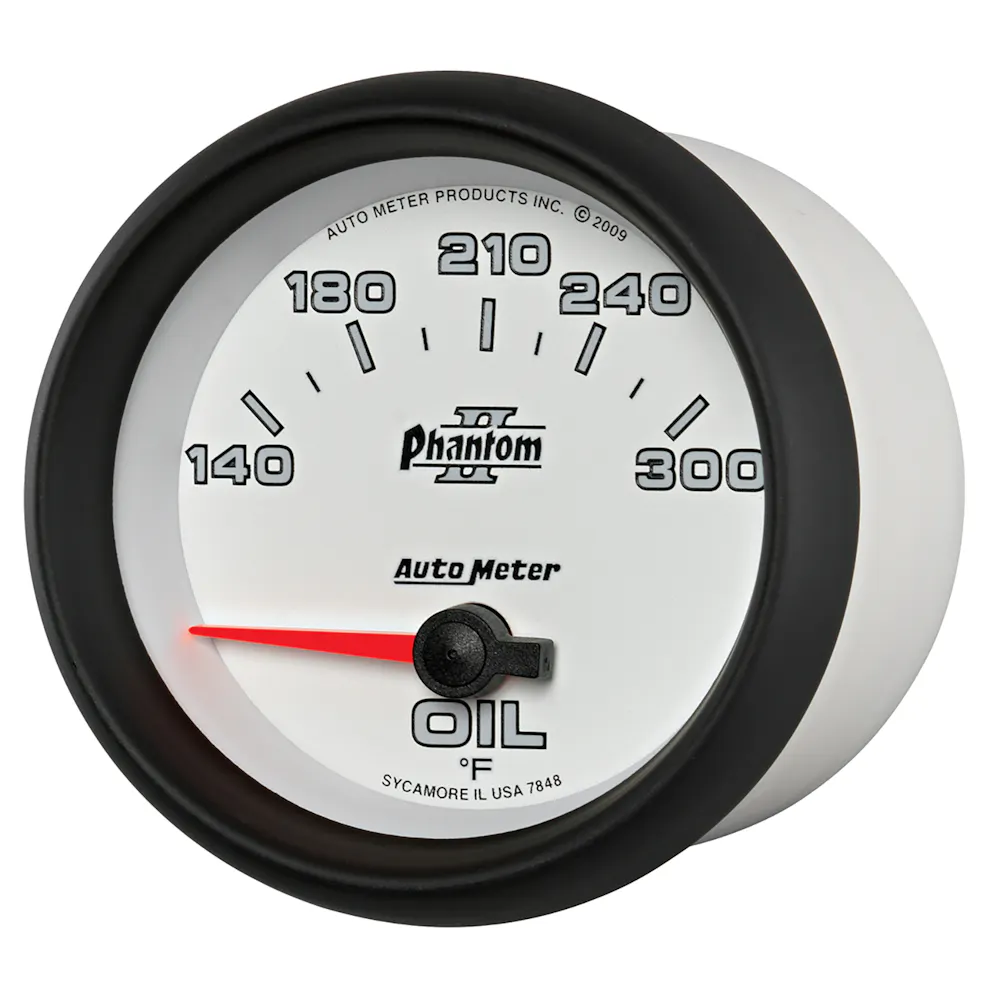

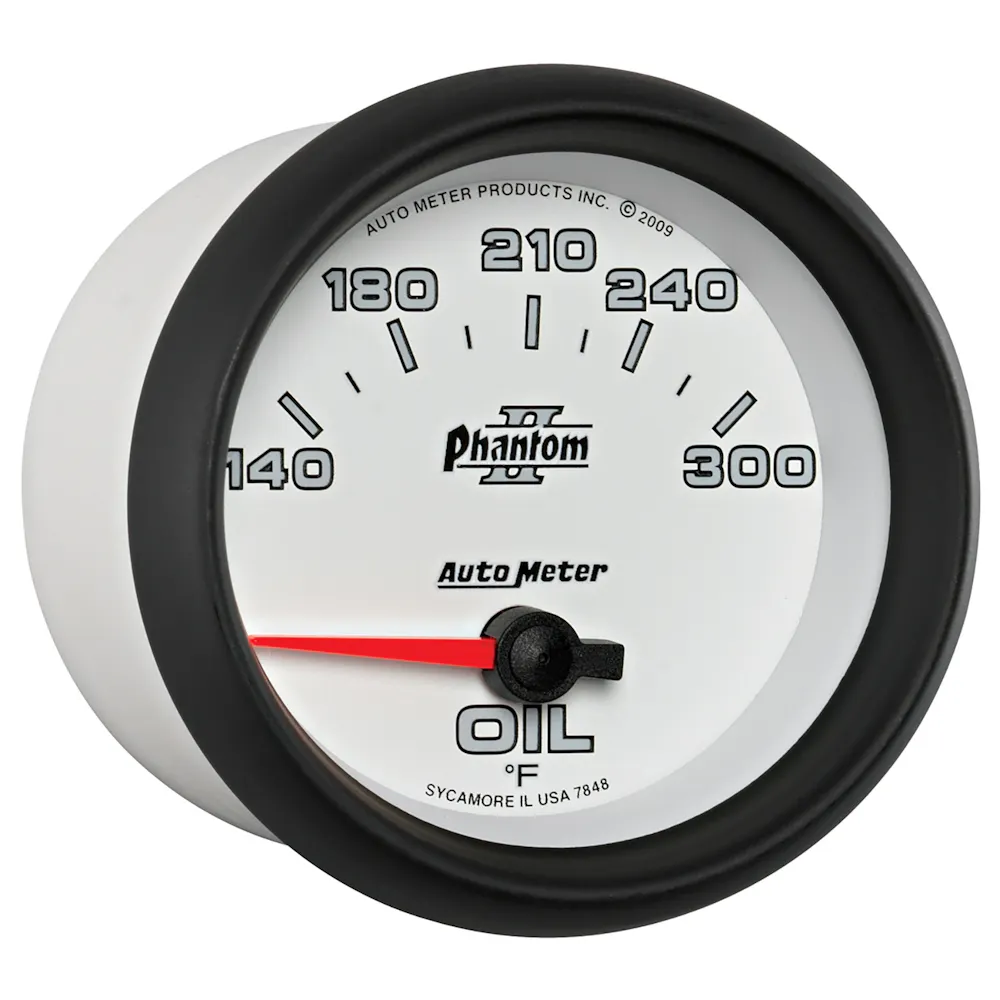

Description: GAUGE; OIL TEMP; 2 5/8in.; 140-300deg.F; ELECTRIC; PHANTOM II; 2-5/8in. OIL TEMPERATURE; 140-300 deg.F; PHANTOM II
Description:
Description
An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter's patented air core meter movement, a single wire, 1/8 in. NPT temperature sender is included.
Features & benefits

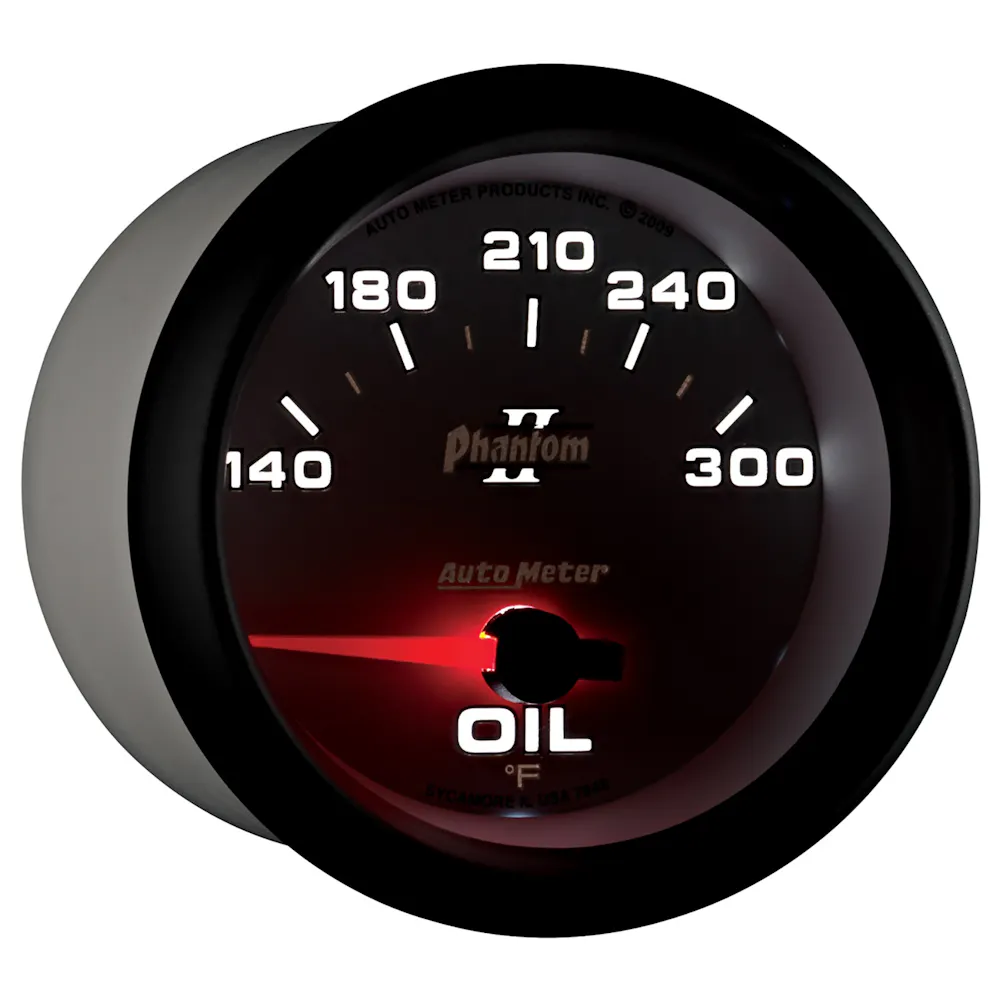

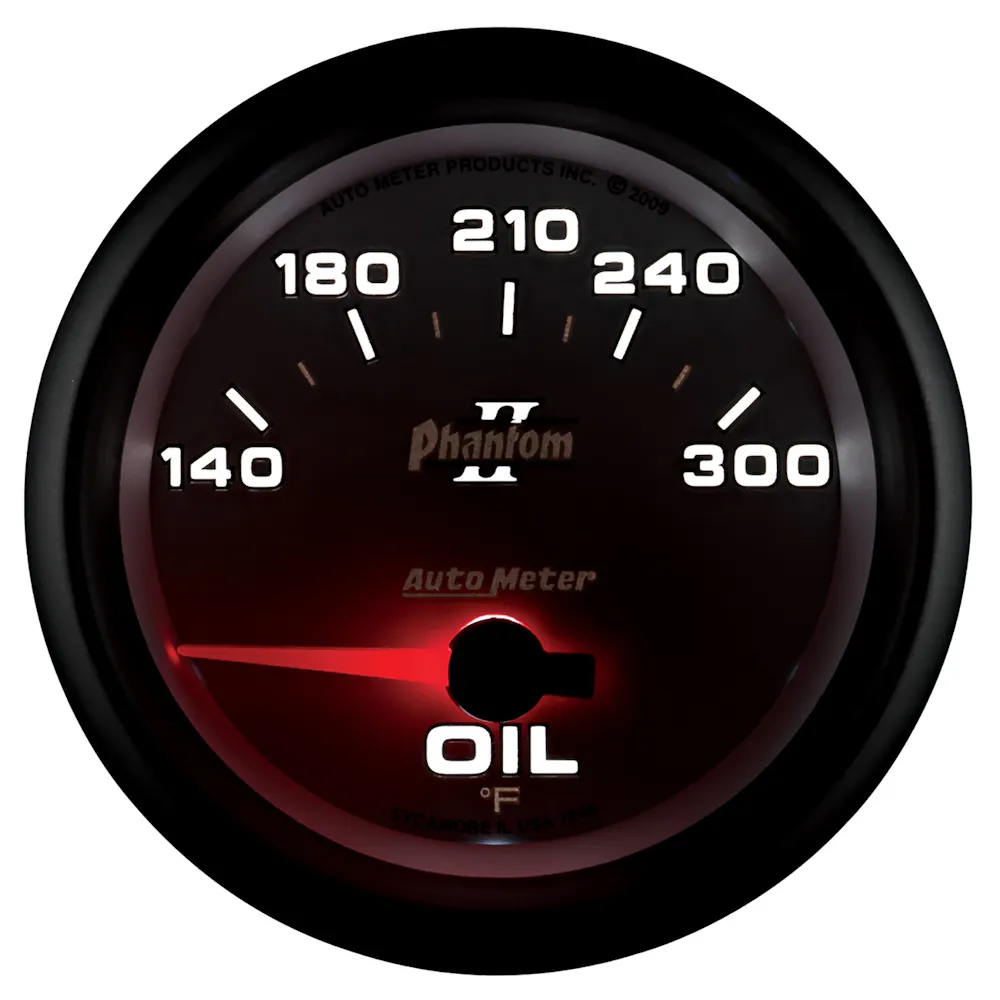

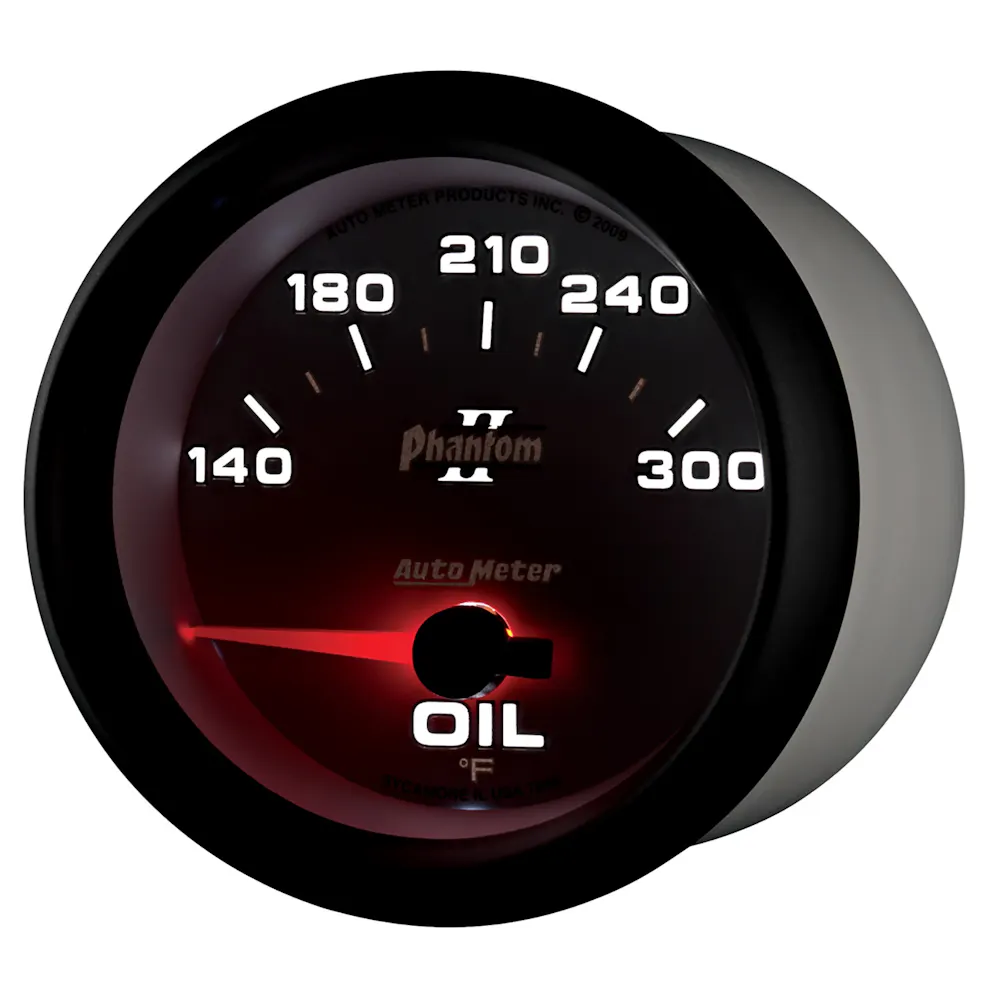

- Modern White LED Through-The-Dial Lighting
- 12 And 16V Compatible
- Incl. 1/8 in. NPT Temp Sender
- Incl. 3/8 And 1/2 in. NPT Adapters
- Air-Core Electric Instruments Provide Quick And Accurate Readings
Specifications
- GTIN
- 00046074078484
- Weight
- 0.8 lb
- Height
- 6 in
- Length
- 5.25 in
- Width
- 6.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 18
- Adapters Included
- Yes
- Add-On Part
- N/A
- Analog Or Digital
- Analog
- Anti-Glare Enclosure Included
- No
- Bezel Color
- Black
- Bezel Style
- Super Bezel
- Bulb Technology
- LED
- Bulb Type
- LED
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- White
- Electric Or Mechanical
- Electric; Air-Core
- Face Color
- White
- Fitting Type
- 0.375 in. NPT and 0.500 in. NPT
- Font Color
- Black
- Gauge Size
- 66.7mm
- Gauge Size (in.)
- 2.625
- Gauge Size (mm)
- 66.7
- Gauge Type
- Oil Temperature
- Hole Size
- 66.7mm
- Lens
- Flat Clear
- Lighting Color
- White
- Lighting Type
- LED
- Measurement
- US
- Mounting Bracket Number
- 3245
- Movement Type
- Electric Air-Core
- Number Color
- Black
- Outer Bezel Diameter
- 2.875 in.
- Pointer Color
- Fluorescent Red
- Sending Unit Included
- Yes
- Sending Unit Number
- 2258
- Size
- 2.625 in.
- Size (in.)
- 2-5/8
- Sweep
- Short
- Temperature
- 140-300° F
- Title
- 2-5/8" OIL TEMPERATURE, 140-300 ?F, PHANTOM II
- Type
- Electrical
- Voltage
- 8-18 V
Fitment status
This product is universal and will fit your application.
