AutoMeter Products · 7157
Part #: 7157
UPC: 046074071577
Loading...
Notify me when this item is in stock.
Description: GAUGE; TRANSMISSION TEMP; 2 1/16in.; 100-260deg.F; DIGITAL STEPPER MOTOR; C2; 2-1/16in. TRANSMISSION TEMPERATURE; 100-260 deg.F; C2
Description:
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8 in. NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
Features & benefits
- Provides Ultimate Style And Visibility
- Futuristic Red Point Look
- Precision Movement And Extreme Accuracy
- 1 Year Limited Warranty
- 12 And 16 Volt Compatible
- Incl. 1/8 in. NPT Temp Sender; 3/8 And 1/2 in. NPT Adapters
- Incl. Data Acquisition Grade Temp Sender
- Digital Stepper Instruments Provide Unmatched Accuracy
Specifications
- GTIN
- 00046074071577
- Weight
- 1.1 lb
- Height
- 4.5 in
- Length
- 4.75 in
- Width
- 4.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 18
- Adapters Included
- Yes
- Add-On Part
- N/A
- Analog Or Digital
- Analog
- Anti-Glare Enclosure Included
- No
- Bezel Color
- Bright Anodized
- Bezel Style
- Super Bezel
- Bulb Technology
- LED
- Bulb Type
- LED
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- White
- Electric Or Mechanical
- Electric; Digital Stepper Motor
- Face Color
- White
- Fitting Type
- 0.375 in. NPT and 0.500 in. NPT
- Fittings Included
- Yes
- Font Color
- Black
- Gauge Size
- 52.4mm
- Gauge Size (mm)
- 52.4
- Gauge Type
- Transmission Temperature
- Hole Size
- 52.4mm
- Lens
- Flat Clear
- Lighting Color
- Blue
- Lighting Type
- LED
- Measurement
- US
- Mounting Bracket Number
- 2230
- Movement Type
- Electric Digital Stepper Motor
- Number Color
- Black
- Outer Bezel Diameter
- 2.250 in.
- Pointer Color
- Fluorescent Red
- Sending Unit Included
- Yes
- Sending Unit Number
- 2252
- Size
- 2.3125 in.
- Size (in.)
- 2-1/16
- Sweep
- Full
- Temperature
- 100-260° F
- Title
- 2-1/16" TRANSMISSION TEMPERATURE, 100-260 ?F, C2
- Type
- Electrical
- Voltage
- 8-18 V
- Wire Harness Number
- 5226
Fitment status
This product is universal and will fit your application.

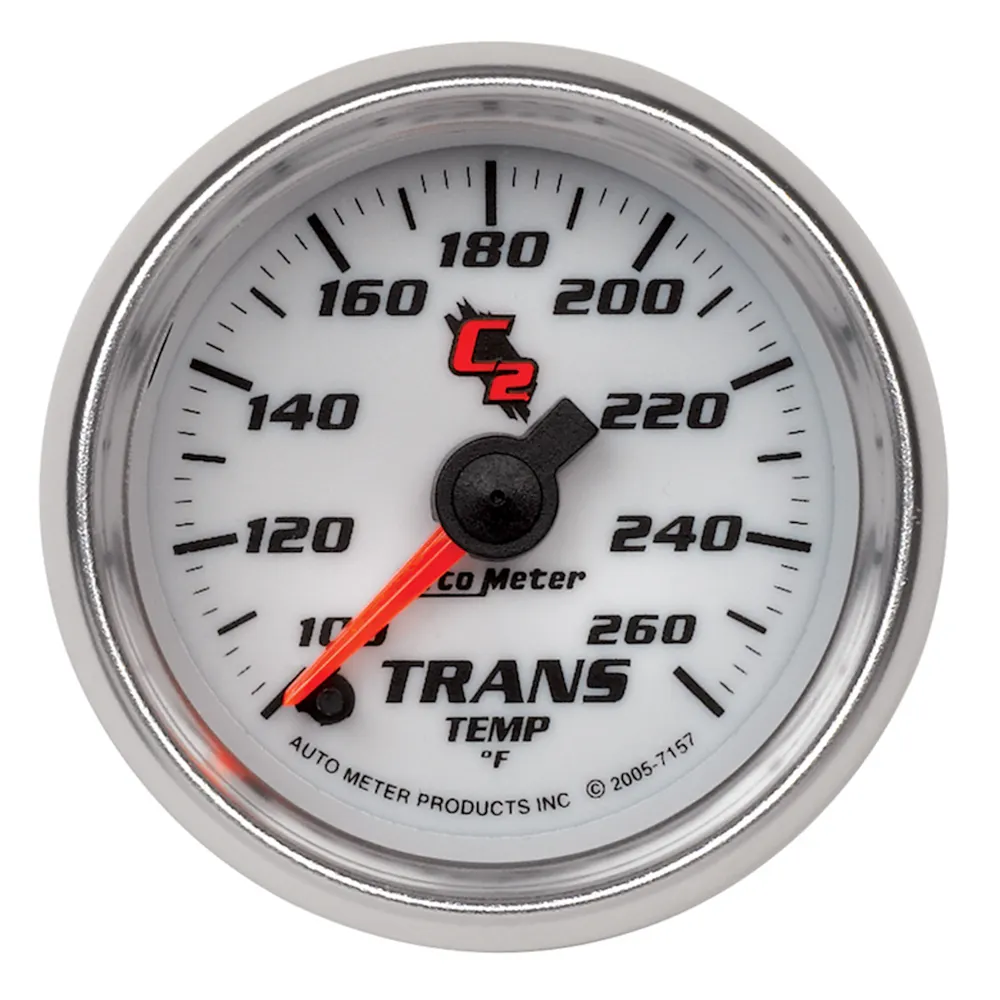

AutoMeter Products 7157
