AutoMeter Products · 7137
Part #: 7137
UPC: 046074071379
Loading...
Notify me when this item is in stock.

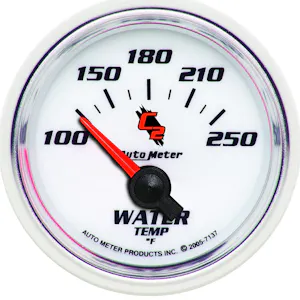

Description: GAUGE; WATER TEMP; 2 1/16in.; 100-250deg.F; ELECTRIC; C2; 2-1/16in. WATER TEMPERATURE; 100-250 deg.F; C2
Description:
Description
A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter's advanced 1/8 in. NPT temperature transducer is included for a simple installation on any application.
Features & benefits
- Provides Ultimate Style And Visibility
- Futuristic Red Point Look
- Precision Movement And Extreme Accuracy
- 1 Year Limited Warranty
- 12 And 16 Volt Compatible
- Incl. 1/8 in. NPT Temp Sender; 3/8 And 1/2 in. NPT Adapters
- Air-Core Electric Instrument Provide Quick And Accurate Readings
Specifications
- GTIN
- 00046074071379
- Weight
- 0.65 lb
- Height
- 4.5 in
- Length
- 4.75 in
- Width
- 4.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 24
- Adapters Included
- Yes
- Add-On Part
- N/A
- Bezel Color
- Bright Anodized
- Bezel Style
- Super Bezel
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- White
- Face Color
- White
- Font Color
- Black
- Gauge Size
- 52.4mm
- Gauge Size (in.)
- 2.0625
- Gauge Size (mm)
- 52.4
- Gauge Type
- Water Temperature
- Hole Size
- 52.4mm
- Lens
- Flat Clear
- Lighting Color
- Blue
- Lighting Type
- LED
- Measurement
- US
- Mounting Hardware Included
- Yes
- Movement Type
- Electric Air-Core
- Number Color
- Black
- Outer Bezel Diameter
- 2.250 in.
- Pointer Color
- Fluorescent Red
- Sending Unit Included
- Yes
- Sending Unit Number
- 2258
- Size
- 2.3125 in.
- Size (in.)
- 2-1/16
- Temperature
- Up To 250° F
- Title
- 2-1/16" WATER TEMPERATURE, 100-250 ?F, C2
- Type
- Electrical
- Voltage
- 12 V
Fitment status
This product is universal and will fit your application.

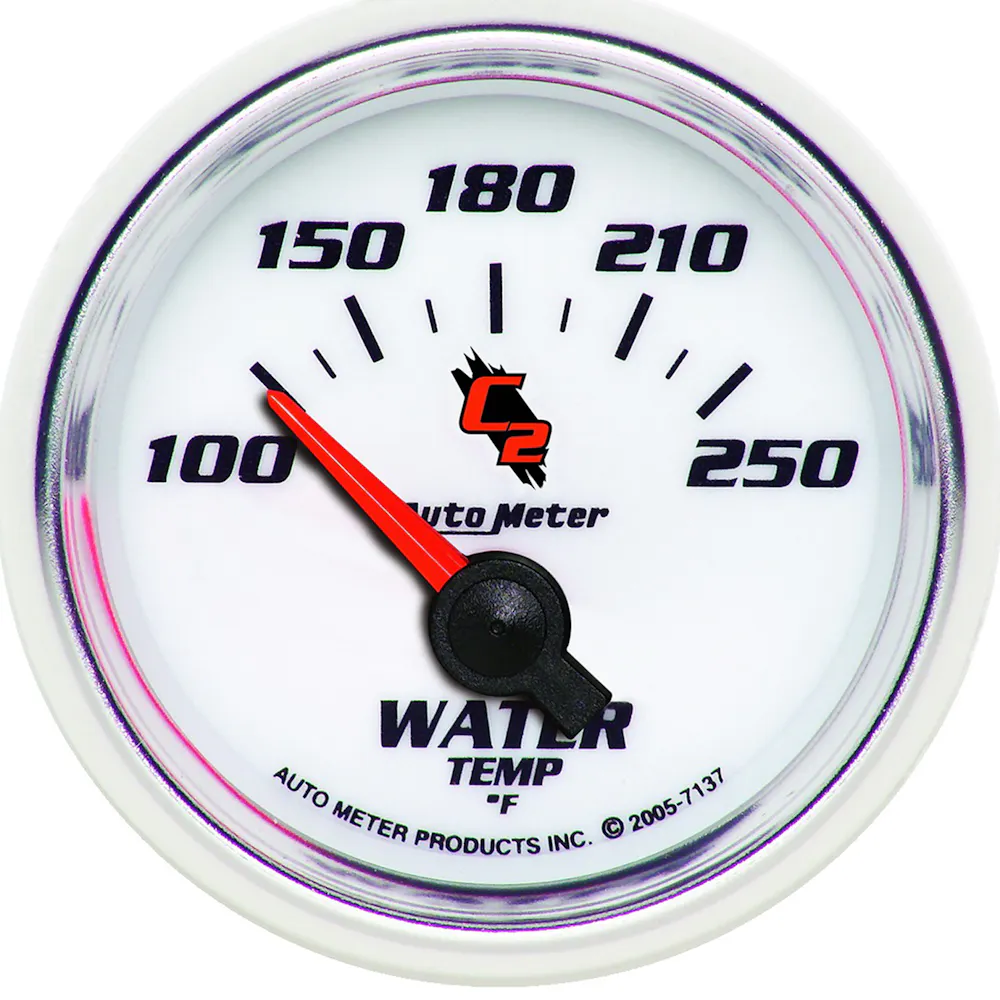

AutoMeter Products 7137
