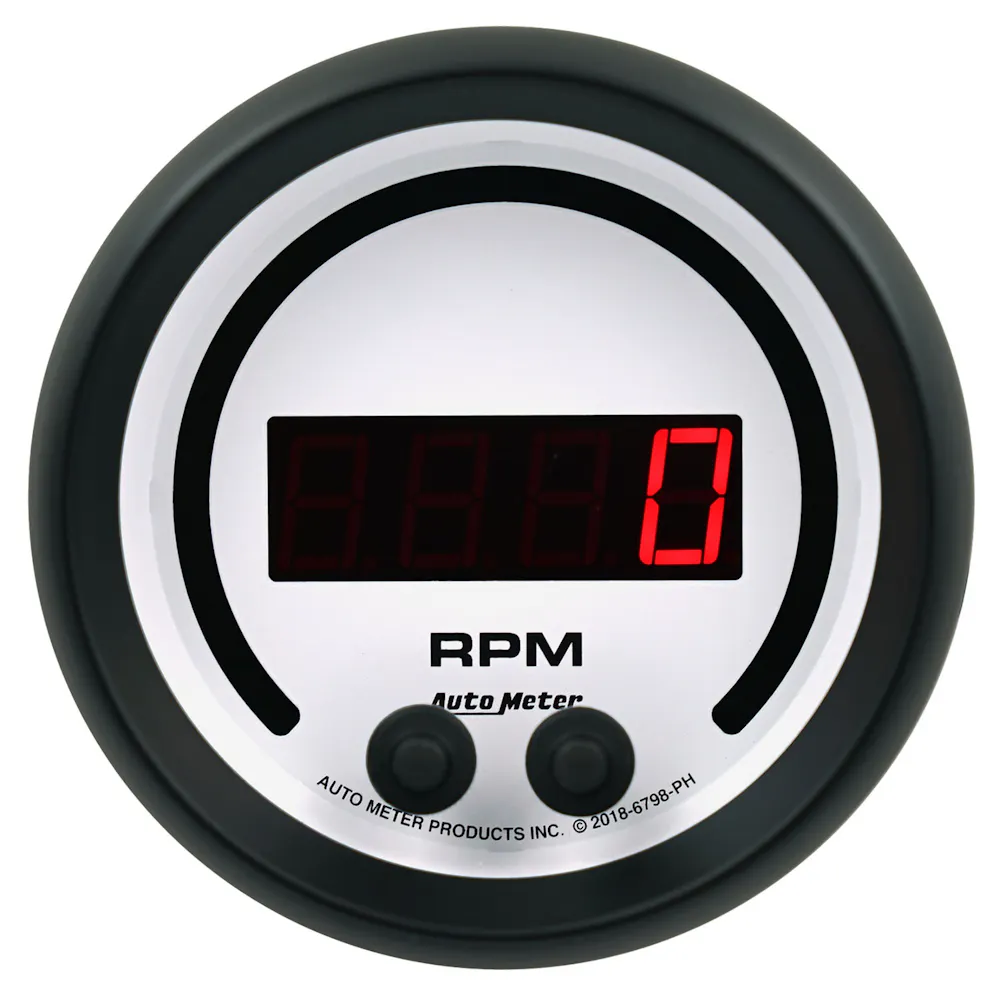

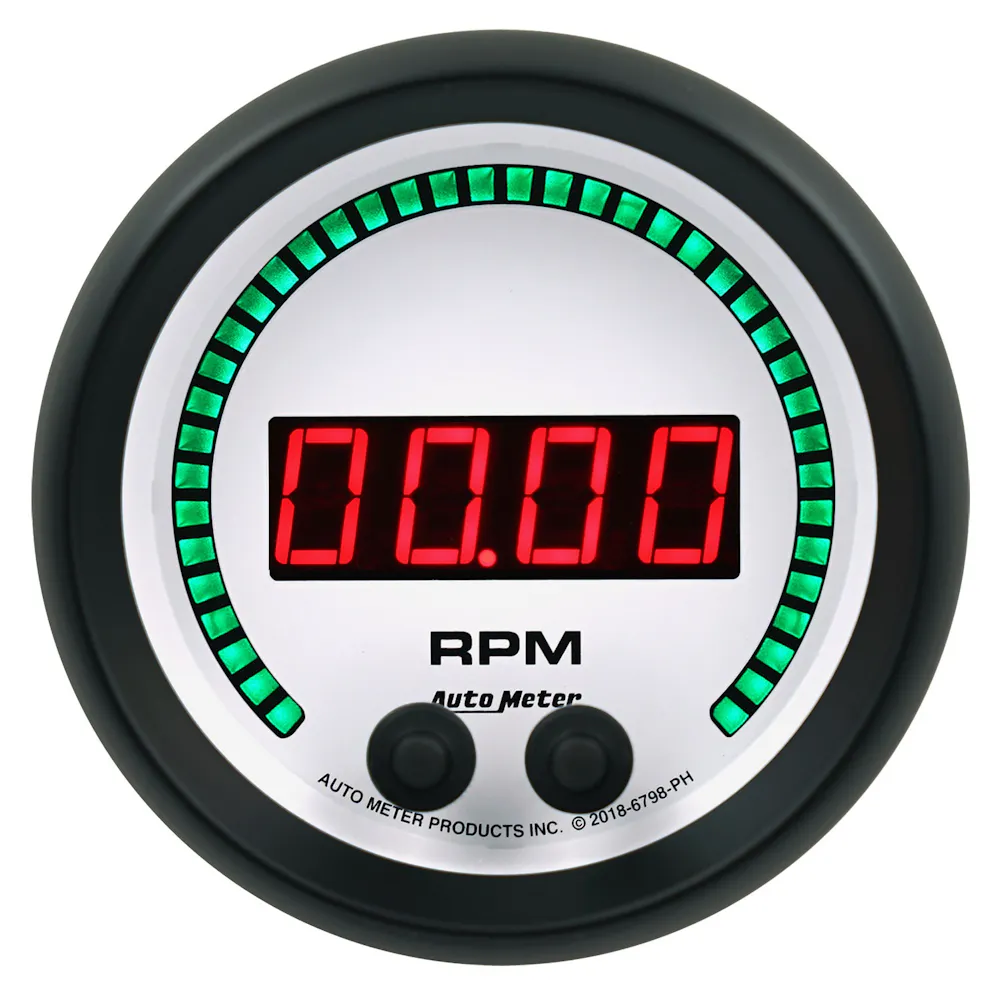

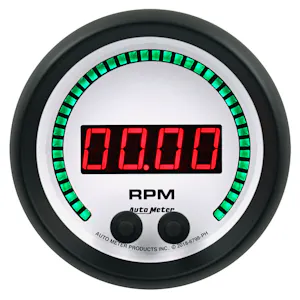

AutoMeter Products / 6798-PH
Part #: 6798-PH
UPC: 046074169410
Loading...
Notify me when this item is in stock.
Description: GAUGE; TACHOMETER; 3 3/8in.; 16K RPM; IN-DASH; PHANTOM ELITE DIGITAL; 3-3/8in. TACHOMETER; 0-16K RPM; IN-DASH; PHANTOM ELITE DIGITAL
Description:
Description
AutoMeter Elite Digital tachometers offer the precision of digital with the visual representation of change typically found in an analog gauge. Matched to AutoMeters most popular gauge designs this product can be easily calibrated for direct connection compatibility with most 1-12 cylinder gasoline engines. 0-16,000 RPM capable. Includes programmable multi-stage external shift light control. Peak RPM memory recall. User adjustable radial display scaling allows for fine tuning of tachometer operating range to match the specific characteristics of your engine.
Features & benefits
- E-Z View Digital LED Display Maximizes Readability
- E-Z View Digital Display Min. Distracting High Speed Digit Change
- 12 And 16 Volt Compatible
- Compatible w/.5-6 Pulse Ignition Signals 1-12 Cylinder Engines
- Incl. Mounting Hardware/Installation Instructions
- Optional External Shift Light Connection
- High Peak RPM Recall Function Avail. For Each Channel
- User Adjustable Radial Display
- Custom Tailor Tach Sweet To Match Powerband/Rev Limit
Specifications
- GTIN
- 00046074169410
- Weight
- 1 lb
- Height
- 7.25 in
- Length
- 5.25 in
- Width
- 6.75 in
- EO
- Legal US
- Life cycle
- Announced
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 18
- Add-On Part
- N/A
- Bezel Color
- Black
- Bezel Style
- Super Bezel
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Face Color
- White
- Gauge Size
- 85.7mm
- Gauge Type
- In-Dash Tachometer
- Hole Size
- 85.7mm
- Lens
- Flat Clear
- Lighting Color
- Red
- Lighting Type
- Digital LED
- Movement Type
- Digital
- Outer Bezel Diameter
- 3.8125 in.
- RPM Range
- 1500-6500
- Shift Light Included
- Yes
Fitment status
This product is universal and will fit your application.
