AutoMeter Products · 6349
Part #: 6349
UPC: 046074063497
Loading...
Notify me when this item is in stock.

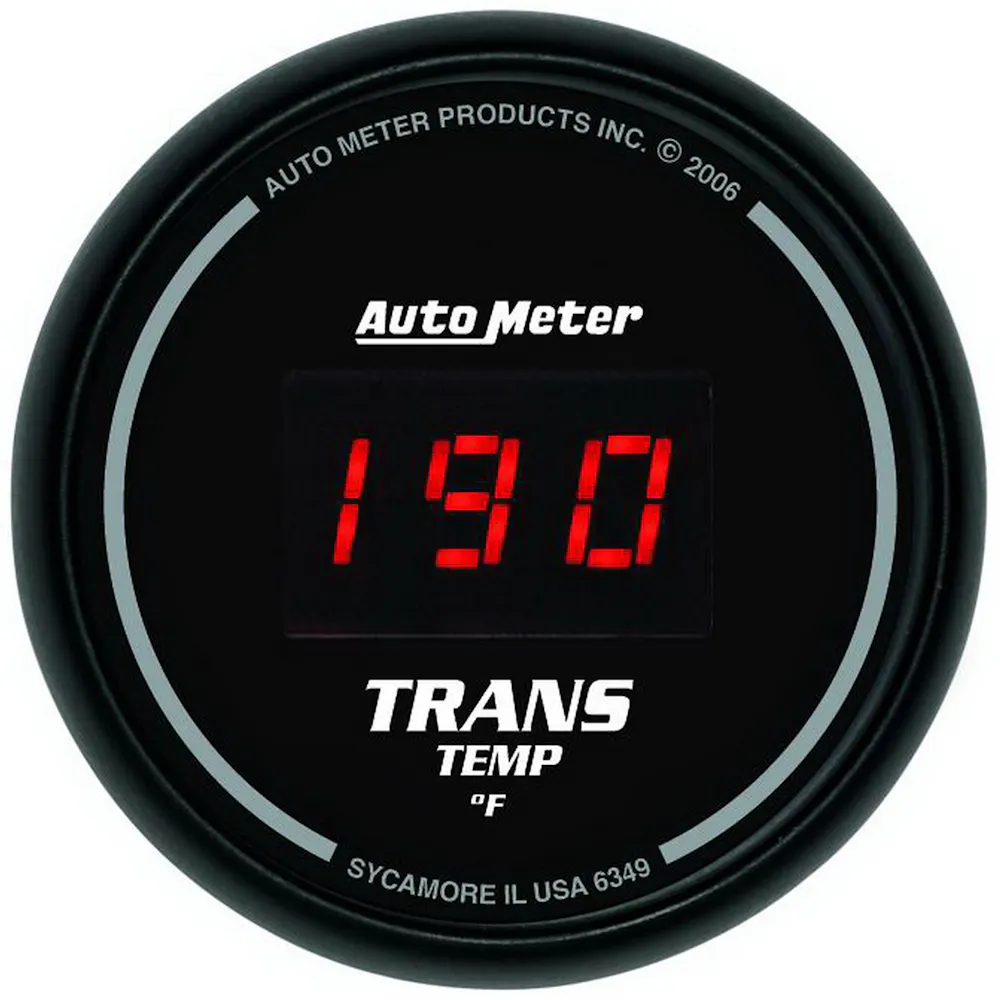

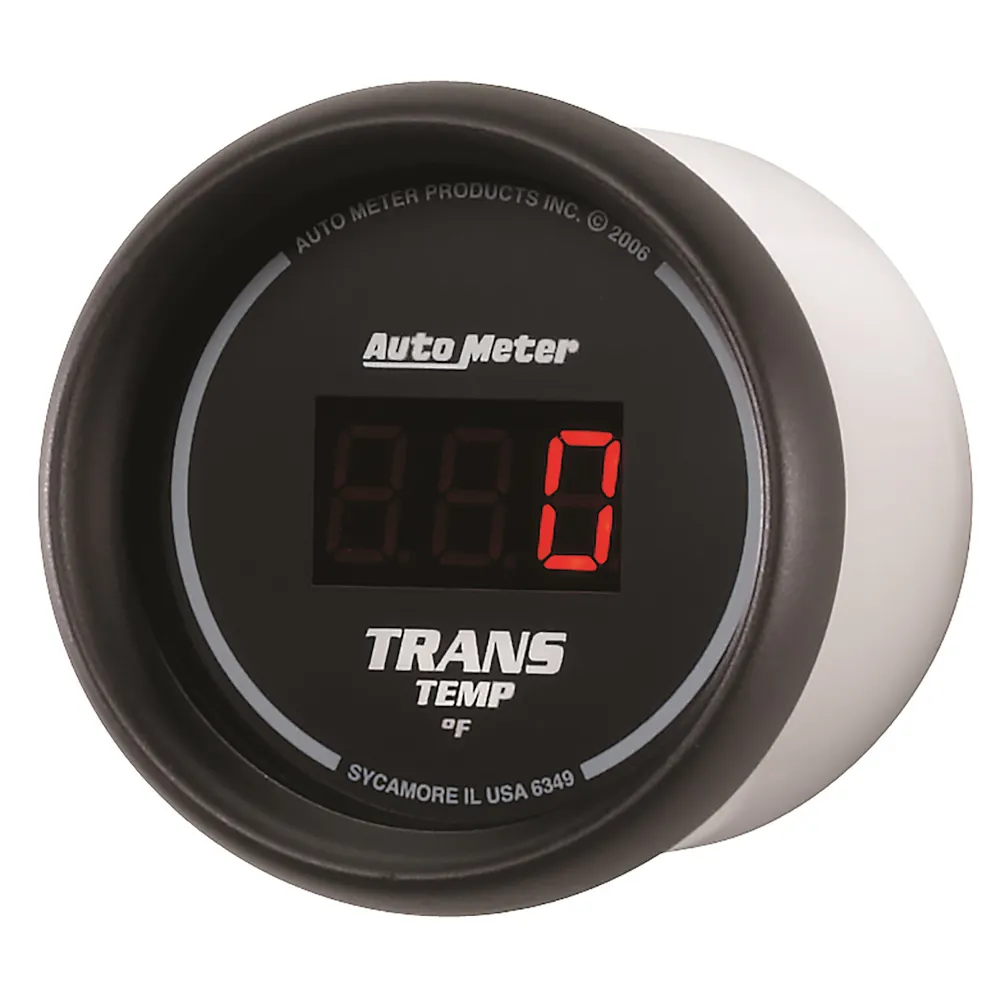

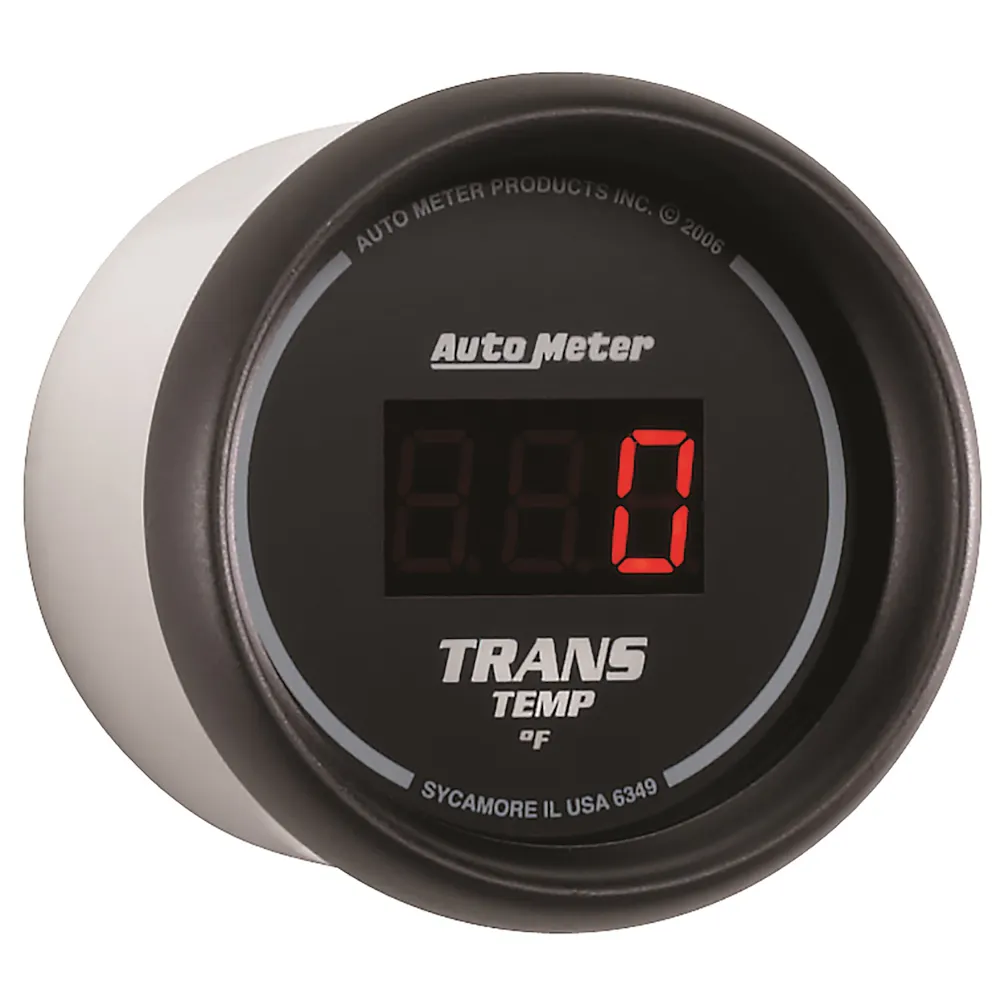

Description: GAUGE; TRANS TEMP; 2 1/16in.; 340deg.F; DIGITAL; BLACK DIAL W/RED LED; 2-1/16in. TRANSMISSION TEMPERATURE; 0-340 deg.F; SPORT-COMP DIGITAL
Description:
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8 in. NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
Features & benefits
- E-Z View Digital LED Display
- 12 And 16V Compatible
- Compatible w/.5-6 Pulse Ignition Signals 1-12 Cylinder Engines
- Optimize Your Engines Power Band
- User-Programmable Shift Light
Specifications
- GTIN
- 00046074063497
- Weight
- 0.65 lb
- Height
- 4.5 in
- Length
- 4.75 in
- Width
- 4.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 24
- Adapters Included
- Yes
- Add-On Part
- N/A
- Analog Or Digital
- Digital
- Anti-Glare Enclosure Included
- No
- Bezel Color
- Black
- Bezel Style
- Super Bezel
- Bulb Technology
- Digital LED
- Bulb Type
- Digital LED
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- Black
- Electric Or Mechanical
- Digital
- Face Color
- Black
- Fitting Type
- 0.375 in. NPT and 0.500 in. NPT
- Fittings Included
- Yes
- Font Color
- White
- Gauge Size
- 52.4mm
- Gauge Size (mm)
- 52.4
- Gauge Type
- Transmission Temperature
- Hole Size
- 52.4mm
- Lens
- Flat Clear
- Lighting Color
- Red
- Lighting Type
- Digital LED
- Measurement
- US
- Mounting Bracket Number
- 2230
- Movement Type
- Digital
- Number Color
- White
- Outer Bezel Diameter
- 2.250 in.
- Pointer Color
- N/A
- Sending Unit Included
- Yes
- Sending Unit Number
- 2252
- Size
- 2.3125 in.
- Size (in.)
- 2-1/16
- Sweep
- Digital
- Temperature
- 0-340° F
- Title
- 2-1/16" TRANSMISSION TEMPERATURE, 0-340 ?F, SPORT-COMP DIGITAL
- Type
- Electrical
- Voltage
- 8-18 V
- Wire Harness Number
- 5226
Fitment status
This product is universal and will fit your application.
