AutoMeter Products / 6021
Part #: 6021
UPC: 046074060212
Loading...
Notify me when this item is in stock.
Description: RACING INSTRUMENT DISPLAY; COLOR LCD; CONFIG; SHIFT/ALARM LIGHTS; DATALOGGING; 8-1/2in.W X 5-1/4in.H X 1-3/8in. D LCD DASH; USER CONFIGURABLE;
Description:
Description

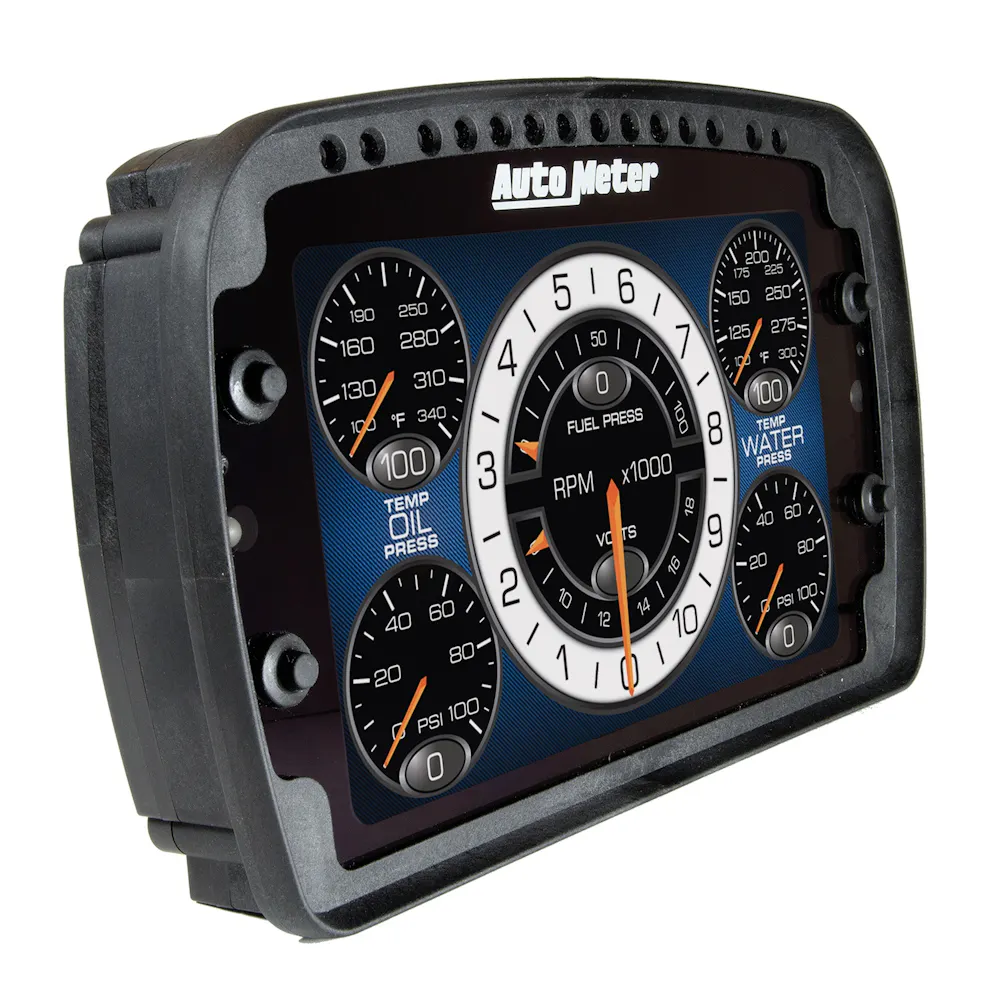

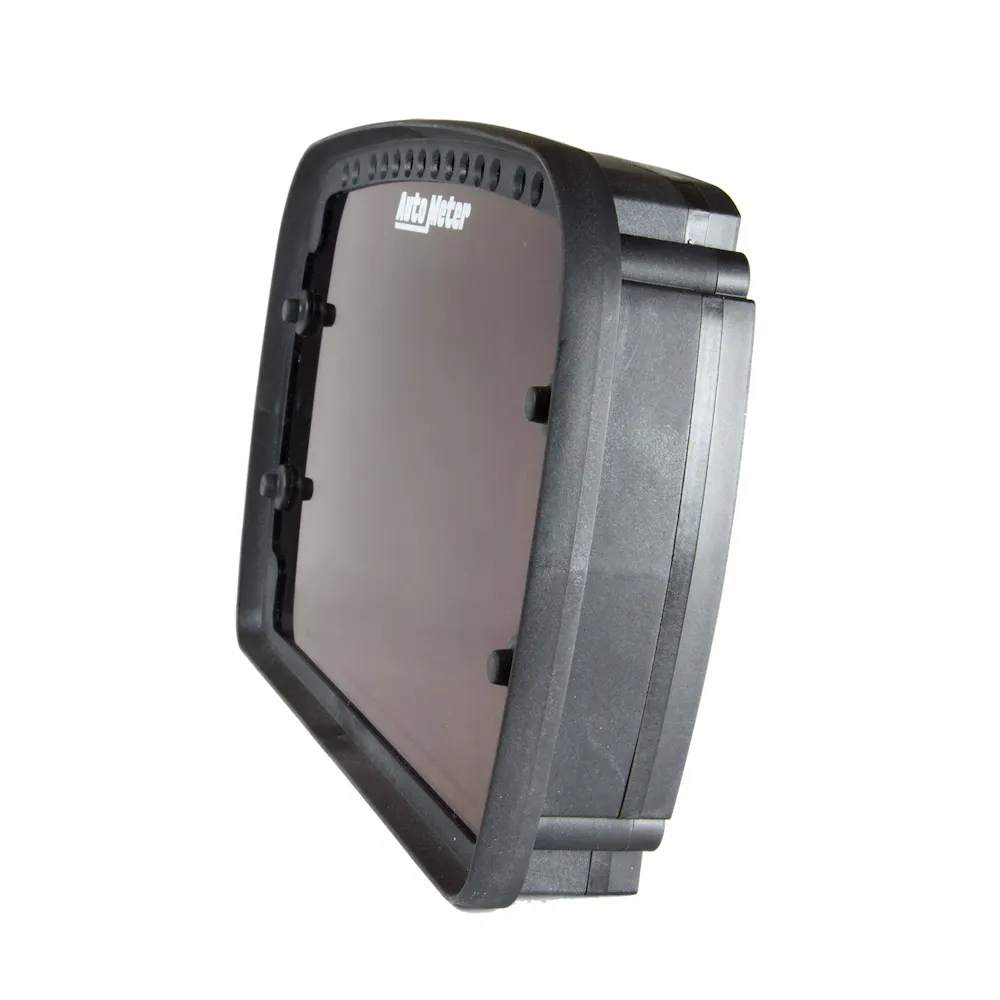

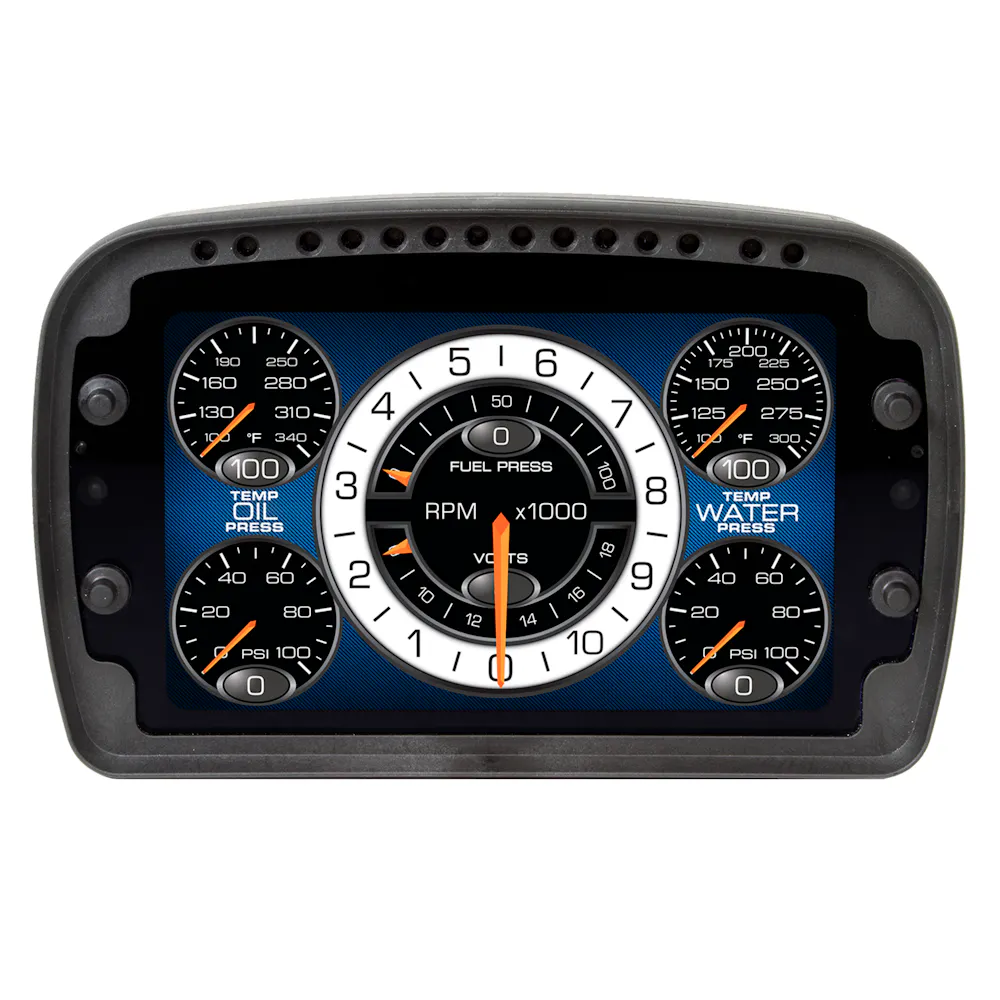

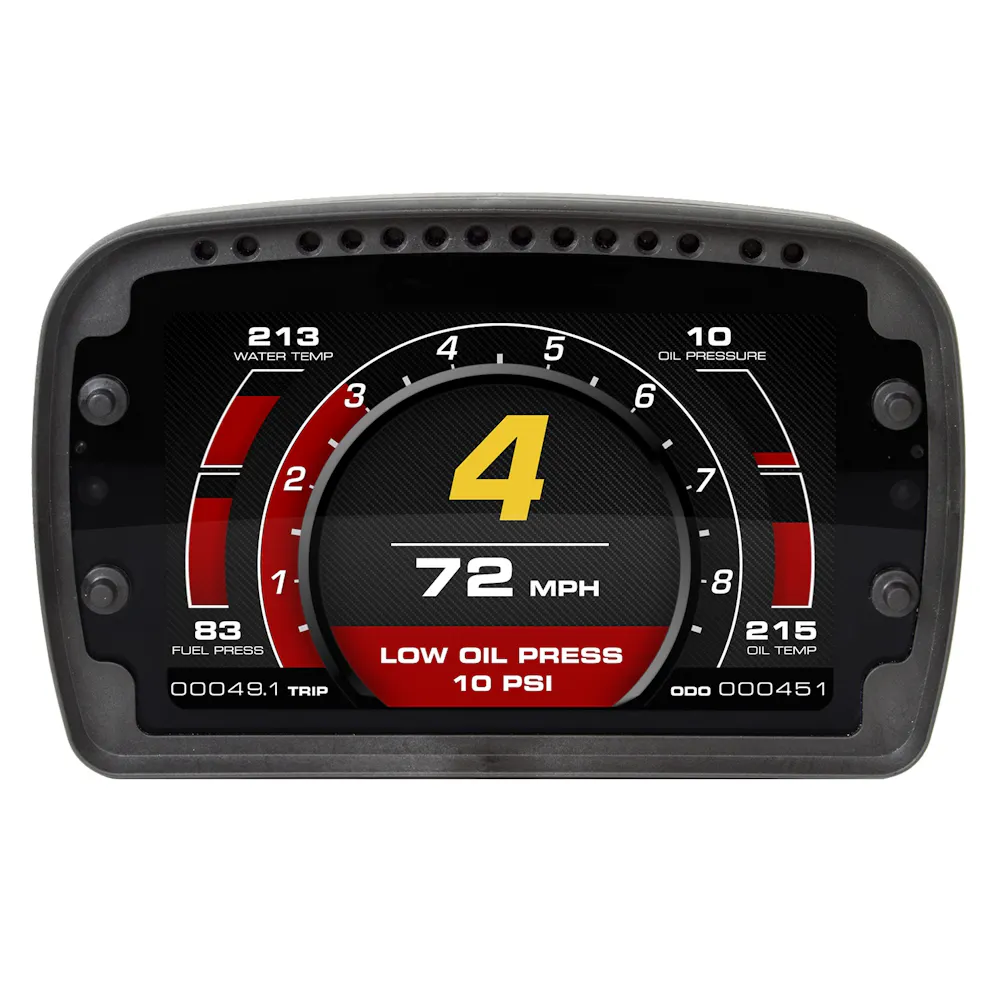

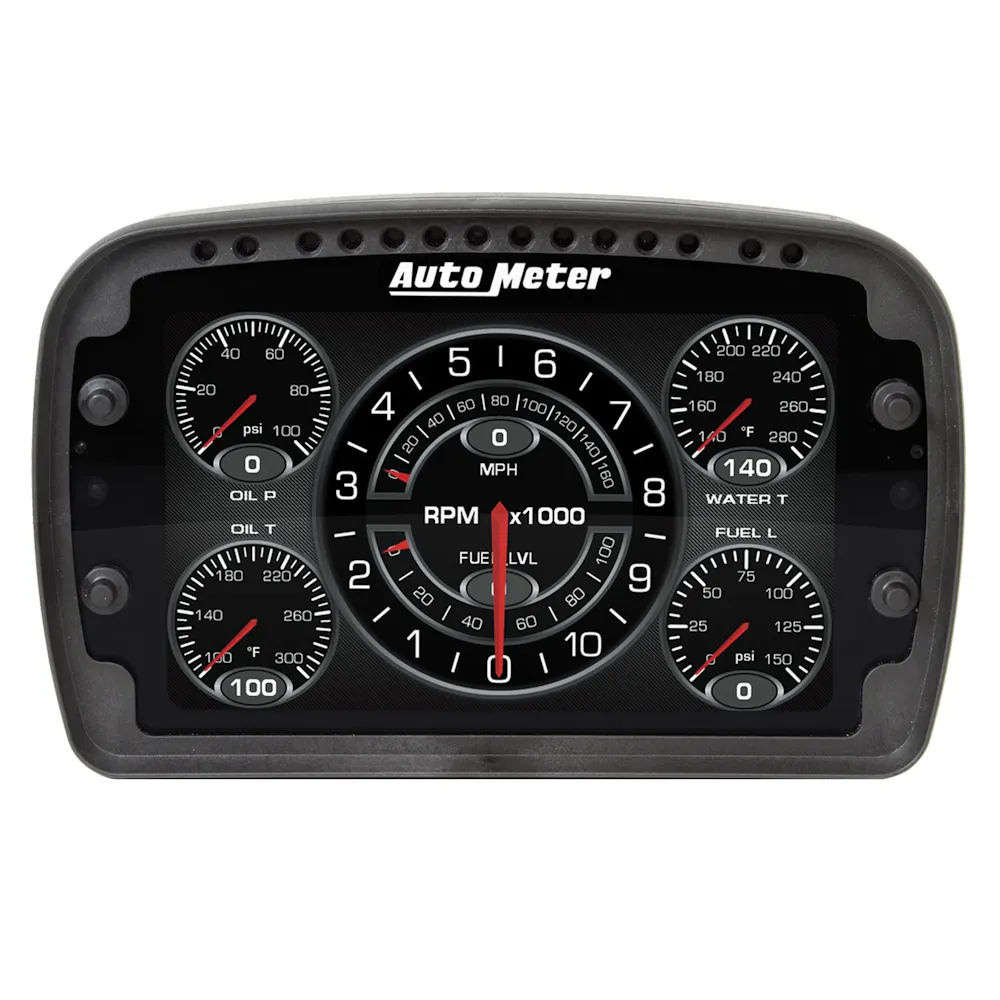

The AutoMeter Competition LCD Display is the next evolution of driver communication and data acquisition. Designed specifically for the harshest of environments, the carbon composite housing is IP65 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. Our 7Ó LCD panel ensures easy visibility under all circumstances with a retina level pixel density, unmatched brightness and an optically bonded lens for extreme glare suppression. The display layout is fully configurable to your individual specifications. The system will accommodate four programmable data bus channels (2 CAN and 2 serial) in conjunction with a nearly limitless amount of discrete analog sensors and its integrated 3 Axis Accelerometer. Data collection can occur at up to 1 kHz and the internal memory allows for practically infinite recording time. User definable warnings take advantage of super bright, multicolor LEDs placed around the perimeter of the chassis to alert the driver to critical onscreen information.
Features & benefits
- Optically Bonded; Super Bright 7 in. Display Provides Unmatched Day And Night Time Visibility
- Includes Powerful DataPro Analysis Software
- 4 GB Onboard Memory; Up To 128 Channels Of Information; Sampling Rates Up To 500HZ w/ Select Channels To 1KHZ
- Dimensions 8.3 in. Wide x 5.2 in. High x 1.4 in. Deep
- Configurable CAN Input For PCM Connections
- Up To 12 Discrete Sensor Inputs w/ Internal 3-Axis Accelerometer And Voltage

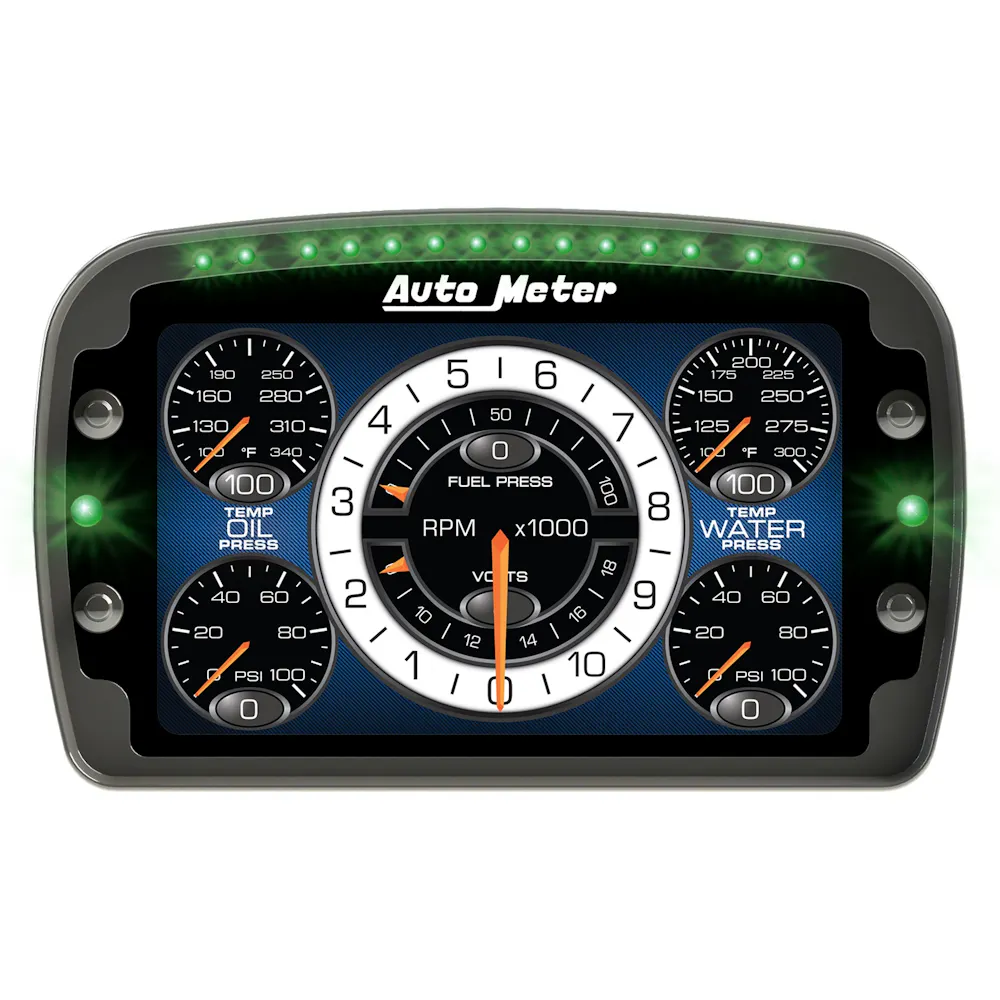

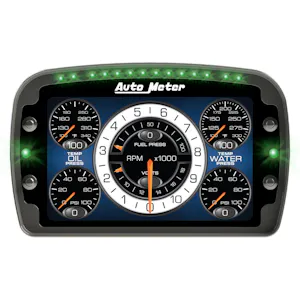

- 16 Configurable Multi-Color LED Indicator Lights Can Be Programmed

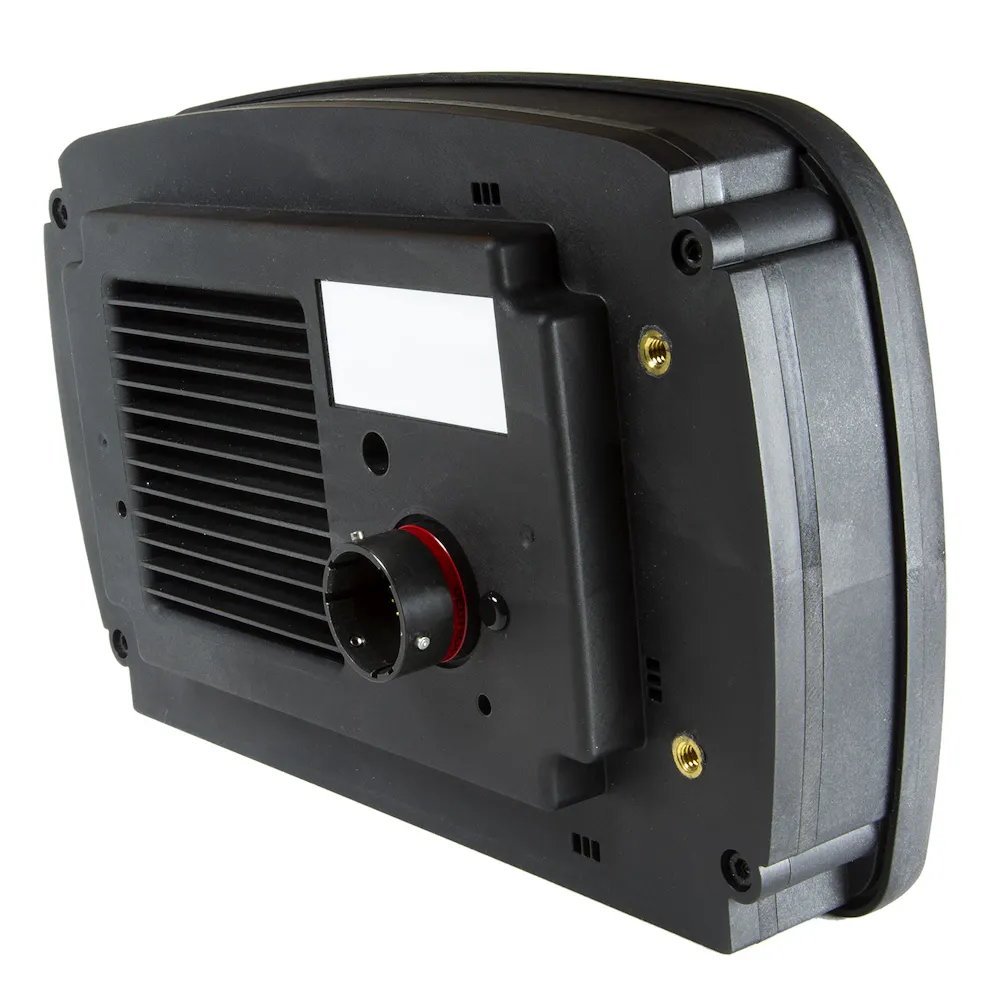

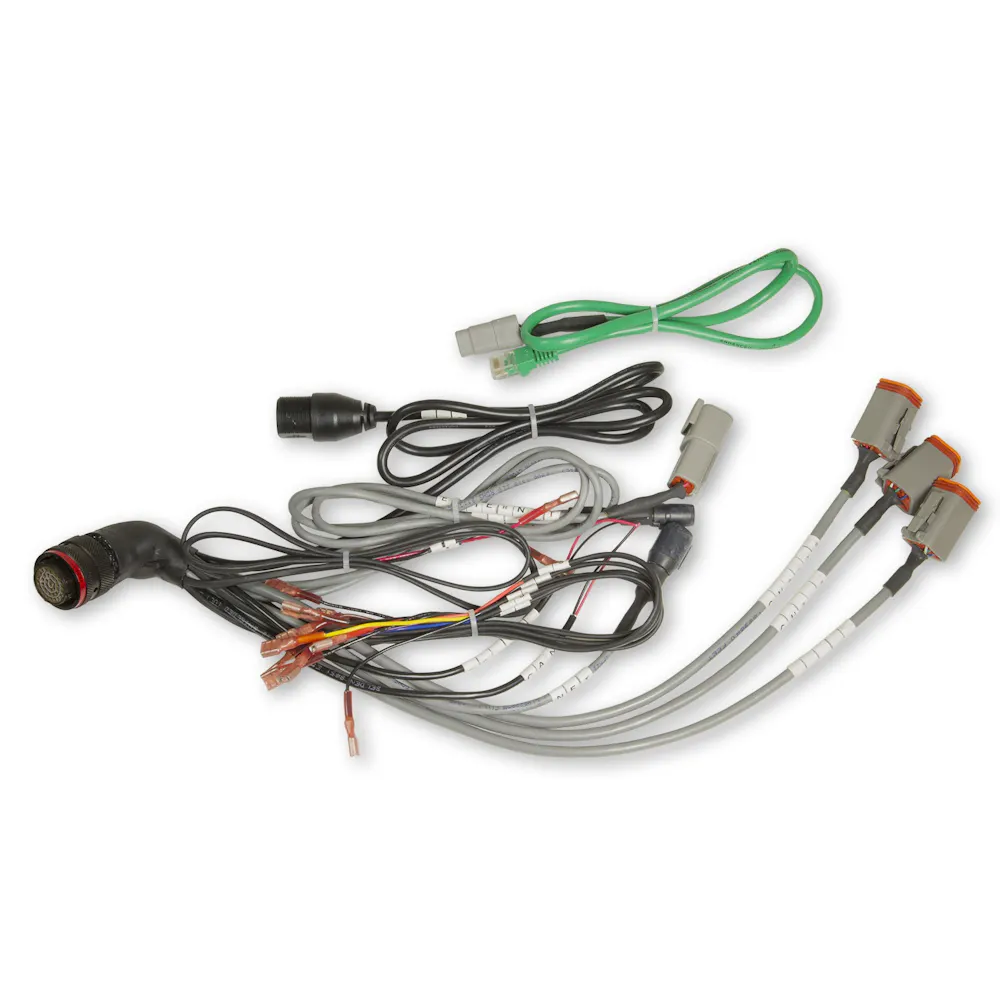

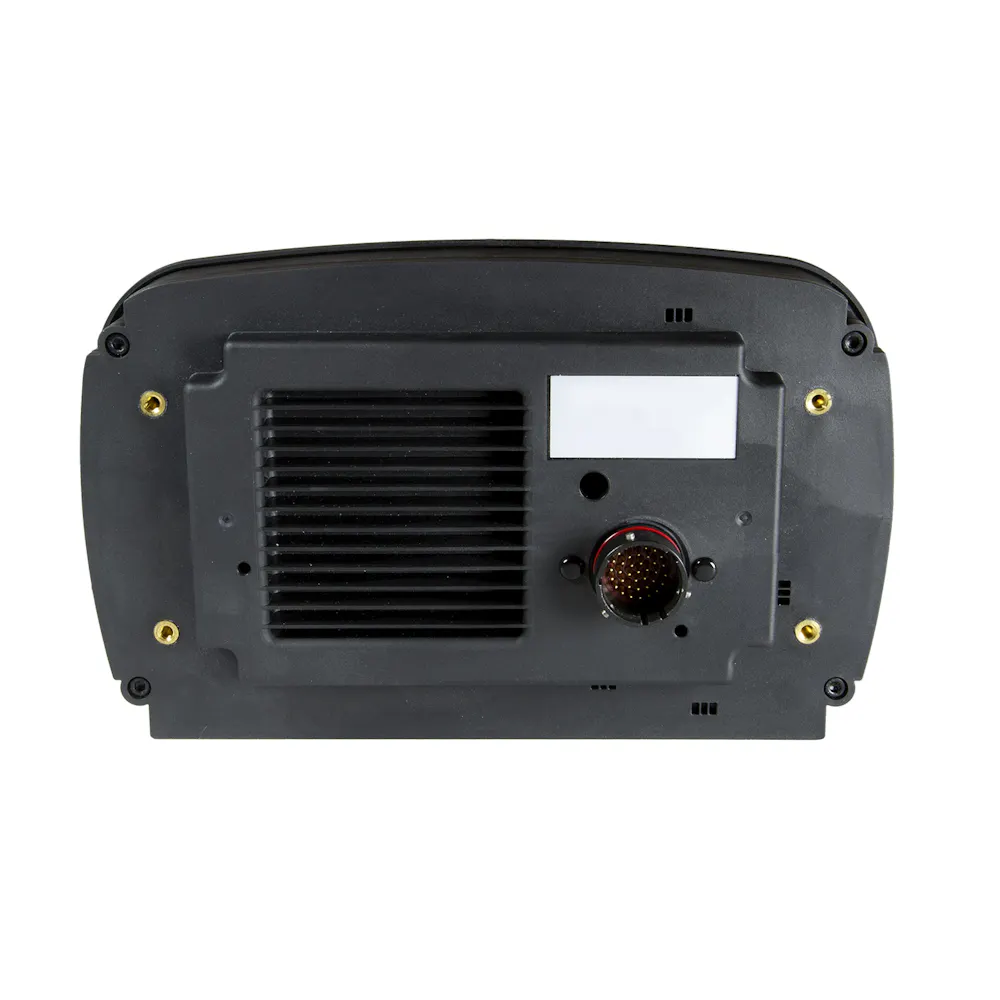

- Single High Density Motorsport Connector And Starter Harness
- Analog/Digital Combination Offers Precision For Both Accurate Values And Rate Of Change
- IP65 Sealed For Protection Against Dust And Moisture
Specifications
- GTIN
- 00046074060212
- Weight
- 3.8 lb
- Height
- 4 in
- Length
- 10 in
- Width
- 13 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- Add-On Part
- N/A
- Bezel Color
- Black
- Bezel Style
- Super Bezel
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Gauge Size
- 8.500 in. W x 5.250 in. H x 1.375 in. D
- Gauge Type
- LCD Dash
- Lens
- Flat Clear
- Lighting Color
- Multi Color LCD display
- Lighting Type
- Digital LED
- Title
- 8-1/2"W X 5-1/4"H X 1-3/8" D LCD DASH, USER CONFIGURABLE,
Fitment status
This product is universal and will fit your application.
