AutoMeter Products / 6011
Part #: 6011
UPC: 046074060113
Loading...
Notify me when this item is in stock.

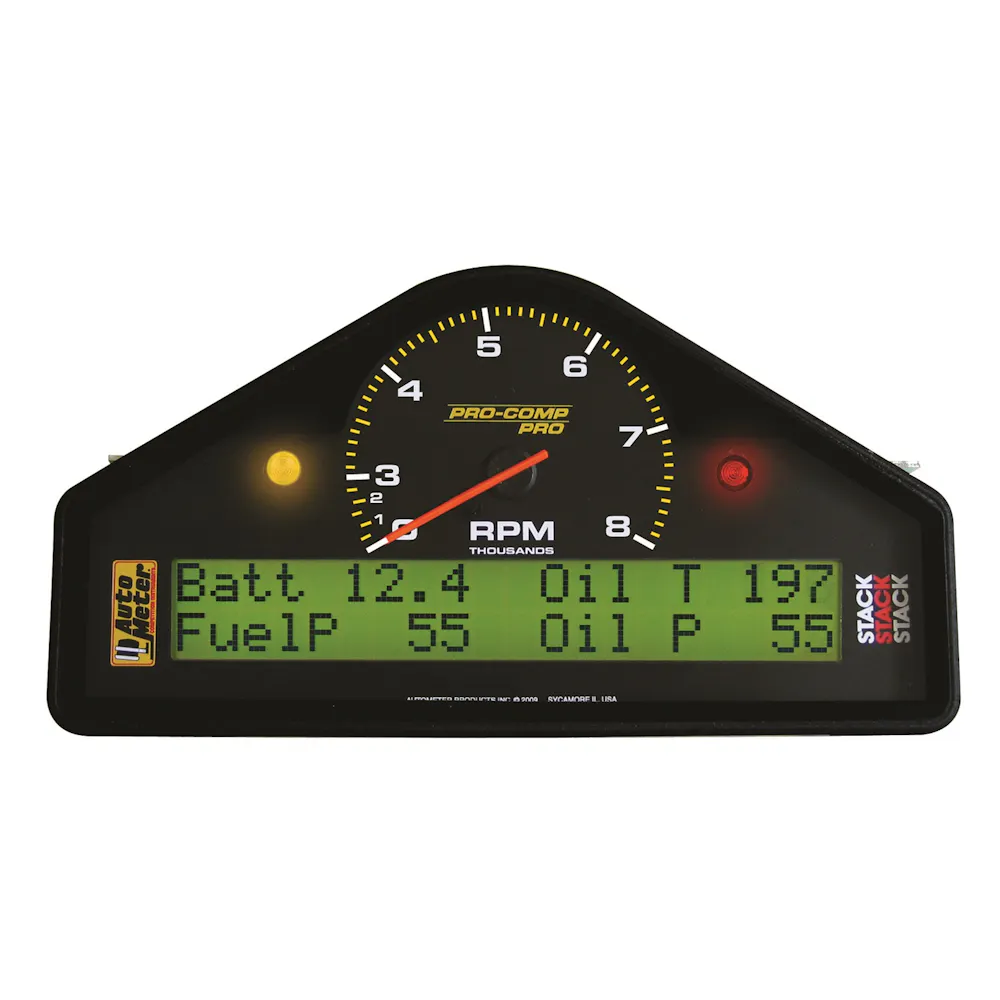

Description: RACE DASH DISPLAY; 8K RPM/MPH/FUELP/OILP/OILT/WTMP/VOLT; PRO-COMP; RACE DASH; 0-8K RPM; PRO-COMP PRO
Description:
Description
The AutoMeter Race display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information. Record and play back your run right on the face of the dash display.
Features & benefits
- Monitors And Displays - RPM; Speed; Oil Pressure; Oil Temperature; Water Temperature; Voltage; Fuel Pressure
- Programmable Speed Input
- IP67 Sealed
- Dimensions 8.3 in. Wide x 5.2-1/16 in. High x 1.4 in. Deep
- Single 19 Pin MIL Spec Connector And Motorsports Wiring Loom
- Includes Oil Pressure; Water Temperature; Oil Temperature And Fuel Pressure Sensors
- Display Features Digital Values For Vehicle Parameters And Configurable Text Warning Messages
- Built-In Warning And Shift Light Leds
- Optional Shift Light Output; Single Stage Or Progressive Shift Light
- Configurable For Engines From 1-12 Cylinders
Specifications
- GTIN
- 00046074060113
- Weight
- 4.05 lb
- Height
- 4 in
- Length
- 10 in
- Width
- 13 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- Adapters Included
- No
- Add-On Part
- N/A
- Bezel Color
- Black
- Bezel Finish
- Black
- Bezel Style
- Stack
- Bracket Included
- Yes
- Bulb Technology
- LED
- Bulb Type
- LED
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- Black
- Face Color
- Black
- Gauge Size
- 7.500 in. W x 4.000 in. H x 1.500 in. D
- Gauge Size (in.)
- 7.5 W x 4 H x 1.5 D
- Gauge Type
- Analog/Digital
- Lens
- Flat Clear
- Lighting Color
- White
- Lighting Type
- LED
- Mounting Bracket Included
- Yes
- Movement Type
- Digital
- Number Color
- White
- Pointer Color
- Fluorescent Red
- Size
- 7.500 in. x 4.000 in. x 1.500 in.
- Size (in.)
- 7.5 W x 4 H x 1-1/2 D
- Sweep (Deg)
- 270
- Title
- RACE DASH, 0-8K RPM, PRO-COMP PRO
Fitment status
This product is universal and will fit your application.
